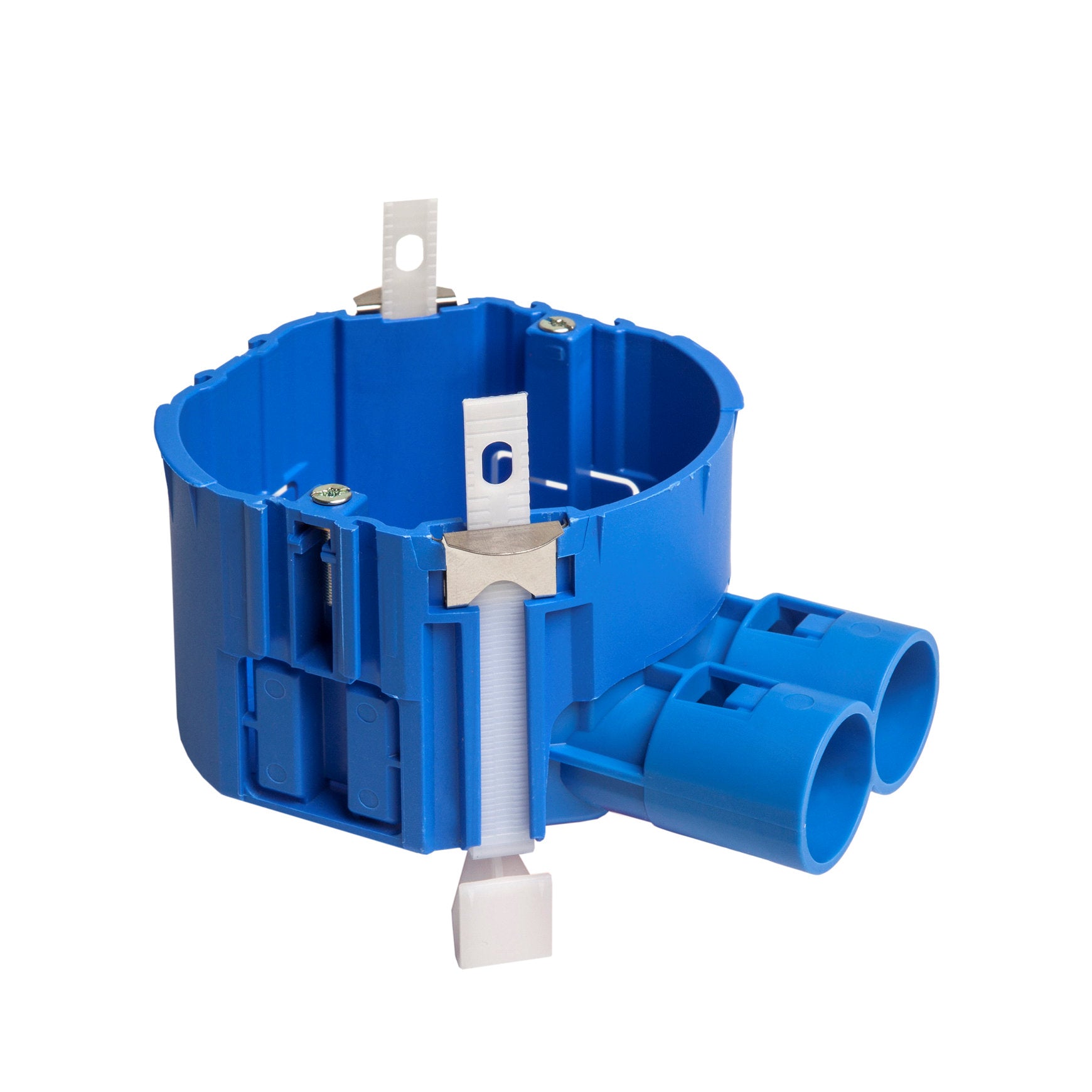

ABB junction box hollow wall, type HW52-F, depth 52 mm, 16 - 19 mm, 2 entries
ABB junction box hollow wall, type HW52-F, depth 52 mm, 16 - 19 mm, 2 entries
SKU:15051578
Regular price
$7.88
Regular price
Sale price
$7.88
Unit price
per
In stock
Pickup available at Wildkamp Bonaire
Order now, pickup in 2 hours during opening times
Specifications
Casing lead-through via breakout opening
yes
Casing lead-through via pipe sleeve
yes
Casing lead-through via sealing membrane
no
Casing leadthrough via breakout opening
yes
Casing leadthrough via pipe sleeve
yes
Casing leadthrough via sealing membrane
no
Connectable
yes
Connection size
16 mm/19 mm
Degree of protection ( ip)
IP00
Degree of protection ip
IP00
Depth
52 mm
Design
flush-mounted box/junction box (round/square)
Diameter
76 mm
Eancode
8712507140982
Equipped with rotating ring
no
For number of flush-mounted inserts
1
For number of flushmounted inserts
1
For tube diameter
16 - 19 mm
Halogen-free
yes
Halogenfree
yes
Internal depth
50 mm
Maintained function
None
Nozzle
Double nozzle
Number of entries
2.0
Number of pipe entries
2.0
Number of spouts supplied
1.0
Pipe lock
yes
Pipe lock optional
yes
Rear input
no
Special application
None
Type
HW52-F
Windproof
no
With screws
yes
