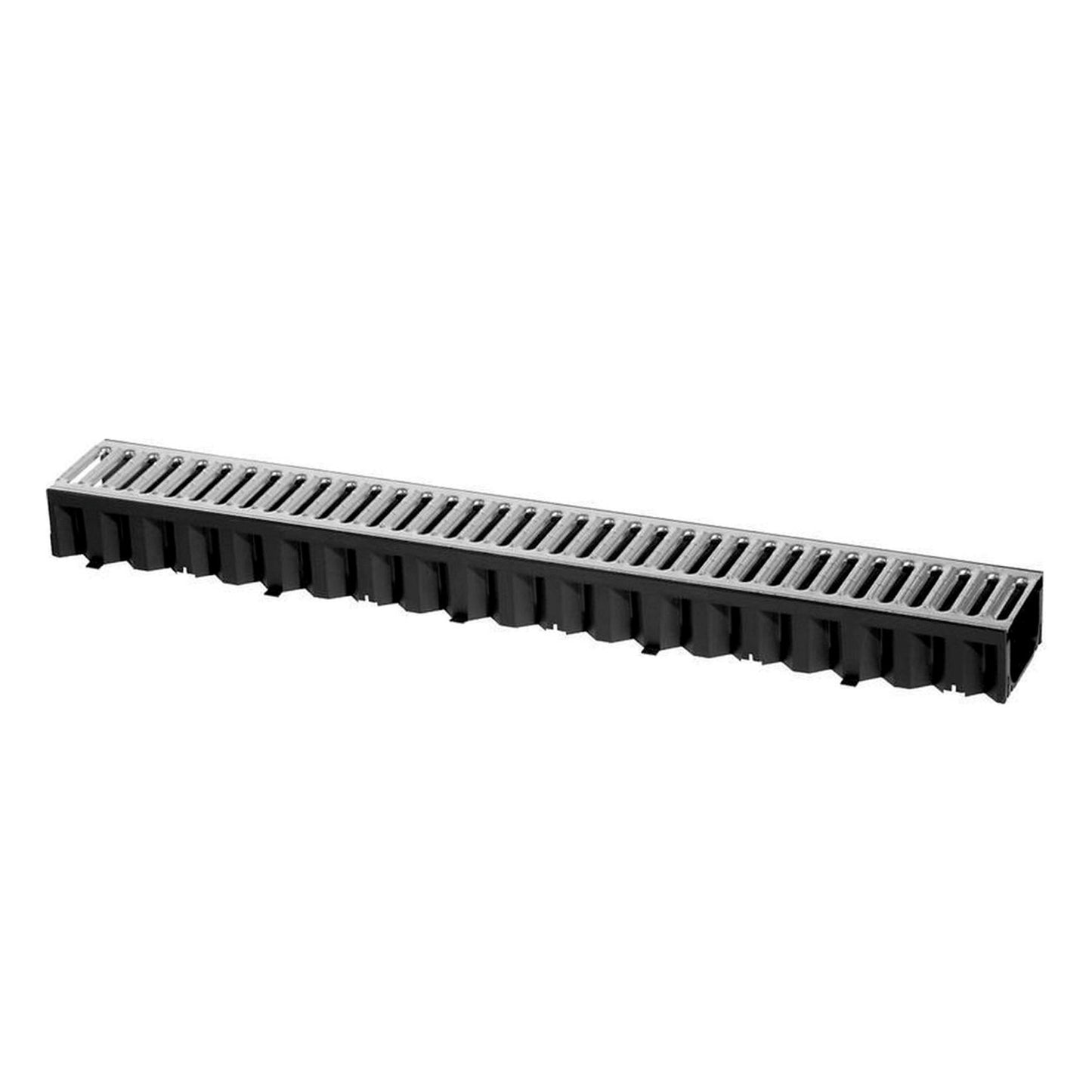

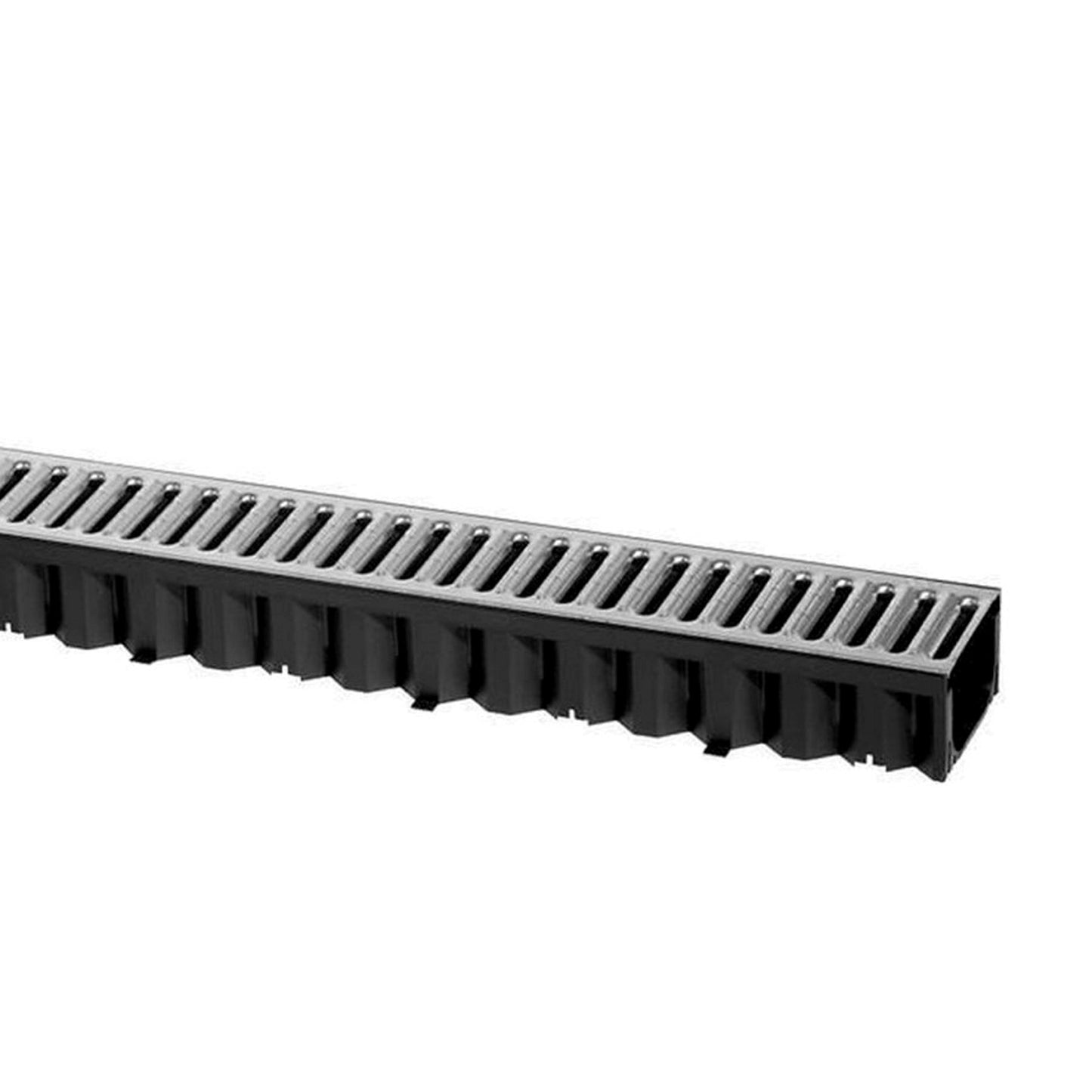

ACO drainage channel, type Hexaline, PE, with galvanized slotted grating, A15, 100 x 12.5 x 8.1 cm

ACO drainage channel, type Hexaline, PE, with galvanized slotted grating, A15, 100 x 12.5 x 8.1 cm

SKU:255208

$41.24
$41.24
Sale Sold out
In stock
View full details

Specifications

Assortments
wca1010131
Class
A15
Complementary products v2
ProductListDrop
Eancode
4002626503220
Height
8.1 cm
Length
100 cm
Load class
15 kN
Material
pe (polyetheen)
Type
Hexaline
Width
12.9 cm

Description

This ACO Hexaline drainage channel is suitable for rainwater inlet and outlet. The ACO Hexaline drainage channel system can be used around the house or in areas with low traffic load.

Advantages of linear drainage

  • No puddle formation on the lawn, border, patio, or driveway.
  • Less pollution and maintenance.
  • Can be combined with infiltration.

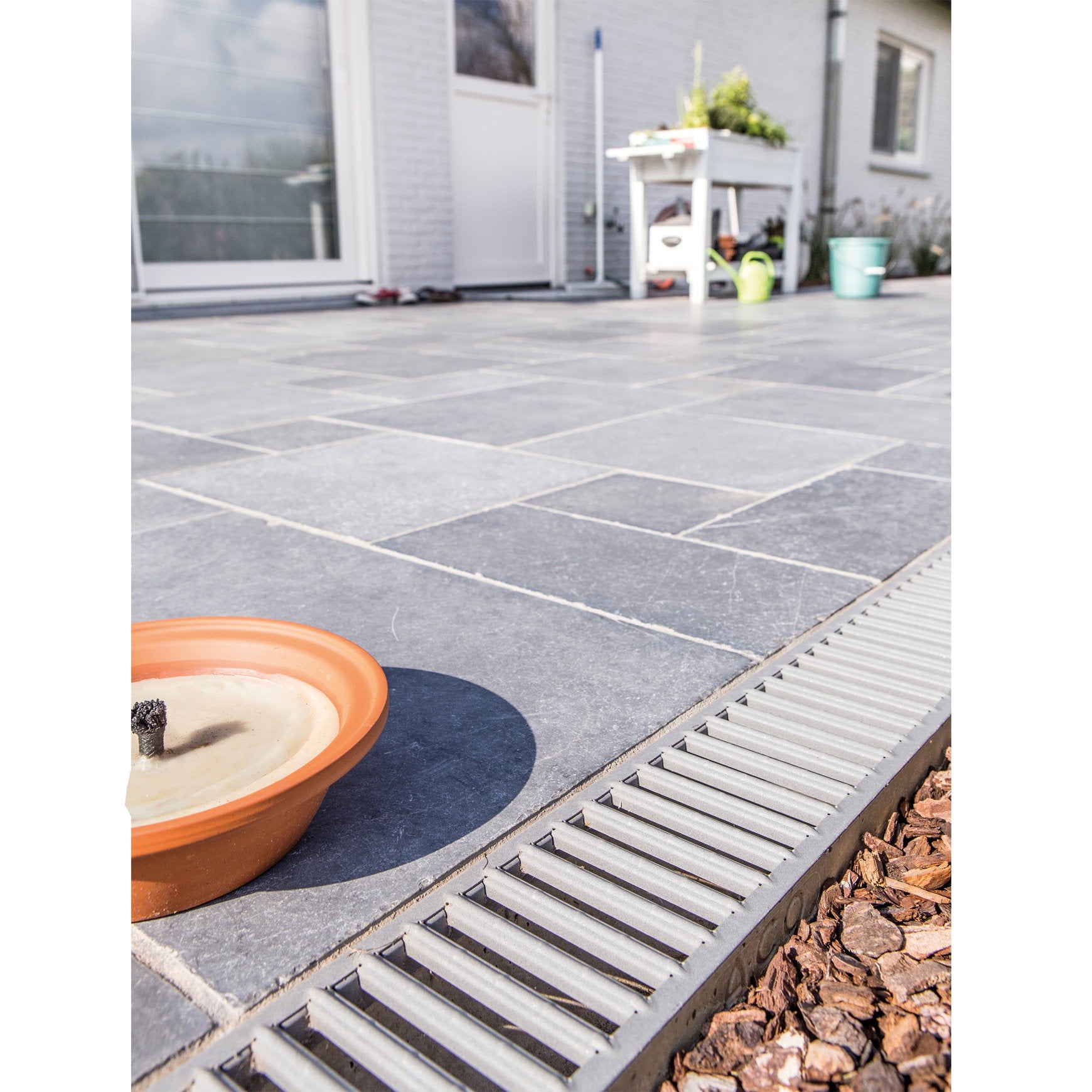

Applications of the ACO Hexaline drainage channels

  • Patios or driveways.
  • In combination with both small and large paving stones.
  • As a separation between patios and lawns or borders.
  • In combination with infiltration systems.
In addition to this drainage channel, the Hexaline range includes various accessories such as:
  • end pieces,
  • sump units,
  • corner elements,
  • slotted grating.

Material

The drainage channel is made of PE (polyethylene) with galvanized steel slotted grating.

Load class

This drainage system is suitable for load class A-15 kN, and is commonly used in pedestrian and bicycle paths, schoolyards and verges and gardens.

Installation

With these Hexaline channel drains you can choose between a side outlet or a bottom outlet. The channel drain has knockouts on the bottom, which can be easily punched out, allowing a bottom outlet to be connected. The drain can be connected to a sewer pipe, a ditch, or an infiltration system.

For a string length of more than 5 metres with a side outlet or more than 8 metres with a bottom outlet, it is recommended to install at least one additional outlet.

The grate can be attached without screws, making it easy to remove for cleaning or inspection.
