ACO drainage channel, type Slimline, PVC, incl. aluminium design grating, A15, 100 x 6.1 x 10 cm
ACO drainage channel, type Slimline, PVC, incl. aluminium design grating, A15, 100 x 6.1 x 10 cm
SKU:15458282
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Class
A15
Eancode
8718347910396
Height
10 cm
Length
10 cm
Load class
15 kN
Material
pvc (polyvinyl chloride)
Pid owner seller id jarola master repository
Jarola
Pid value seller id jarola master repository
15458282
Type
Slimline
Width
6.1 cm
Description
This ACO Slimline drainage channel is suitable for rainwater inlet and outlet. The ACO Slimline drainage channel system kan be used around the house or in areas with low traffic load.
These Slimline channel drains are extra narrow with a width of 6 cm, featuring a sleek and modern design.
The Slimline drainage channels can easily be connected to each other with a coupling piece or used to install an angle in the linear drainage system. These accessories can easily be clicked onto the drainage channel and can then be slid into place at any desired location. The drain can be connected to a sewer, a ditch, or an infiltration system.
For a string length of more than 5 meters with a side outlet or more than 6 meters with a bottom outlet, it is recommended to install at least one additional outlet.
The grate can be attached without screws, making it easy to remove for cleaning or inspection.
These Slimline channel drains are extra narrow with a width of 6 cm, featuring a sleek and modern design.
Advantages of drainage channels
- No puddle formation on the lawn, border, patio, or driveway.
- Less pollution and maintenance.
- Can be combined with infiltration.
Applications of the ACO Slimline drainage channels

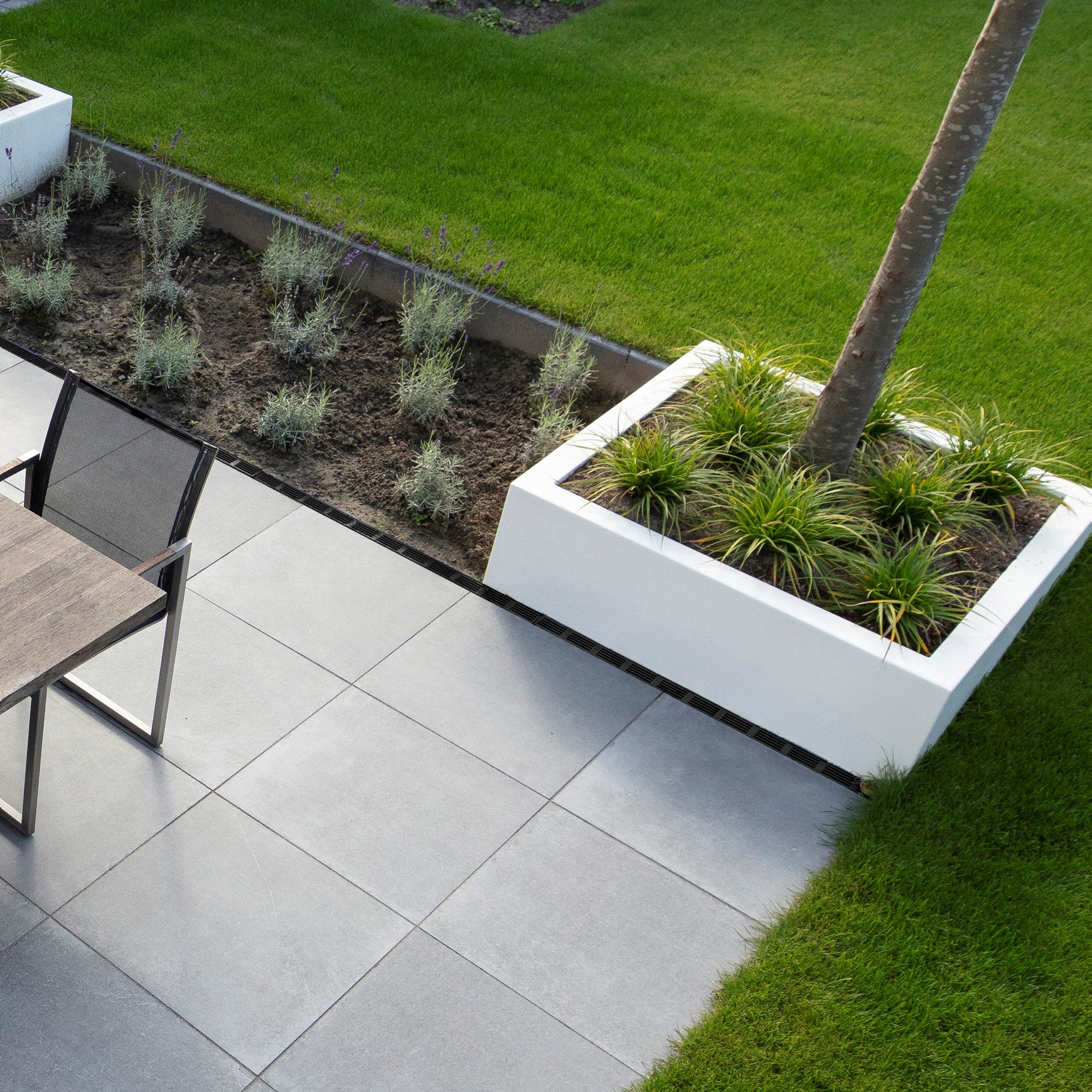

- For terraces or around the house.
- In combination with both small and large paving stones.
- As a separation between patios and lawns or borders.
- In combination with infiltration systems, such as the "Rainbloxx" system.
- end pieces,
- couplings,
- corner elements,
- grates.
Material

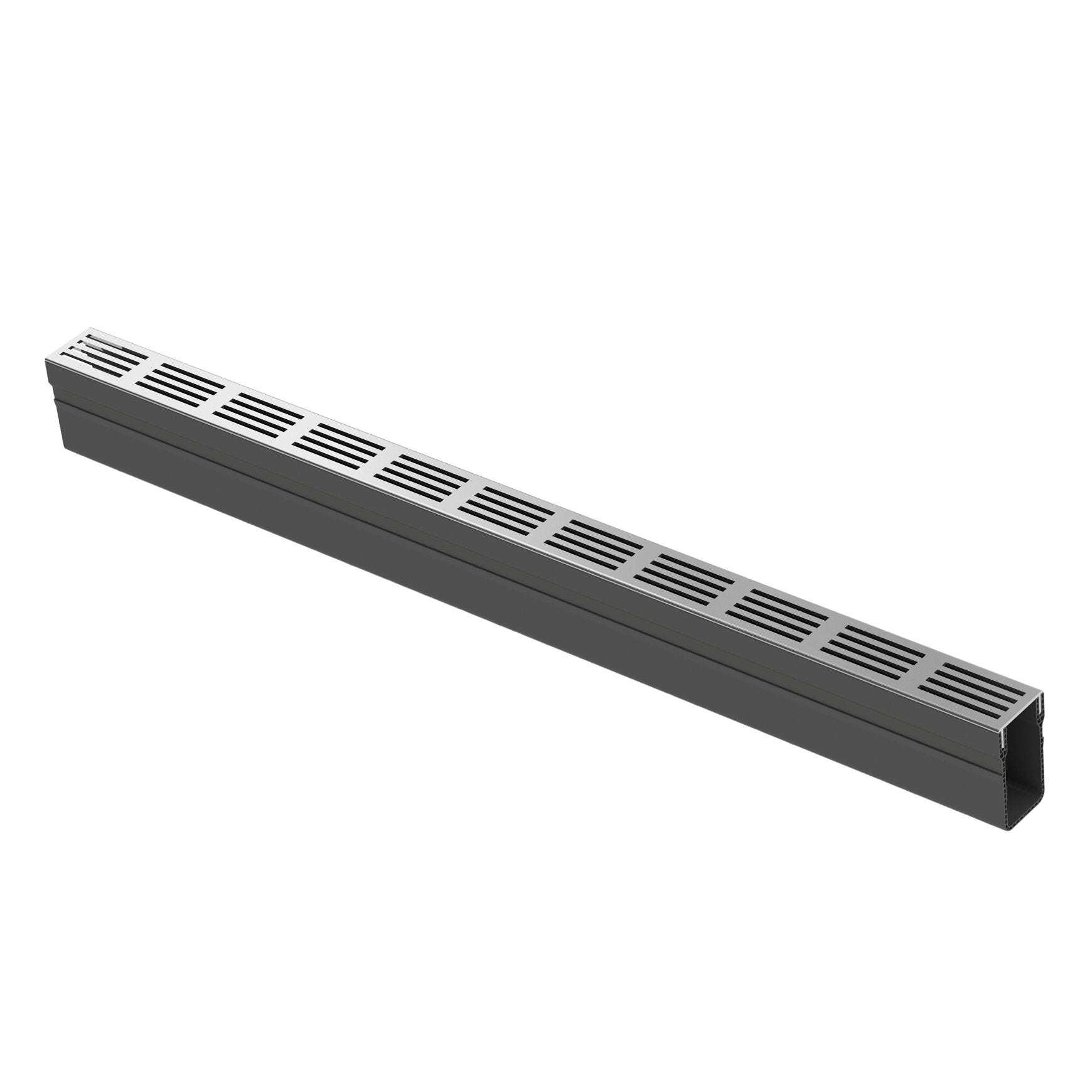

The drainage channel is made of PVC (polyvinyl chloride) with an aluminium design grate.Load class
This drainage system is suitable for load class A-15 kN, and is commonly used in pedestrian and bicycle paths, schoolyards and verges and gardens.Assembly
With these Slimline drainage channels you can choose between a side outlet or a bottom outlet. A hole can be drilled at the bottom of the channel with a 45 mm hole saw.The Slimline drainage channels can easily be connected to each other with a coupling piece or used to install an angle in the linear drainage system. These accessories can easily be clicked onto the drainage channel and can then be slid into place at any desired location. The drain can be connected to a sewer, a ditch, or an infiltration system.
For a string length of more than 5 meters with a side outlet or more than 6 meters with a bottom outlet, it is recommended to install at least one additional outlet.
The grate can be attached without screws, making it easy to remove for cleaning or inspection.
Want to buy a ACO Slimline drainage channel or need more information?
The desired ACO Slimline drainage channel can be ordered easily and quickly via our website or purchased in one of our branches. Are you not yet sure what the optimal drainage channel is for your situation? Contact one of our specialists for non-binding advice.
