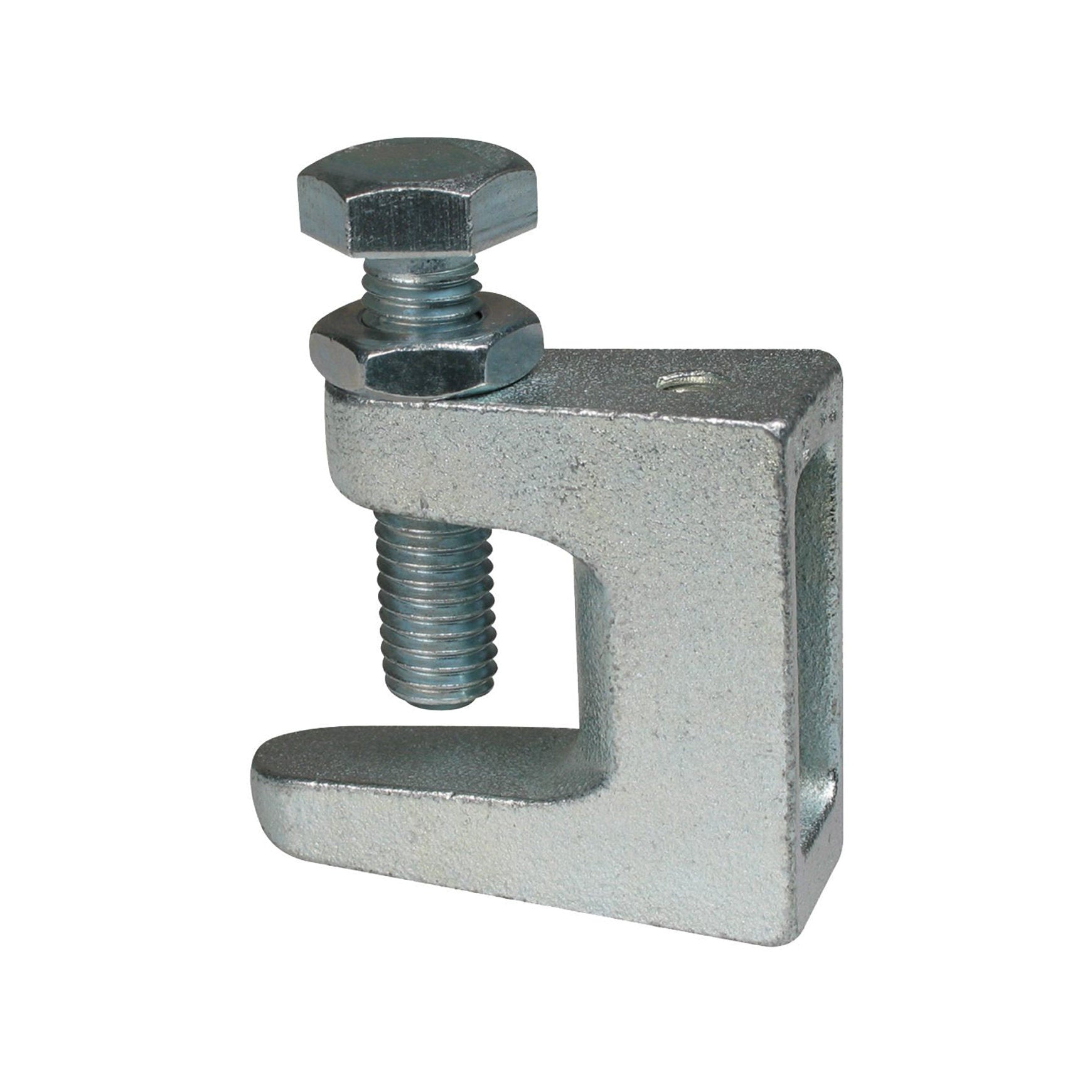

Walraven BIS beam clamp, model C, steel, vds, M10 x 20 mm
Walraven BIS beam clamp, model C, steel, vds, M10 x 20 mm
SKU:262082
Regular price
$8.33
Regular price
Sale price
$8.33
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Adjusting bolt
M10
Carrying capacity
250 kg
Connection size
M10
Diameter
M10
Eancode
8712993006960
Flange thickness max
20 mm
Flange thickness max.
20 mm
Material
cast iron, electrolytically galvanized
Description
- For a solid attachment to steel structures without drilling or welding.
- According to VdS regulations, beam clamps for attaching sprinkler pipes larger than DN65 must be secured with a safety strip to prevent lateral slipping.
- Bolt with hexagonal head according to DIN 933 strength class 8.8, screw point with ring cut according to EN ISO 4753 and counter nut.
- Material: beam clamp made of cast iron; bolt made of hardened steel, nut made of steel; electroplated zinc.
