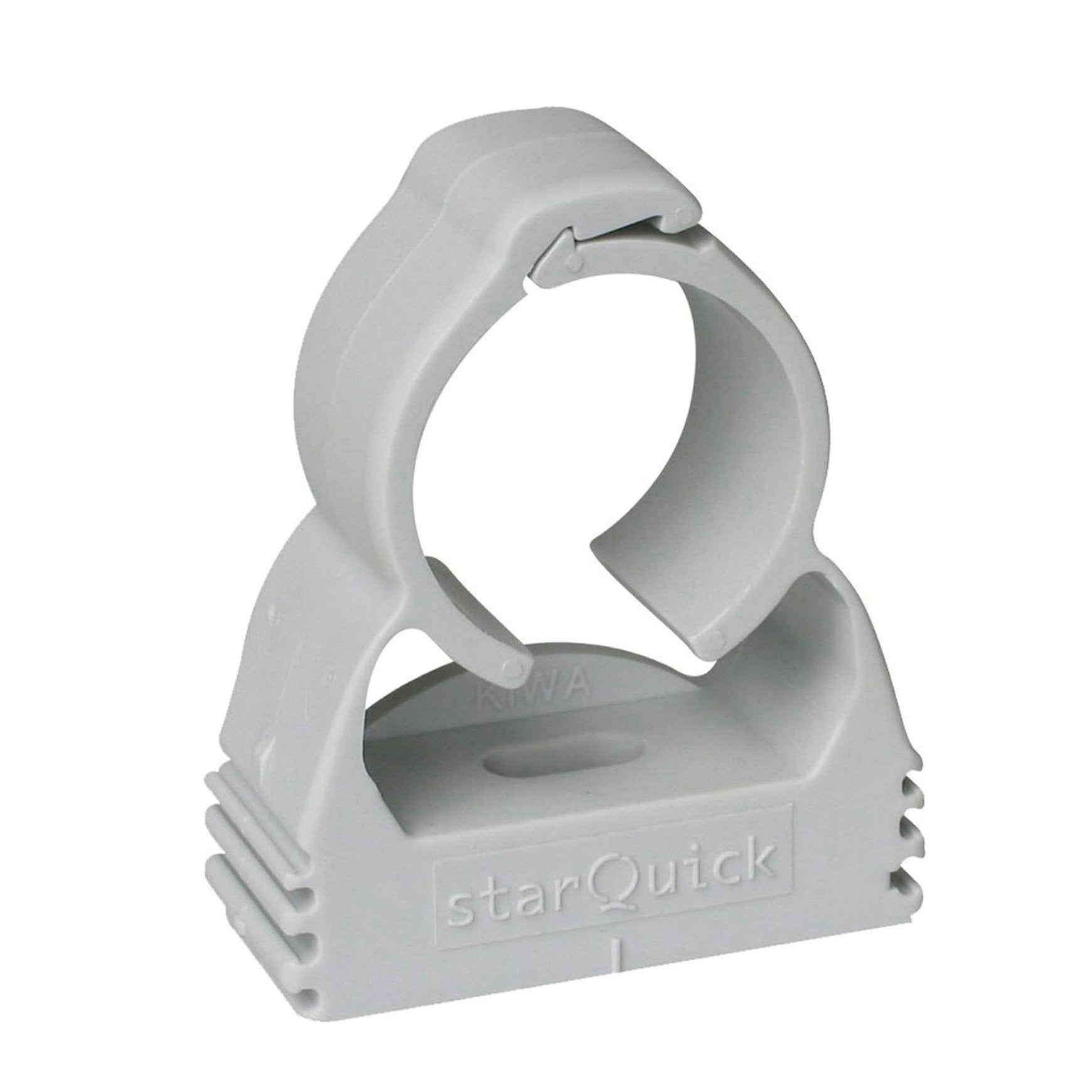

Walraven starQuick pipe clamp, grey, 20 - 23 mm
Walraven starQuick pipe clamp, grey, 20 - 23 mm
SKU:265372
Regular price
$1.40
Regular price
Sale price
$1.40
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Application
metal pipe, plastic pipe
Assortments
wca3010142
Complementary products v2
ProductListDrop
Connection size
20 - 23 mm
Eancode
8712993267613
Material
nylon (polyamide / pa)
Maximum clamping range
23 mm
Minimum clamping range
20 mm
Ral
7035
Temp. resistance
approx. -40°C to 90°C (briefly: up to approx. 130°C)
Temp resistance
approx. -40°C to 90°C (briefly: up to approx. 130°C)
Description
This Walrave starQuick is suitable for securing pipes in electrical and mechanical installations to walls, floors or ceilings.
The bracket is also suitable for outdoor applications and installations in swimming pools, chemical plants, galvanising plants, etc.
The bracket is also suitable for outdoor applications and installations in swimming pools, chemical plants, galvanising plants, etc.

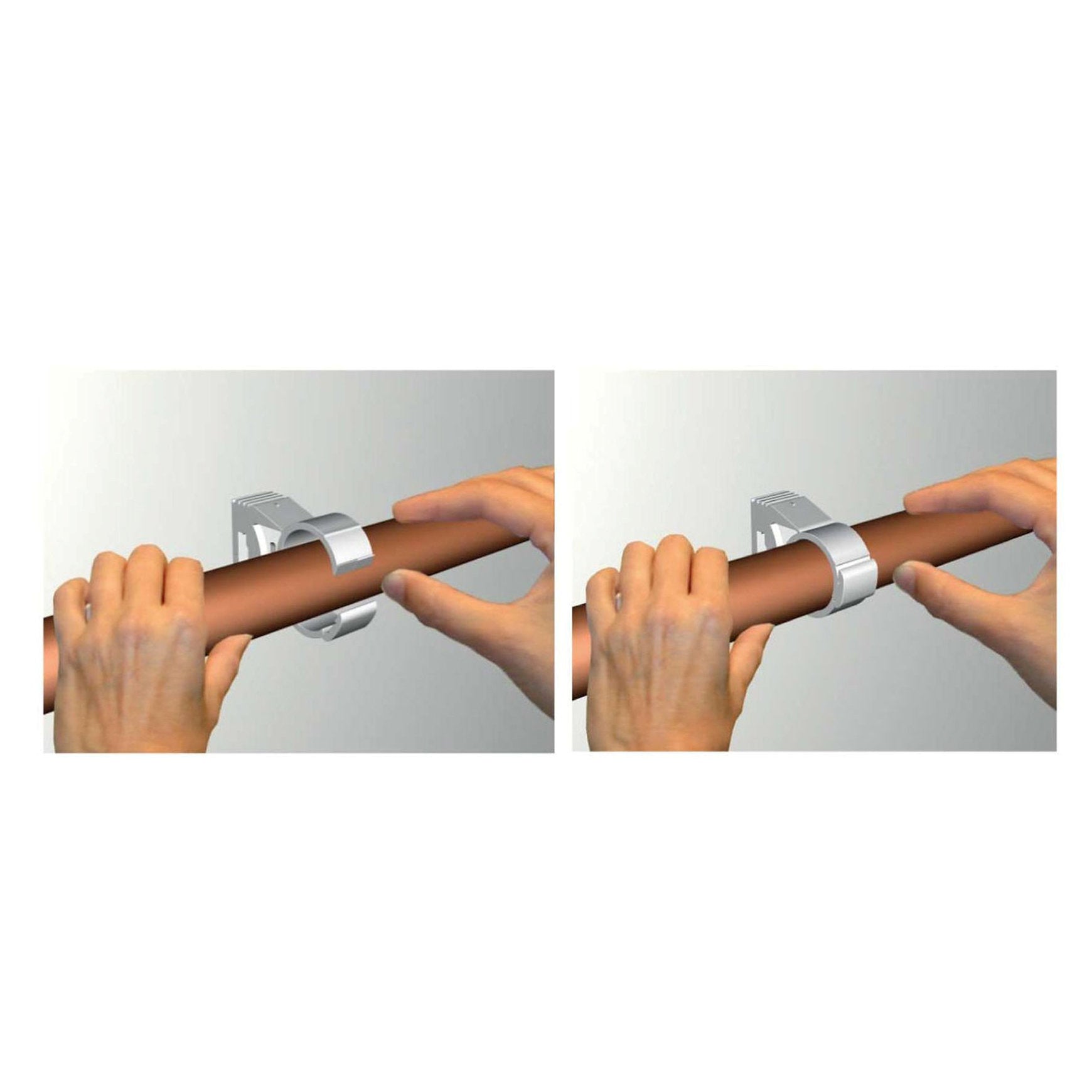

The one-piece bracket closes by pressing the pipe into it. The patented coupling profile allows two or more brackets, with a diameter of up to 28–32 mm, to be connected to each other.
Properties
Resistant to UV, ageing, oil and petrol.
Corrosion-free, recyclable and halogen-free.
Do you want to buy a Walraven pipe bracket or need more information?
The desired pipe clamp can be ordered easily and quickly via our website or purchased in one of our branches. Are you not yet sure which bracket would be best for your situation? Contact one of our product specialists for advice without obligation.
