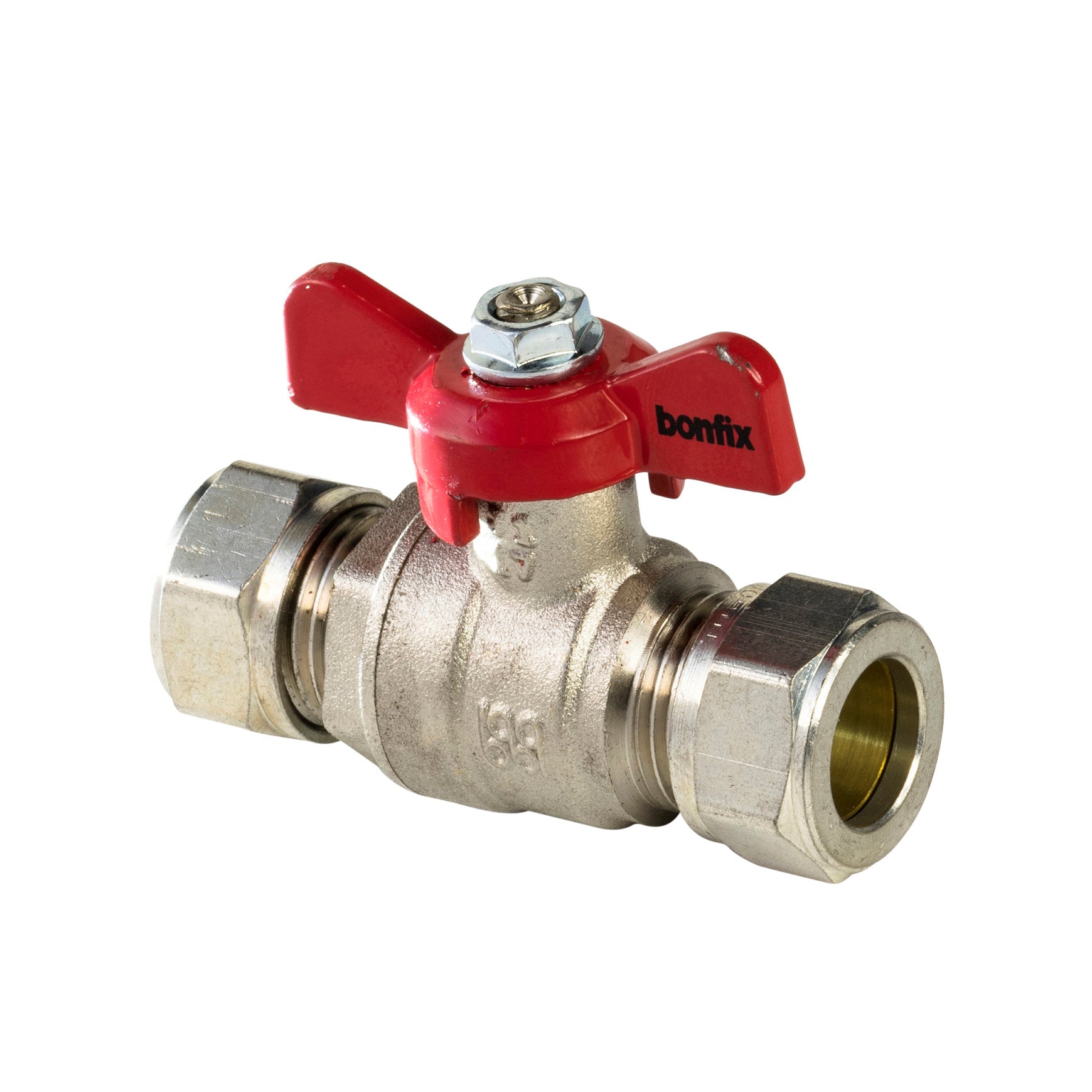

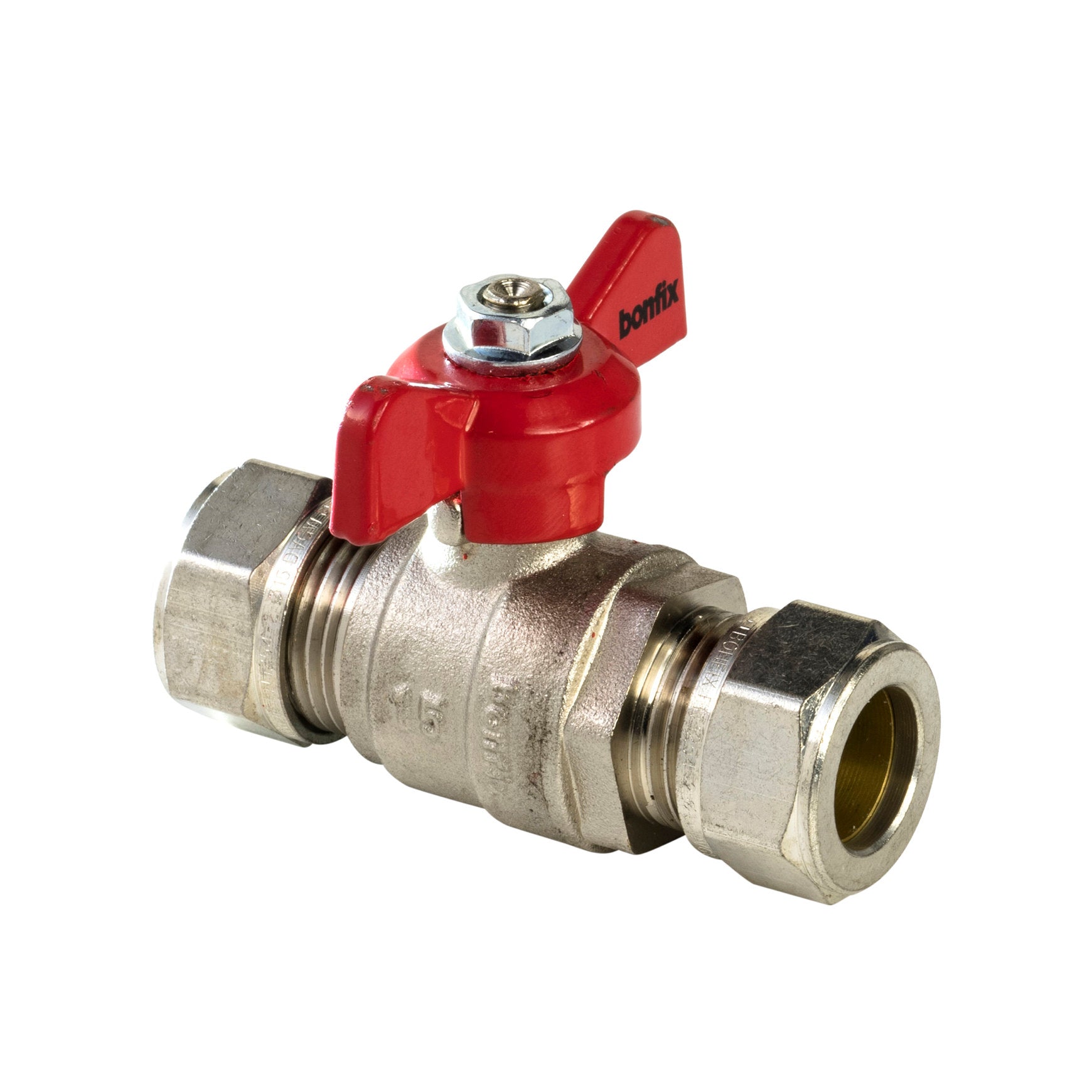

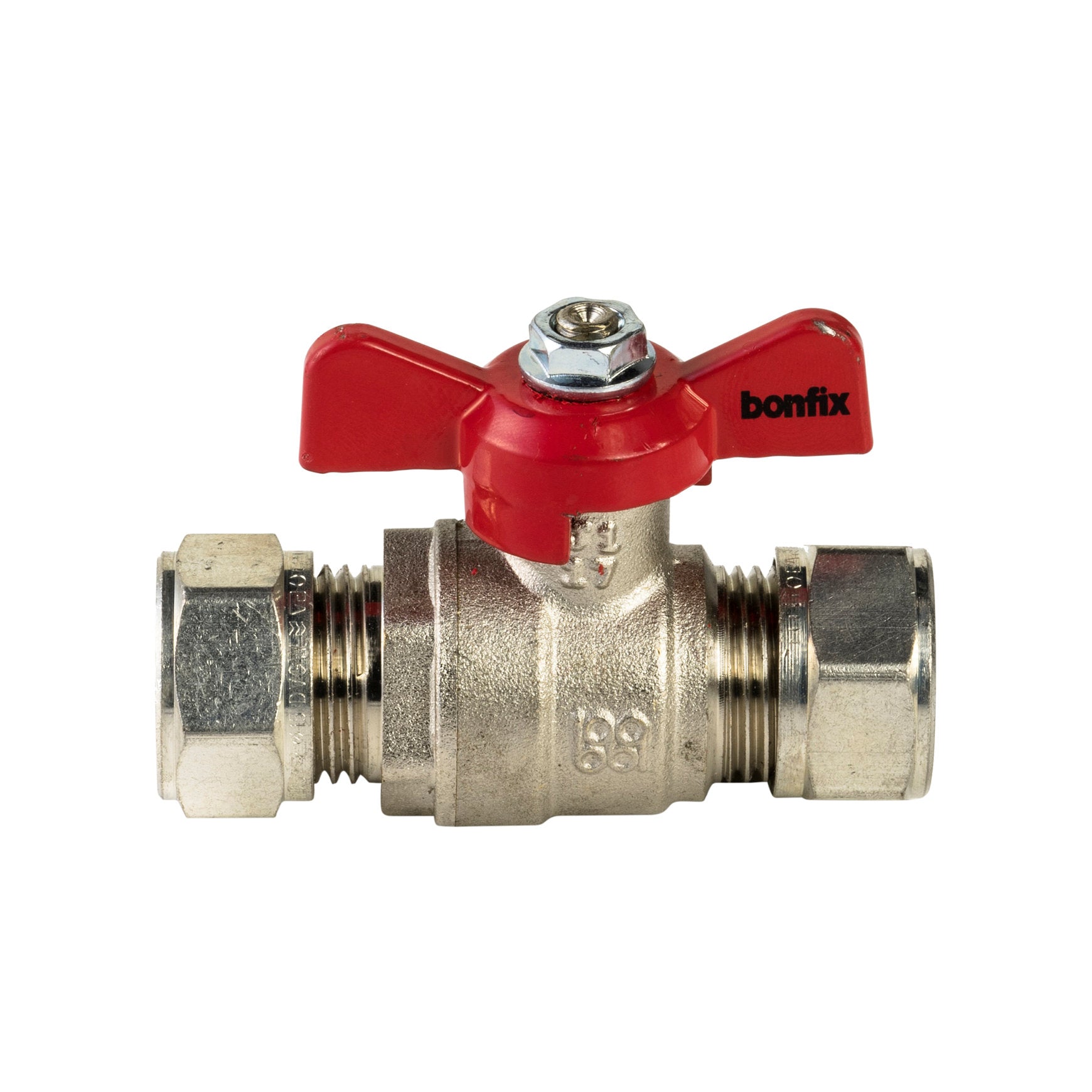

Bonfix ball valve, nickel-plated brass, 2x compression, red butterfly handle, 15 mm

Bonfix ball valve, nickel-plated brass, 2x compression, red butterfly handle, 15 mm

SKU:641240

$30.64
$30.64
Sale Sold out
In stock
View full details

Specifications

Assortments
wca14000010
Complementary products v2
ProductListDrop
Connection print
15 mm
Connection size
15 mm
Connection type
compression
Diameter
15 mm
Eancode
8717845927950
Material
brass, nickel plated
Passage / bore
full flow
Passage bore
full flow

Description

This Bonfix ball valve can be used to open or close the water supply within a central heating, water, or irrigation system.

Properties

The full bore means there is no loss of flow. The butterfly handle makes this ball valve easy to operate and clearly shows whether the valve is open or closed.

Installation

Make sure the pipe is burr-free. This will prevent a cramped pipe. Slide the pipe into the coupling and tighten the nut. The inner ring will then pinch and "cut" into the pipe, creating a solid connection where the following applies: tight is tight. Do not over-tighten the nut as this may cause leakage. The reinforced flat surface ensures optimum grip during installation. Use appropriate tools during installation to prevent damage.
