Bonfix ball valve with drainplug connection, brass, 2x compression, Kiwa, 10 bar, 22 mm
Bonfix ball valve with drainplug connection, brass, 2x compression, Kiwa, 10 bar, 22 mm
SKU:641082
Couldn't load pickup availability
Specifications
Description

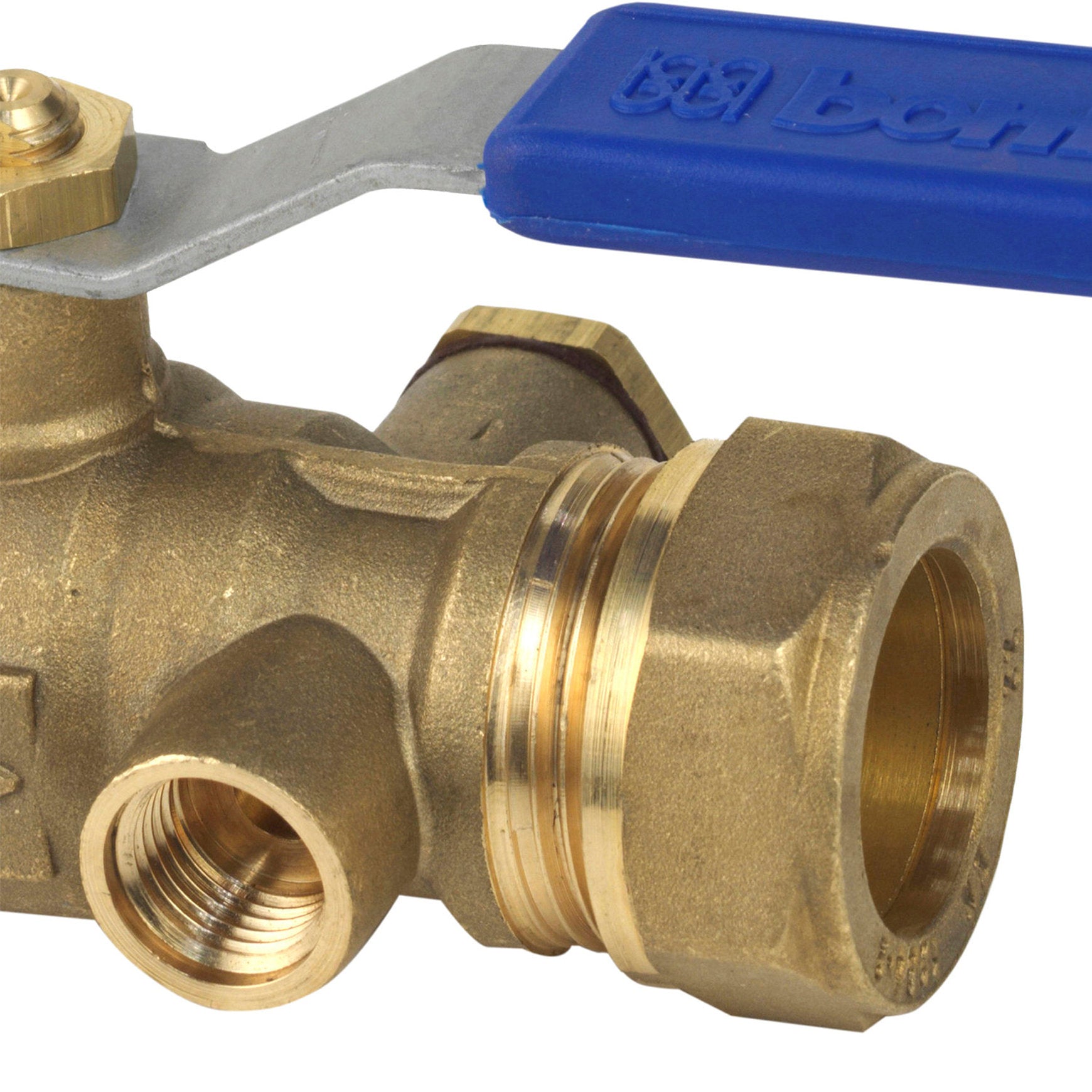

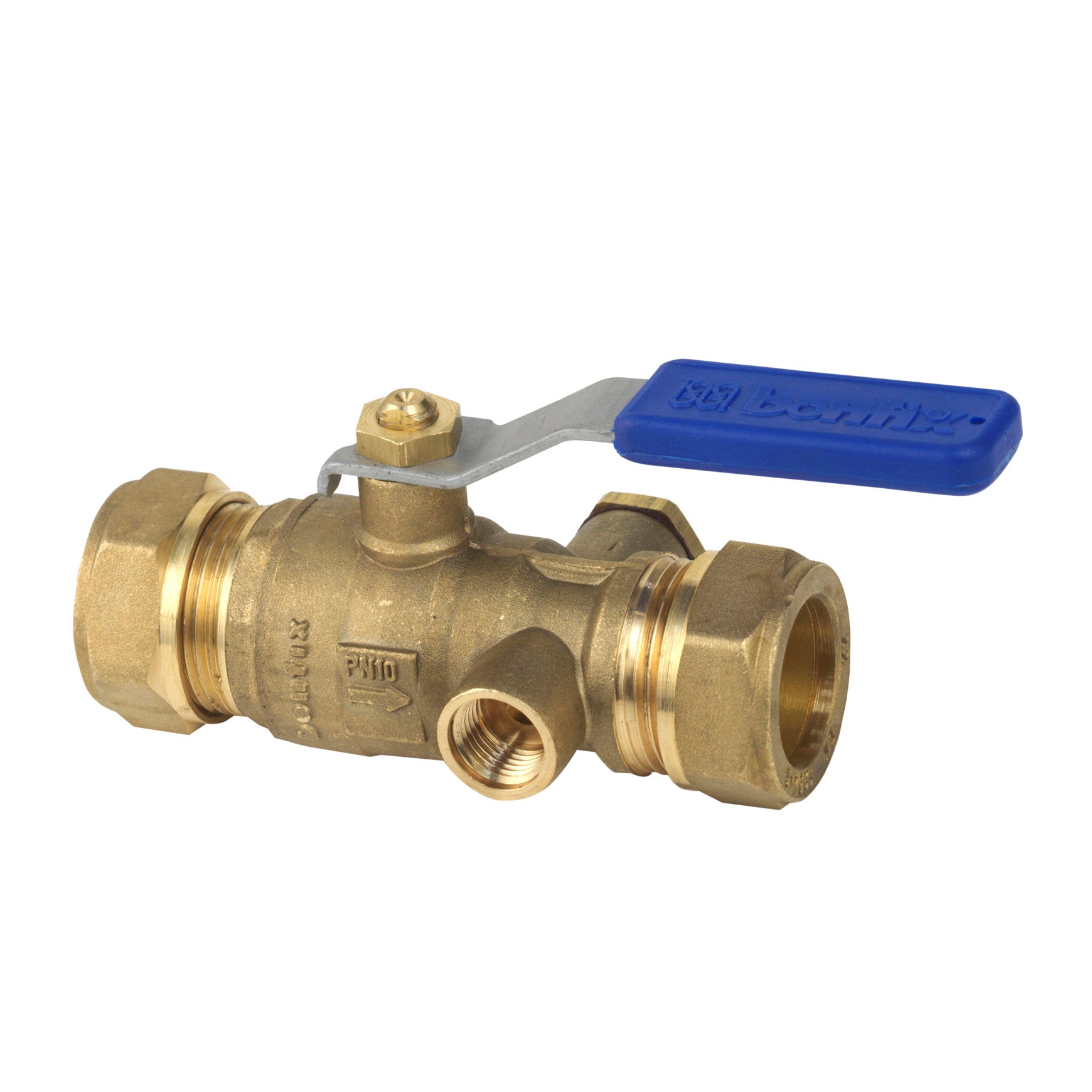

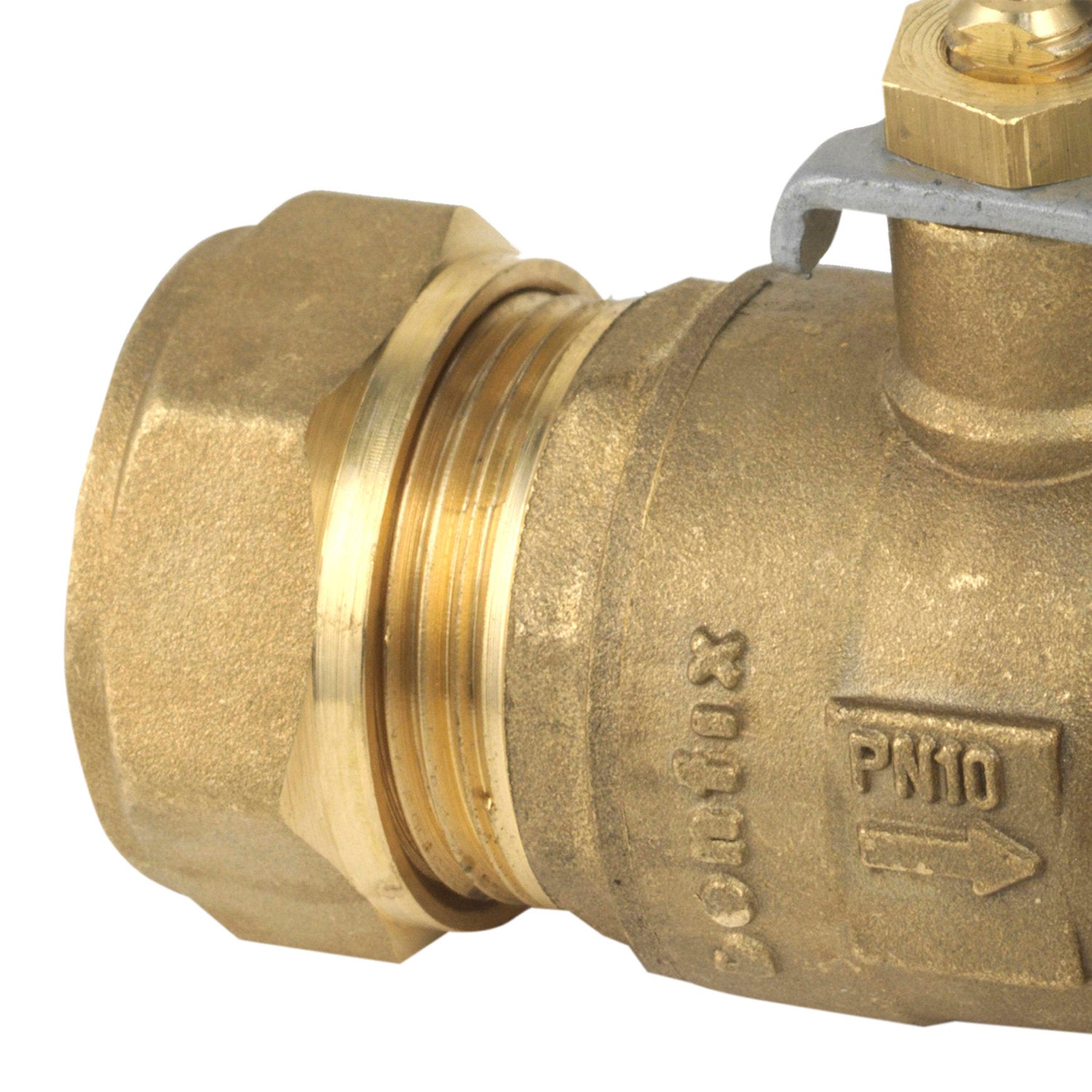

This Bonfix ball valve can be used for opening or closing the water supply within a drinking water or central heating system. This ball valve is supplied with a plug pre-assembled on one side. On the other side, you can optionally mount a drain valve or another plug.
Properties
Due to the full passage, there is no flow loss. You can use this ball valve in situations with a maximum temperature of 90 °C. The lever makes it easy to operate this ball valve and it is clearly visible whether the valve is open or closed.
Installation
Make sure the pipe is free of burrs. This prevents a noisy pipe. Slide the pipe into the coupling and tighten the nut. The inner ring will then tighten and "cut" into the pipe, creating a strong connection where the rule applies: tight is tight. Do not tighten the nut too tightly, as this can cause leakage. The flattened and reinforced key surface provides optimal grip during installation. Use suitable tools during installation and prevent damage.
Quality mark
This ball valve has a Kiwa quality mark. This makes this brass ball valve suitable for (drinking) water and central heating systems.
