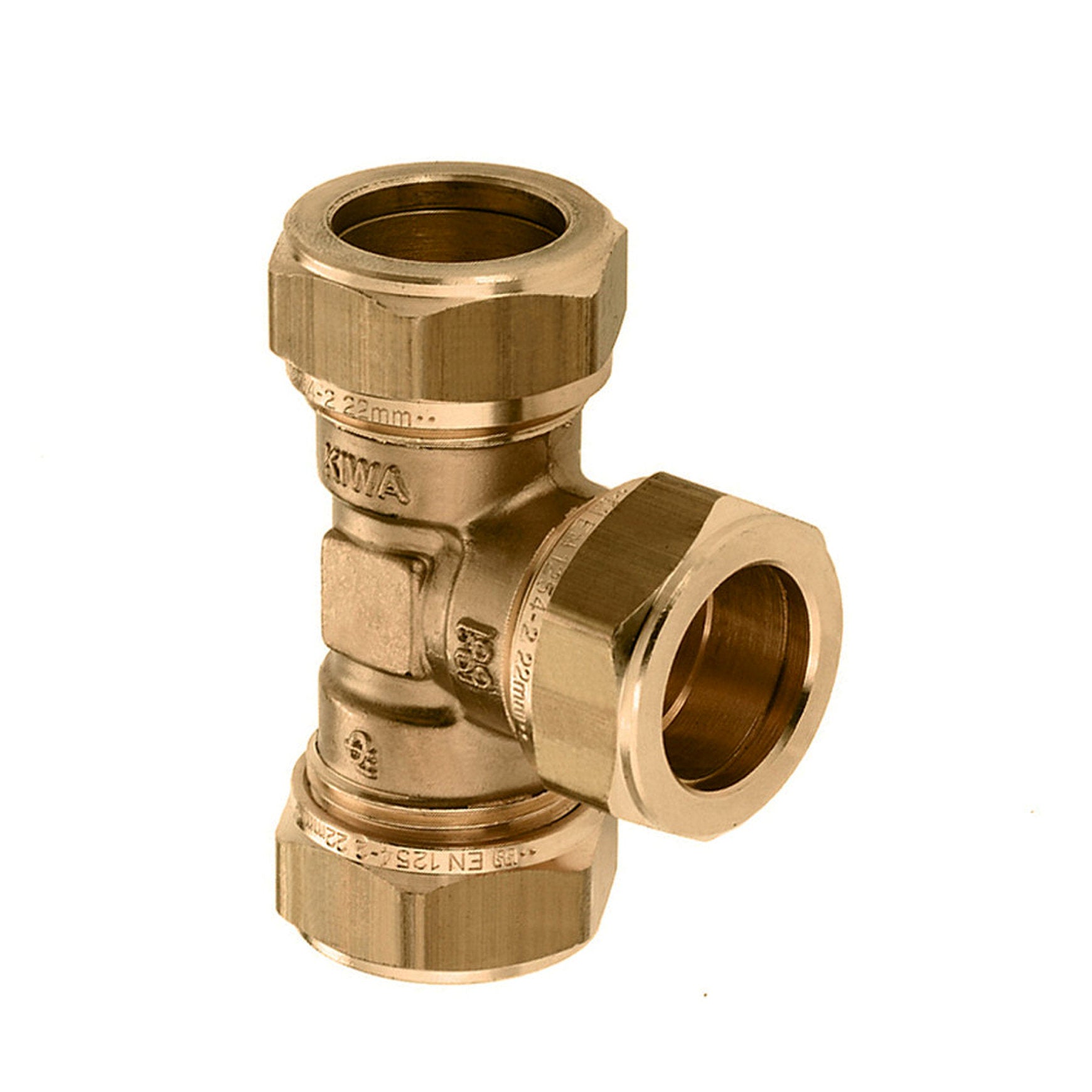

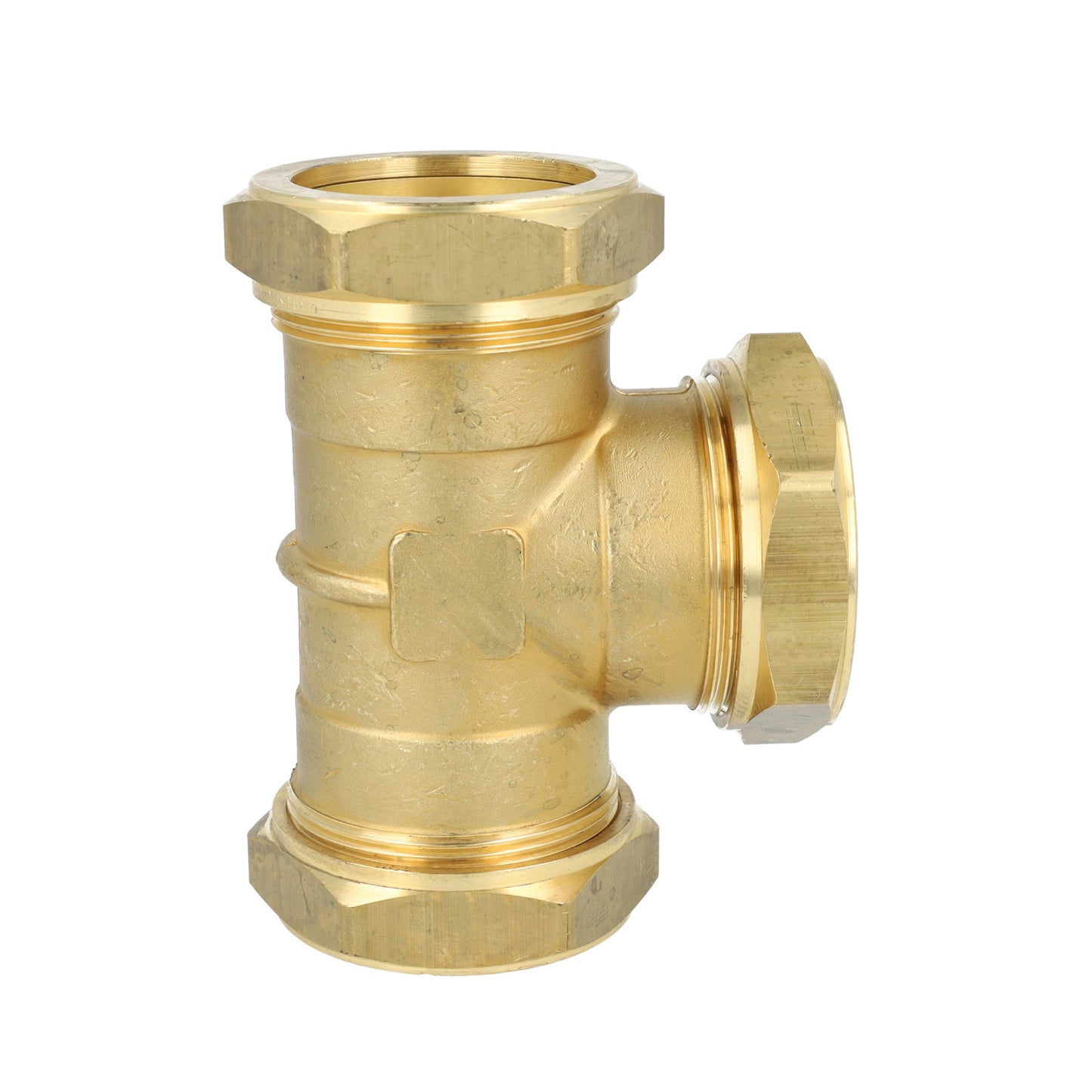

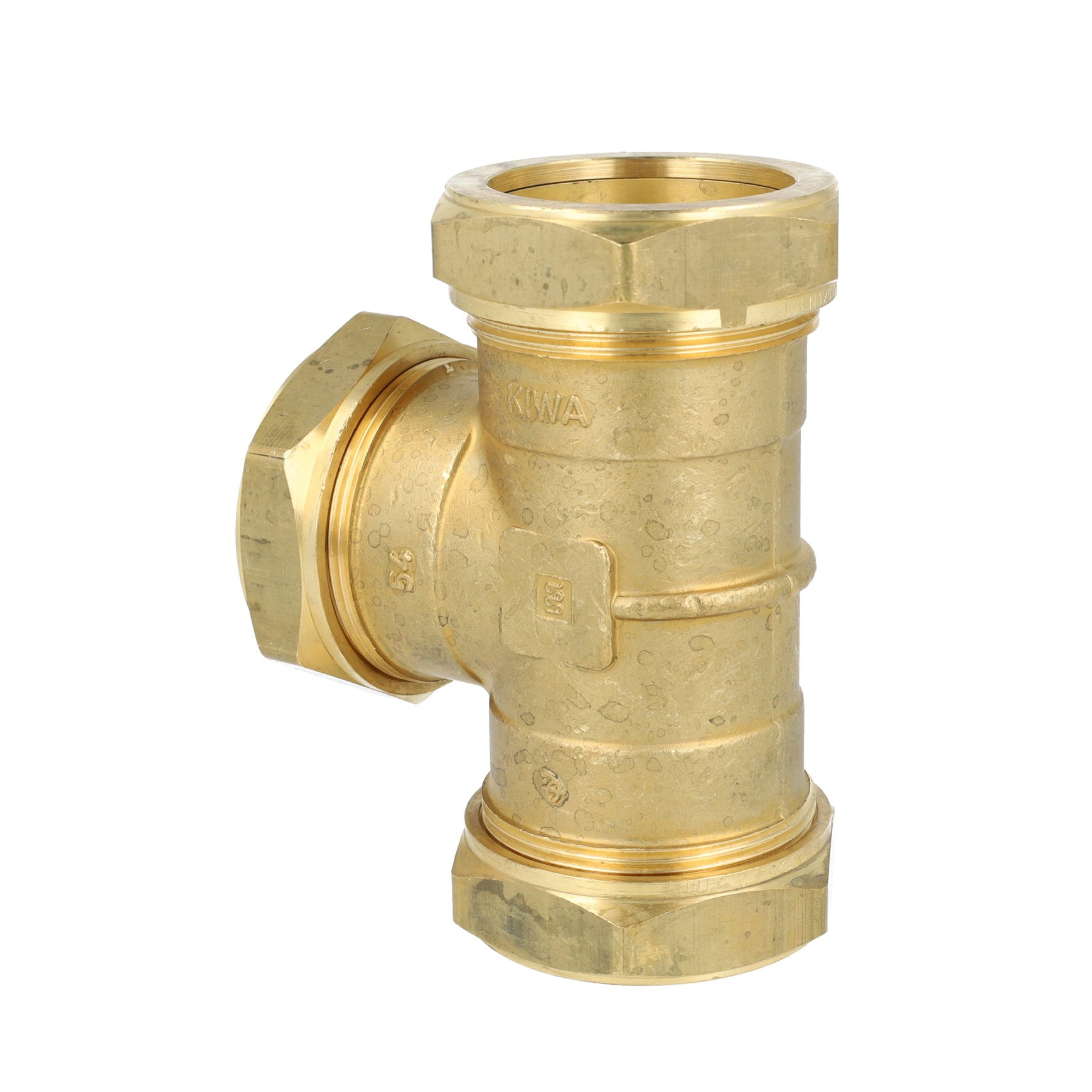

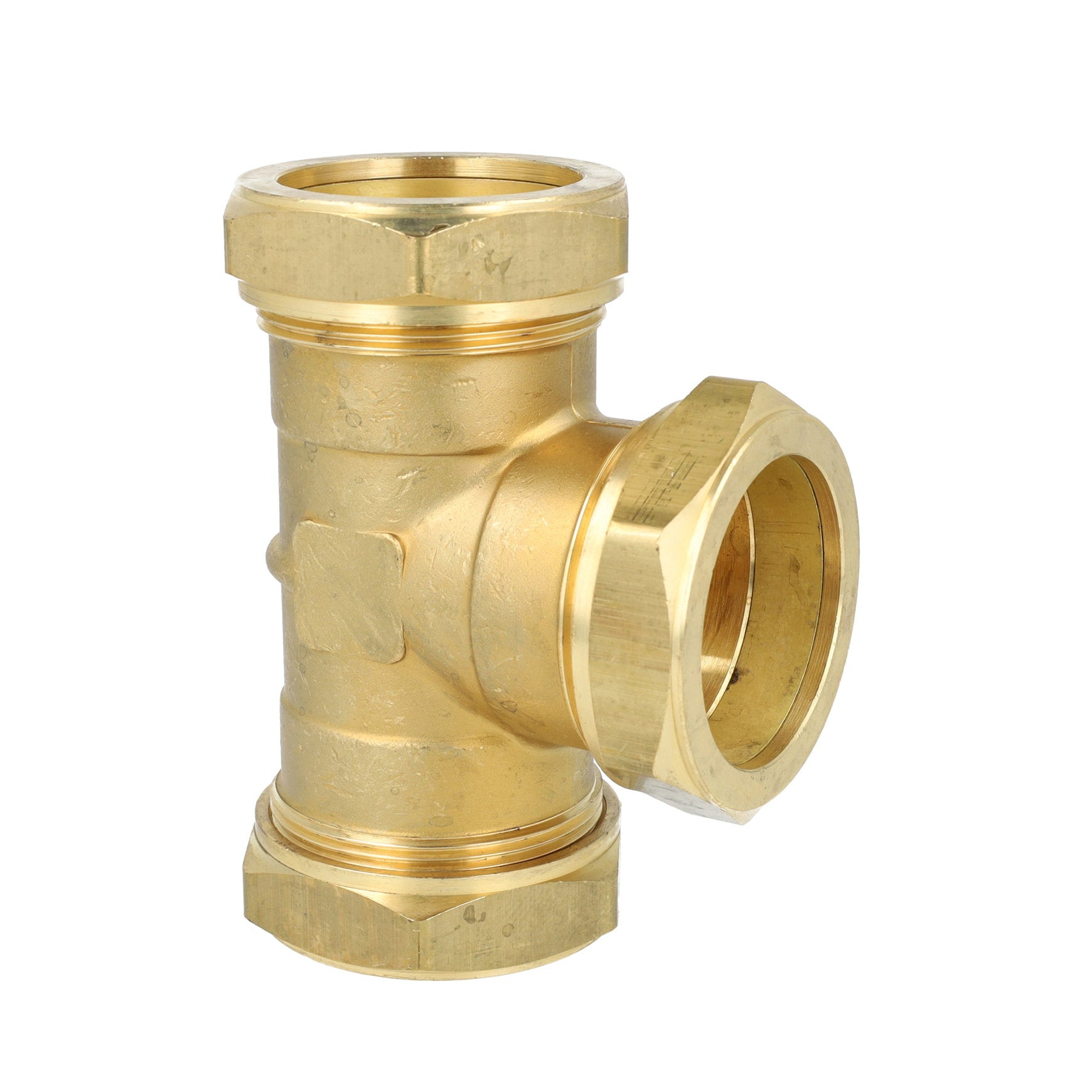

Bonfix T-piece 90°, brass, 3x compression, Kiwa / Gastec QA, 22 mm

Bonfix T-piece 90°, brass, 3x compression, Kiwa / Gastec QA, 22 mm

SKU:848608

$15.95
$15.95
Sale Sold out
In stock
View full details

Specifications

Angle
90 °
Application
industrynon-residential buildingresidential building
Connection size
22 mm
Connection type
compression
Diameter
22 mm
Eancode
8717845204303
Material
brass
Quality mark
Kiwa + Gastec QA

Description

This Bonfix T-piece 90° is used with water pipes, gas pipes, heating installations or industrial transport systems. With messing compression fittings you can easily create a safe and leak-free connection between 2 pipes, without welding, soldering or pressing. It is possible to reuse the compression fitting, but the compression ring must be replaced.

In addition to this T-piece 90°, the range includes various other couplings, such as:
  • Compression ring.
  • Coupling.
  • Support sleeve.
  • Elbow 90°.
  • Union nut.

Assembly

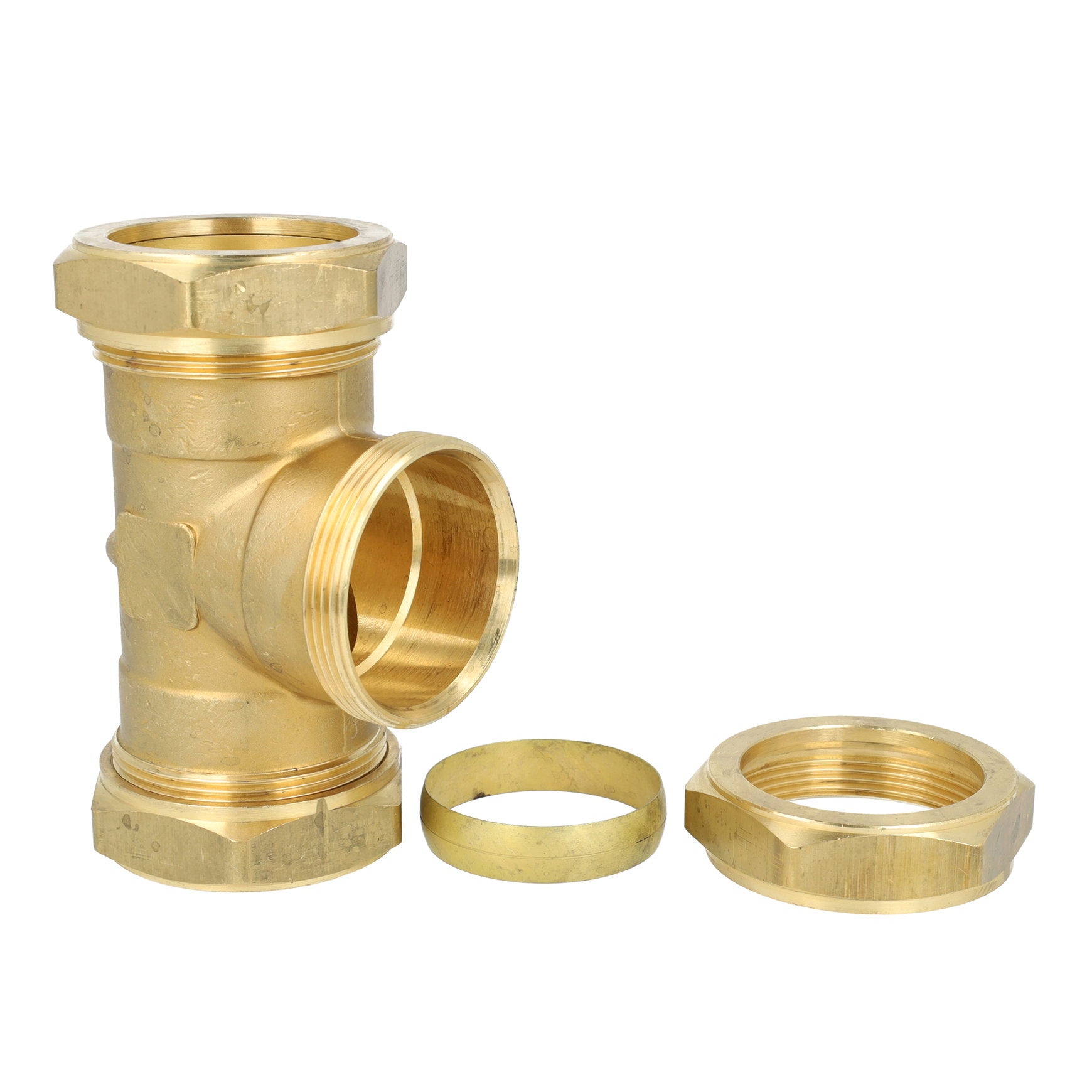

With a brass compression coupling, you can easily create a strong and reliable connection without needing special tools. All you need is a spanner to tighten the coupling, a pipe cutter to cut the pipe to size, and a deburring tool to smooth the edges. The compression ring in the coupling ensures a leak-free connection.

The installation of a compression fitting in a water pipe follows these steps:
  • Cut the pipe to size and deburr the ends to prevent any damage to the pipe.
  • Slide the pipe into the compression fitting until it reaches the stop edge.
  • Hand-tighten the compression nut.
  • Then tighten the compression fitting with a wrench;
  • 12 and 15 mm: one full turn.
  • 22 mm: half to three-quarters turn.
  • 28 mm or larger: approximately three-quarters turn.
Please note: If the gland is tightened too much, there is a risk of leakage. When using a soft red copper or plastic pipe, we recommend using a support sleeve to prevent the pipe from being compressed.
