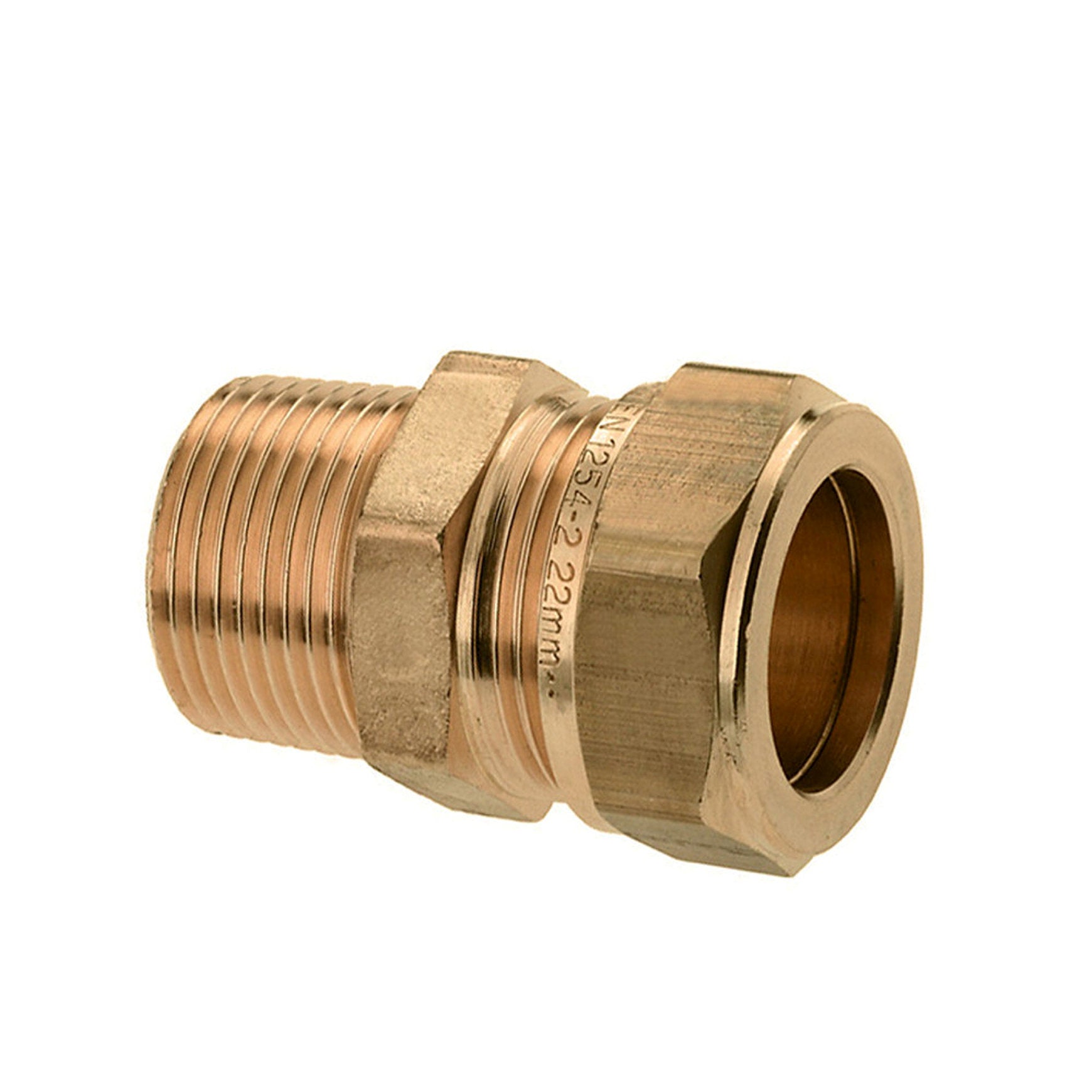

Bonfix male adapter, brass, male thread x compression, Kiwa / Gastec QA, 1" x 22 mm

Bonfix male adapter, brass, male thread x compression, Kiwa / Gastec QA, 1" x 22 mm

SKU:847183

Regular price $11.49
Regular price Sale price $11.49
Sale Sold out
In stock
View full details

Specifications

Application
industry, non-residential building, residential building
Connection size
1", 22 mm
Connection type
male thread x compression
Diameter
1", 22 mm
Eancode
8717845211400
Material
brass
Quality mark
Kiwa + Gastec QA

Description

This Bonfix male adapter is used with water pipes, gas pipes, heating installations or industrial transport systems. With messing compression fittings you can easily create a safe and leak-free connection between 2 pipes, without welding, soldering or pressing. It is possible to reuse the compression fitting, but the compression ring must be replaced.

In addition to this male adapter, the range includes various other couplings, such as:
  • Compression ring.
  • Elbow 90°.
  • Support sleeve.
  • T-piece 90°.
  • Union nut.

Assembly

With a brass compression coupling, you can easily create a strong and reliable connection without needing special tools. All you need is a spanner to tighten the coupling, a pipe cutter to cut the pipe to size, and a deburring tool to smooth the edges. The compression ring in the coupling ensures a leak-free connection.
  • The installation of a compression fitting in a water pipe follows these steps:
  • Cut the pipe to size and deburr the ends to prevent any damage to the pipe.
  • Slide the pipe into the compression fitting until it reaches the stop edge.
  • Hand-tighten the compression nut.
  • Then tighten the compression fitting with a wrench;
  • 12 and 15 mm: one full turn.
  • 22 mm: half to three-quarters turn.
  • 28 mm or larger: approximately three-quarters turn.
Please note: If the gland is tightened too much, there is a risk of leakage. When using a soft red copper or plastic pipe, we recommend using a support sleeve to prevent the pipe from being compressed.
