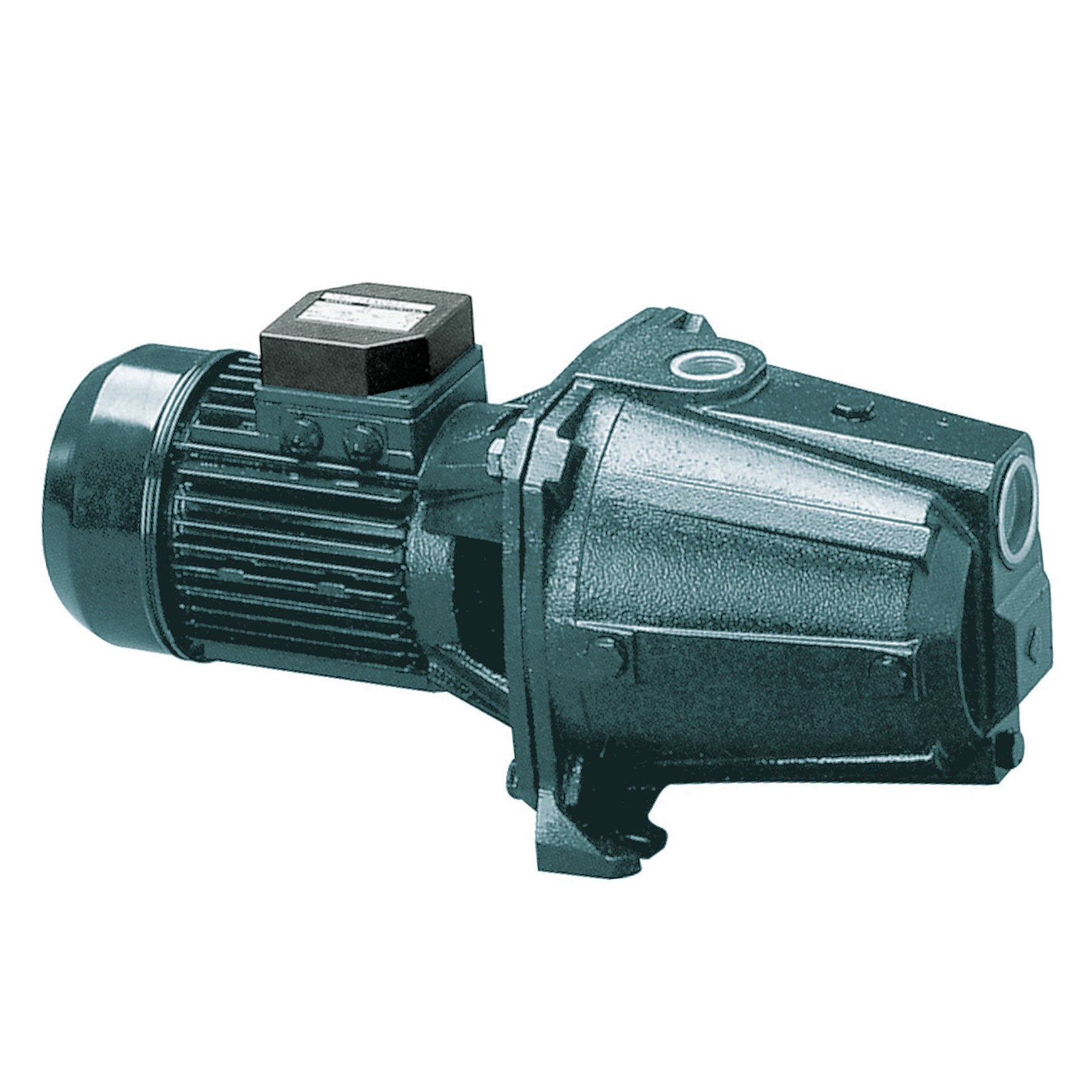

Ebara self-priming centrifugal pump, cast iron, type AGA 1.00M, 0.75 kW, 230 V

Ebara self-priming centrifugal pump, cast iron, type AGA 1.00M, 0.75 kW, 230 V

SKU:790760

$617.00
$617.00
Sale Sold out
In stock
View full details

Specifications

Application
irrigation
Assortments
wca6002100
Complementary products v2
ProductListDrop
Connection size
1"
Connection type
female thread
Insulation class
F
Maximum ambient temperature
40 °C
Maximum capacity
3.7 m³/uur
Maximum suction height
8 mwk
Maximum working pressure
6 bar
Minimum capacity
1 m³/uur
Minimum head
21 m
Press connection
1"
Pump housing material
cast iron
Suction side connection
1"
Two badescription
Ebara zelfaanzuig. centrifugaalpomp, AGA 1,00M, 0,75kW, 230V
Two badescription en
Ebara pump, cast iron, AGA 1.00M, 0.75 kW, 230 V
Type
AGA 1.00M
Voltage
230 V
Weight
14 kg

Description

This Ebara AGA/E 1.00M IE2 self-priming centrifugal pump, is a robust, high-quality pump suitable for pumping clean, non-chemical liquids.

The pump has built-in thermal protection.

With a maximum capacity of 3.7 m³/h and a maximum head of 50 metres, this 230 Volt pump with a power rating of 0.75 kW is very suitable for many applications.

Material

  • Pump housing: cast iron.
  • Impeller: glass fibre reinforced plastic.
  • Diffuser: glass fibre reinforced plastic.
  • Pump shaft: stainless steel
  • Motor housing: aluminium.
  • Seals: nitrile rubber (NBR).
  • Shaft seal: mechanical seal coal/ceramic.

Application

  • Pressure boosting.
  • Irrigation.

Choosing the best pump for a given situation depends on many factors. Contact one of our pump specialists for advice without obligation.
