Ebara submersible pump for clean water and wastewater, SS, DW Vox 75 MA, 0,55 kW, 230 V, float

Ebara submersible pump for clean water and wastewater, SS, DW Vox 75 MA, 0,55 kW, 230 V, float

SKU:791233

Regular price $1,361.00
Regular price Sale price $1,361.00
Sale Sold out
In stock
View full details

Specifications

Application
basement (clean), basement (slightly contaminated), construction pit, crawl space, drain swimming pool, pump out drainage pit, pump out pond, rainwater (clean), rainwater (slightly contaminated), sink, washbasin and shower, washing machine and dishwasher
Assortments
wca6001070
Cable
HO7RN
Cable length
10 m
Complementary products v2
ProductListDrop
Connection size
2"
Connection type
female thread
Degree of protection
IP68
Eancode
8052990490783
Fan type
vortex
Flat piston
no
Float
yes
Flow
3.9 A
Insulation class
F
Maximum capacity
24 m³/uur
Maximum immersion depth
5 m
Press connection
2"
Pump housing material
stainless steel
Type
DW Vox 75 MA
Voltage
230 V
Warranty
2 jaar

Description

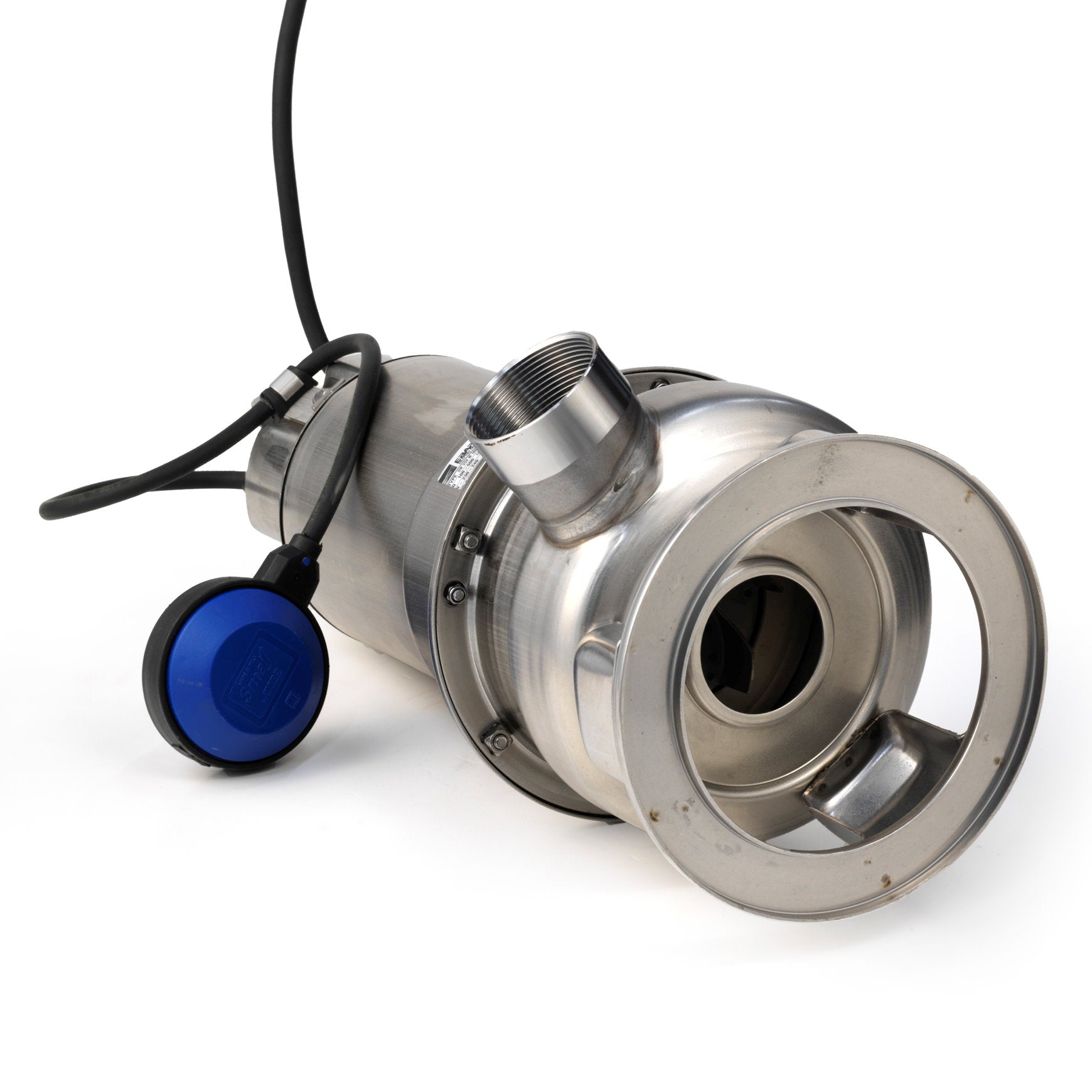

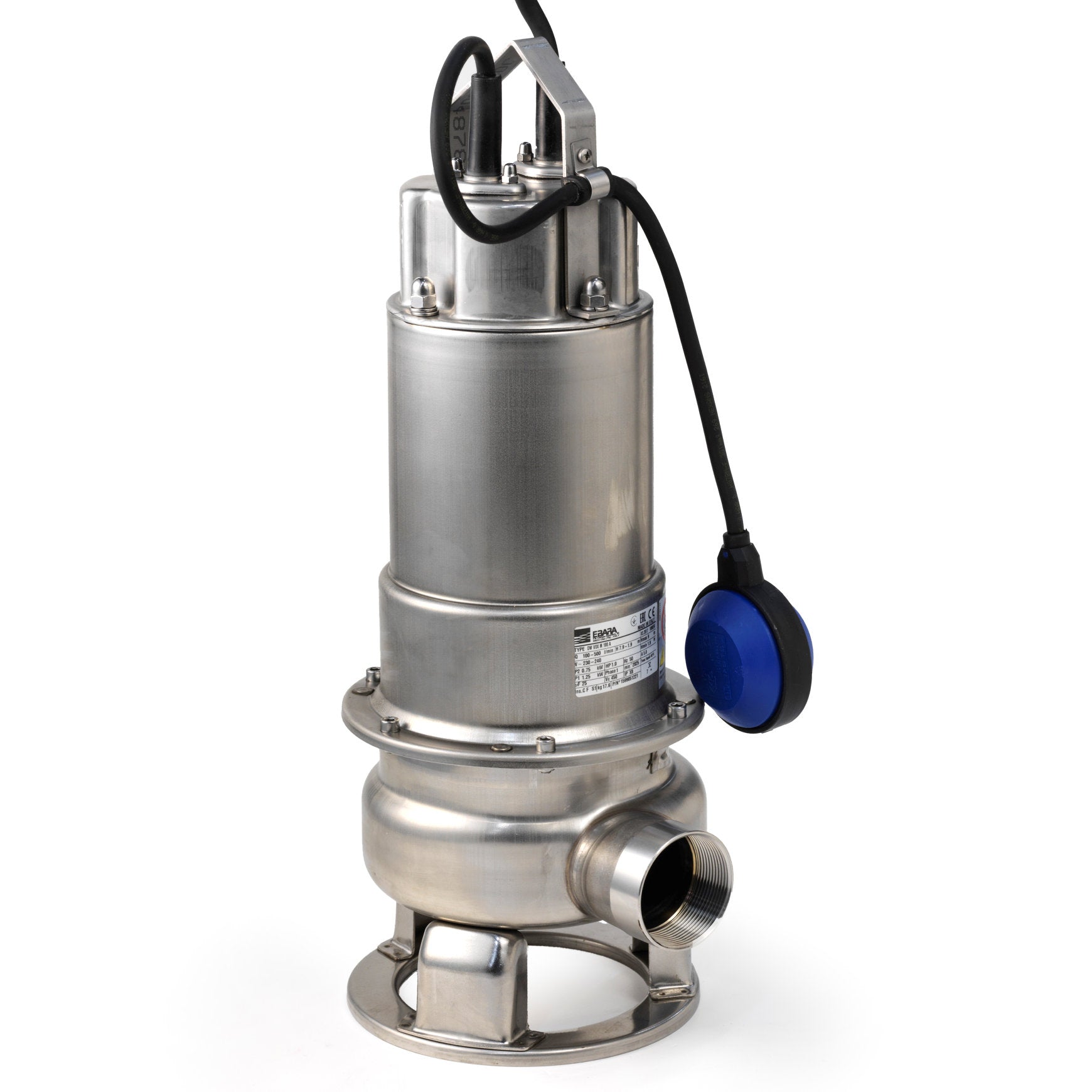

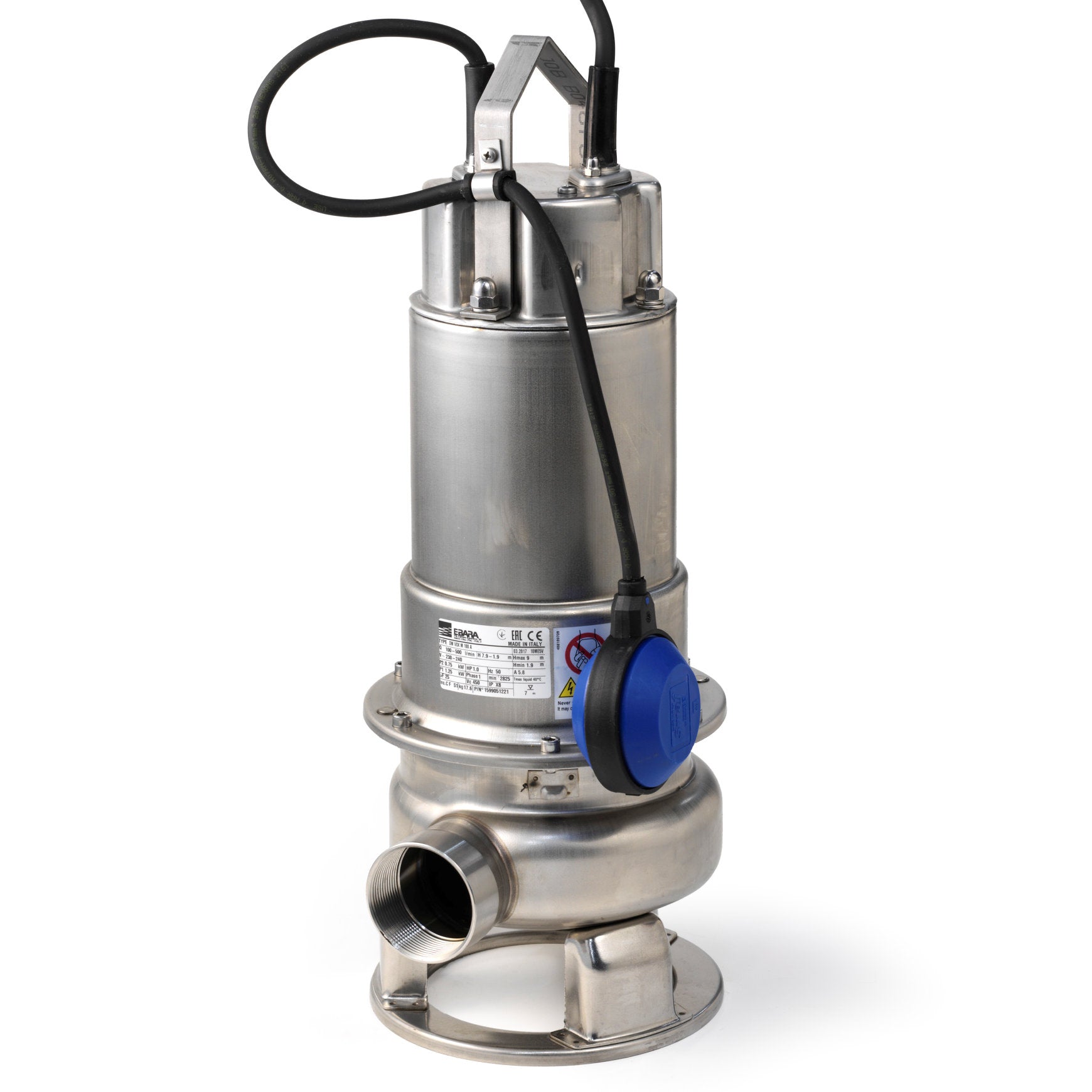

The Ebara DW Vox submersible pump with float switch is highly suitable for pumping clean and dirty water with solid particles.

This submersible pump has a vortex impeller and thermal protection.

Suitable for continuous use, if completely submerged.

Material

  • Pump housing: stainless steel (AISI 304).
  • Motor housing: stainless steel (AISI 304).
  • Impeller: stainless steel (AISI 304).
  • Motor shaft: stainless steel (AISI 304).
  • Shaft seal: lip seal/ceramic.
  • Elastomers: nitrile rubber (NBR).

Application

To pump liquids from: drainage wells, cellars, tanks, washing areas and helophyte filters (pre-treated water), sewers and milking parlours pits (not suitable for high concentrations of acidic liquids, such as whole milk).
