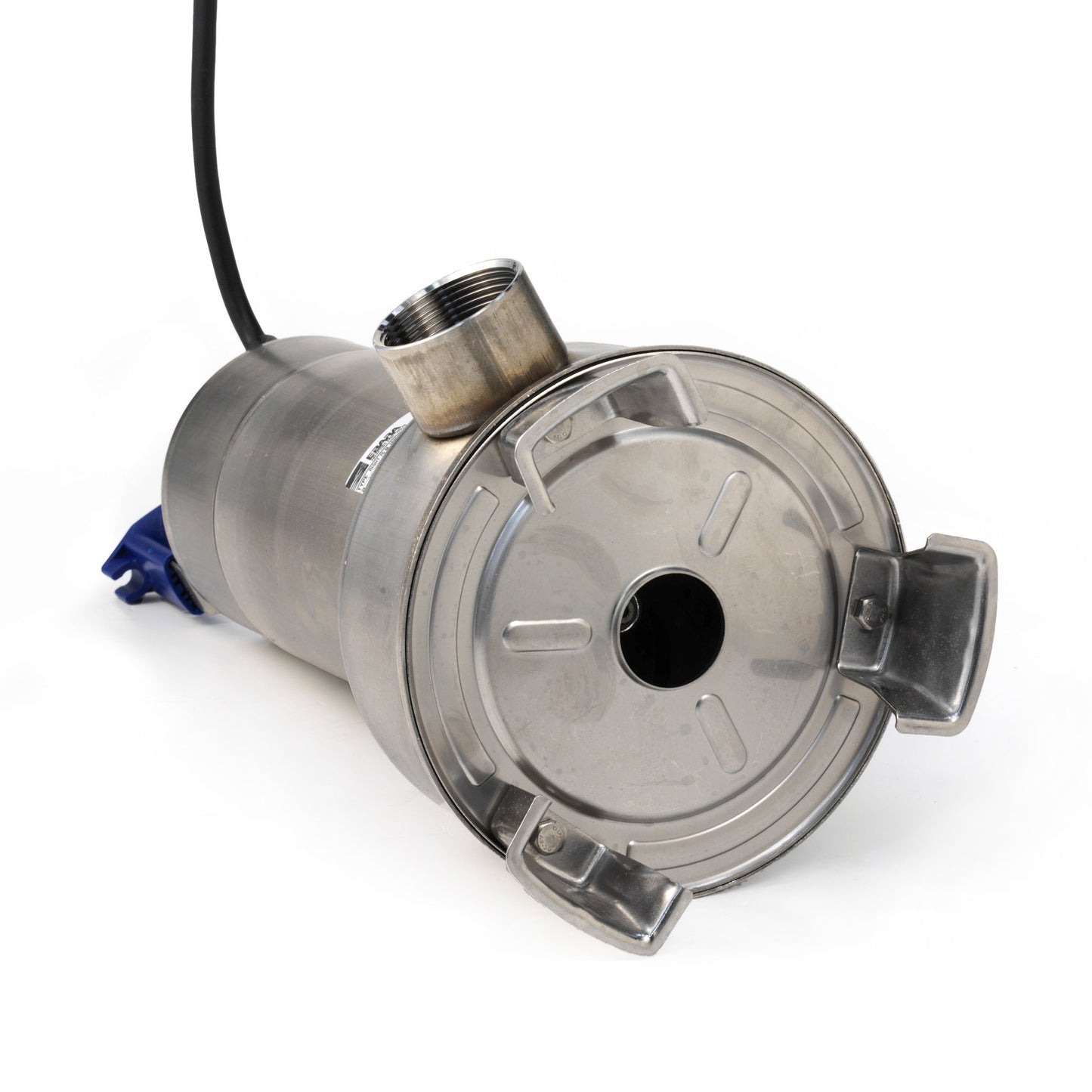

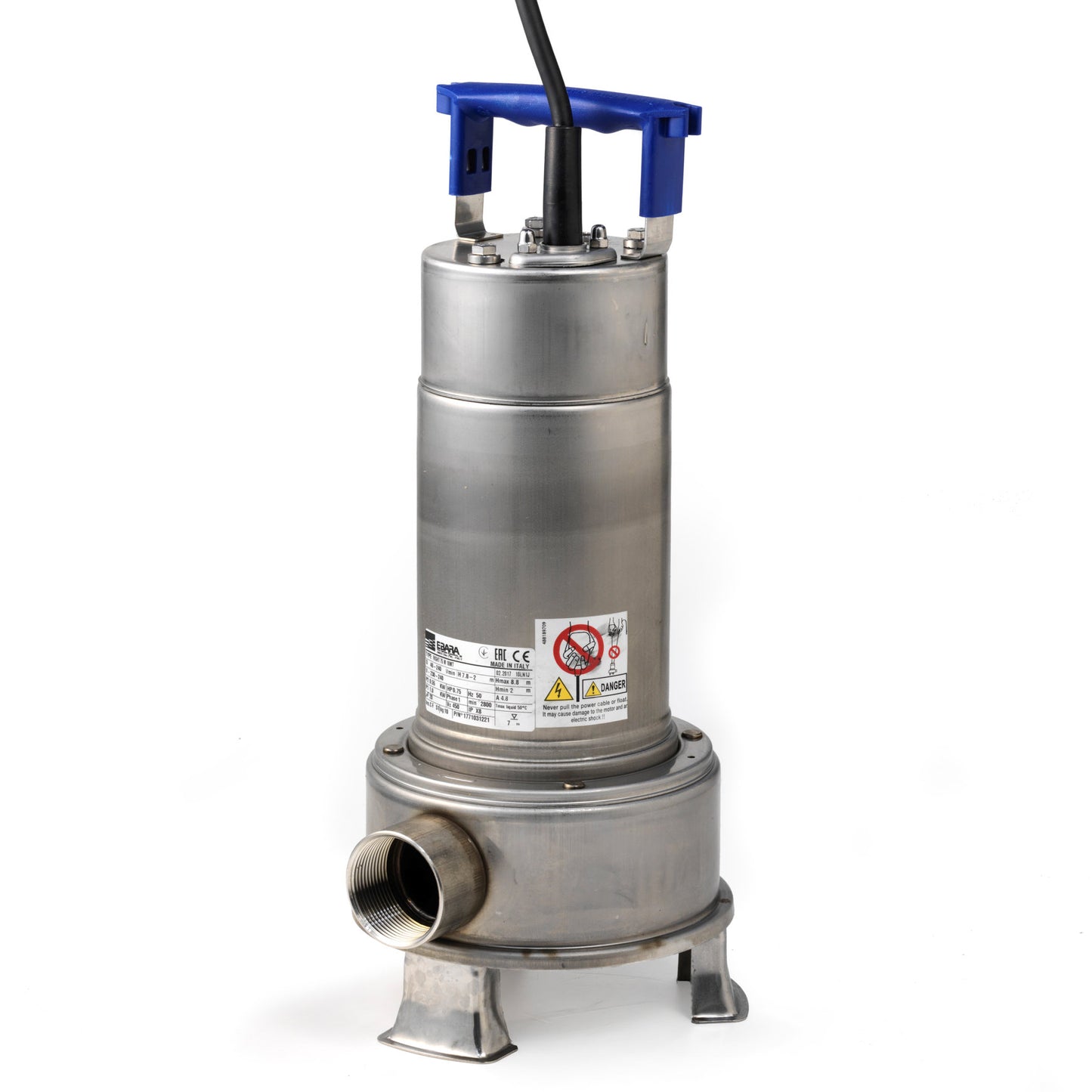

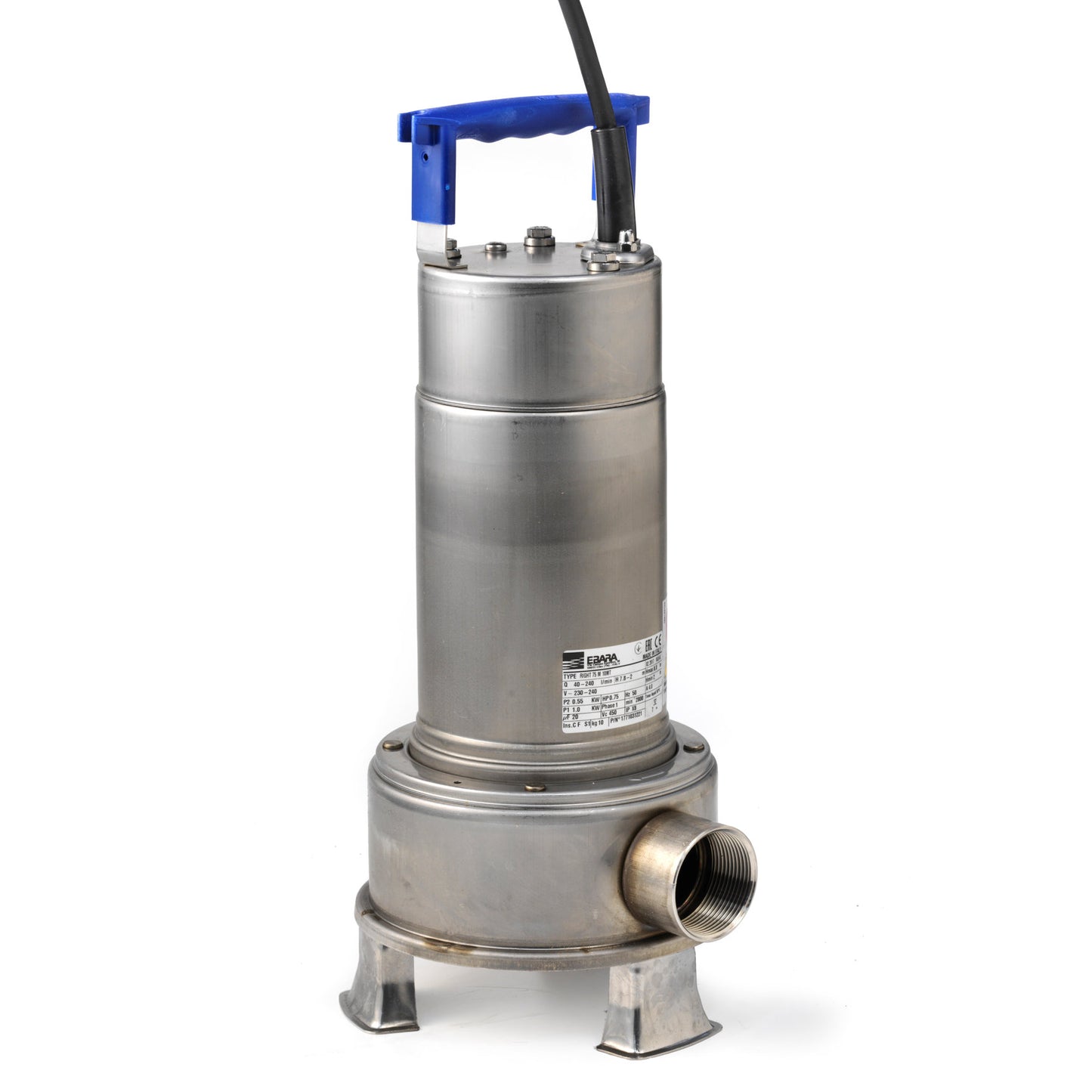

Ebara submersible pump for clean water and wastewater, SS, Right 75 M, 0,55 kW, 230 V

Ebara submersible pump for clean water and wastewater, SS, Right 75 M, 0,55 kW, 230 V

SKU:791200

$830.96
$830.96
Sale Sold out
Delivery on request
View full details

Specifications

Application
basement (clean), basement (slightly contaminated), construction pit, crawl space, drain swimming pool, pump out drainage pit, pump out pond, rainwater (clean), rainwater (slightly contaminated), sink, washbasin and shower, washing machine and dishwasher
Cable
H07RN
Cable length
10 m
Connection size
1½"
Connection type
female thread
Degree of protection
IP68
Eancode
8052990493913
Fan type
vortex
Float
no
Flow
4.8 A
Insulation class
F
Maximum capacity
14.4 m³/uur
Maximum immersion depth
5 m
Press connection
1½"
Pump housing material
stainless steel
Type
Right 75 M
Voltage
230 V
Warranty
2 jaar

Description

The Ebara submersible pump, type Right 75 M, is highly suitable for pumping clean and dirty water with solid particles.

This submersible pump has a vortex impeller and thermal protection.

Suitable for continuous use, if completely submerged.

Material

  • Pump housing: stainless steel (AISI 304).
  • Impeller: stainless steel (AISI 304).
  • Motor housing: stainless steel (AISI 304).
  • Motor shaft: stainless steel (AISI 303).
  • Shaft seal, motor side: coal/ceramic.
  • Shaft seal, impeller side: silicon/carbide.
  • Elastomers: nitrile rubber (NBR).

Use

To pump liquids from: drainage wells, cellars, tanks, washing areas and helophyte filters (pre-treated water), not suitable for high concentrations of acidic liquids, such as whole milk.

Do you want to buy a submersible pump or need more information?

The desired submersible pump can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which submersible pump would be best for your situation? Contact one of our pump specialists for advice without obligation.
