Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 32 - 36 mm, for pipe 1”
Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 32 - 36 mm, for pipe 1”
SKU:263268
Regular price
$11.53
Regular price
Sale price
$11.53
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Application
aluminium pipecast iron pipecopper pipeplastic pipestainless steel pipesteel pipe
Connection size
32 - 36 mm
Eancode
8712874384552
Inlay
EPDM rubber
Material
ss 316 (stainless steel)
Max. workload
1000 Newton
Maximum clamping range
36 mm
Max workload
1000 Newton
Minimum clamping range
32 mm
Temp. resistance
-40 to +120°C
Temp resistance
-40 to +120°C
Wire connection
M10/M8
Description
The Flamco BRS bracket is equipped with a sound-dampening insert and can be used for attaching the following pipes:
- steel pipe;
- stainless steel pipe;
- copper pipe;
- aluminum pipe;
- cast iron pipe and
- plastic pipe.

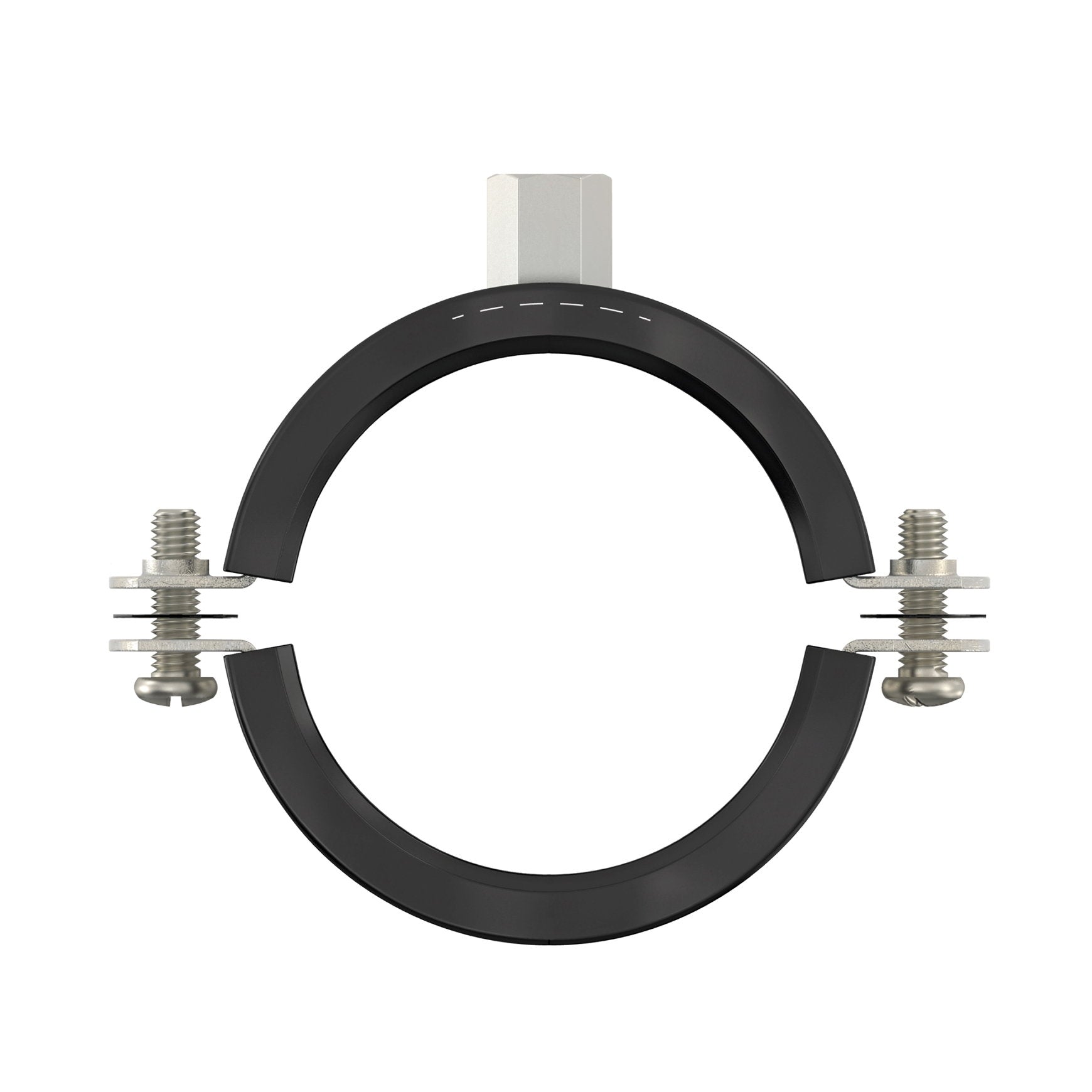

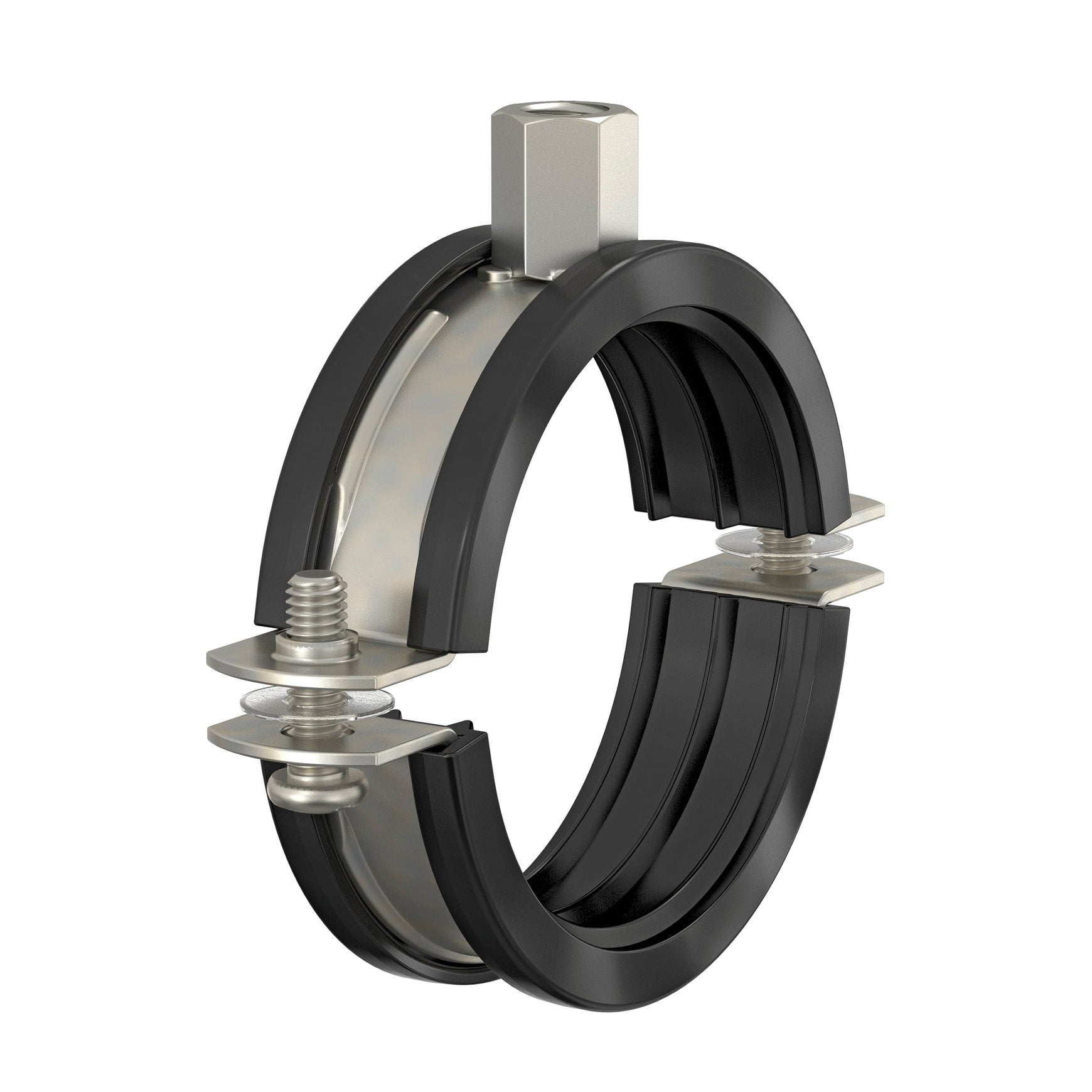

This pipe bracket consists of two parts and is closed with two screws. The sound-dampening insert is made of black EPDM rubber and is resistant to aging.
Certifications
The insert has a sound reduction of 17 DB(A) according to ISO 3822-1. To obtain the indicated sound reduction, the insert of the bracket must not be overloaded.
