Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 38 - 43 mm, for pipe 1¼"
Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 38 - 43 mm, for pipe 1¼"
SKU:263269
Regular price
$12.08
Regular price
Sale price
$12.08
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Application
aluminium pipe, cast iron pipe, copper pipe, plastic pipe, stainless steel pipe, steel pipe
Assortments
wca3010142
Complementary products v2
ProductListDrop
Connection size
38 - 43 mm
Eancode
8712874384569
Inlay
EPDM rubber
Material
ss 316 (stainless steel)
Max. workload
1000 Newton
Maximum clamping range
43 mm
Max workload
1000 Newton
Minimum clamping range
38 mm
Temp. resistance
-40 to +120°C
Temp resistance
-40 to +120°C
Wire connection
M10, M8
Description
The Flamco BRS-A bracket offers a reliable, efficient solution for suspending pipes, with additional benefits such as vibration damping and noise reduction, making it ideal for a wide range of applications in various installations. This bracket is suitable for securing the following pipes:
- steel pipe;
- stainless steel pipe;
- copper pipe;
- aluminium pipe;
- cast iron pipe
- plastic pipe;
- coiled tube.

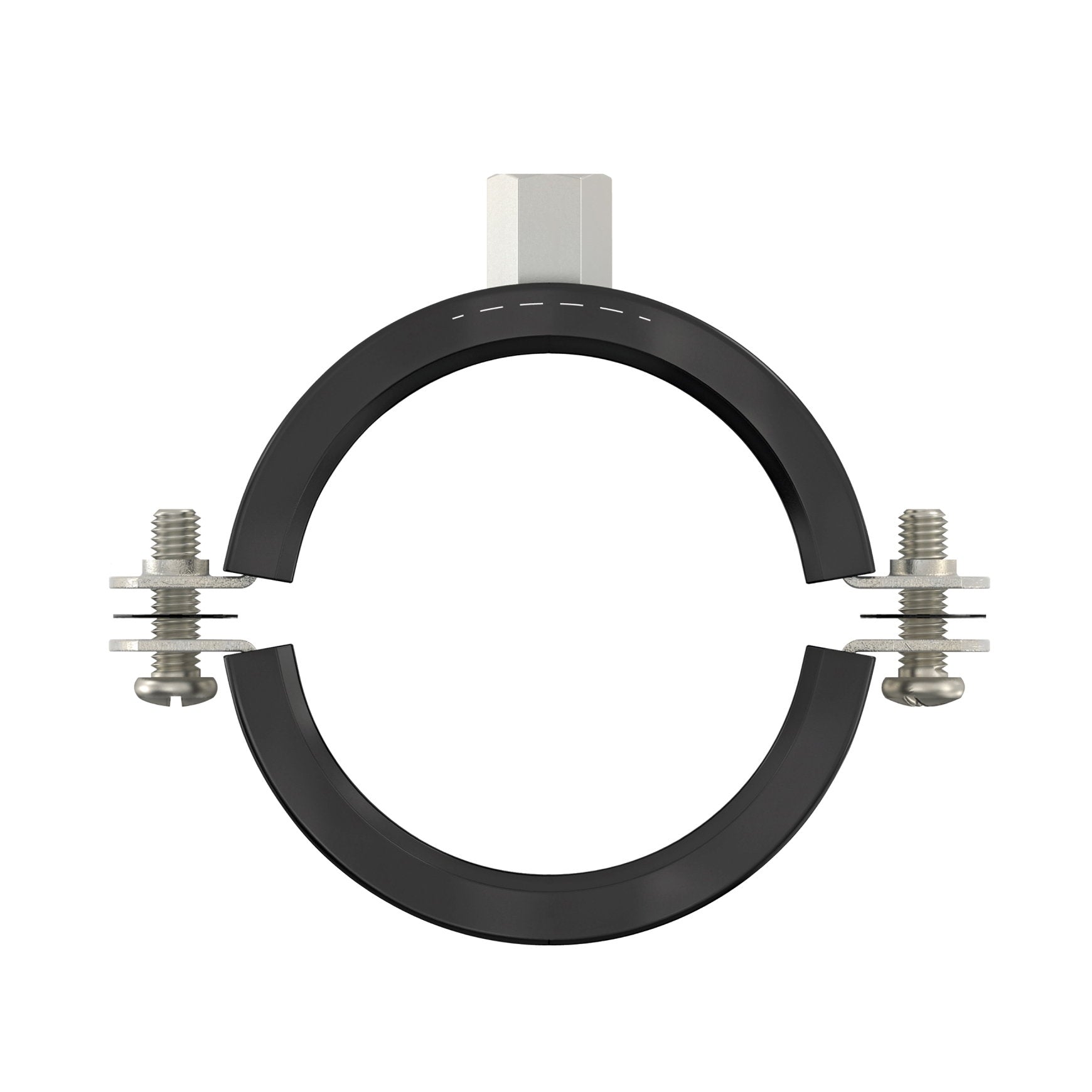

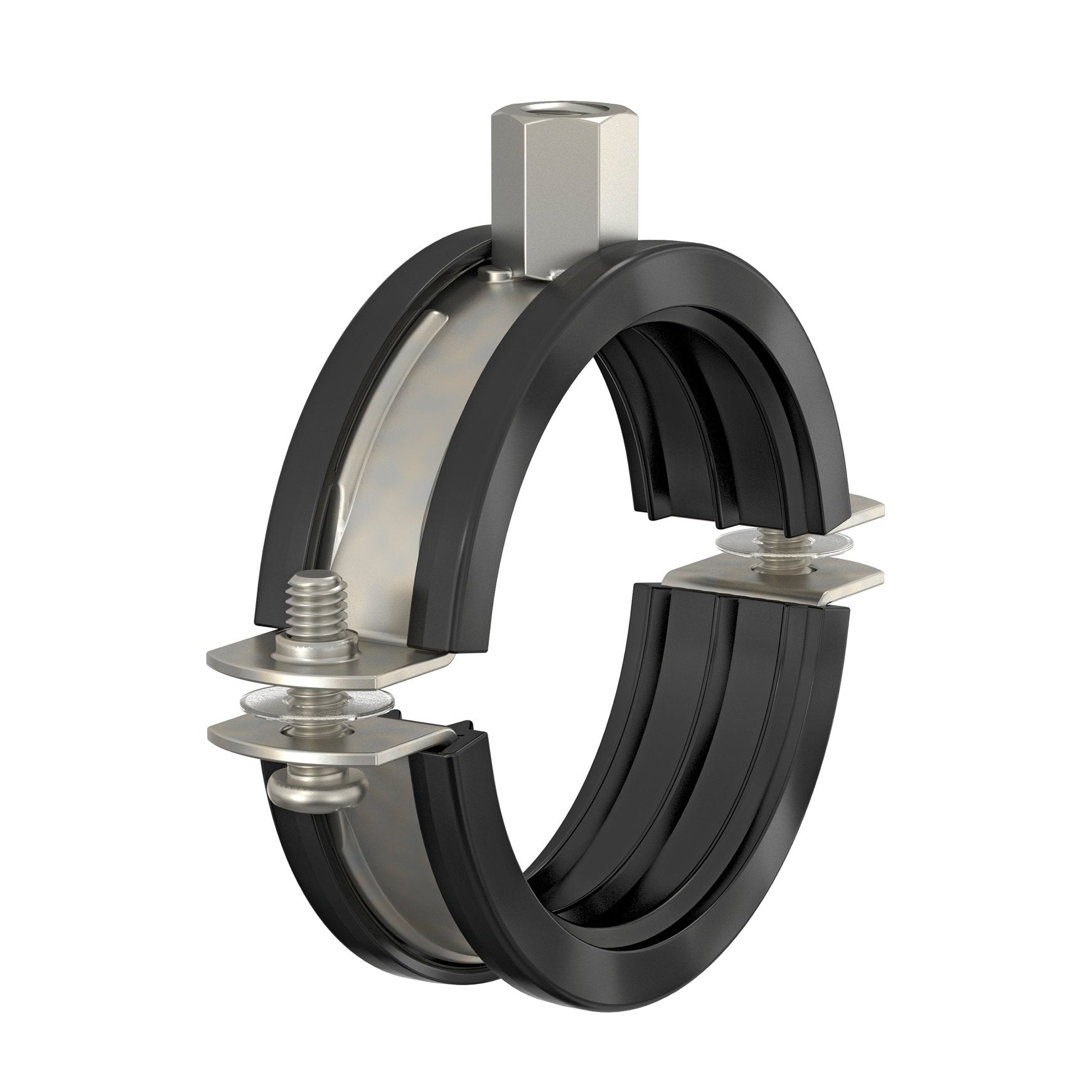

This pipe bracket consists of two parts and is closed with two screws. The sound-dampening insert is made of black EPDM rubber and is ageing-resistant.
Quality marks
In accordance with ISO 3822-1, the insert provides a noise reduction of 17 DB(A). To achieve the specified noise reduction, the bracket insert must not be overloaded.
Do you want to buy a pipe bracket or need more information?
The desired pipe clamp can be ordered easily and quickly via our website or purchased in one of our branches. Are you not yet sure which bracket would be best for your situation? Contact one of our product specialists for advice without obligation.
