Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 62 - 67 mm

Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 62 - 67 mm

SKU:263273

$15.99
$15.99
Sale Sold out
In stock
View full details

Specifications

Application
aluminium pipecast iron pipecopper pipeplastic pipestainless steel pipesteel pipe
Connection size
62 - 67 mm
Eancode
8712874384606
Inlay
EPDM rubber
Material
ss 316 (stainless steel)
Max. workload
1300 Newton
Maximum clamping range
67 mm
Max workload
1300 Newton
Minimum clamping range
62 mm
Temp. resistance
-40 to +120°C
Temp resistance
-40 to +120°C
Wire connection
M10/M8

Description

The Flamco BRS bracket is equipped with a sound-dampening insert and can be used for attaching the following pipes:

  • steel pipe;
  • stainless steel pipe;
  • copper pipe;
  • aluminum pipe;
  • cast iron pipe and
  • plastic pipe.

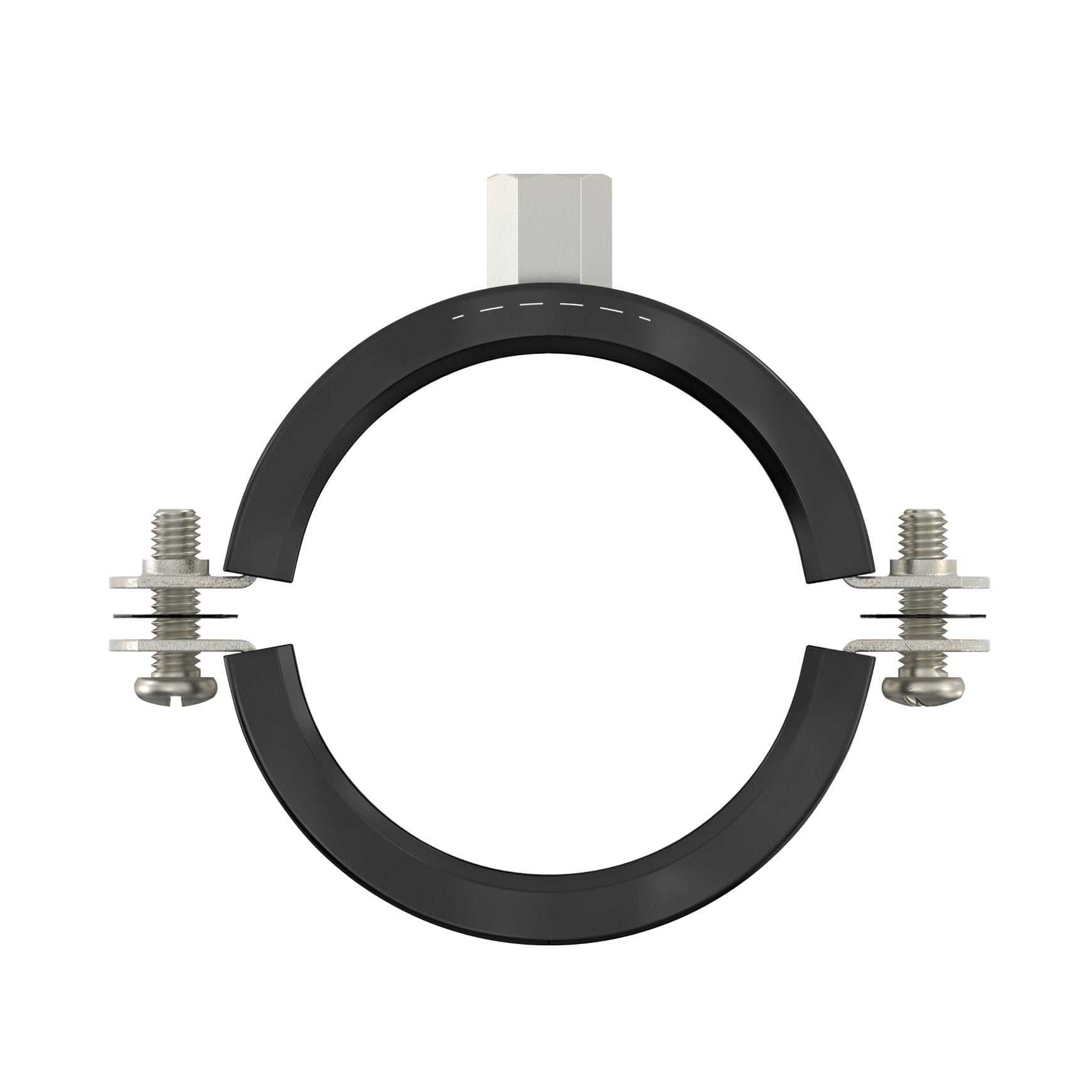

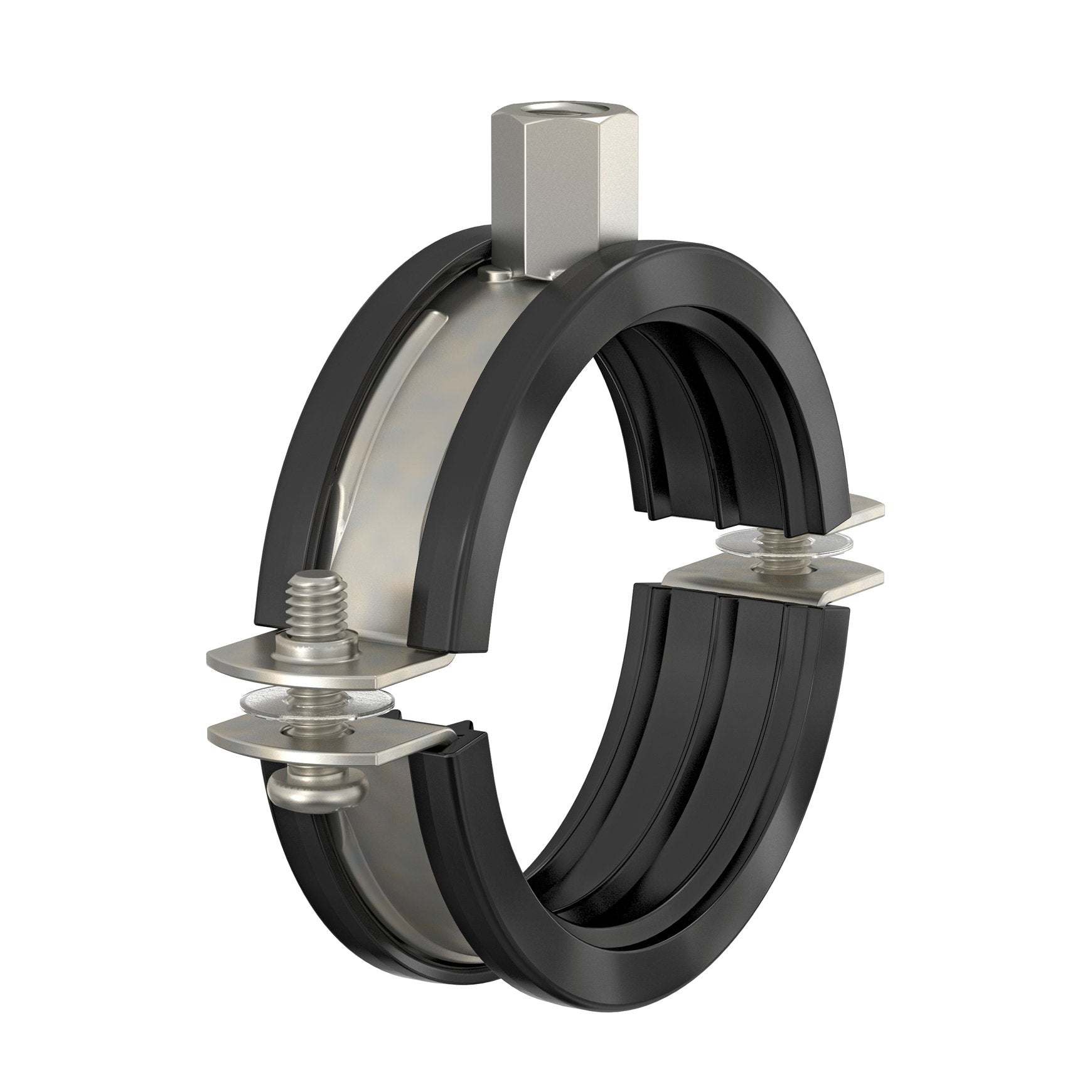

This pipe bracket consists of two parts and is closed with two screws. The sound-dampening insert is made of black EPDM rubber and is resistant to aging.

Certifications
The insert has a sound reduction of 17 DB(A) according to ISO 3822-1. To obtain the indicated sound reduction, the insert of the bracket must not be overloaded.
