Flamco wall bracket, type BM - HK, M8 x 28 mm

Flamco wall bracket, type BM - HK, M8 x 28 mm

SKU:264716

$3.38
$3.38
Sale Sold out
In stock
View full details

Specifications

Application
steel pipe
Connection size
28 mm/M8
Diameter
28 mm
Eancode
8712874361188
Material
steel, electrolytically galvanized/steel, sendzimir galvanized
Max. workload
1300 Newton
Max workload
1300 Newton
Temp. resistance
-40 to +250°C
Temp resistance
-40 to +250°C
Wire connection
M8

Description

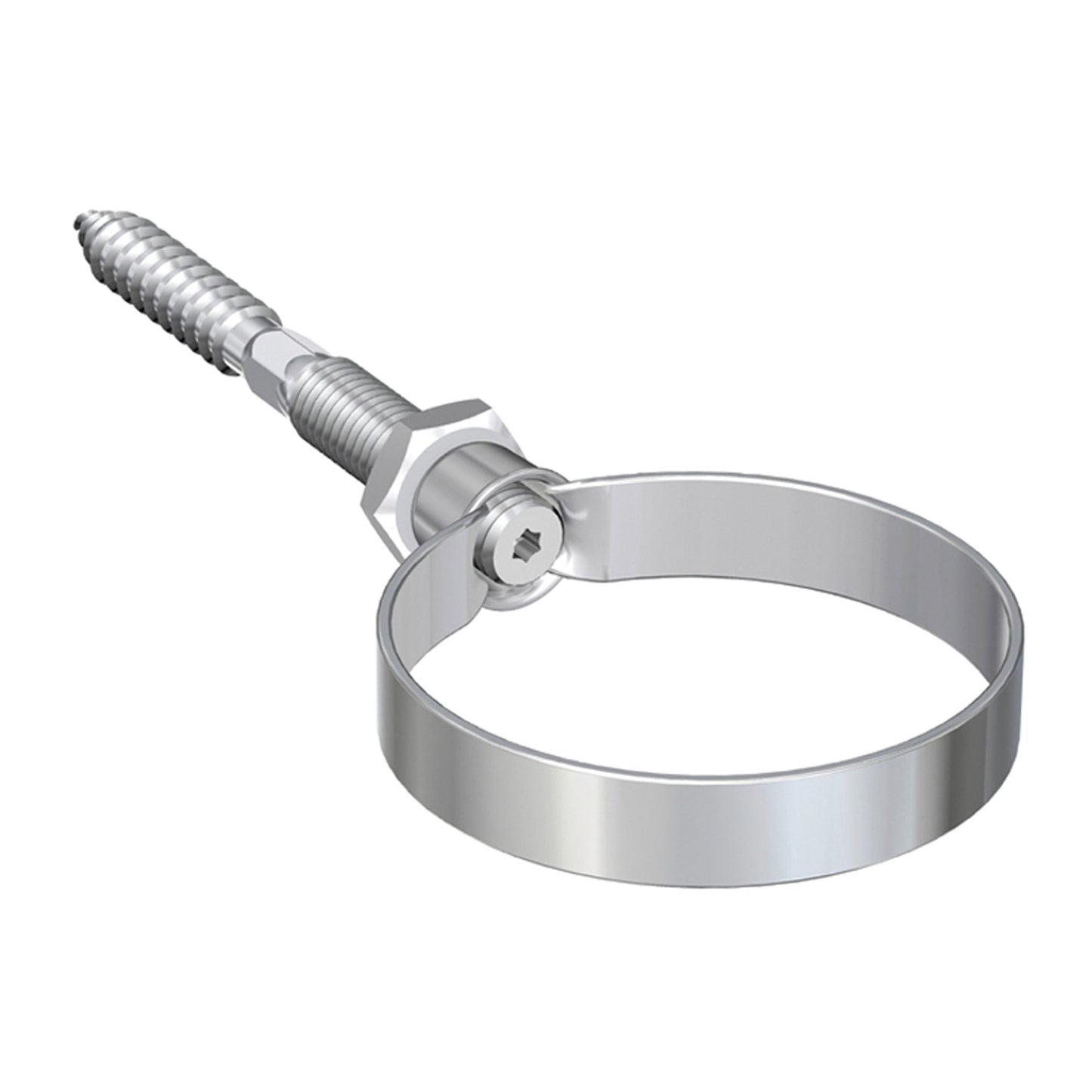

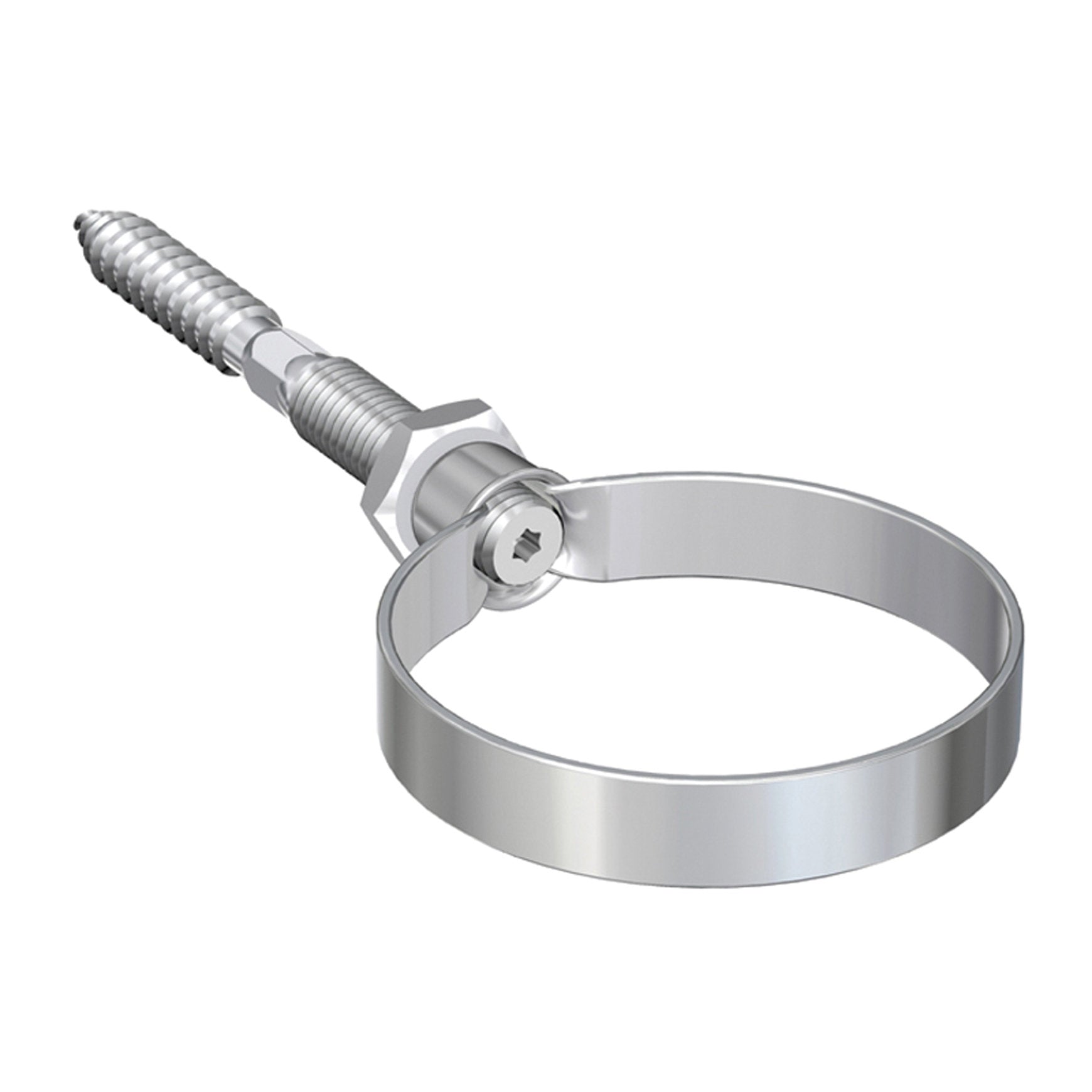

This Flamco wall bracket type BM - HK is suitable for attaching a wire tube, flame tube or thin-walled steel tube. The undivided bracket guarantees a high permissible load and is easy to install.

Attachment

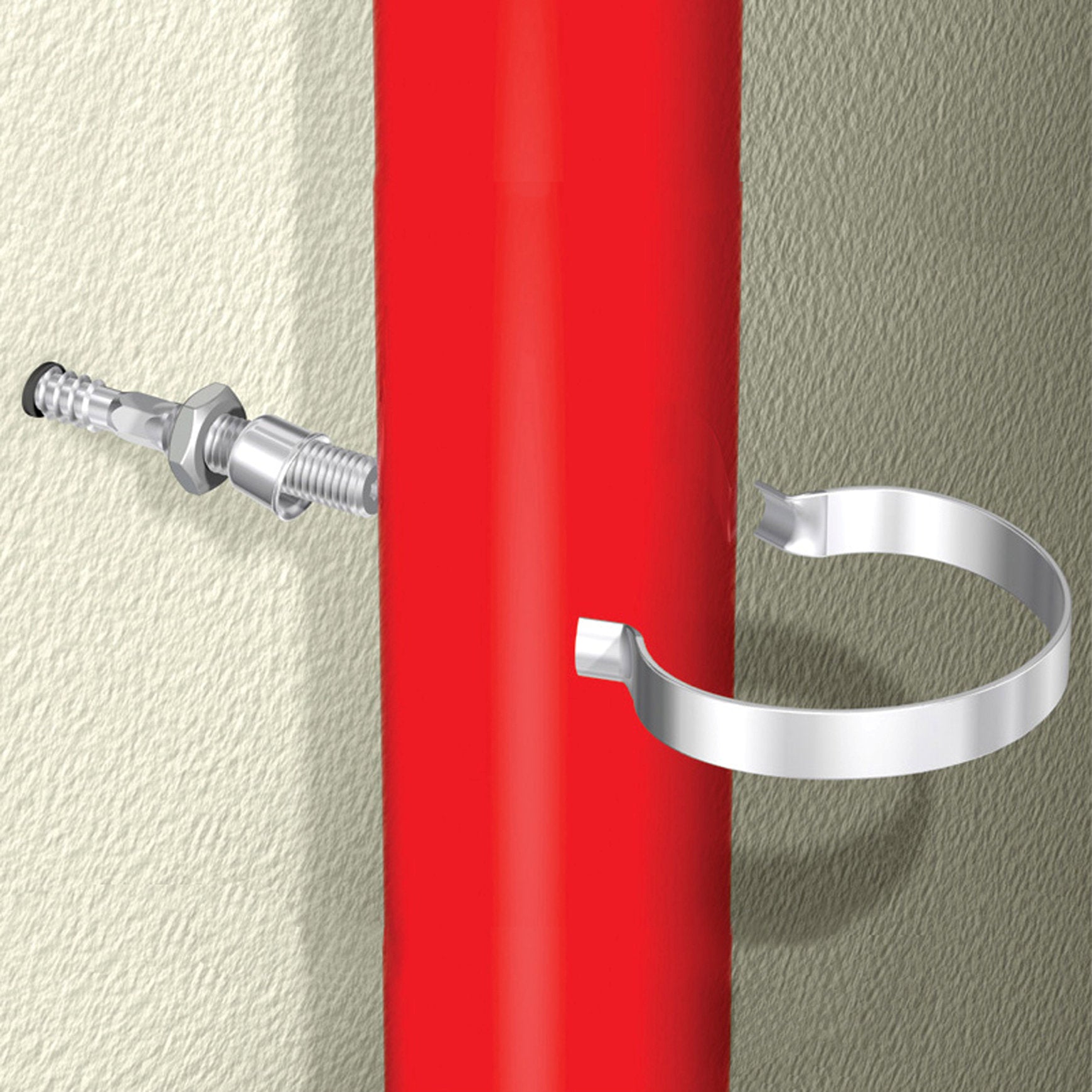

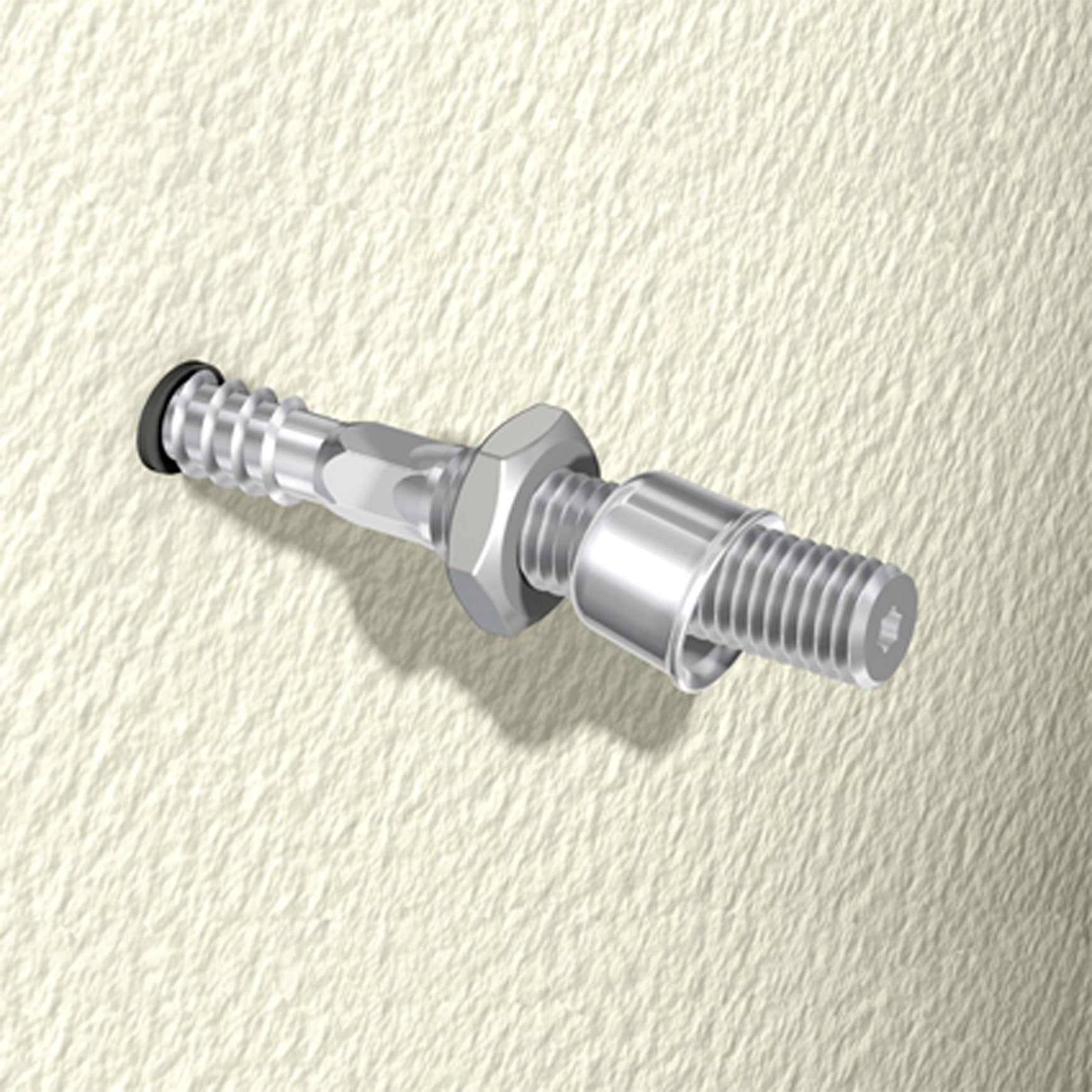

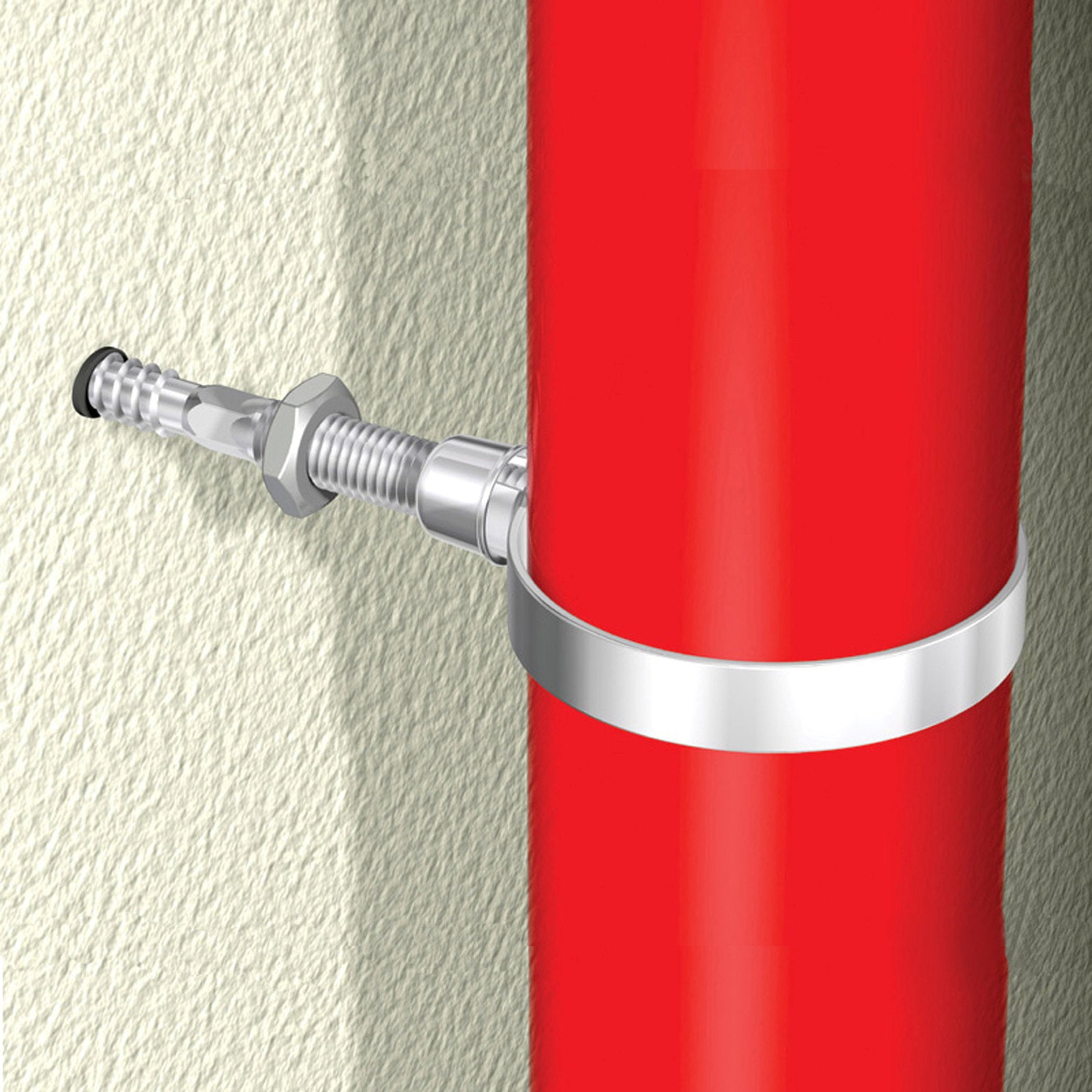

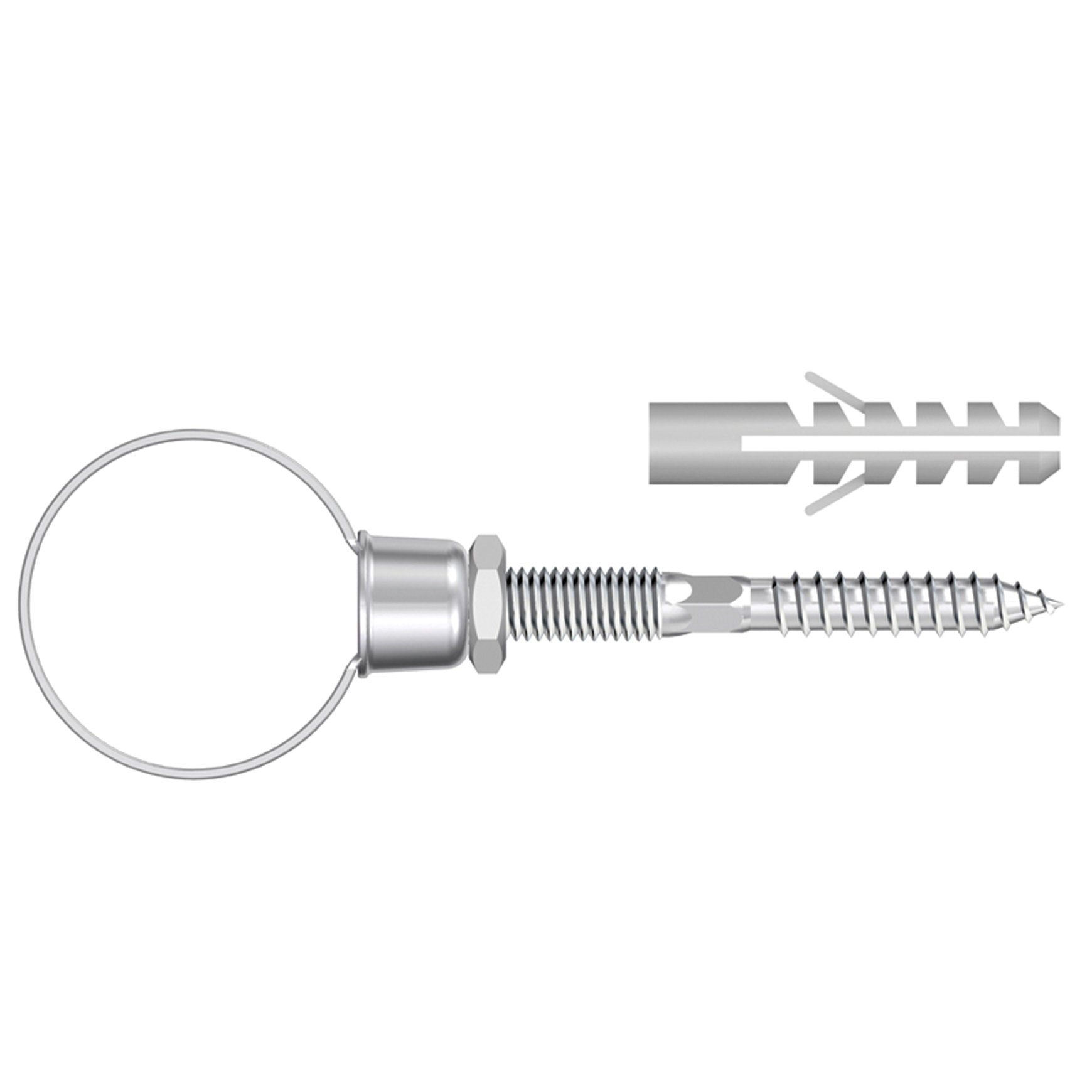

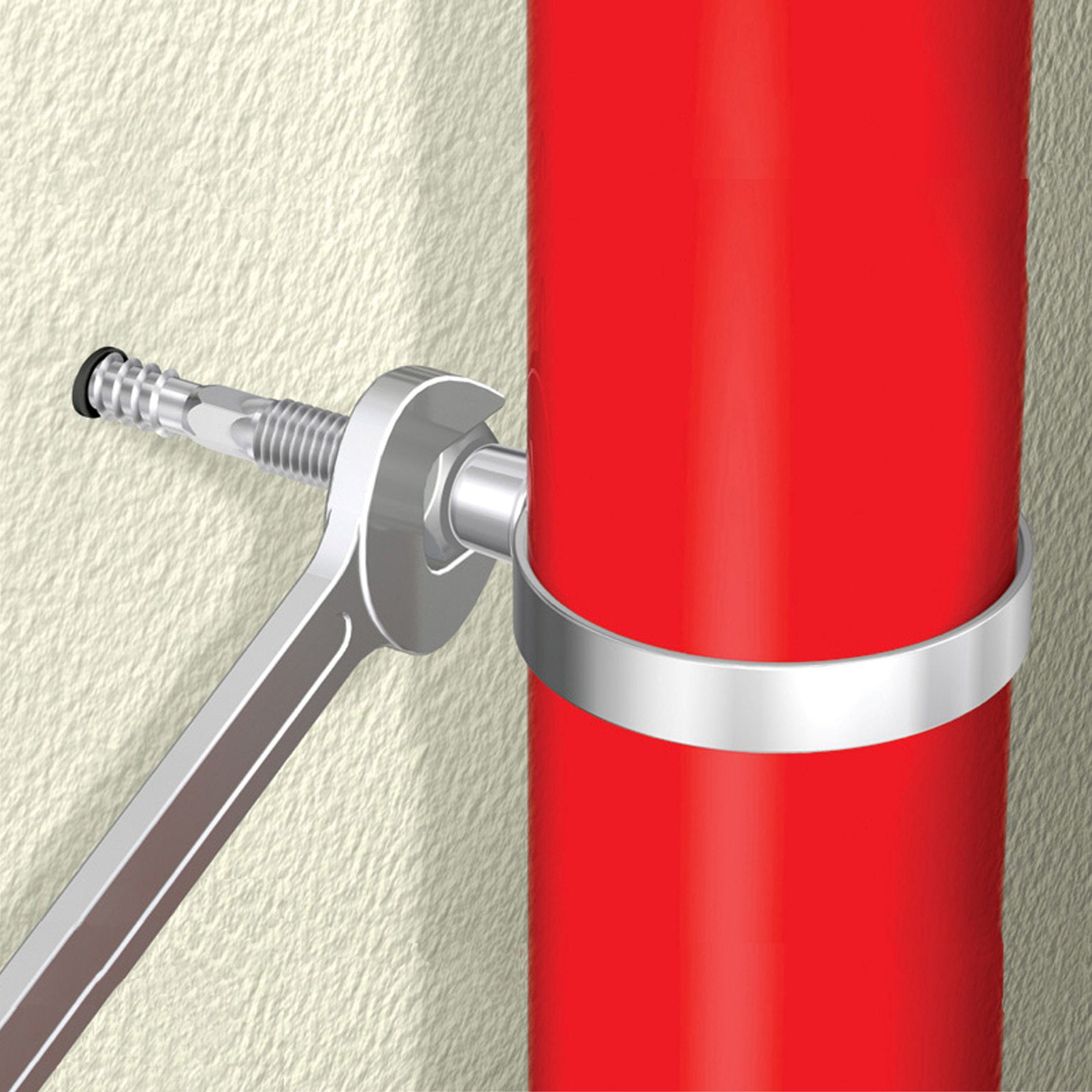

This wall bracket is supplied with a stud screw, plug and clamping bush. The stud screw, also called stud end, has a Torx connection so that it can be easily screwed into the wall. You screw the stud screw into the wall and attach the bracket to the stud screw with a nut. The attachment disappears behind the bracket so that it is not visible. The conical clamping bush with search edge ensures good clamping.
