Flamco wall bracket, type BMK - HK, M8 x 15 mm

Flamco wall bracket, type BMK - HK, M8 x 15 mm

SKU:264752

$4.91
$4.91
Sale Sold out
In stock
View full details

Specifications

Application
copper pipe
Connection size
15 mm/M8
Diameter
15 mm
Eancode
8712874381124
Material
copper
Max. workload
1000 Newton
Max workload
1000 Newton
Quality mark
Kiwa
Temp. resistance
-40 to +120°C
Temp resistance
-40 to +120°C
Wire connection
M8

Description

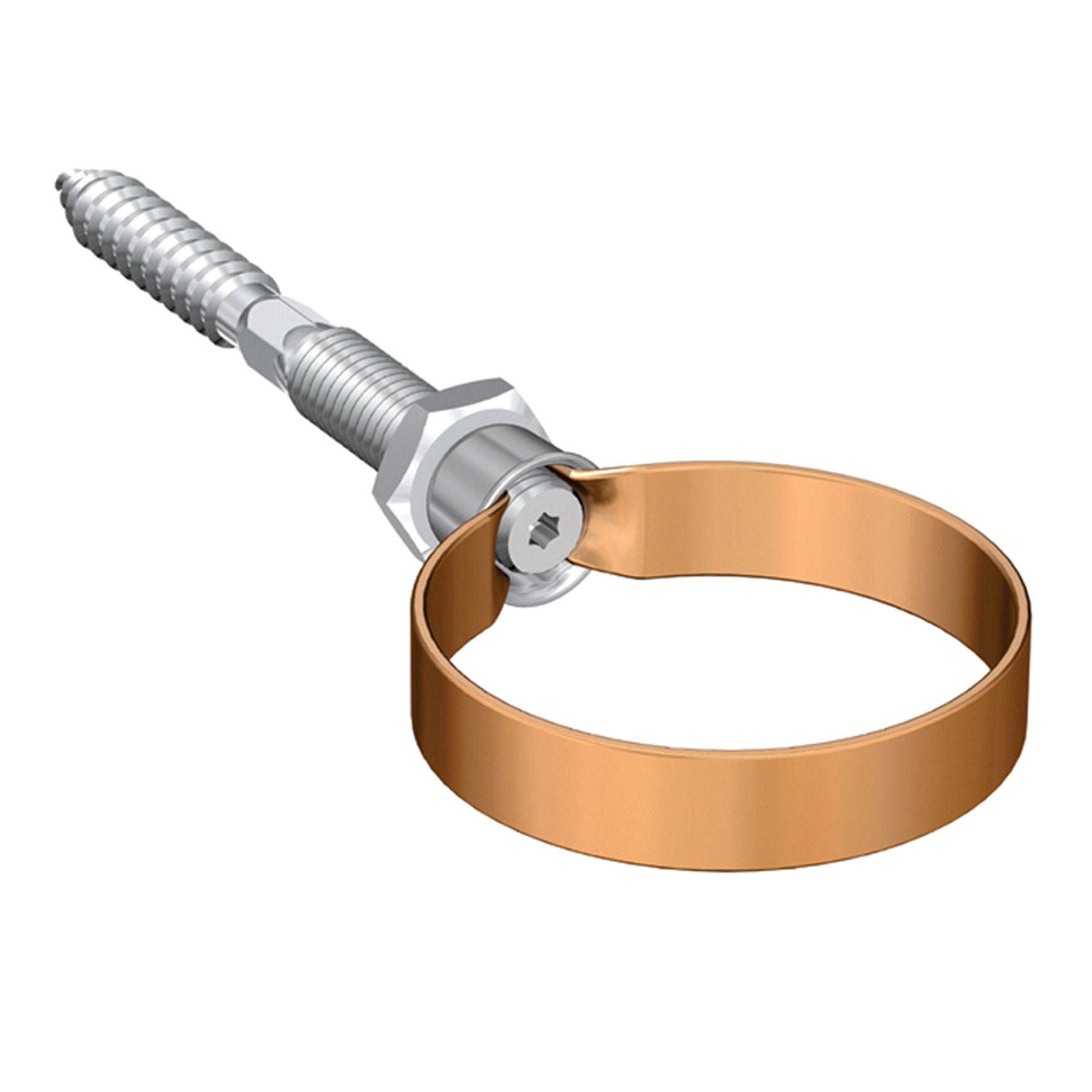

This Flamco wall bracket type BMK - HK is suitable for attaching a copper pipe. The undivided bracket guarantees a high permissible load and is easy to install.

Attachment

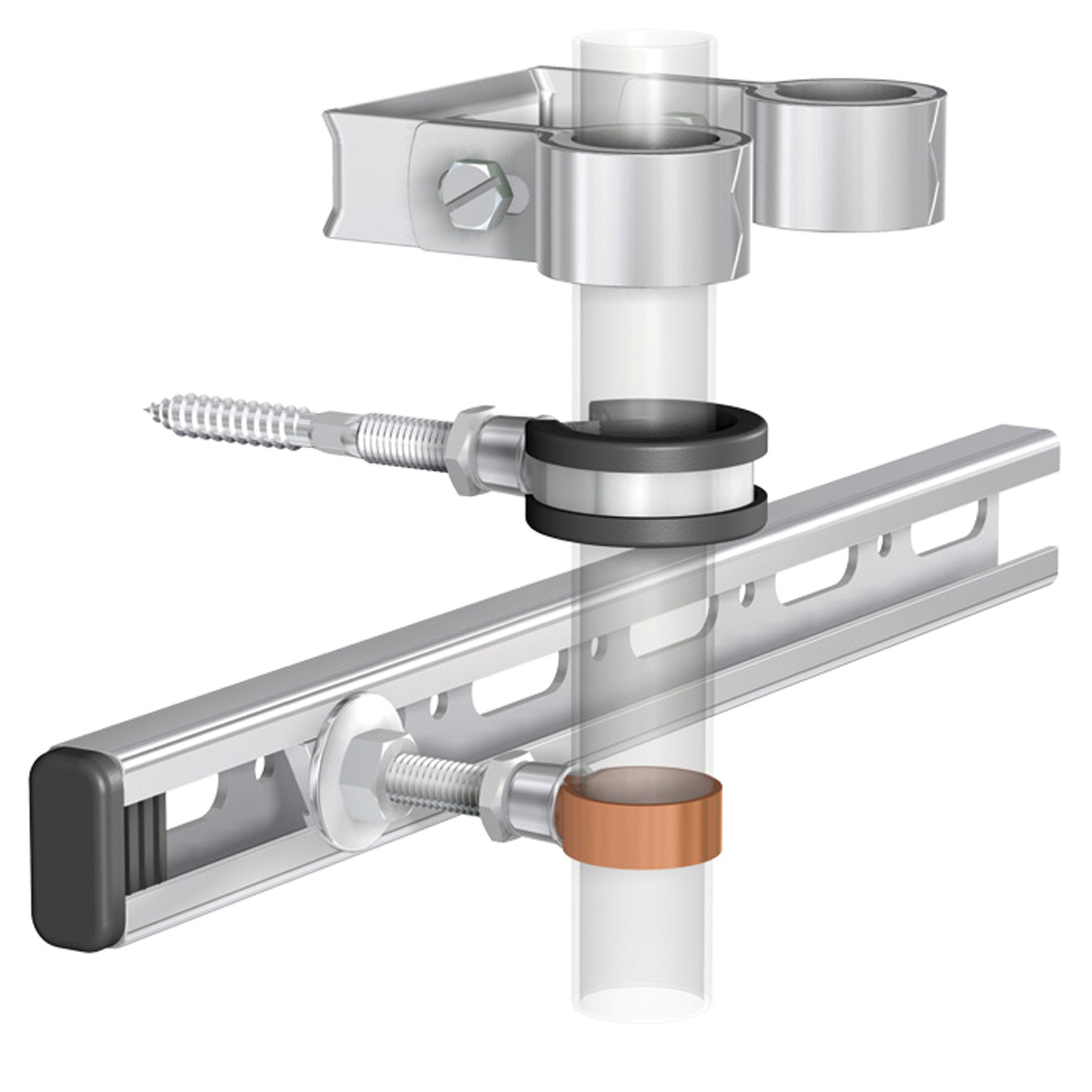

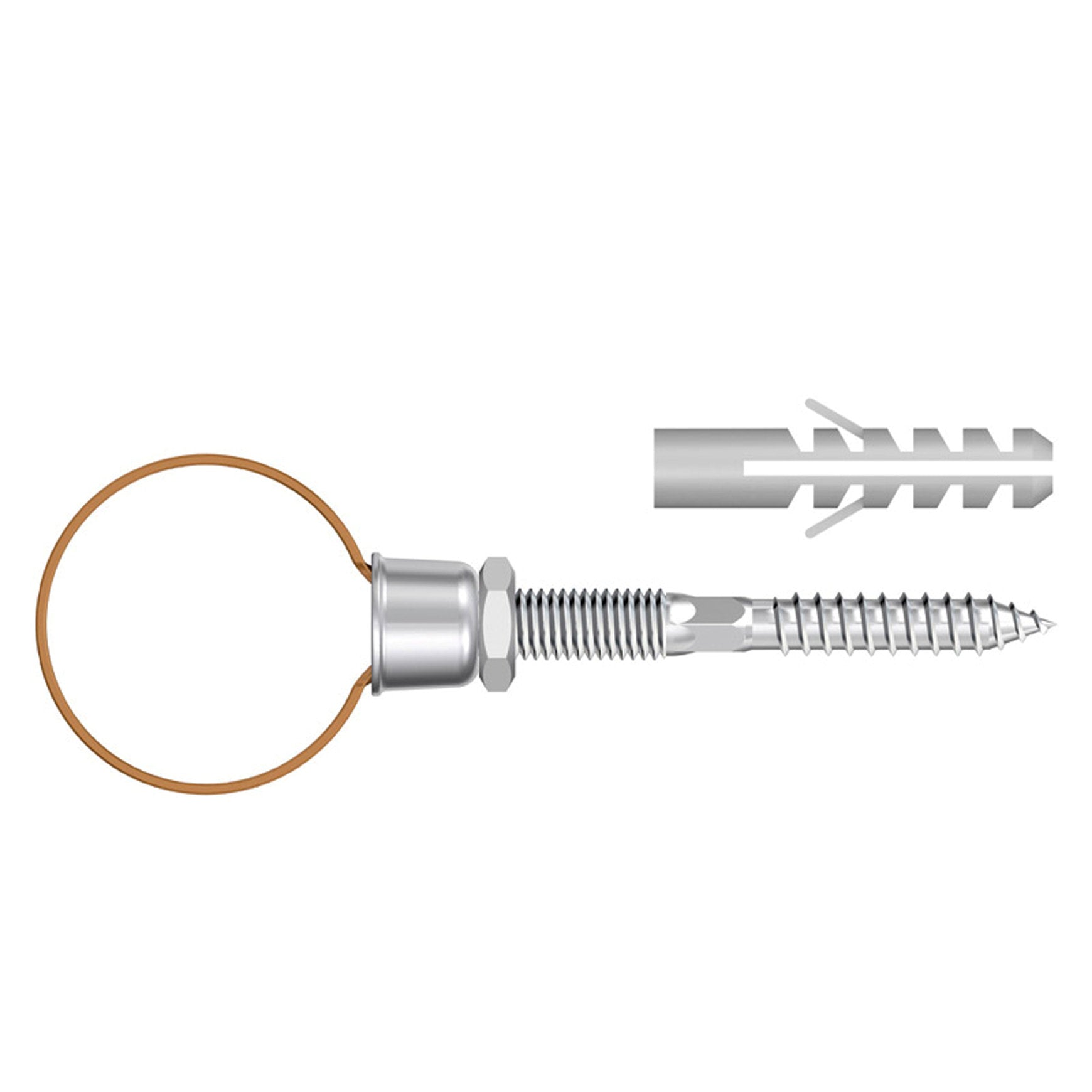

The wall bracket is supplied with a stud screw, plug and clamping bush. The stud screw, also called stud end, has a Torx connection so that it can be easily screwed into the wall. You screw the stud screw into the wall and attach the bracket to the stud screw with a nut.
The attachment disappears behind the bracket so that it is not visible. The conical clamping bush with search edge ensures good clamping.

Certificate
The bracket is provided with a Kiwa certificate, this means that you can use the wall bracket in drinking water installations.
