Flamco wall bracket, type BMK - HK, M8 x 28 mm
Flamco wall bracket, type BMK - HK, M8 x 28 mm
SKU:264766
Regular price
$5.43
Regular price
Sale price
$5.43
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Application
copper pipe
Assortments
wca3010142
Complementary products v2
ProductListDrop
Connection size
28 mm, M8
Diameter
28 mm
Eancode
8712874381186
Material
copper
Max. workload
1000 Newton
Max workload
1000 Newton
Quality mark
Kiwa
Temp. resistance
-40 to +120°C
Temp resistance
-40 to +120°C
Wire connection
M8
Description

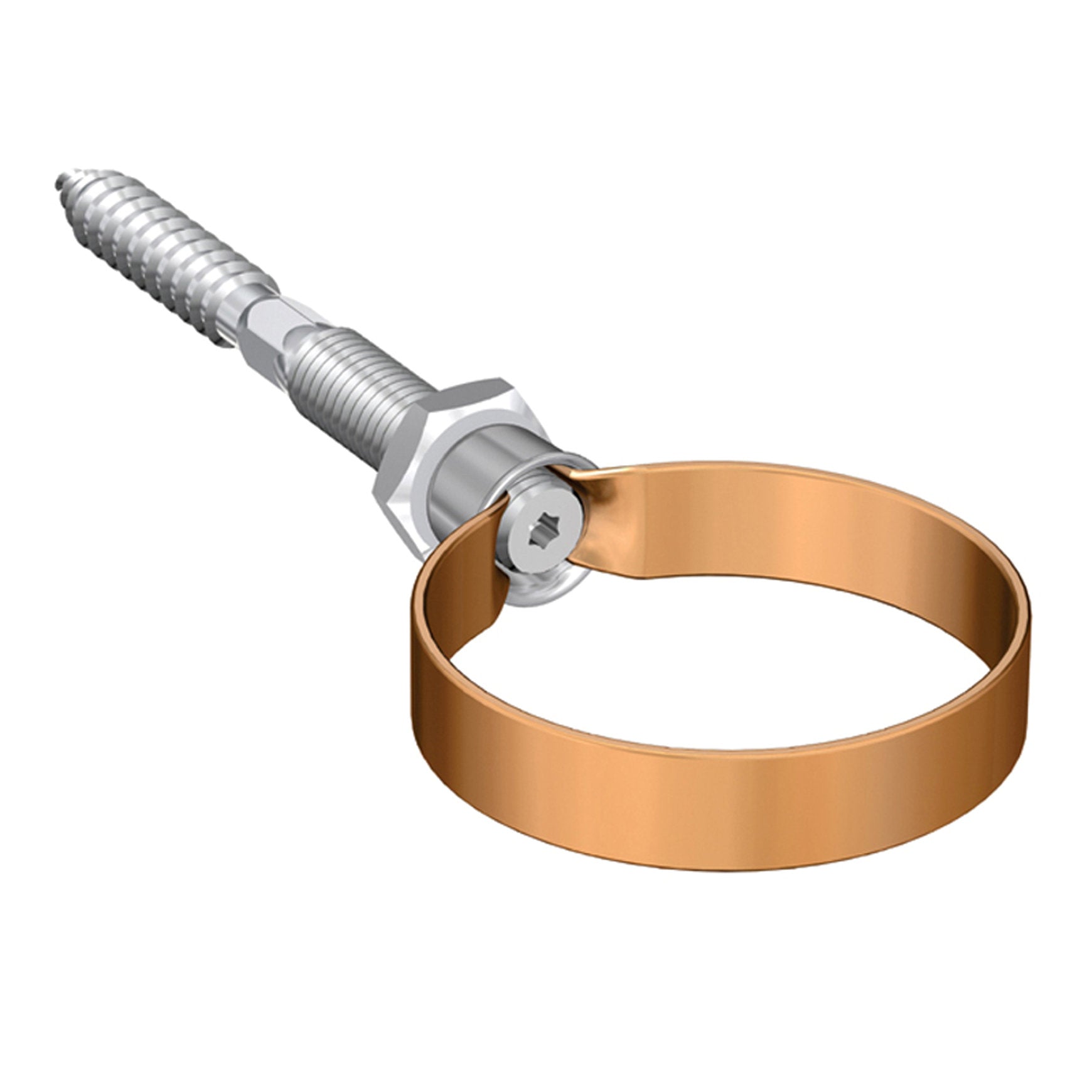

This Flamco wall bracket, type BMK - HK is suitable for securing a copper pipe. The undivided bracket guarantees a very high permissible load and is easy to install.
Fixing

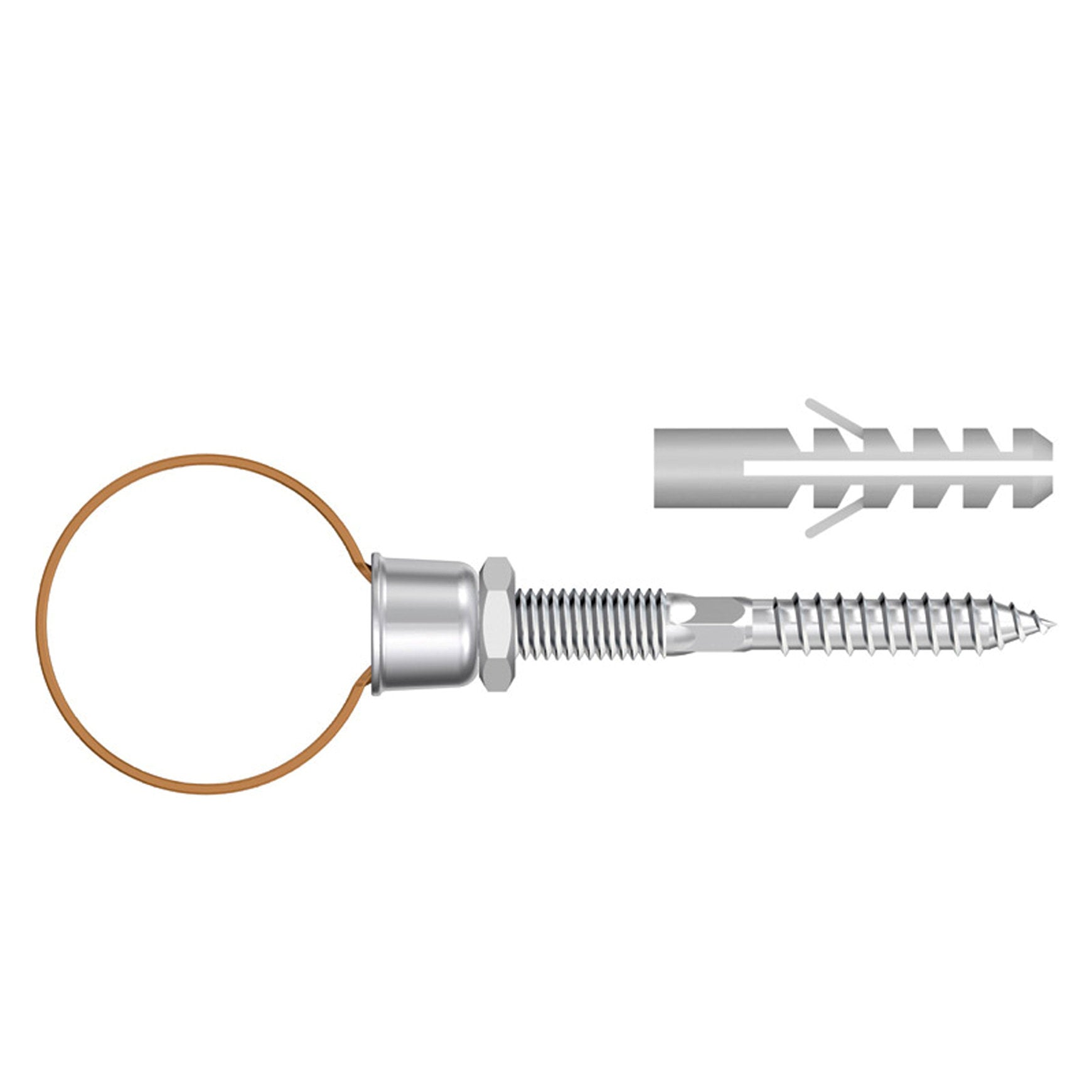

The wall bracket comes with a hanger bolt, plug and clamp bushing. The hanger bolt, also called a dowel screw, has a Torx connection, so that it can easily be screwed into the wall. You screw the hanger bolt into the wall and then secure the bracket to the hanger bolt with a nut.
This fastening is behind, and so hidden from sight by the bracket. The conical clamping bush with leading edge for good clamping.
Quality mark
The bracket is Kiwa certified, which means that you can use it in drinking water installations.
