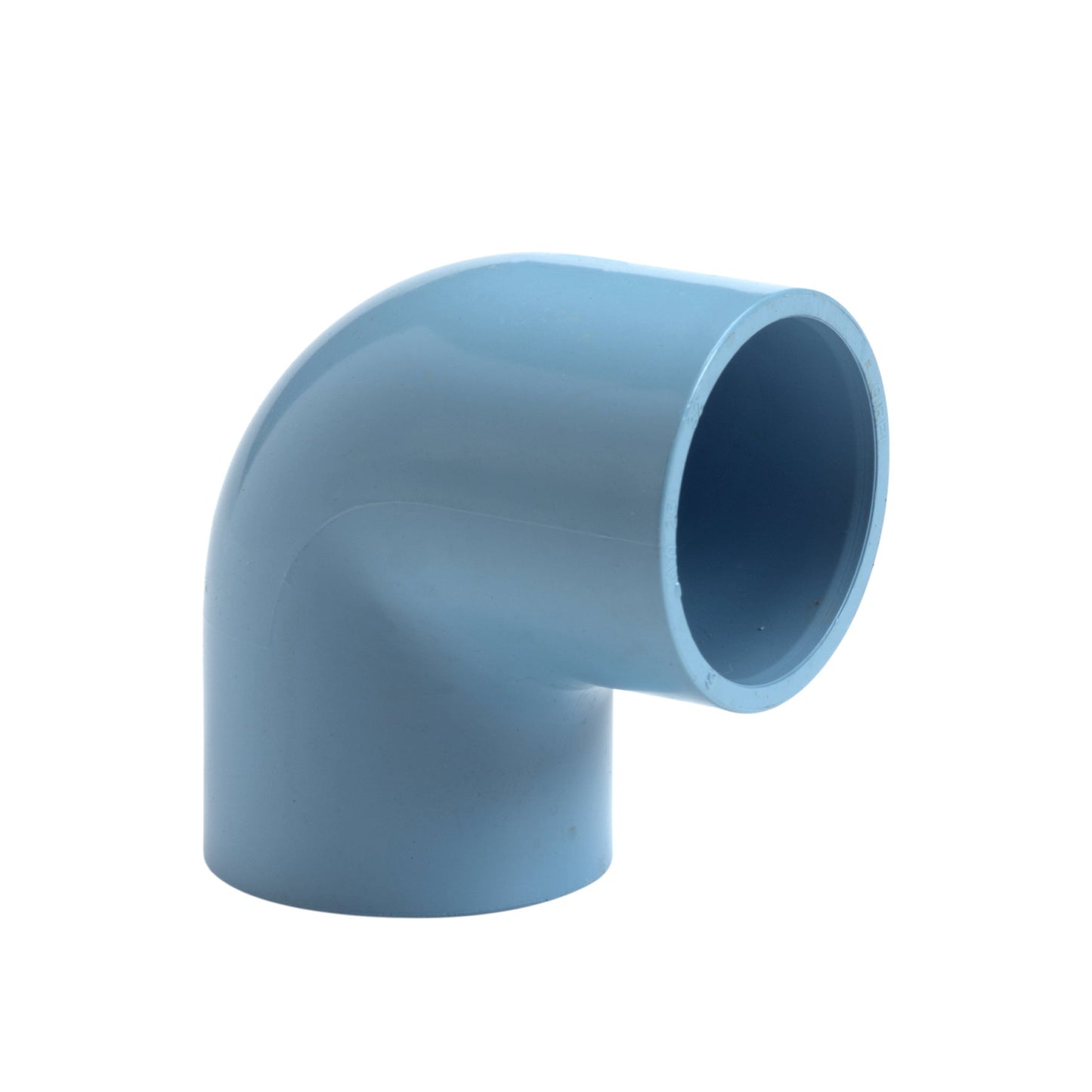

Girair elbow 90°, 2x internal glue, 20 mm
Girair elbow 90°, 2x internal glue, 20 mm
SKU:682067
Regular price
$4.17
Regular price
Sale price
$4.17
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Angle
90 °
Class
Bs1dO
Connection size
20 mm
Connection type
internal adhesive
Diameter
20 mm
Eancode
3343340287104
Material
pvr
Pid owner seller id jarola master repository
Jarola
Pid value seller id jarola master repository
682067
Description
This Girair 90° elbow is used in compressed air piping systems. The blue color indicates that it is suitable for compressed air.
The assembly takes only a few steps:
Note: The Girair system is not suitable for medicinal air, flammable gases or applications that require the absence of silicones.
Features
The Girair compressed air 90° elbow is resistant to static and alternating pressure, tensile forces, is maintenance-friendly and completely leak-proof.Material
The PVR material is fully recyclable.Fire safety
The Girair system is flame retardant according to class M2 and fire class Bs1do.Assembly
The Girair 90° elbow is quick and easy to assemble because it is light in weight. For assembling the system you need the following: a pipe cutter, deburrer and cold-welding polymeric glue.The assembly takes only a few steps:
- Cut the pipe to size with a plastic pipe cutter and bevel the edge.
- Deburr the ends and mark the insertion depth.
- Apply a thin layer of cold-welding polymeric glue to the pipe and fitting up to the insertion depth, slide the fitting straight over the pipe (do not rotate) and hold it for a few seconds.
Note: The Girair system is not suitable for medicinal air, flammable gases or applications that require the absence of silicones.
Buy Girair piping system or need more information?
The desired 90° elbow can be easily and quickly ordered through our website or purchased at one of our locations. Are you not quite sure what the optimal 90° elbow is for your situation? Contact one of our product specialists for advice without obligation.
