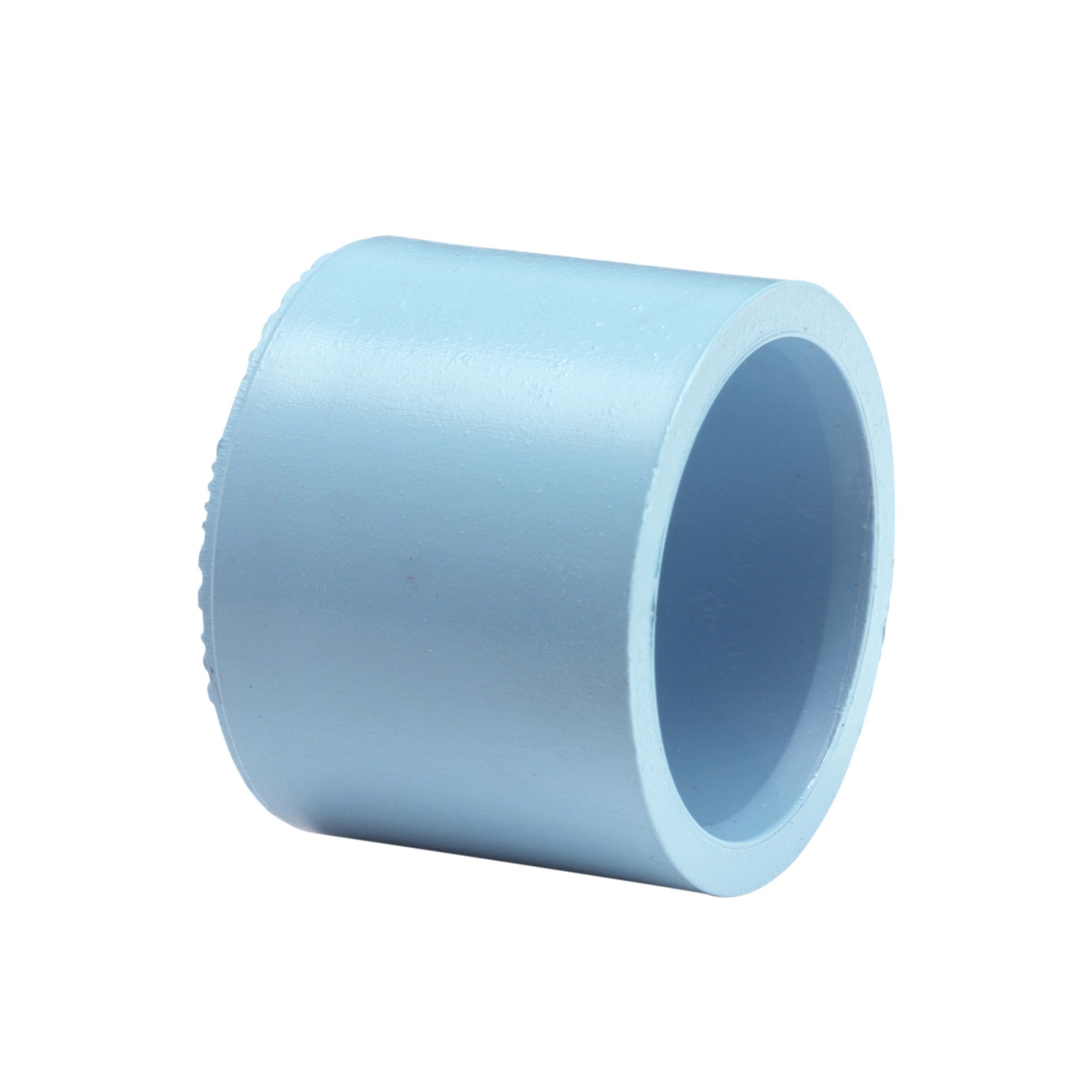

Girair reducing ring, external x internal glue, 32 x 25 mm

Girair reducing ring, external x internal glue, 32 x 25 mm

SKU:682193

$4.89
$4.89
Sale Sold out
In stock
View full details

Specifications

Class
Bs1dO
Connection size
25 mm/32 mm
Connection type
external x internal glue
Diameter
25 mm/32 mm
Eancode
3343340279802
Material
pvr
Pid owner seller id jarola master repository
Jarola
Pid value seller id jarola master repository
682193

Description

This Girair transition ring is used in compressed air piping systems. The blue color indicates that it is suitable for compressed air.

Properties

The Girair compressed air transition ring is resistant to static and alternating pressure, tensile forces, is maintenance-friendly and completely leak-proof.

Material

The PVR material is fully recyclable.

Fire safety

The Girair system is flame retardant according to class M2 and fire class Bs1do.

Assembly

The Girair transition ring is quick and easy to assemble because it is light in weight. For assembling the system you need the following: a pipe cutter, deburrer and cold-welding polymeric glue.

The assembly takes only a few steps:
  • Cut the pipe to size with a plastic pipe cutter and bevel the edge.
  • Deburr the ends and mark the insertion depth.
  • Apply a thin layer of cold-welding polymeric glue to the pipe and fitting up to the insertion depth, slide the fitting straight over the pipe (do not rotate) and hold it for a few seconds.
After assembly and drying time, a pressure test must be done. The test lasts 12 hours during which no pressure drop may be observed. The test pressure must be 1.5 times the working pressure with a maximum of 12.5 bar.

Note: The Girair system is not suitable for medicinal air, flammable gases or applications that require the absence of silicones.
