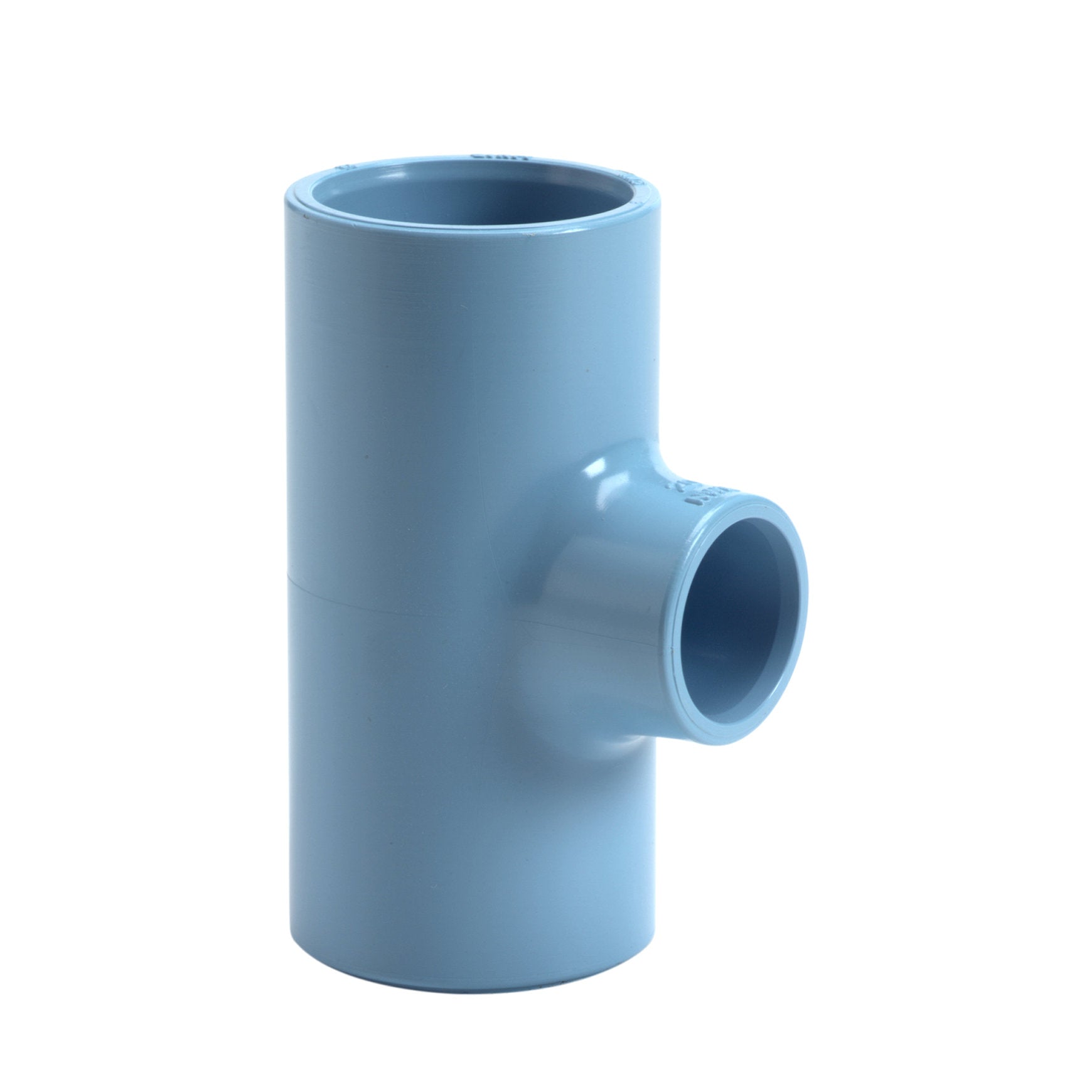

Girair reducing T-piece 90°, 3x internal glue, 32 x 20 x 32 mm

Girair reducing T-piece 90°, 3x internal glue, 32 x 20 x 32 mm

SKU:682153

$16.70
$16.70
Sale Sold out
In stock
View full details

Specifications

Angle
90 °
Assortments
wca2010310
Class
Bs1dO
Complementary products v2
ProductListDrop
Connection size
20 mm, 32 mm
Connection type
internal adhesive
Diameter
20 mm, 32 mm
Eancode
3343340281409
Material
pvr

Description

This Girair 90° reducing Tee is used in compressed-air piping systems. The blue colour indicates that it is suitable for compressed air.

Properties

The Girair compressed-air 90° reducing Tee is resistant to static and alternating pressure, and tensile forces, and is maintenance-friendly and completely leak-proof.

Material

The PVR material is fully recyclable.

Fire safety

The Girair system is flame retardant in accordance with class M2 and fire class B-s1, d0.

Installation

Being lightweight, the Girair 90° reducing Tee is quick and easy to install. Installing the system will require: a pipe cutter, a deburrer, and cold-weld polymer adhesive.

The installation is done in just a few steps:
  • Cut the pipe to size using a pipe cutter for plastic pipes.
  • Bevel the edge and deburr the ends with a PVC deburrer.
  • Mark the insertion depth.
  • Clean both ends with a cleaner.
  • Apply a thin layer of cold-weld polymer adhesive to the pipe and fitting up to the insertion depth, slide the fitting straight over the pipe (without twisting) and hold it in place for a few seconds.
After installation and drying time, a pressure test should be performed. The test lasts 12 hours, during which no pressure drop may be observed. The test pressure should be 1.5 times the working pressure, with a maximum of 12.5 bar.

Please note: The Girair system is not suitable for medicinal air, flammable gases, or non-silicon applications.
