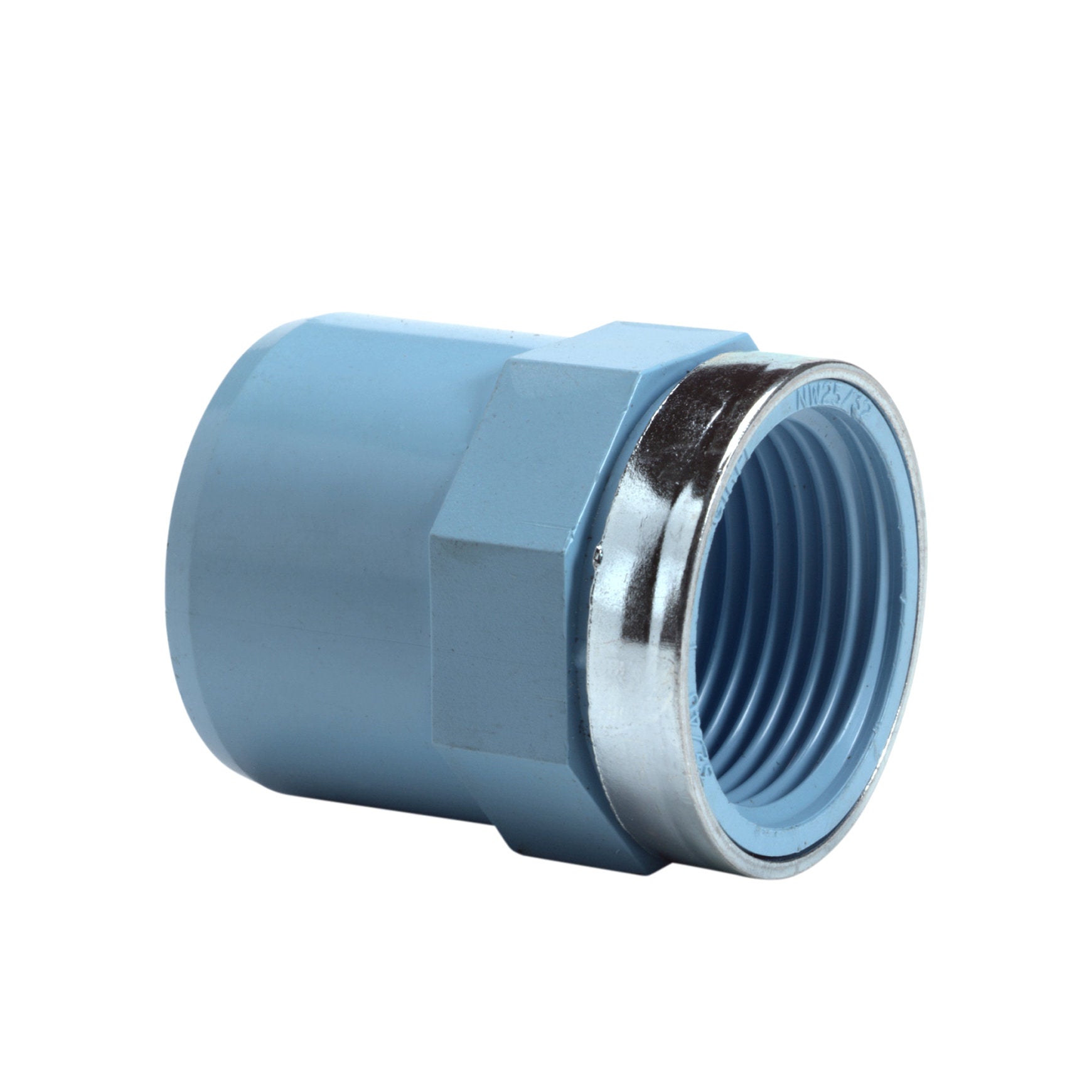

Girair screw coupling, external/internal glue x female thread, 32 - 25 mm x ¾”

Girair screw coupling, external/internal glue x female thread, 32 - 25 mm x ¾”

SKU:682330

$17.77
$17.77
Sale Sold out
In stock
View full details

Specifications

Class
Bs1dO
Connection size
25 mm, ¾"
Connection type
female thread x int / ext glue
Diameter
25 mm, 32 mm, ¾"
Eancode
3343340277600
Material
pvr
Pid owner seller id jarola master repository
Jarola
Pid value seller id jarola master repository
682330

Description

This Girair fitting is used in compressed air piping systems. The blue color indicates that it is suitable for compressed air.

Features

The Girair compressed air coupling is resistant to static and alternating pressure, tensile forces, is maintenance-friendly and completely leak-proof.

Material

The PVR material is fully recyclable.

Fire safety

The Girair system is flame retardant according to class M2 and fire class Bs1do.

Assembly

The Girair fitting is quick and easy to assemble because it is light in weight. The coupling has an external/internal adhesive x female thread connection. For assembling the system you need the following: a pipe cutter, deburrer and cold-welding polymeric adhesive.

The assembly takes only a few steps:
  • Cut the pipe to size with a plastic pipe cutter and bevel the edge.
  • Deburr the ends and mark the insertion depth.
  • Apply a thin layer of cold-welding polymeric adhesive to the pipe and fitting up to the insertion depth, slide the fitting straight onto the pipe (do not rotate) and hold it for a few seconds.
After assembly and drying time, a pressure test must be done. The test lasts 12 hours during which no pressure drop must be observed. The test pressure must be 1.5 times the working pressure with a maximum of 12.5 bar.

Note: The Girair system is not suitable for medicinal air, flammable gases or applications that require the absence of silicones.

Buy Girair air piping system or need more information?

The desired fitting can be easily and quickly ordered through our website or purchased at one of our locations. Are you not quite sure what the optimal coupling is for your situation? Feel free to contact one of our product specialists for advice.
