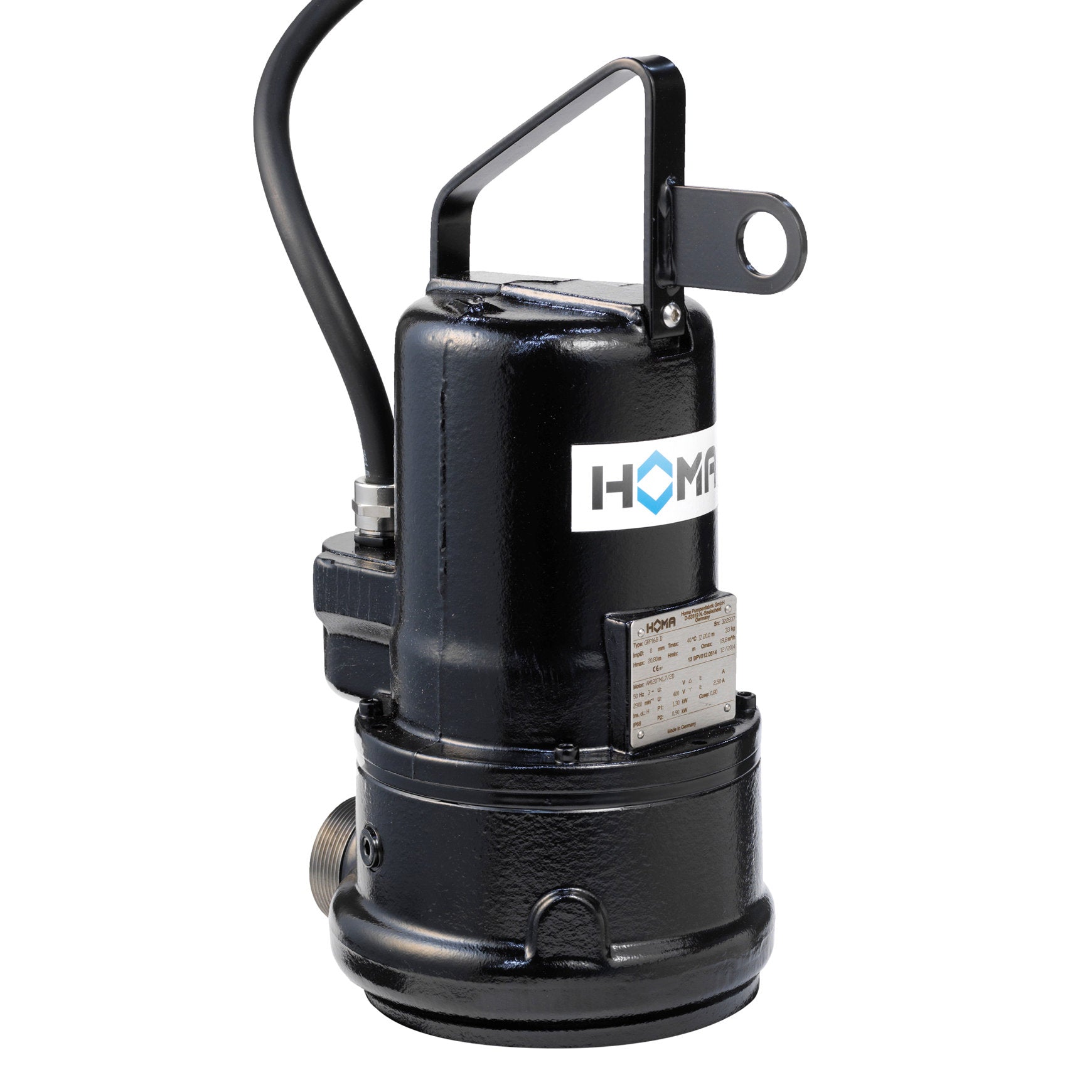

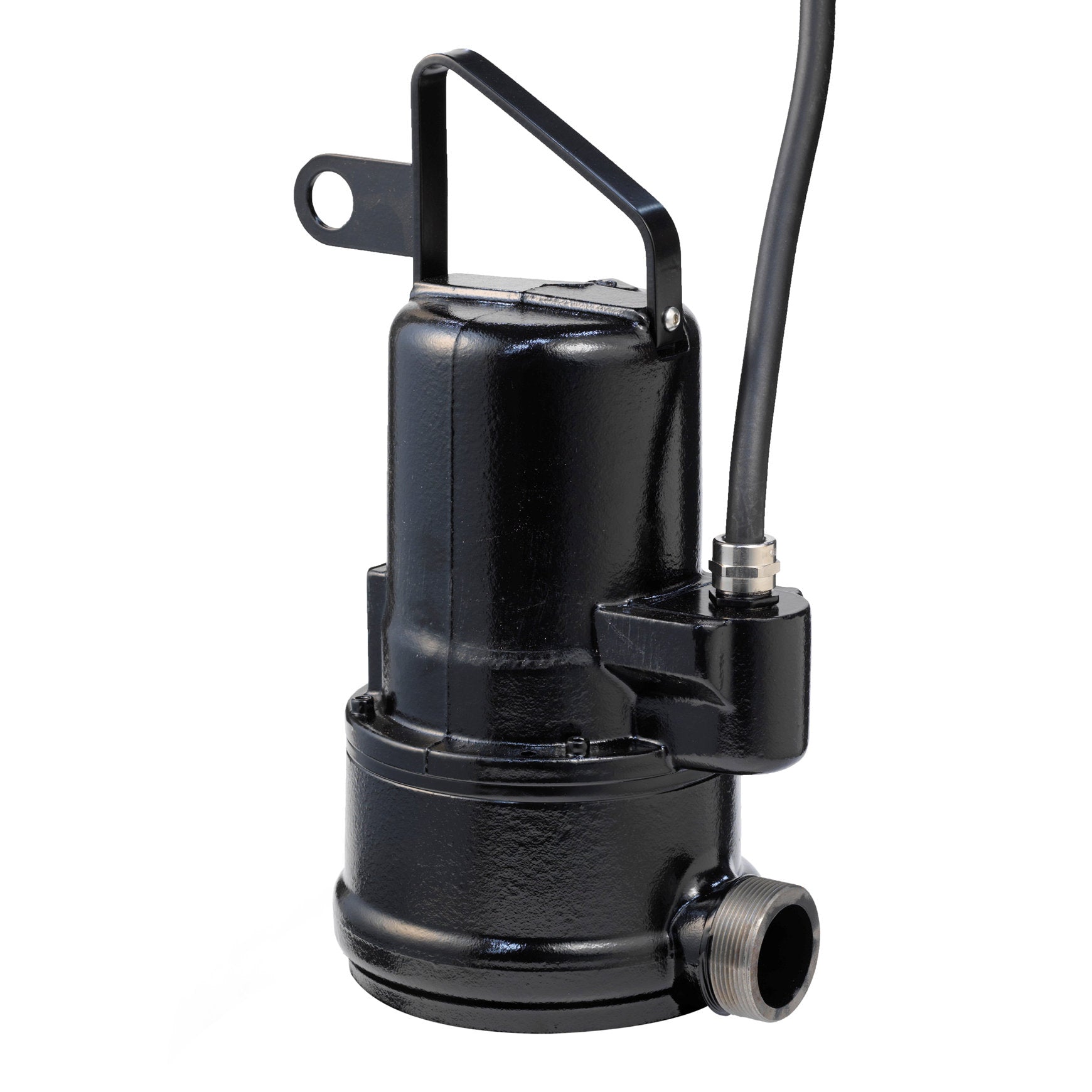

Homa submersible pump with cutting mechanism for waste water and faeces, GRP 26 D, cast iron, 400 V
Homa submersible pump with cutting mechanism for waste water and faeces, GRP 26 D, cast iron, 400 V
SKU:792976
Regular price
$2,771.17
Regular price
Sale price
$2,771.17
Unit price
per
Delivery on request
Specifications
Assortments
wca6001070
Cable
H07RN
Cable length
10 m
Complementary products v2
ProductListDrop
Connection type
male thread
Degree of protection
IP68
Eancode
4014680012532
Explosion proof
no
Fan type
open multi-channel with pre-positioned cutting unit
Flat piston
no
Float
no
Insulation class
H
Maximum capacity
21.2 m³/uur
Maximum immersion depth
20 m
Press connection
2"
Pump housing material
cast iron
Rpm
2900 rpm
Type
GRP 26 D
Voltage
400 V
Warranty
1 jaar
Description
The Homa GRP submersible pump is highly suitable for pumping wastewater and fecal matter. The cutting mechanism shreds solid particles, preventing the pump and discharge line from clogging.
This pump is particularly suitable as a sewage pump for pumping wastewater from homes, agricultural and industrial companies, recreational parks, campsites, marinas, beach pavilions, etc.
The submersible pump comes with thermal protection and does not include a float.
Material
- Pump housing: cast iron (GG 25/EN-GJL-250).
- Motor housing: cast iron (GG 25/EN-GJL-250).
- Pump impeller: cast iron (GG 25/EN-GJL-250).
- Motor shaft: stainless steel (ss).
- Sliding ring seal: silicon carbide.
- Elastomers: nitrile rubber (nbr).
Selecting the optimal pump for the right situation depends on many factors. For free advice, please contact one of our pump specialists.
