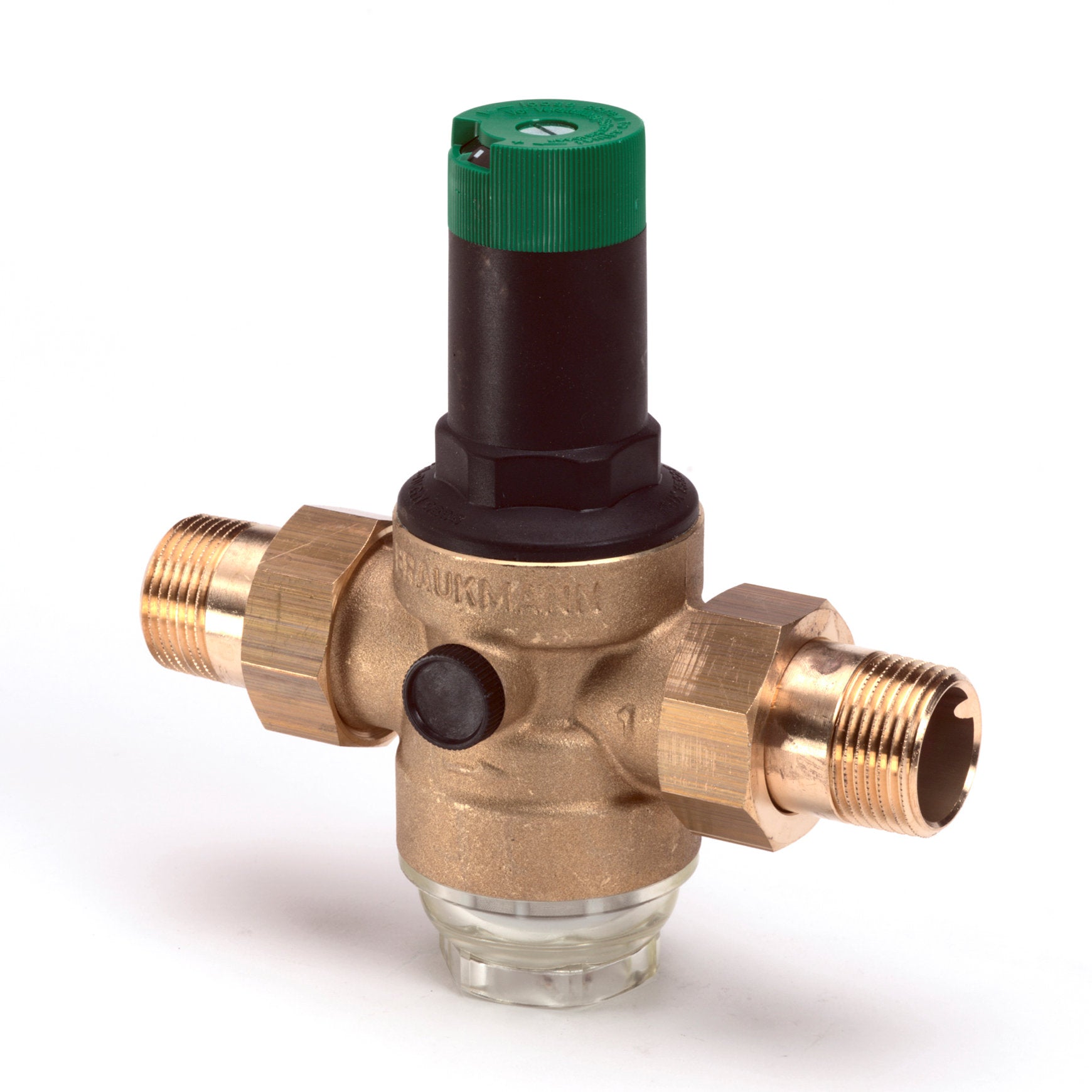

Honeywell Braukmann pressure reducing valve, ¾, without pressure gauge

Honeywell Braukmann pressure reducing valve, ¾, without pressure gauge

SKU:643179

$175.30
$175.30
Sale Sold out
Delivery on request

Request Delivery Time Indication

 View full details

Specifications

Assortments
wca2010800
Complementary products v2
ProductListDrop
Connection size
¾"
Eancode
4019837000332
Type
D06F-3/4A

Description

  • Pressure stage PN 16; outlet pressure adjustable from PN 1.5 to 6.
  • Protects pipes against pressure surges in the pipe network, also saves water.
  • Constant outlet pressure, even when the inlet pressure varies greatly.
  • For both industrial and commercial systems.
  • Construction:
    • approval: KIWA.
    • medium: water, compressed air and nitrogen.
    • body and fittings: brass
    • spring sleeve: high-quality plastic
    • filter: stainless steel mesh.
    • mesh size: 0.16 mm.
  • Additional description:
    • Adjustment knob to set the reduced pressure.
    • adjusting scale for reading the set pressure.
    • The adjustment does not come into contact with the medium.
    • The interior is made of high-quality synthetic plastic and is interchangeable.
    • Can be expanded with an add-on filter (FN09S) and a counterflow screen cleaning system.
    • Integrated fine-filter.
  • D06F with transparent plastic filter holder and BSP male thread couplings.
