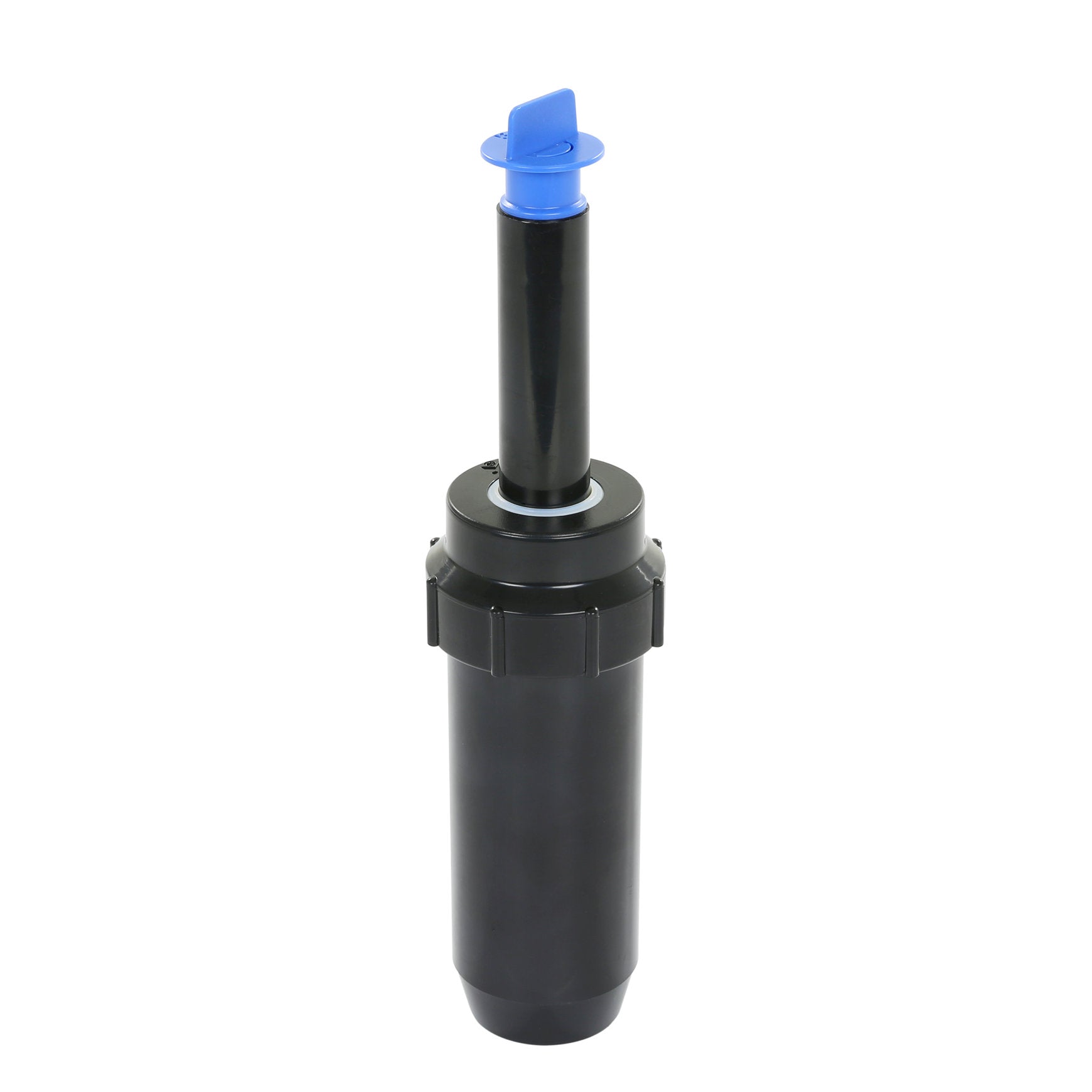

K-Rain pop-up spray sprayer type KV 74001, extension height 10 cm
K-Rain pop-up spray sprayer type KV 74001, extension height 10 cm
SKU:780168
Couldn't load pickup availability
Specifications
Description

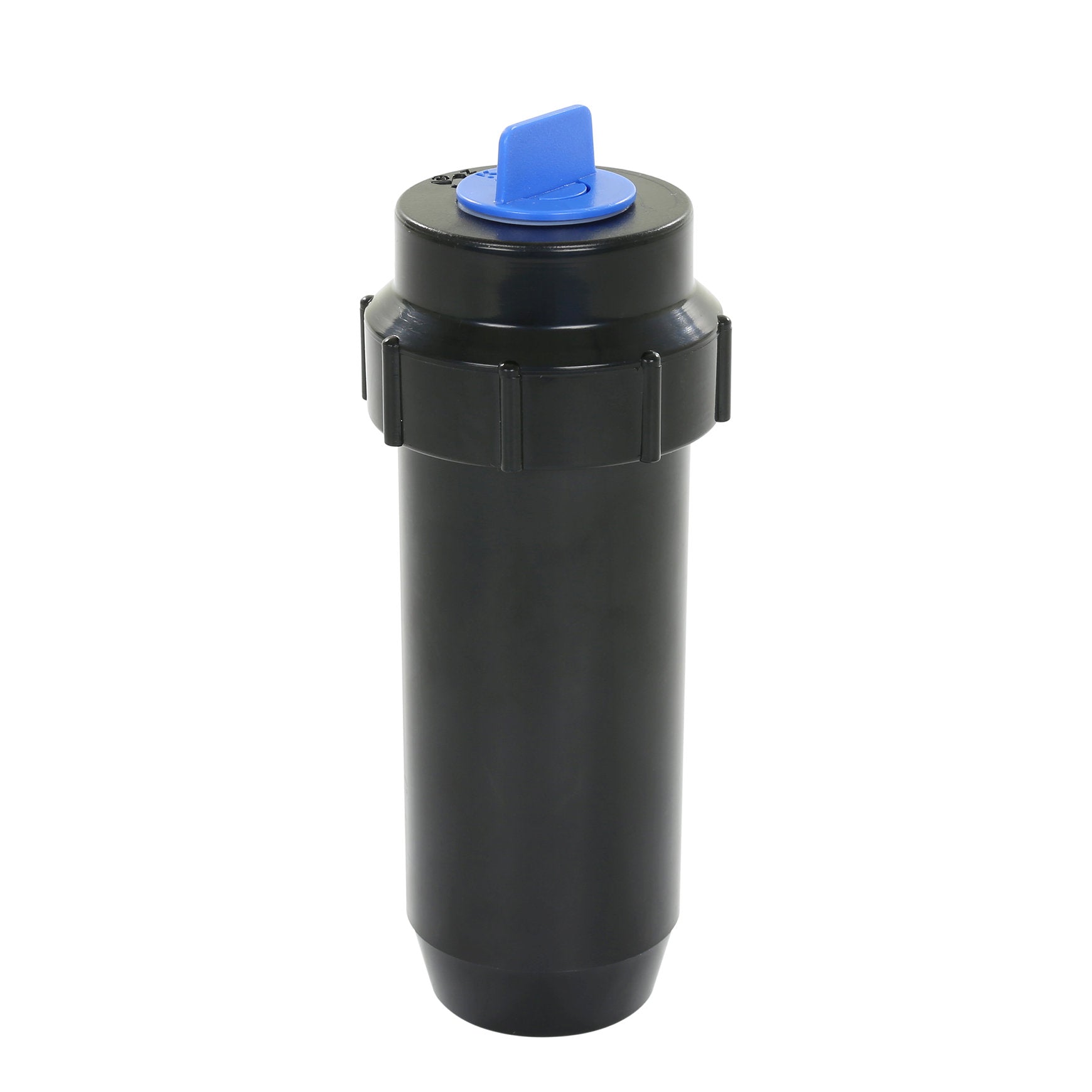

If you are looking for a ‘concealed’ misting sprinkler to water small green areas, ground covers and shrubs, then the K-Rain pop-up misting sprinkler type KV, would be ideal.
This pop-up misting sprinkler has been specially developed for the professional market for the overhead misting of plants and/or borders.
The sprinkler also has a special seal preventing it from leaking, even at low pressure. The built-in flushing device washes any dirt off the sprinkler head, extending the sprinkler's service life.

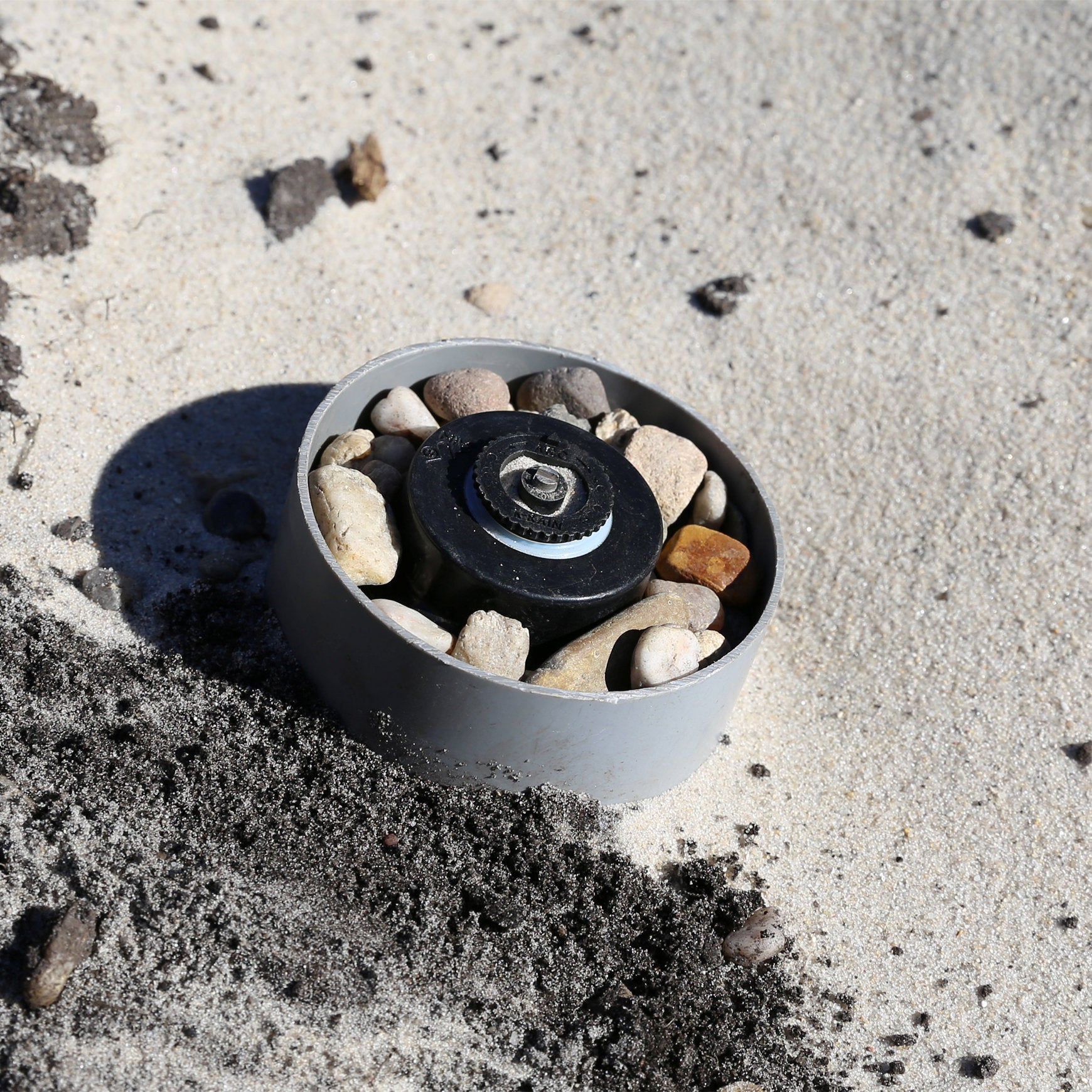

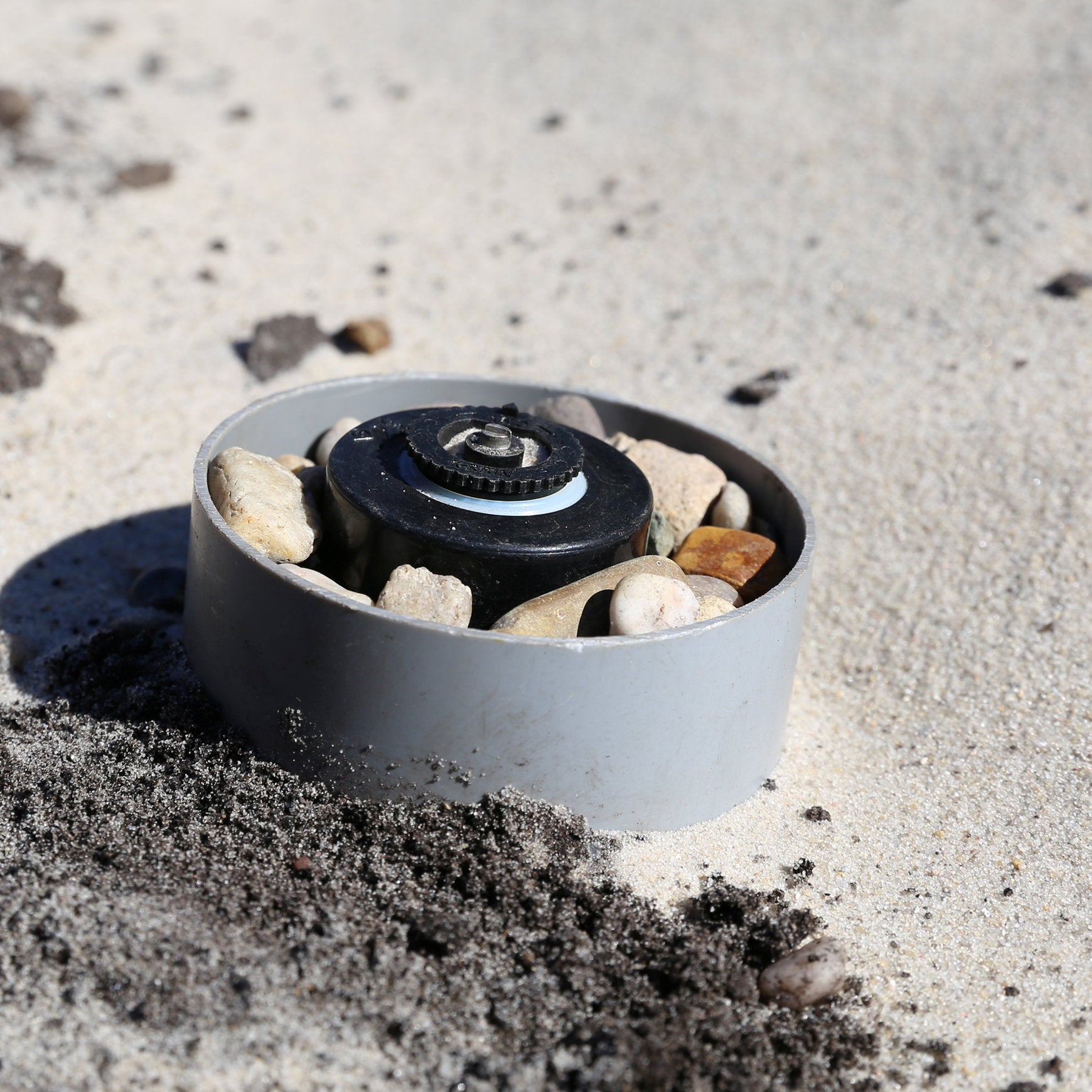

Since dirt is washed off the sprinkler head, small water puddles may form around the sprinkler. A solution for this is to place a PVC pipe around the sprinkler and fill the space between the pipe and the sprinkler with gravel. This allows the water to drain away into the gravel.
Order nozzle separately.

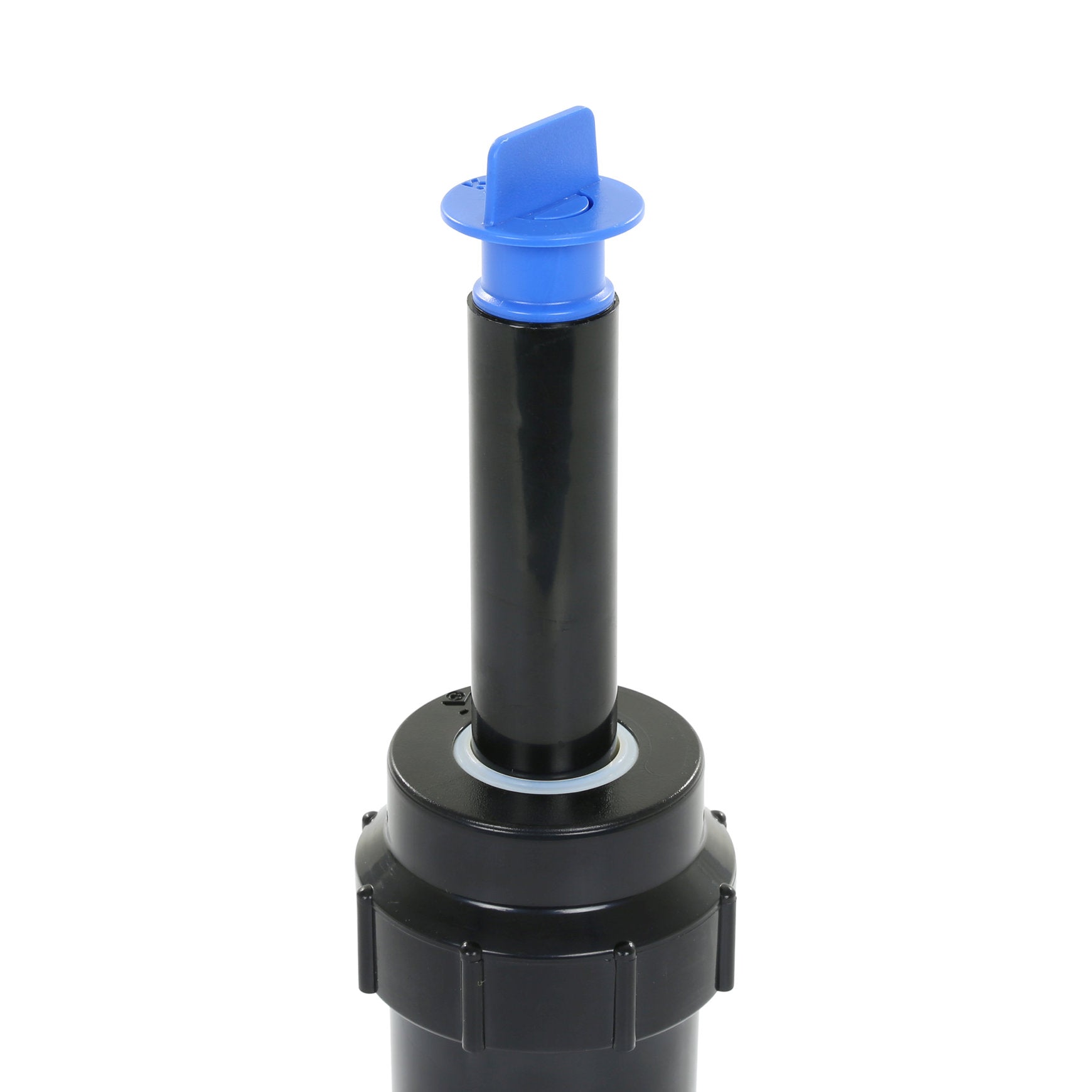

This K-rain pop-up misting sprinkler has a stainless steel heavy duty spring. The sprinkler is suitable for use with K-rain male thread nozzles from the K-range, which must be ordered separately. The nozzle to be used is determined by the desired spray area, the desired spray jet, water pressure and flow rate.
Setting the spray angle
Simply turn the riser pipe to set the zero point of the spray angle.
- Nozzle KV series: these nozzles have an adjustable spray angle. This can be freely adjusted between 0 and 360° with the adjusting screw on the nozzle.
- Nozzle KV-P series: these nozzles have a fixed spray pattern. The spray jet can be set with the adjusting screw.
Advice
For more advice, you can contact one of our irrigation specialists. We have built up years of expertise and are happy to share our knowledge.
