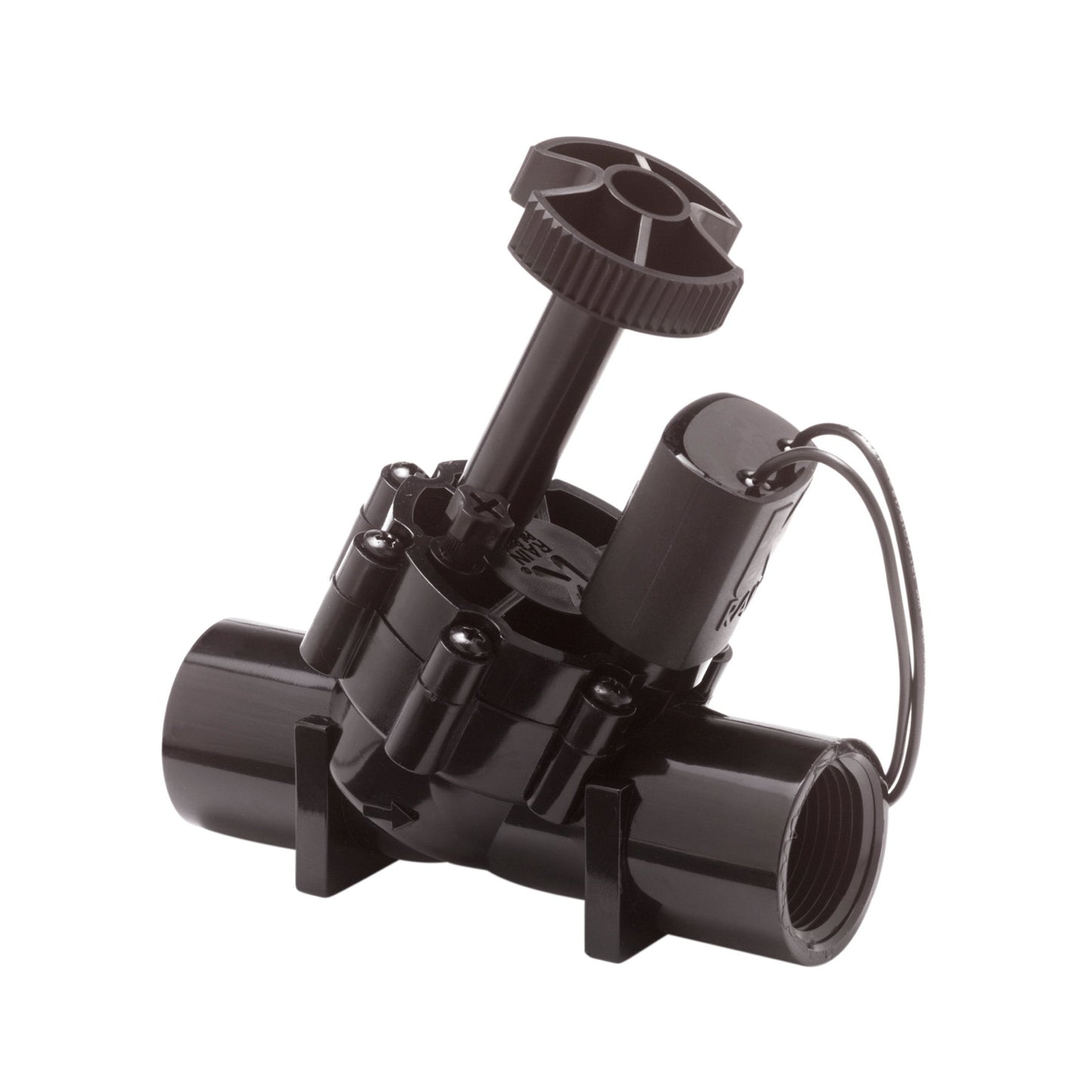

K-Rain solenoid valve, Proseries 100, type 7001 BSP, 2x female thread, 24 V AC, max. 6.84 m³/h, 1"
K-Rain solenoid valve, Proseries 100, type 7001 BSP, 2x female thread, 24 V AC, max. 6.84 m³/h, 1"
SKU:646225
Couldn't load pickup availability
Specifications
Description
This solenoid valve can be installed in your irrigation pipe system and acts as a valve that regulates the water flow to the sprinkler(s).
The solenoid valve can be opened and closed via an irrigation computer.
Properties
The type 7001 BSP solenoid valve has a unique design, a so-called straight flow pattern, which ensures minimal pressure loss. The capacity is 1.20 - 6.84 m³ per hour.
This design also prevents collected dirt from collecting in the valve; thanks to the good flow, this dirt ends up in the filter.
Operation
The maximum water flow rate is set with the large screw. The valve has a small vent screw, also known as a “bleed screw”, which allows you to operate the solenoid valve manually. Open the bleed screw three turns anticlockwise. Water will flow from the screw hole and the valve will open.
This solenoid valve has a long service life, even when used with slightly contaminated spring water and ditch water.
