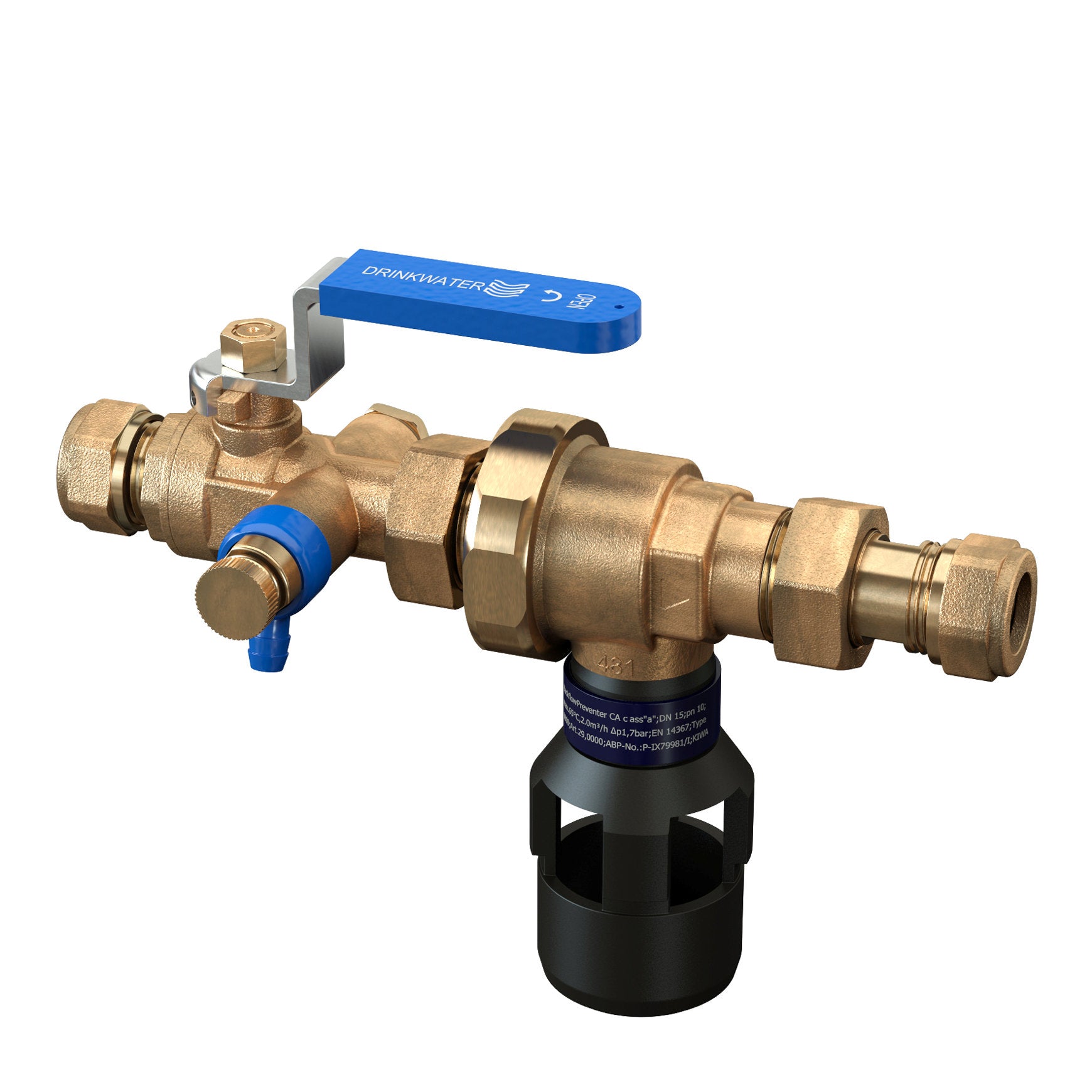

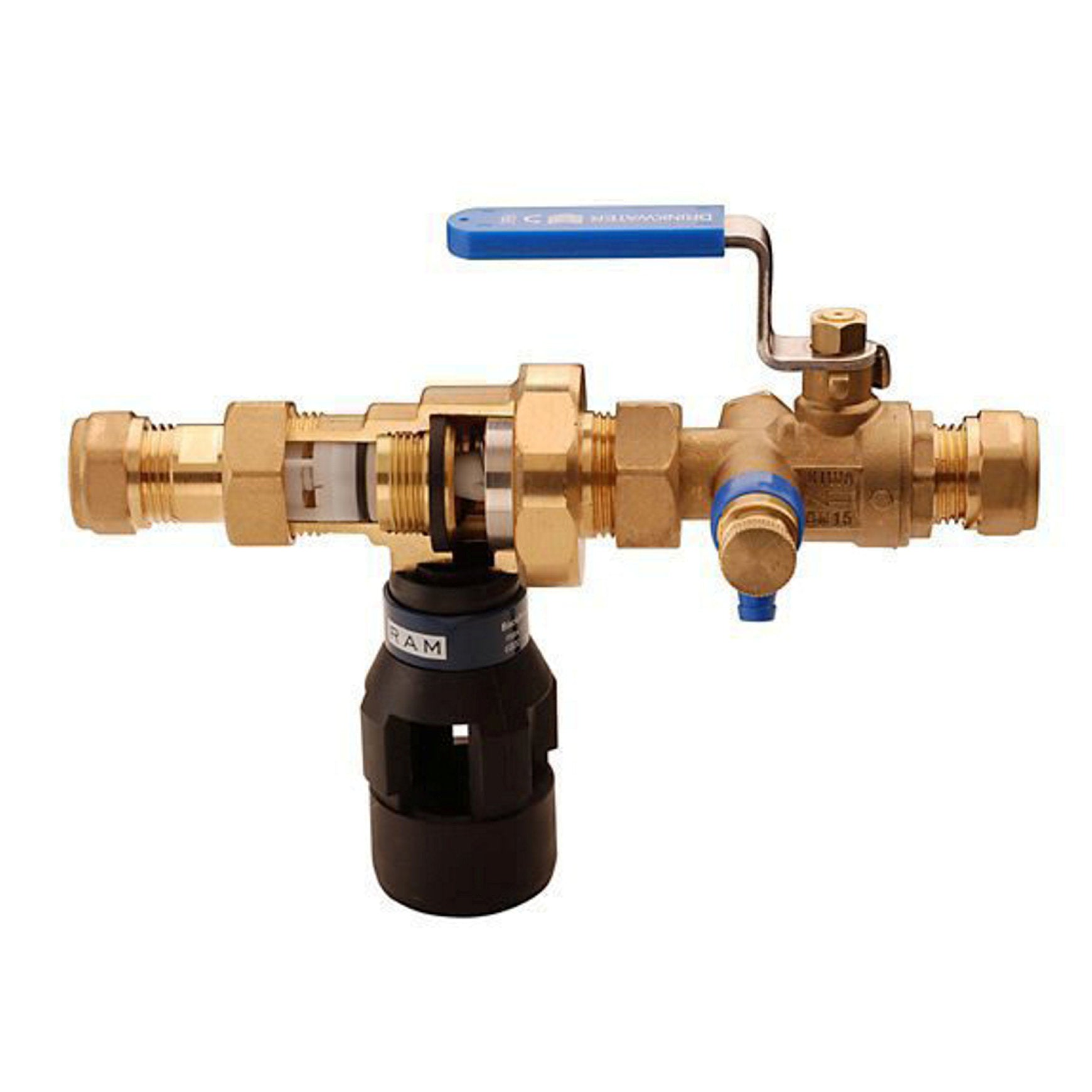

RAM backflow preventer, brass, 2x compression, type TBE-CA, including ball valve, 22 mm
RAM backflow preventer, brass, 2x compression, type TBE-CA, including ball valve, 22 mm
SKU:846728
Regular price
$232.41
Regular price
Sale price
$232.41
Unit price
per
Delivery on request
Specifications
Assortments
wca20100555
Ball material
chrome-plated brass (EN12164)
Check valve material
plastic (POM)
Complementary products v2
ProductListDrop
Connection size
22 mm
Diameter
22 mm
Eancode
8717154523751
Housing material
brass (EN12165/ EN12164)
Inlet pressure maximum
1.5 bar
Length
200 mm
Maximum working temperature
65 °C
Nominal diameter
20 mm
Oring
NBR
Protection class
CA (family C/type A)
Quality mark
Kiwa
Type
TBE-CA
Working pressure
10 bar
Description
- The backflow prevention unit TBE-CA is a compact backflow prevention device with a non-testable CA system separator and an integrated ball valve, which protects the drinking water network against the backflow (both backpressure and back-siphonage) of contaminated water up to and including liquid class 3.
- Installation: horizontal (funnel below)
- Handle: detachable (shows ball position)
- This backflow prevention unit has 2 o-rings.
