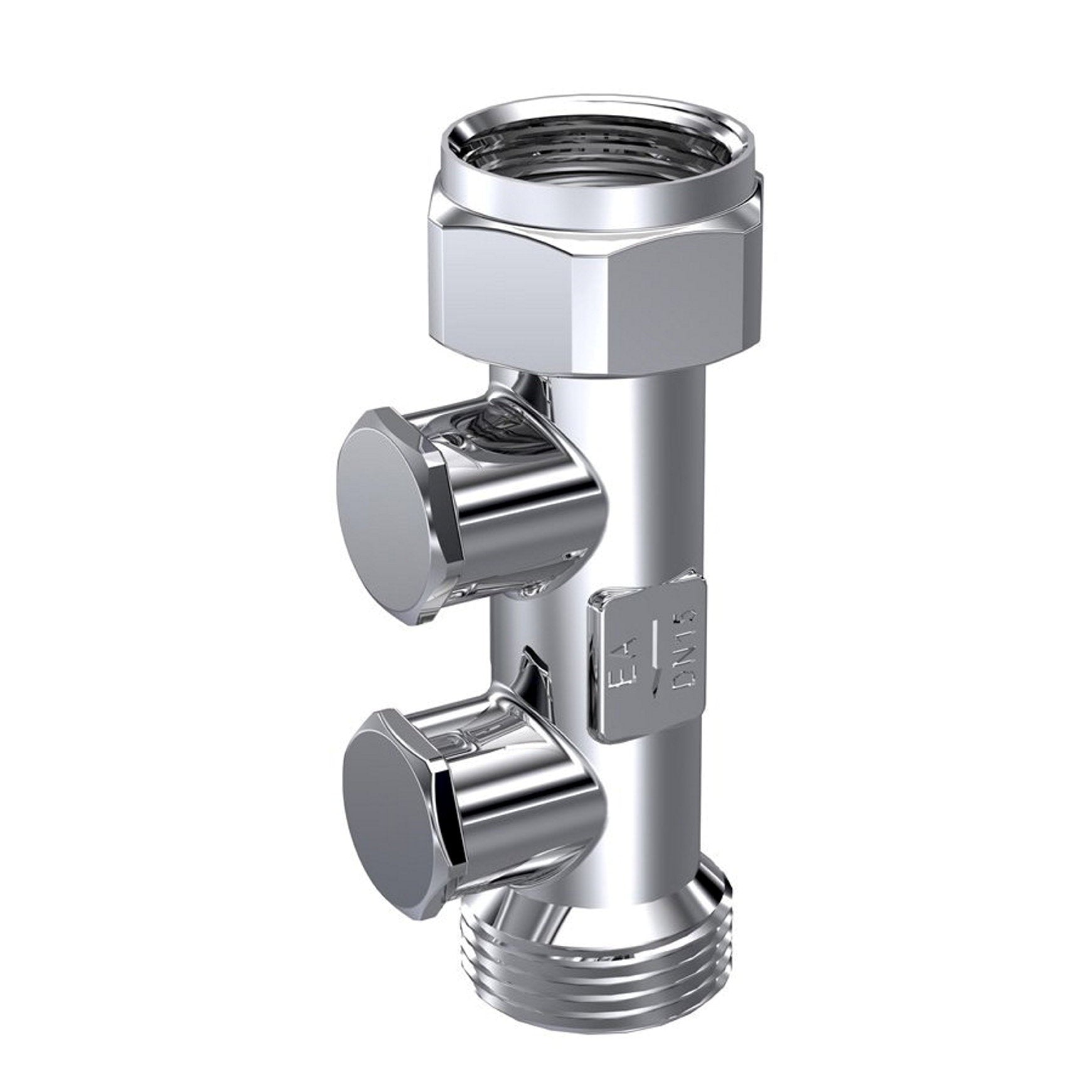

RAM check valve, brass, type WF-EA, controllable, DN15, union x male thread, ¾"
RAM check valve, brass, type WF-EA, controllable, DN15, union x male thread, ¾"
SKU:845225
Regular price
$12.39
Regular price
Sale price
$12.39
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca20100555
Check valve material
POM
Complementary products v2
ProductListDrop
Connection size
¾"
Connection type
male thread x union nut
Control cams
¼"
Eancode
8717154525359
Housing material
brass
Length
75 mm
Maximum pressure
16 bar
Maximum working temperature
90 °C
Operating temperature
65 °C
Oring
NBR
Protection class
EA
Quality mark
Kiwa
Two badescription
RAM messing keerklep, WF-EA, controleerbaar, ¾"
Two badescription en
RAM check valve, brass, WF-EA, controllable, ¾"
Type
WF
Working pressure
10 bar
Description
This Raminex EA check valve has drain and control cams to allow you to check the function and leak-tightness without disassembling the check valve. The check valve is used to prevent contaminated water from flowing back into the line. The stainless steel spring ensures that the valve is closed as soon as water flows back.
Properties
The EA protection can be mounted in any position and can be used in indoor installations and other applications.
Liquid class
TBE-EA means backflow protection with a controllable check valve. This check-valve can be used up to liquid class 2; liquid that does not pose a risk to human health and is suitable for consumption.
