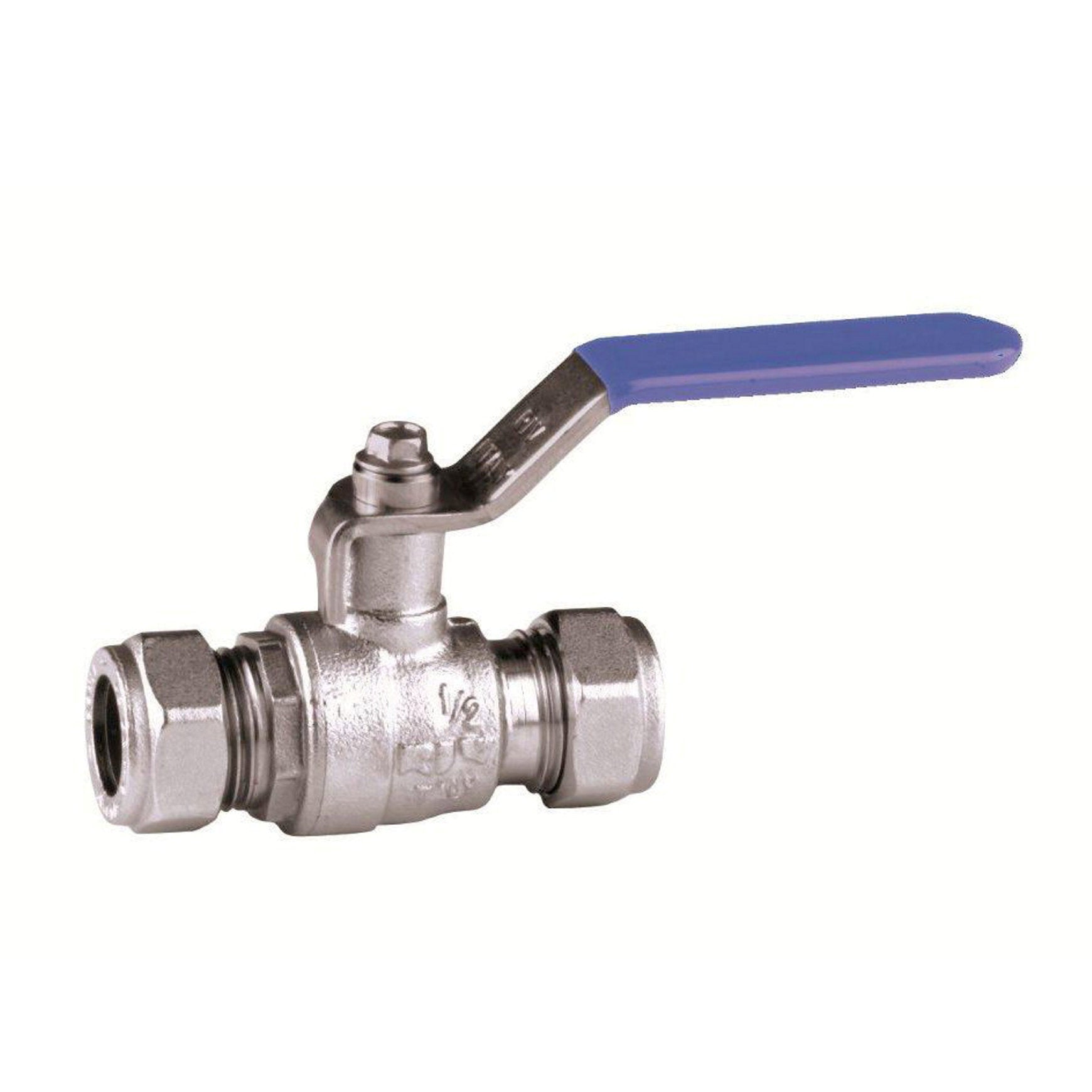

RIV ball valve, chrome-plated brass, 2x compression, type 4601, 25 bar, 28 mm
RIV ball valve, chrome-plated brass, 2x compression, type 4601, 25 bar, 28 mm
SKU:653809
Regular price
$33.38
Regular price
Sale price
$33.38
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca14000010
Complementary products v2
ProductListDrop
Connection print
28 mm
Connection size
28 mm
Connection type
compression
Diameter
28 mm
Material
brass, chrome plated
Oring
NBR
Passage / bore
full flow
Passage bore
full flow
Pressure class
25 bar
Quality mark
WRAS
Series
Export
Type
RIV 4601
Description
This RIV ball valve, type 4601 is used to quickly and easily open or close a water pipe. This is useful if a pipe needs to be temporarily shut off, for example during maintenance.
Please note: if applicable, take the direction of flow into account, which is indicated by an arrow.
Properties

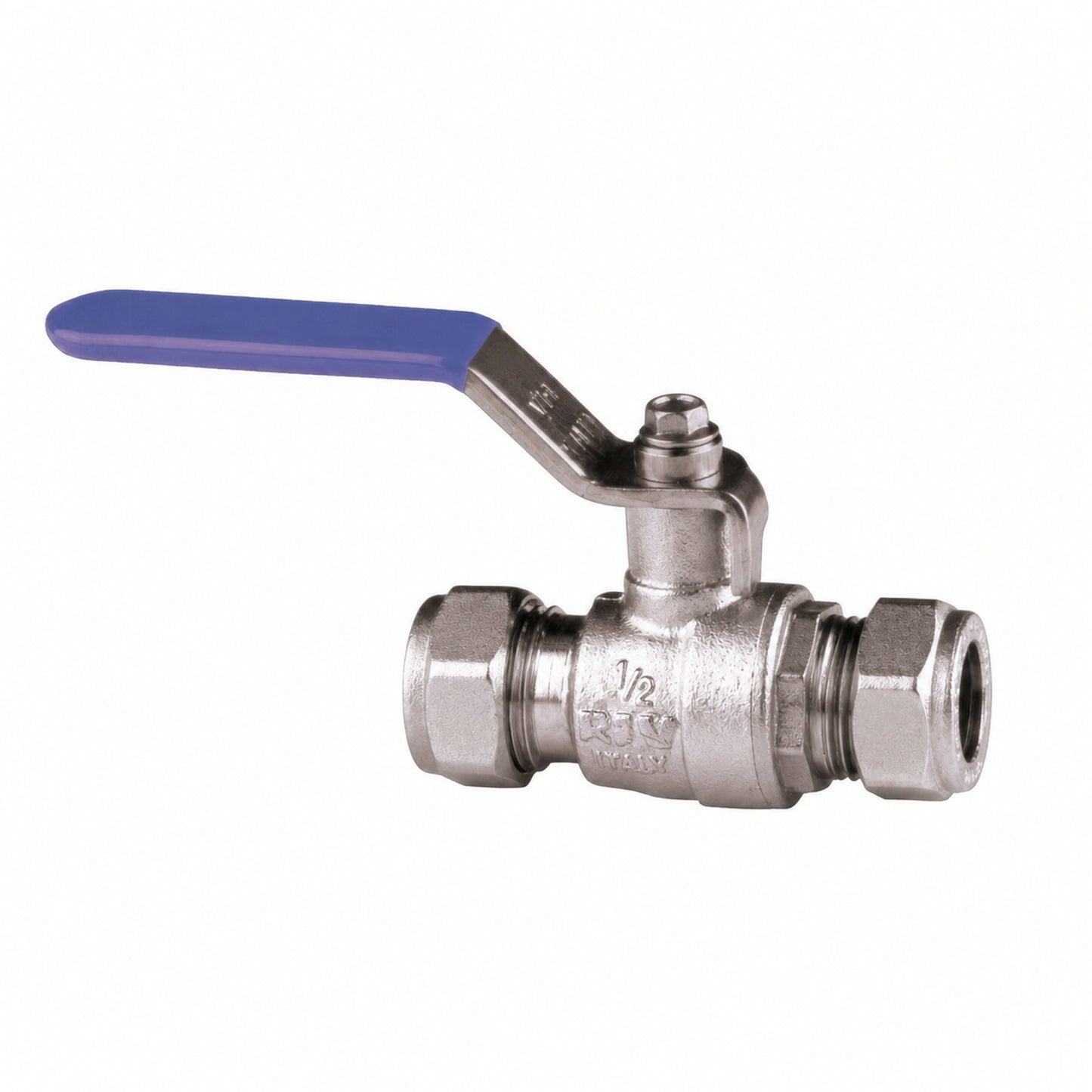

The ball valve has a blue lever; there is no technical difference between a ball valve with a blue or red lever. The blue lever is often used for cold water and the red lever for hot water, but the choice is up to the installer.Installation
Installing a ball valve takes just a few steps:- Cut the pipe to size and deburr the ends to prevent any damage to the pipe.
- Slide the pipe into the ball valve until it reaches the stop edge.
- Tighten the compression fitting with a spanner.
Please note: if applicable, take the direction of flow into account, which is indicated by an arrow.
Do you want to buy a ball valve or need more information?
The desired ball valve can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which ball valve would be best for your situation? Contact one of our specialists for advice without obligation.
