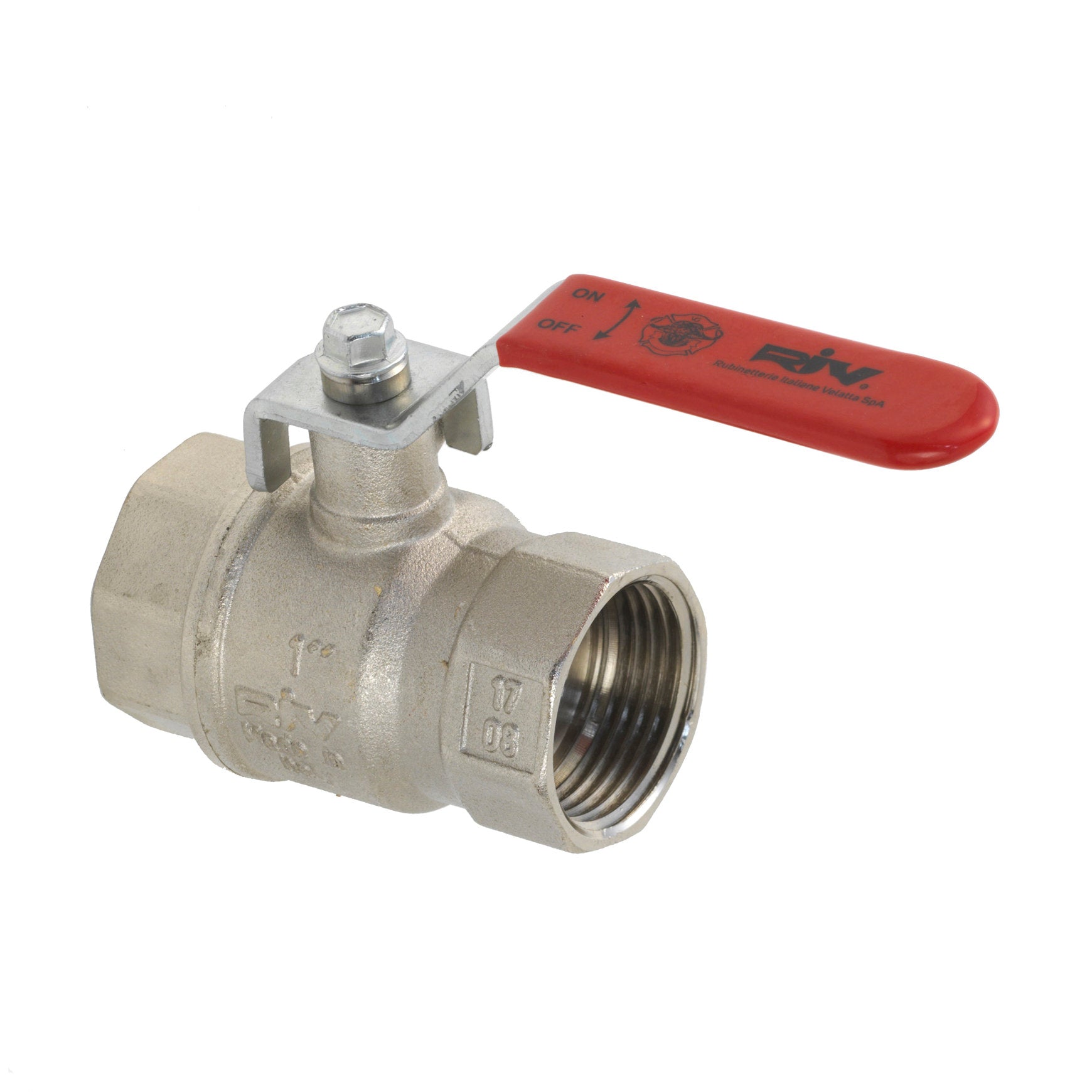

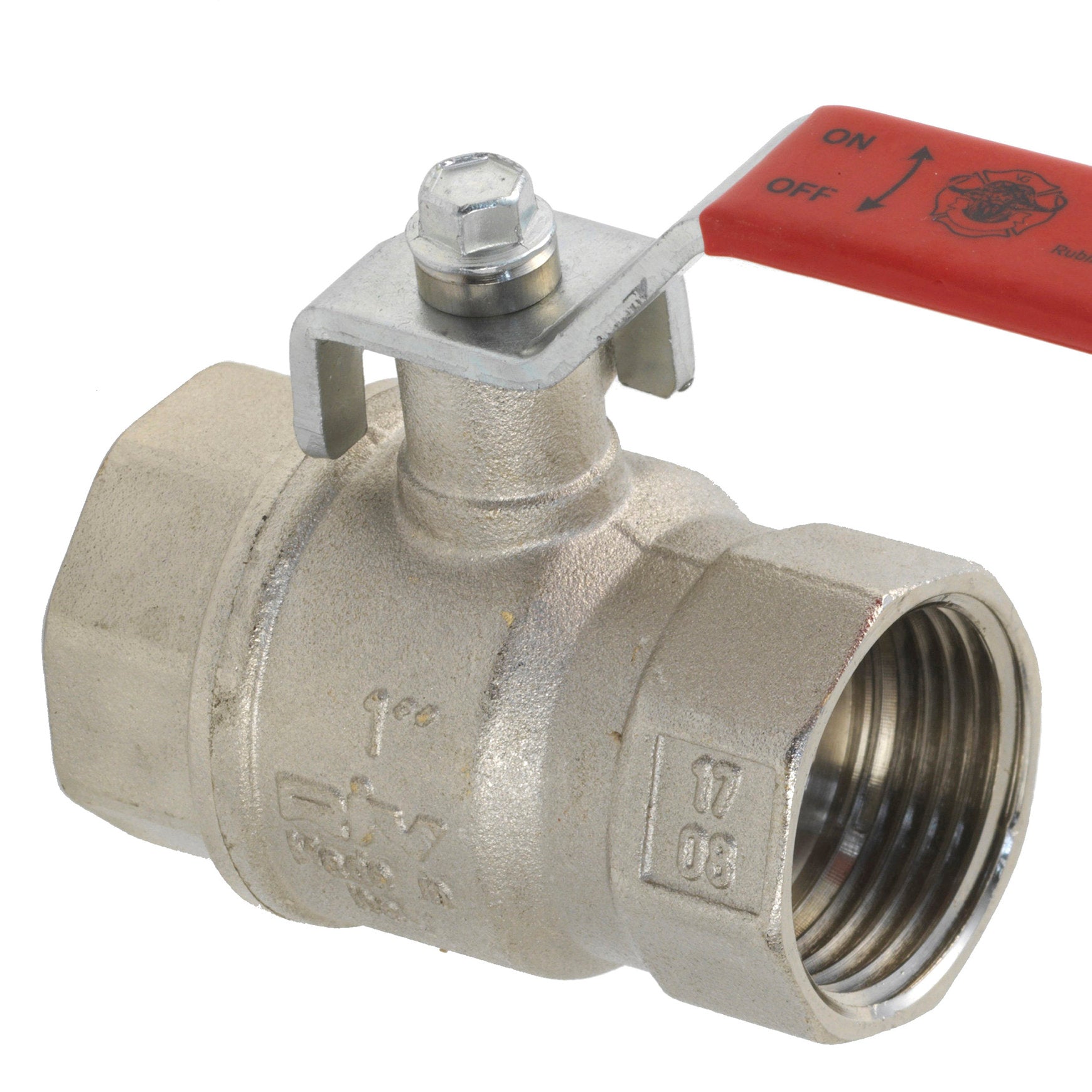

RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 40 bar, ½"
RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 40 bar, ½"
SKU:653749
Regular price
$10.95
Regular price
Sale price
$10.95
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca14000010
Complementary products v2
ProductListDrop
Connection print
½"
Connection size
½"
Connection type
female thread
Diameter
½"
Eancode
8717108001304
Material
brass, chrome plated
Oring
NBR
Passage / bore
full flow
Passage bore
full flow
Pressure class
40 bar
Quality mark
WRAS
Series
Export
Two badescription
RIV kogelkraan, messing verchr., 4171, volle doorlaat, ½"
Two badescription en
RIV ball valve, 2x f.thr., 4171, 40 bar, ½"
Type
RIV 4171
Description
This RIV ball valve, type 4171 is used to quickly and easily open or close a water pipe. The lever allows quick, user-friendly operation of the internal ball. This ball valve has a full bore, meaning there is no constriction in the valve.
This ball valve is suitable for a working pressure of up to 40 bar at a temperature of up to 95°C. The temperature range for this ball valve is -20 °C to +110 °C.
