Self-Seal T-piece 90°,PP, 3x female thread, 6 bar, 1"
Self-Seal T-piece 90°,PP, 3x female thread, 6 bar, 1"
SKU:629234
Regular price
$10.88
Regular price
Sale price
$10.88
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Connection size
1"
Connection type
female thread
Diameter
1"
Eancode
8717108008006
Pressure class
6 bar
Description
Self-Seal wire fittings have a built-in o-ring for installation without Teflon tape. This saves time and material during installation. After installation, these couplings can still be easily rotated without any leakage occurring.

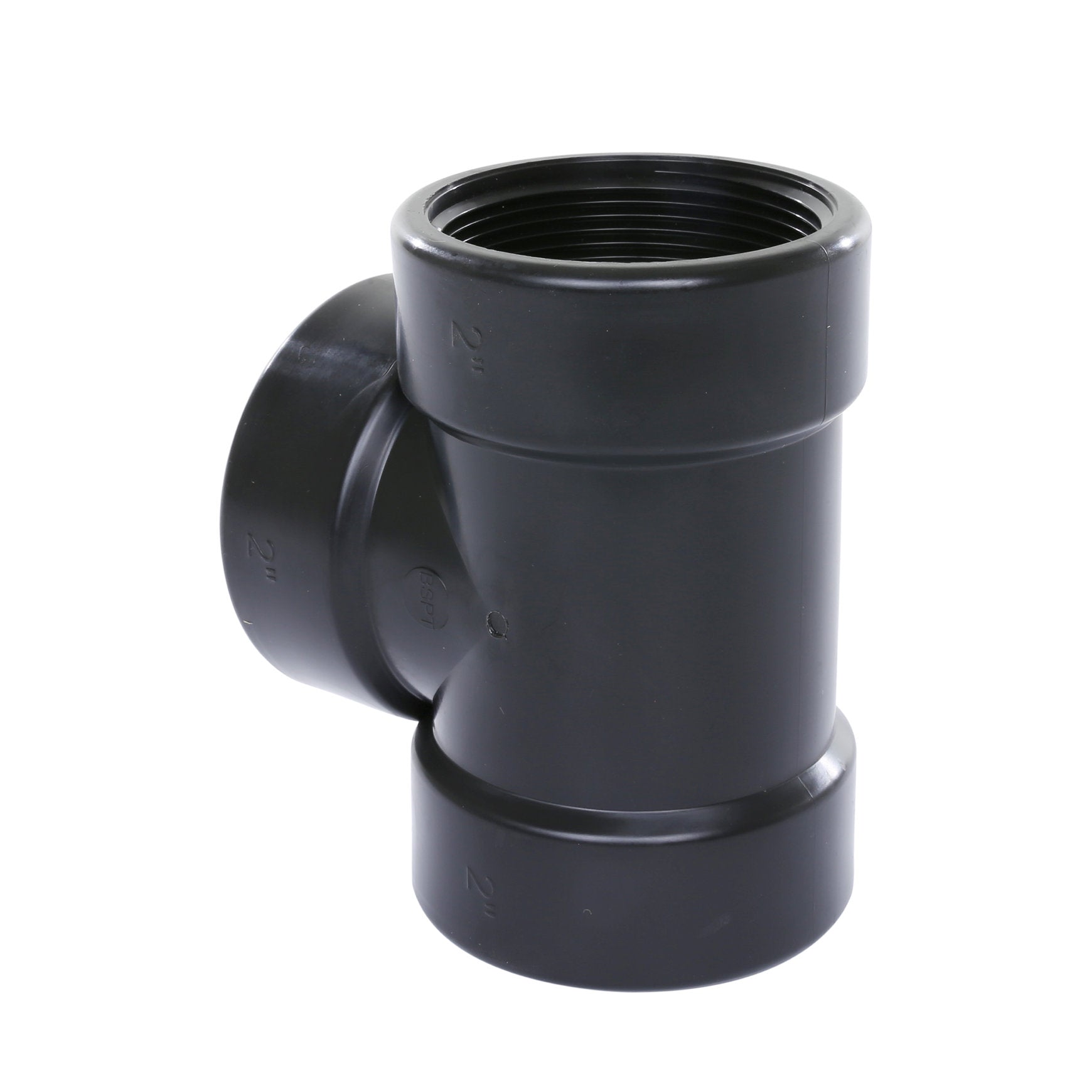

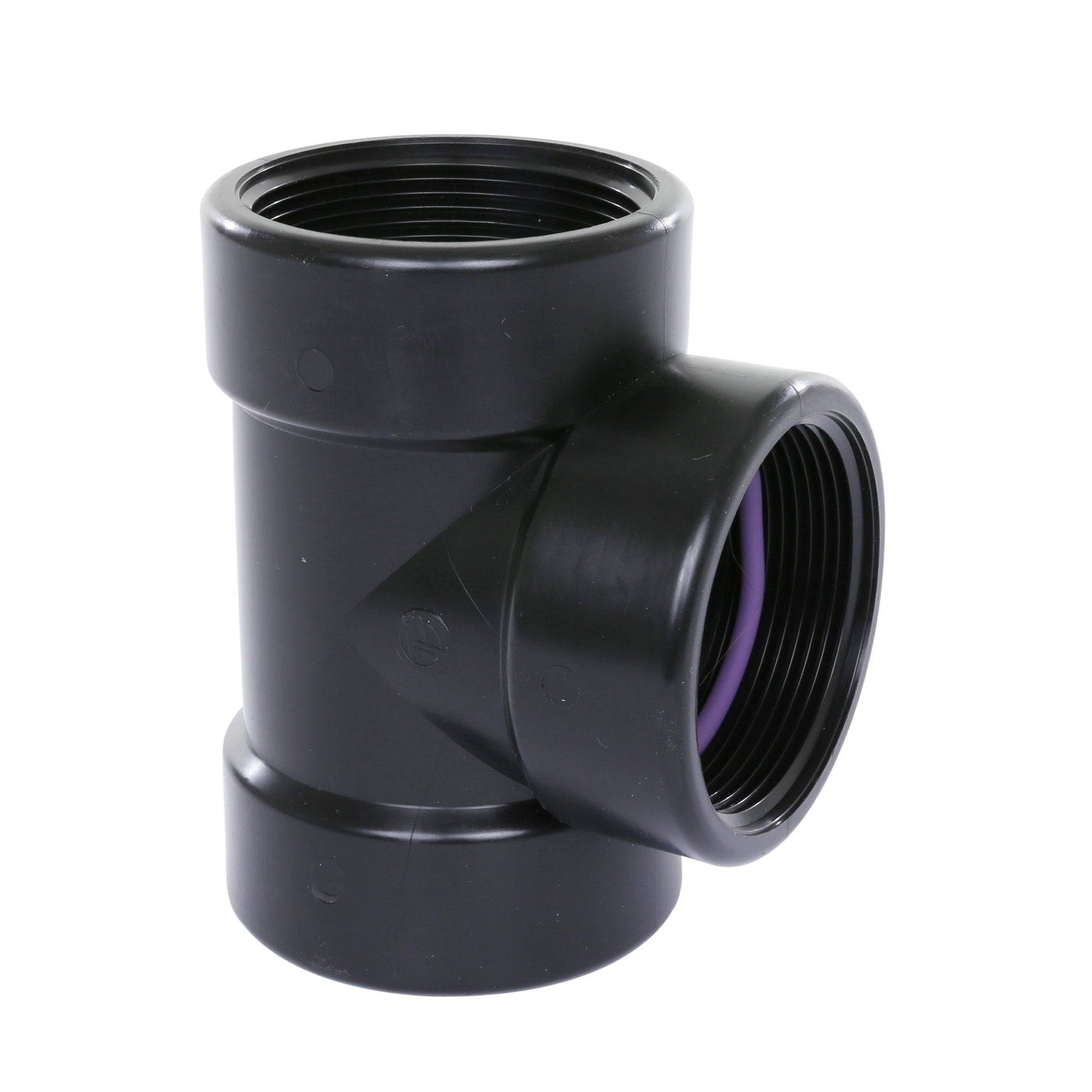

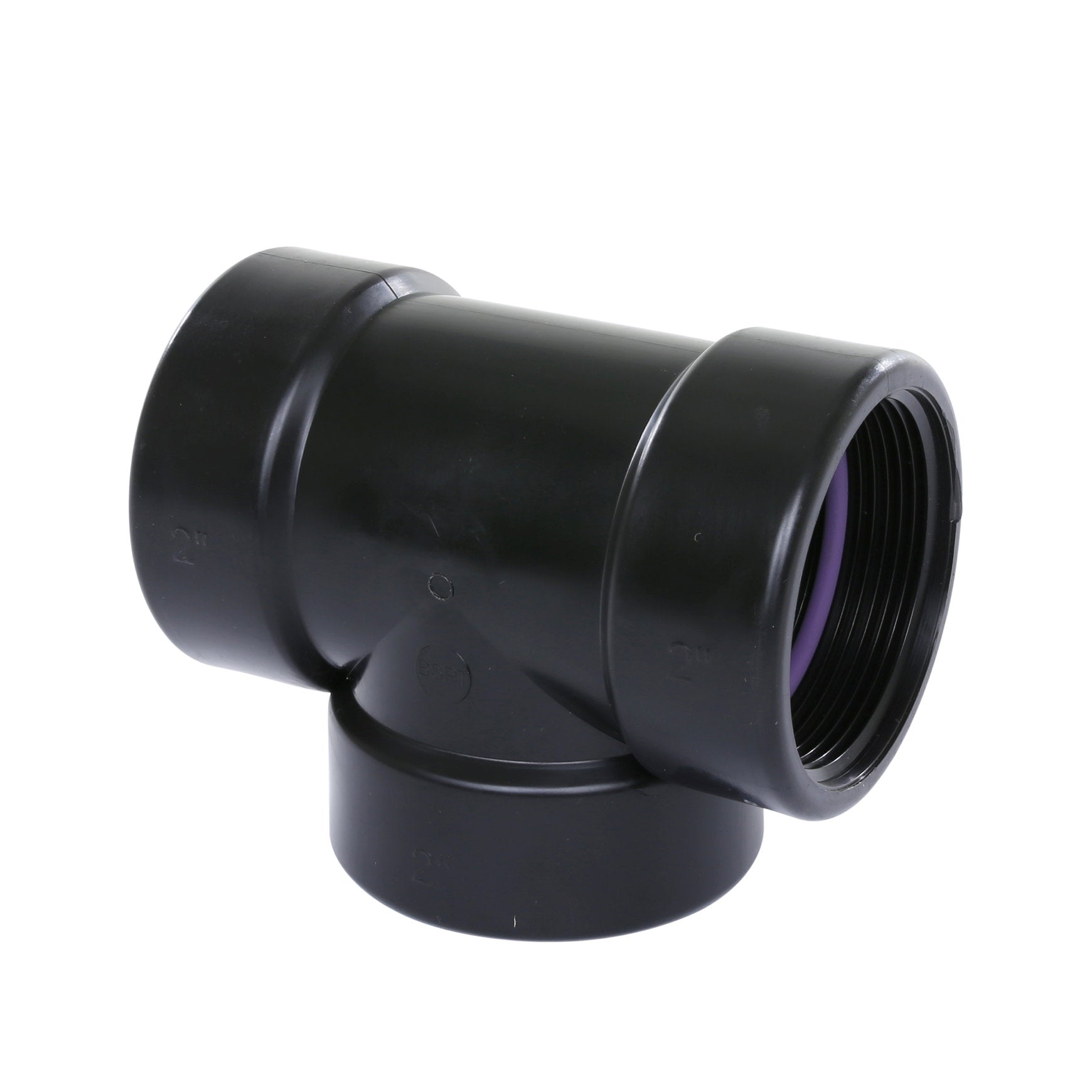

This T-piece, for example, can be used to create a branch in a water supply system at a 90-degree angle.
The Self-Seal coupling has a nominal pressure of 6 bar. The maximum pressure is 8 bar at a temperature of 20 °C, and the maximum temperature is 60 °C. The higher the pressure, the lower the temperature the fittings can withstand, and vice versa.
