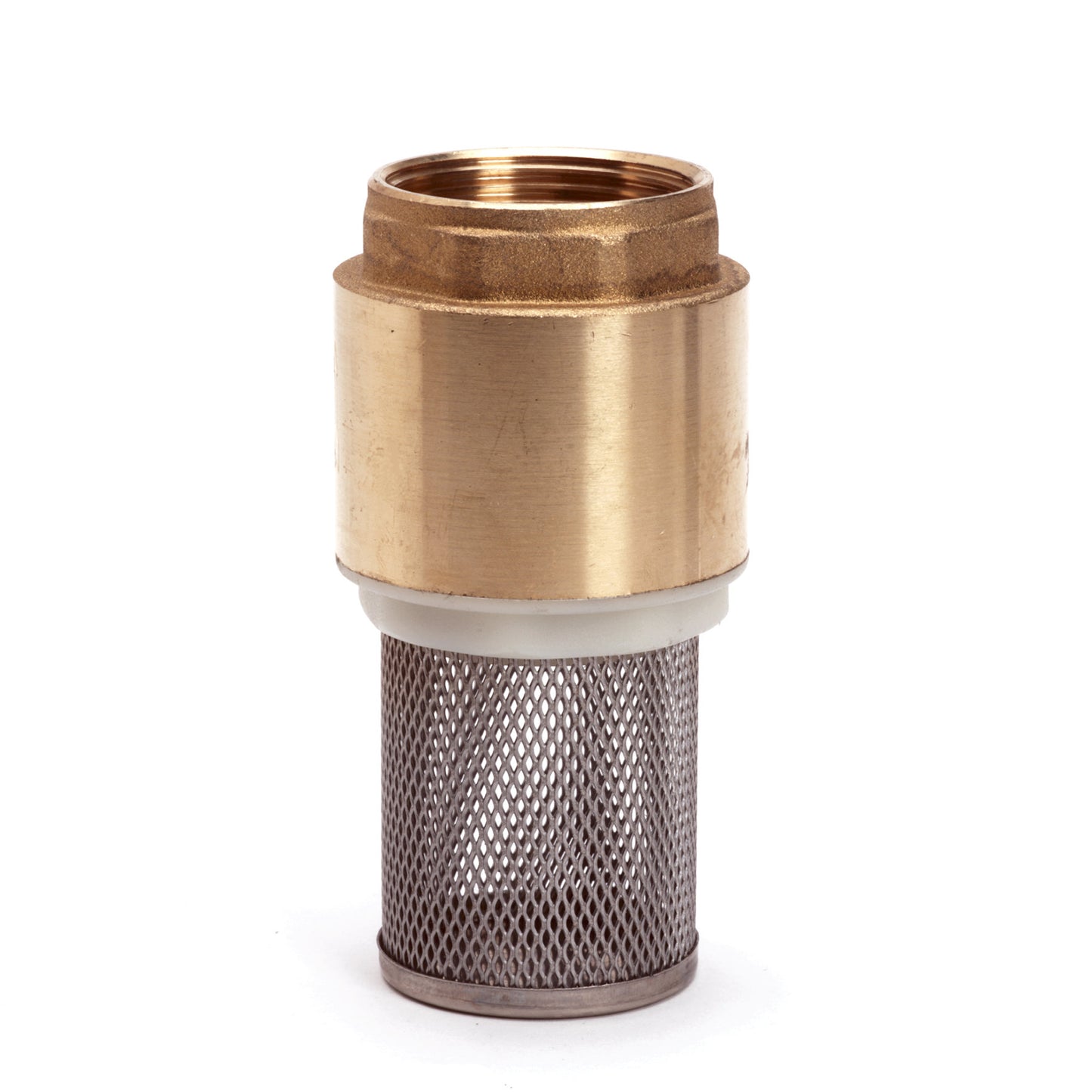

Spring-loaded foot valve, brass, female thread, NBR, 1"

Spring-loaded foot valve, brass, female thread, NBR, 1"

SKU:644283

$13.34
$13.34
Sale Sold out
In stock
View full details

Specifications

Assortments
wca20100555
Complementary products v2
ProductListDrop
Connection size
1"
Connection type
female thread
Diameter
1"
Eancode
4012167513039
Material
brass
Maximum temperature
90 °C
Minimum temperature
0.0 °C
Pressure class
10 bar
Type
108

Description

This spring-loaded foot valve with strainer, type 108, is used in a pump system. The foot valve prevents water from flowing back into the hose and is fitted to the end of a suction hose, which is placed in a water source.

Besides this foot valve, the range includes various accessories such as:
  • Filter basket.
  • Non-return valves.
  • Foot valves.

Properties

The foot valve has a strainer that acts as a filter to prevent coarse particles from getting into the system. The spring in the non-return valve ensures that the valve opens when there is sufficient water pressure, and closes when the pressure drops. This protects the system against contamination and pressure loss.

Installation

Installing a foot valve is easy:
  • The foot valve is attached to the suction hose with a hose barb and secured with a hose clamp.
  • The other end of the suction hose is attached to the water pump.
  • Place the foot valve in the water.
