Spring-loaded foot valve, brass, 1x female thread, NBR, 1¼"

Spring-loaded foot valve, brass, 1x female thread, NBR, 1¼"

SKU:644285

$24.80
$24.80
Sale Sold out
In stock
View full details

Specifications

Assortments
wca20100555
Complementary products v2
ProductListDrop
Connection size
1¼"
Connection type
female thread
Diameter
1¼"
Eancode
4012167513046
Material
brass
Maximum temperature
90 °C
Minimum temperature
0.0 °C
Pressure class
8 bar
Type
108

Description

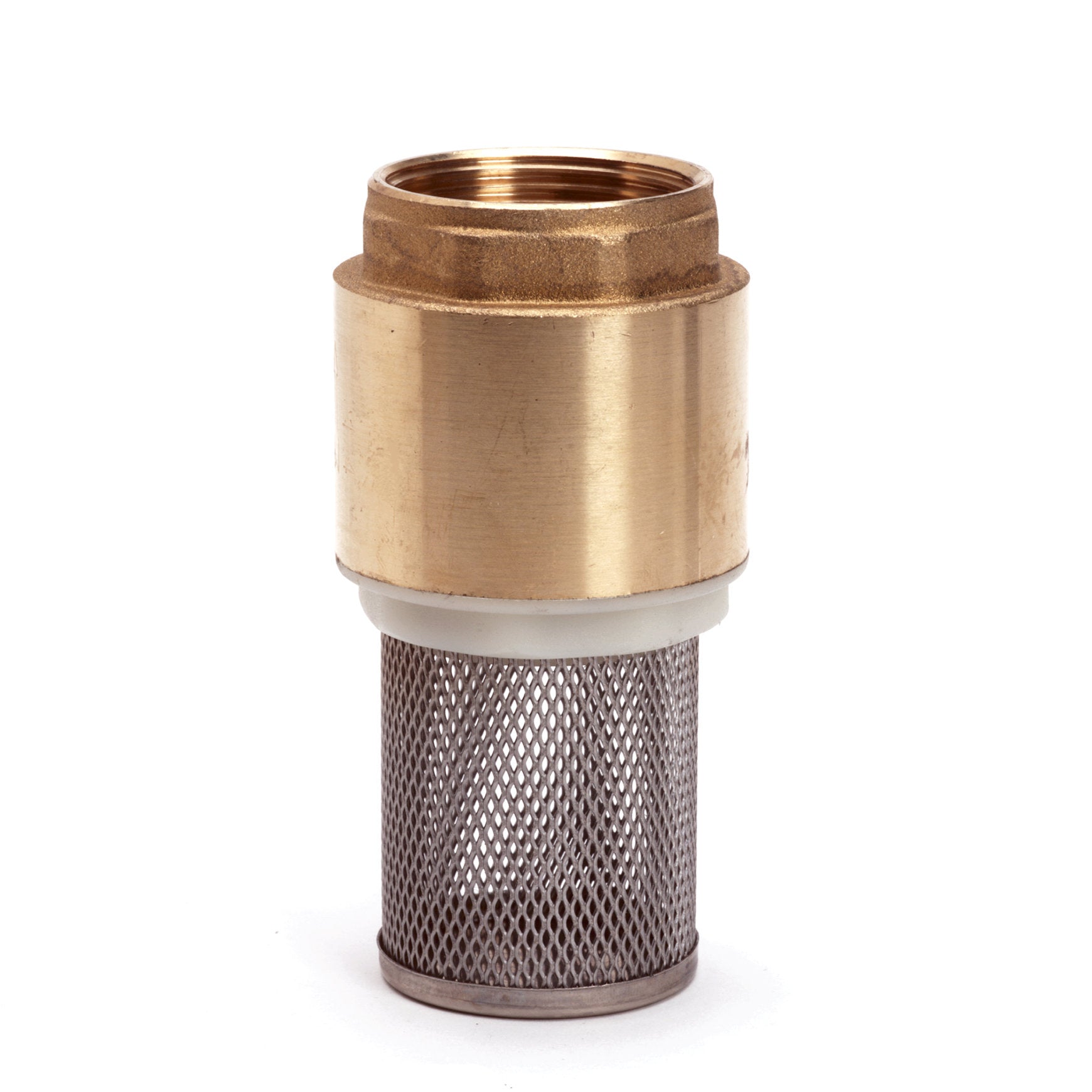

This spring-loaded foot valve with strainer, type 108, is used in a pump system. The foot valve prevents water from flowing back into the hose and is fitted to the end of a suction hose, which is placed in a water source.

Besides this foot valve, the range includes various accessories such as:
  • Filter basket.
  • Non-return valves.
  • Foot valves.

Properties

The foot valve has a strainer that acts as a filter to prevent coarse particles from getting into the system. The spring in the non-return valve ensures that the valve opens when there is sufficient water pressure, and closes when the pressure drops. This protects the system against contamination and pressure loss.

Installation

Installing a foot valve is easy:
  • The foot valve is attached to the suction hose with a hose barb and secured with a hose clamp.
  • The other end of the suction hose is attached to the water pump.
  • Place the foot valve in the water.

Do you want to buy a non-return valve or need more information?

The desired spring-loaded foot valve can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which foot valve would be best for your situation? Contact one of our specialists for advice without obligation.
