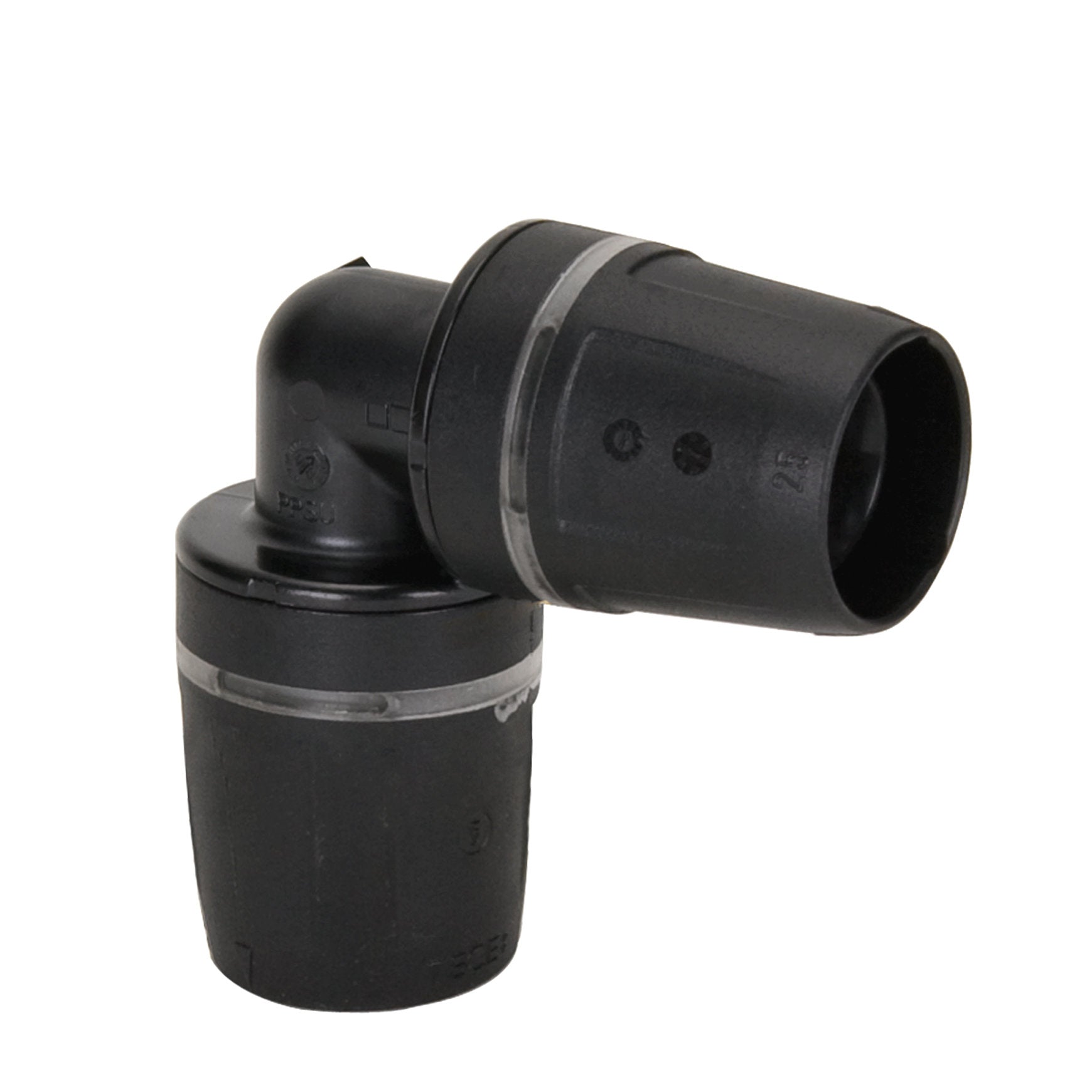

TECElogo elbow 90°, PPSU, 2x insert, 16 mm

TECElogo elbow 90°, PPSU, 2x insert, 16 mm

SKU:870424

$9.70
$9.70
Sale Sold out
In stock
View full details

Specifications

Connection size
16 mm
Diameter
16 mm
Eancode
4027255020184
Material
ppsu (polyphenylsulfon)
Pid owner seller id jarola master repository
Jarola
Pid value seller id jarola master repository
870424
Quality mark
Kiwa/KOMO

Description

This TECElogo elbow 90° is used in drinking water and heating systems. The coupling is quick and easy to install thanks to the push-fit system.

The advantage of PPSU is that it is lightweight, impact-resistant, and resistant to high pressure and temperatures. Moreover, since metal has been used, the coupling is resistant to corrosion. This ensures a long lifespan.

In addition to this elbow 90°, the range TECElogo includes various other couplings, such as:
  • Supply pipes.
  • Elbow pieces.
  • T-pieces.
  • Couplings.
  • Tools.

Properties

The TECElogo push-fit coupling has a maximum operating temperature of 70°C and a maximum pressure of 10 bar for drinking water and heating systems.

Assembly

To assemble the fitting, you can use the handy toolbox which includes a pipe cutter, calibration, and chamfering tools. Since the TECElogo system uses push-fit fittings, no special pressing tools are required.

The assembly of the coupling goes in a few steps:
  • Cut the pipe to size and deburr the ends to prevent any damage to the pipe.
  • Insert the pipe into the coupling and check through the inspection window to ensure the pipe is inserted far enough into the fitting.
  • The clamp ring inside the coupling creates a secure connection, with the O-rings providing the seal.
  • Made the wrong connection? Use the disassembly spanner to dismantle the connection.
After assembling, the system should be checked for tightness.

Want to buy TECElogo system or need more information?

The desired coupling can be ordered easily and quickly via our website or purchased in one of our branches. Are you not yet sure what the optimal coupling is for your situation? Contact one of our specialists for non-binding advice.
