Threaded flange DIN 2566, female thread, DN40, 1½"
Threaded flange DIN 2566, female thread, DN40, 1½"
SKU:696388
Regular price
$35.06
Regular price
Sale price
$35.06
Unit price
per
Delivery on request
Specifications
Connection size
1½"
Connection type
DIN 2566
Diameter
1½"
Material
steel, galvanized
Pitch circle diameter
110 mm
Type
DIN 2566
Description

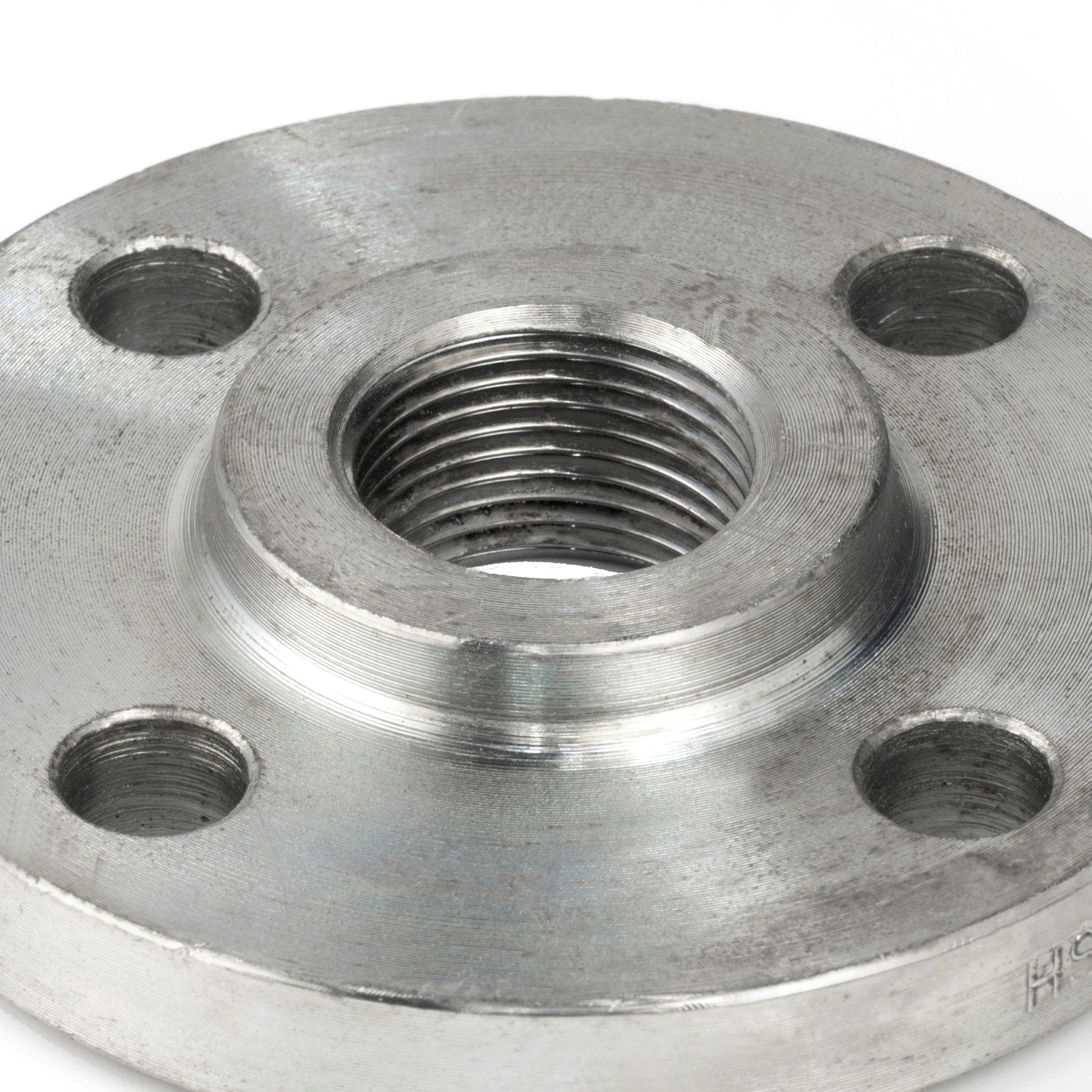

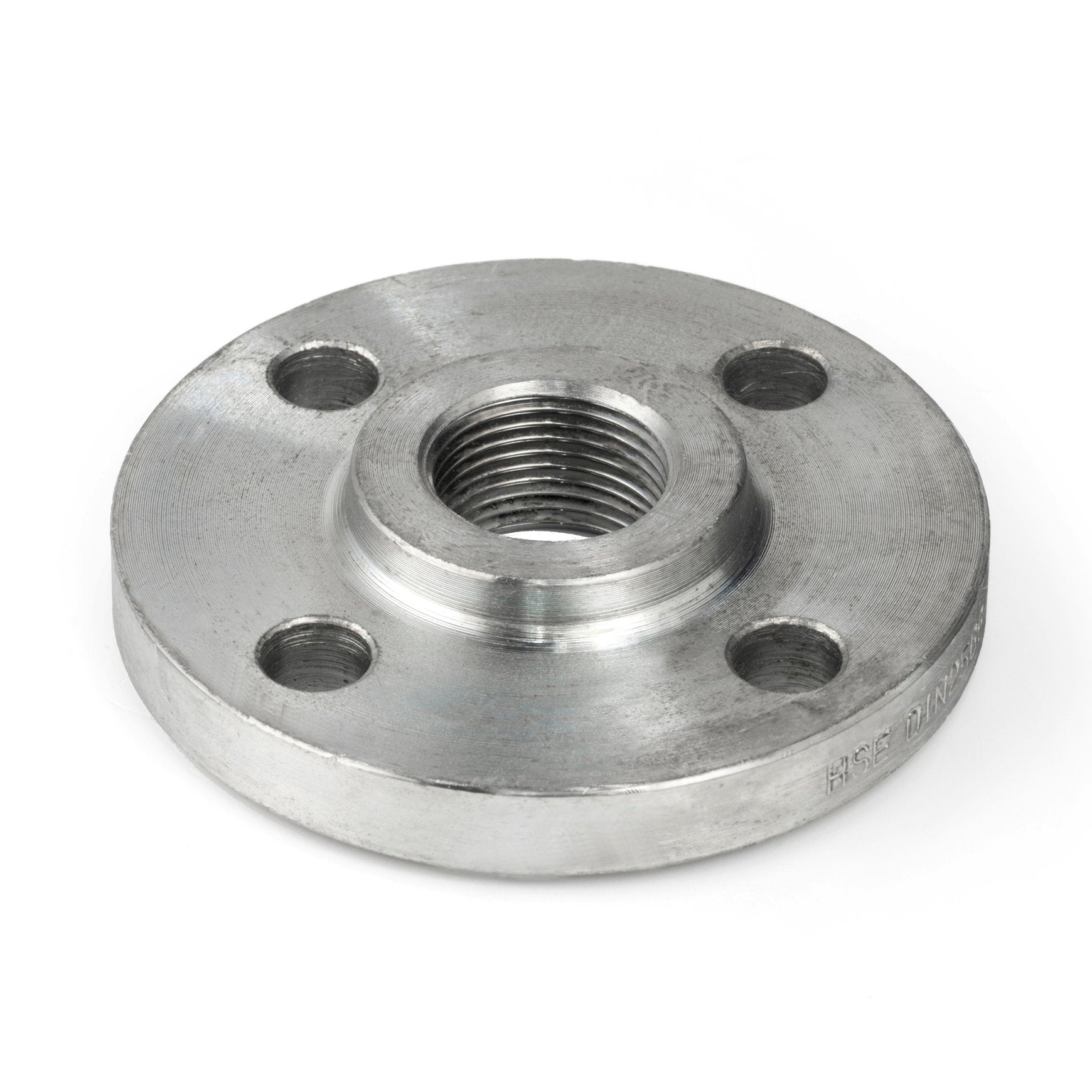

This thread flange, type DIN 2566, is used in a water supply system to make a connection between a pipe and a fitting such as a gate valve or butterfly valve with flange connection. This thread flange has 4 mounting holes with a hole diameter of 18 mm.
Making Watertight
To make a watertight connection with pipes and fittings, you can use sealing tape.
To make a watertight connection with pipes and fittings, you can use sealing tape.
