Trevitech electronic pump switch, type Logicpress M
Trevitech electronic pump switch, type Logicpress M
SKU:15558735
Regular price
$116.15
Regular price
Sale price
$116.15
Unit price
per
Delivery on request
Specifications
Capacity maximum (m³/hour) slider
5,5
Capacity maximum mhour slider
5,5
Connection size
1"
Degree of protection
IP65
Maximum ambient temperature
65 °C
Maximum capacity
5.5 m³/uur
Maximum current
10 A
Maximum working pressure
12 bar
Starting pressure
1,5 bar
Type
Logicpress M
Voltage
230 V
Description

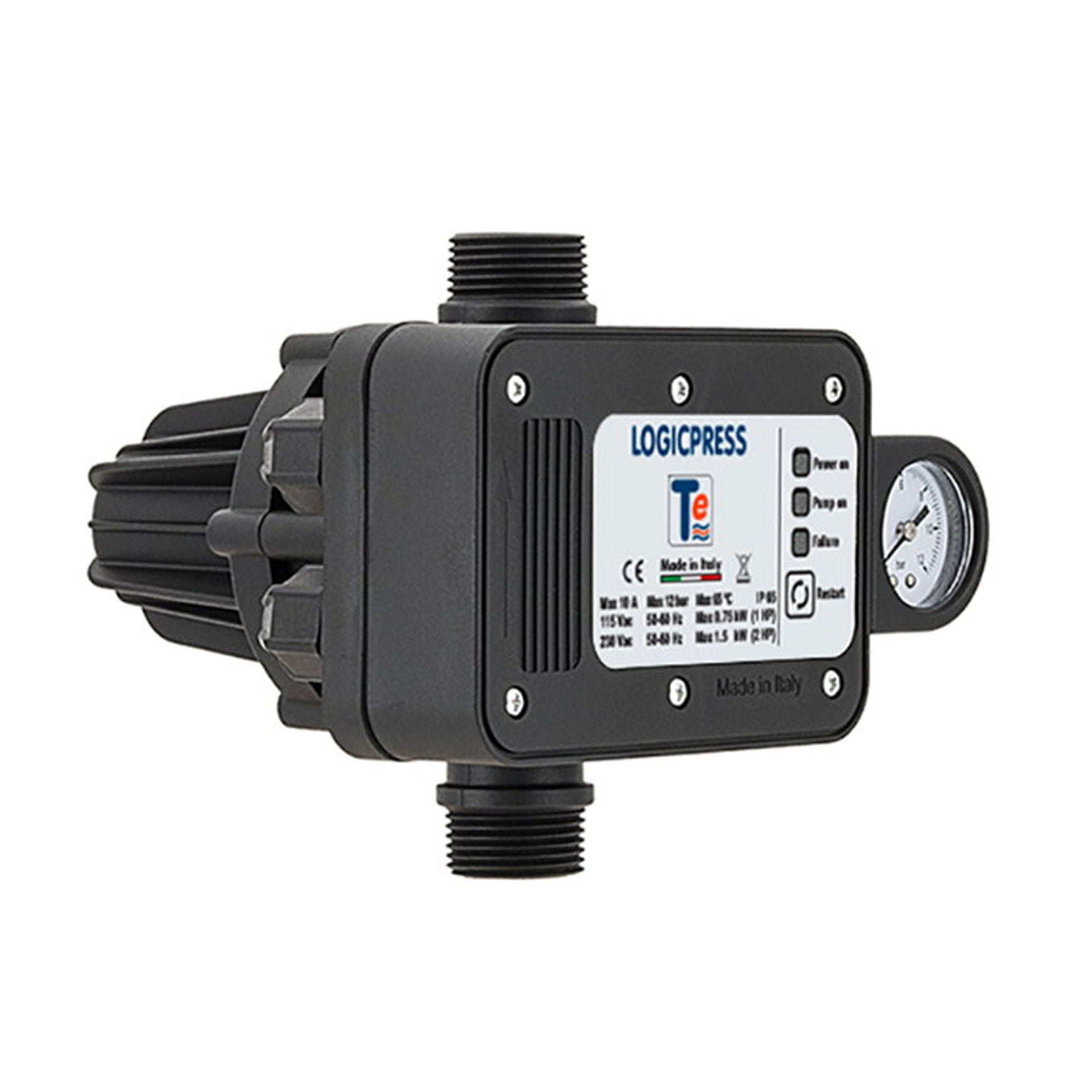

This Trevitech Logicpress M electronic pump switch starts and stops the pump when the taps are turned on and off. The pump switch also stops the pump in the event of a water shortage, preventing it from running dry. This maintenance-free pump switch has an automatic restart feature.
The pump switch, also known as a pump controller, can be used in combination with a centrifugal or a well pump.
The pump switch, also known as a pump controller, can be used in combination with a centrifugal or a well pump.
Pressure gauge
The pump controller has a pressure gauge that allows you to read the current water pressure.Automatic restart
In the event of a water shortage, the dry-run protection will activate and switch off the centrifugal or well pump. Ten times during the first 24 hours after a water shortage, the pump switch will restart the pump for 5 seconds to check if the water shortage has been resolved. The pump switch can also be restarted manually at any time by pressing the ‘Restart’ button.Anti-jamming
If no water is required, the pump controller will not start the pump. If the pump remains idle for 24 consecutive hours, however, the pump controller will start the pump for 5 seconds to prevent the motor shaft from jamming in the bearings or seal.
Cable
Supplied with H07RN-F cable, 3 x 1.5 mm².
Do you want to buy a pump switch or need more information?
The desired pump switch can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which pump switch would be best for your situation? Contact one of our pump specialists for advice without obligation.
