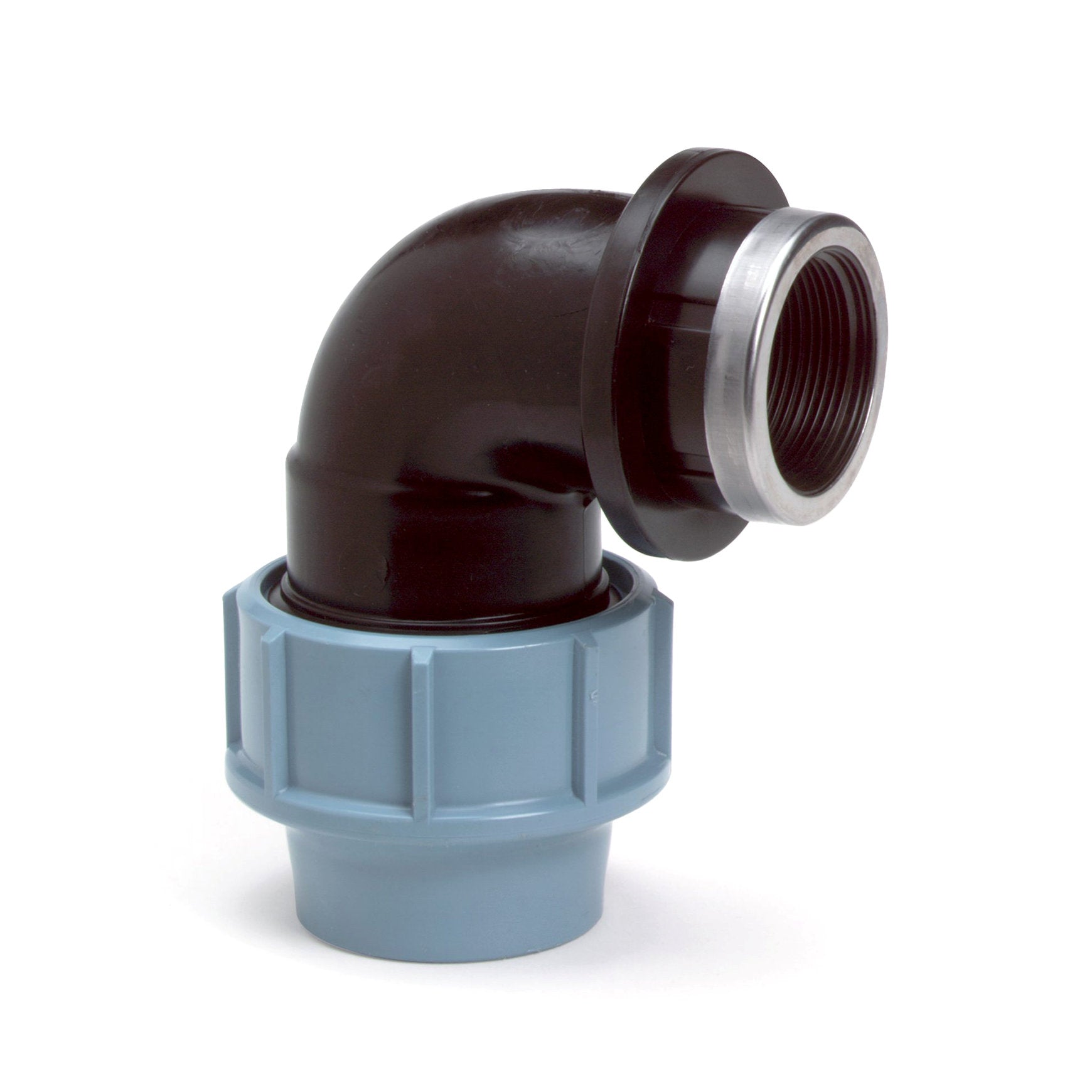

Unidelta elbow 90°, clamp x female thread, Kiwa, 16 bar, 40 mm x 1½", with reinforcement ring
Unidelta elbow 90°, clamp x female thread, Kiwa, 16 bar, 40 mm x 1½", with reinforcement ring
SKU:818933
Regular price
$11.18
Regular price
Sale price
$11.18
Unit price
per
Delivery on request
Specifications
Complementary products v2
ProductListDrop
Connection size
40 mm
Connection type
clamp x female thread
Diameter
1½", 40 mm
Eancode
8030884001826
Material
pp (polypropyleen)
Pressure class
16 bar
Quality mark
Kiwa
Description
This Unidelta screw knee is suitable for drinking water pipes. This coupling can, for example, be used to connect a polyethylene hose to the pressure side of a pump. The solid coupling is pull-resistant and is often used by professionals.
Assembly
Saw or cut the PE pressure pipe at right angles and insert it until it reaches the stop edge of the polyethylene coupling. Then tighten the lock nut firmly, the coupling is ready for use. If desired, you can tighten the lock nut another half turn with a suitable pliers or wrench.
