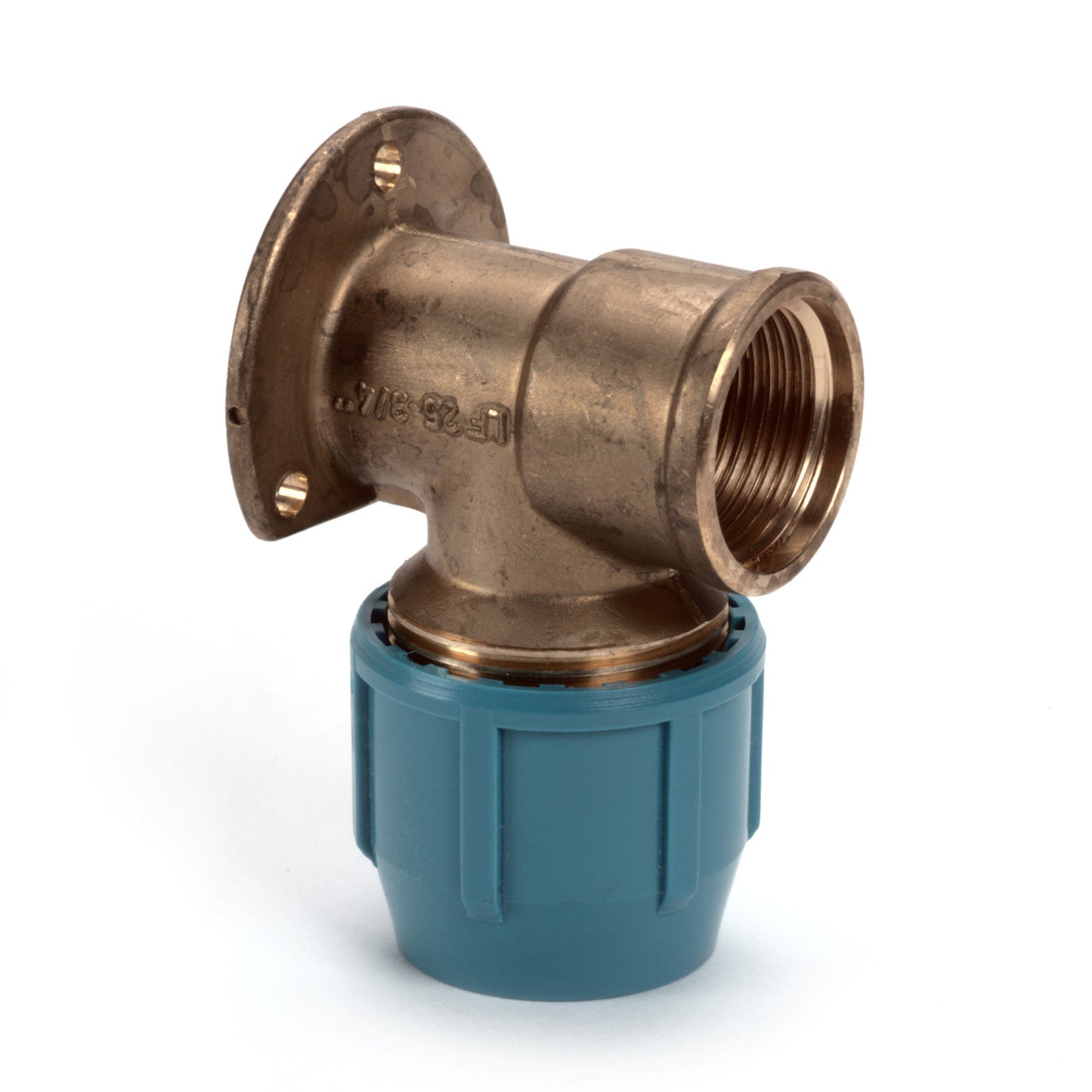

Unifit wall plate elbow, brass, clamp x female thread, 10 bar, 16 mm x ½"

Unifit wall plate elbow, brass, clamp x female thread, 10 bar, 16 mm x ½"

SKU:810820

$23.00
$23.00
Sale Sold out
In stock
View full details

Specifications

Connection size
16 mm, ½"
Connection type
clamp x female thread
Diameter
16 mm, ½"
Eancode
8717108004718
Material
messing, pp (polypropyleen)
Pid owner seller id jarola master repository
Jarola
Pid value seller id jarola master repository
810820
Pressure class
10 bar

Description

The Unifit coupling is used for irrigation, home and garden connections, and drinking water for livestock. Because Unifit couplings do not have the Kiwa quality mark, they are not suitable for use in drinking water systems.

Properties

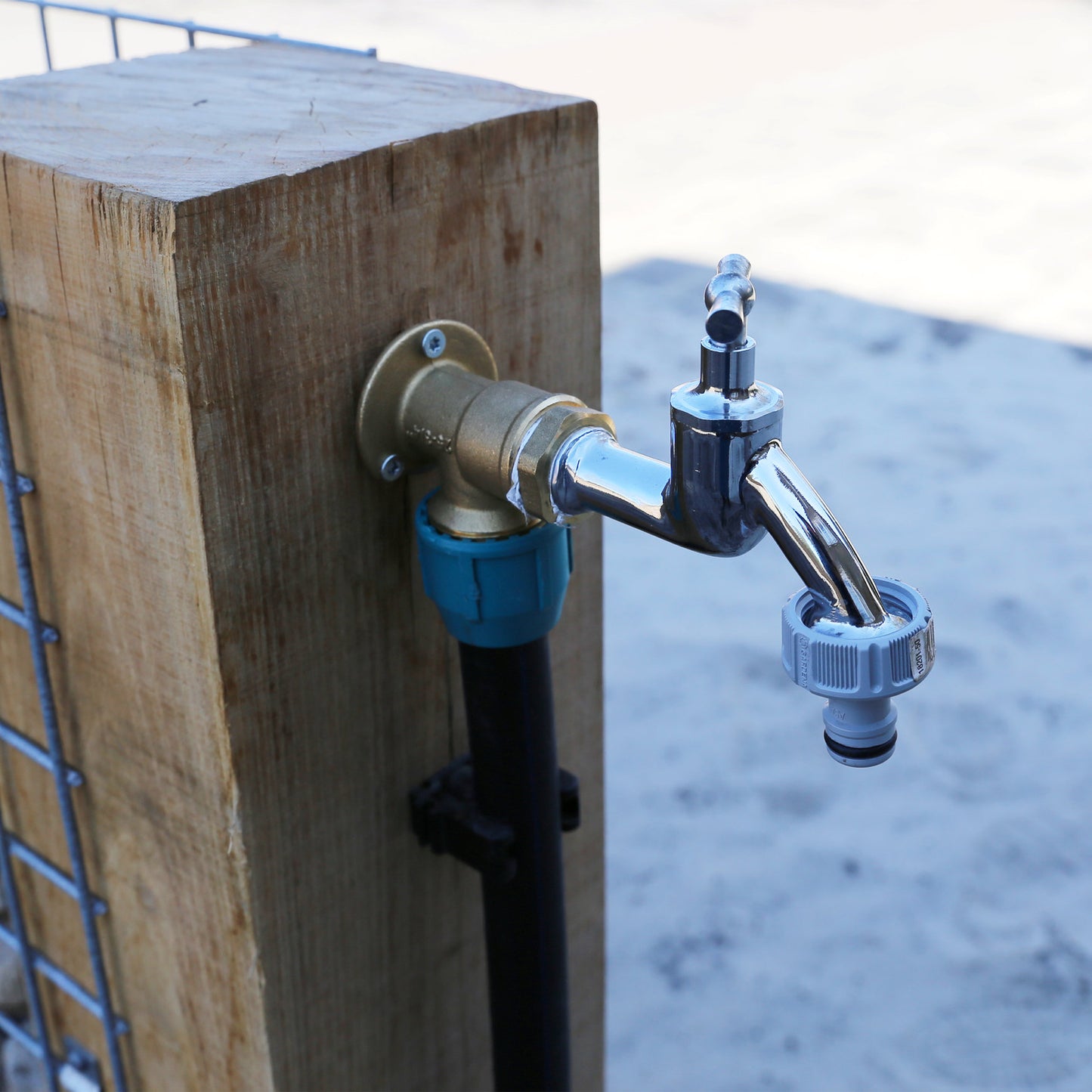

A wall plate can be used to connect a faucet to the polyethylene water pipe. The PE pipe is clamped at the bottom, and the faucet is mounted at the front.

Installation
No special tools are needed for installing the polyethylene pipe to the Unifit coupling. Cut the PE hose straight and insert it into the Unifit coupling up to the stop edge. Then tighten the compression nut firmly by hand. If necessary, tighten the compression nut half a turn with suitable pliers or a wrench. The connection is now watertight.
