VDL 3-piece connector, type A, PVC-U, glue socket x female thread, EPDM, 10 bar, 40 mm x 1¼"
VDL 3-piece connector, type A, PVC-U, glue socket x female thread, EPDM, 10 bar, 40 mm x 1¼"
SKU:716104
Couldn't load pickup availability
Specifications
Description

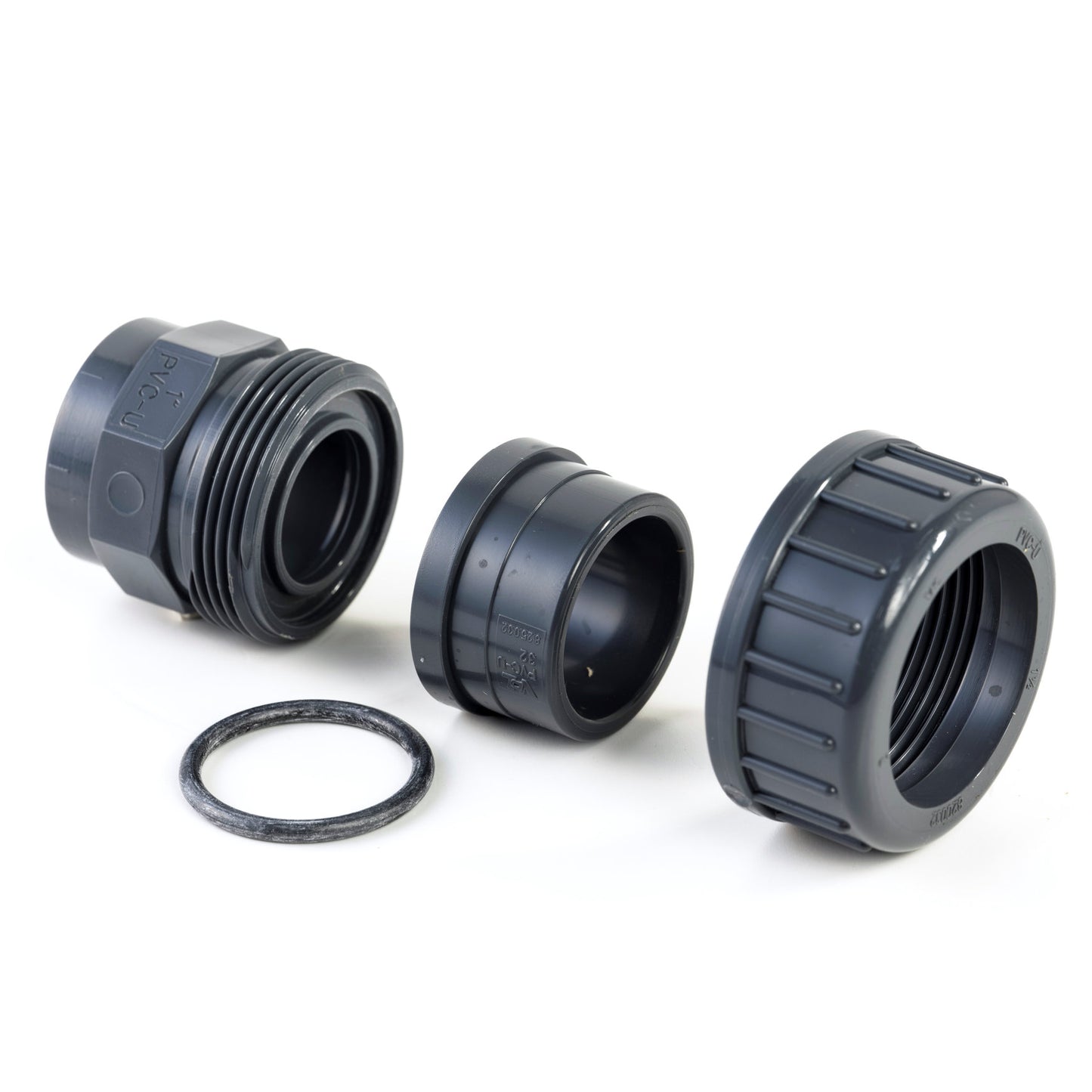

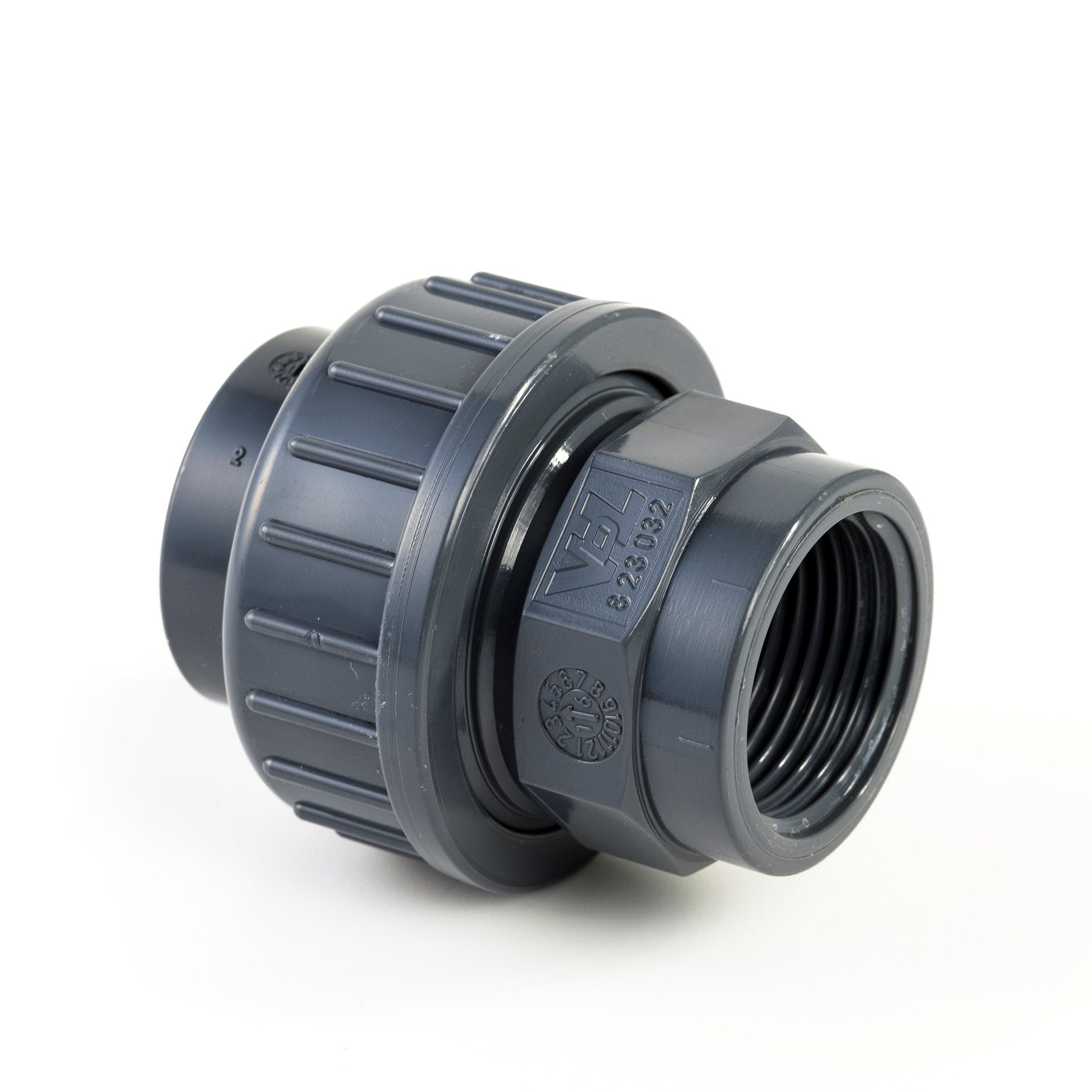

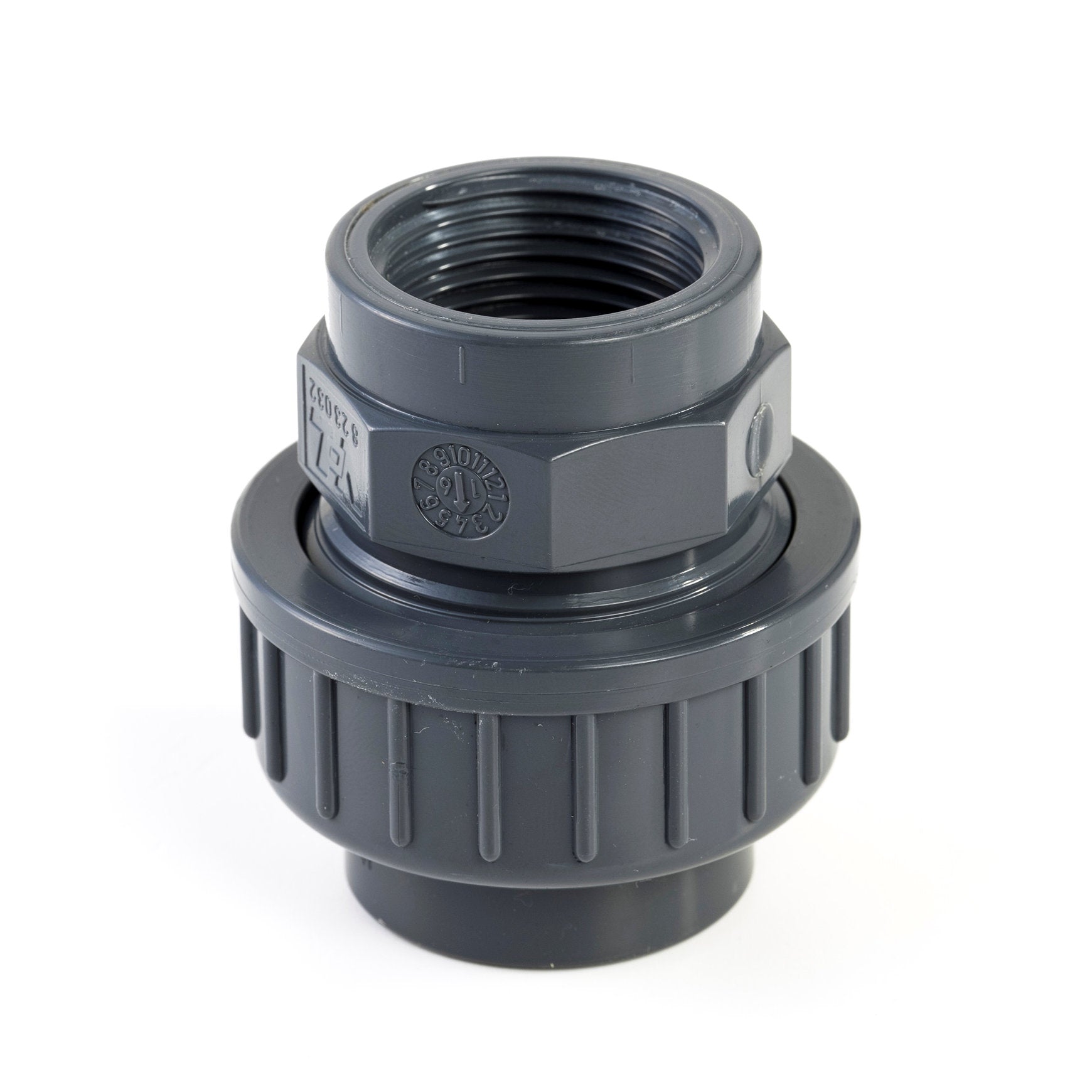

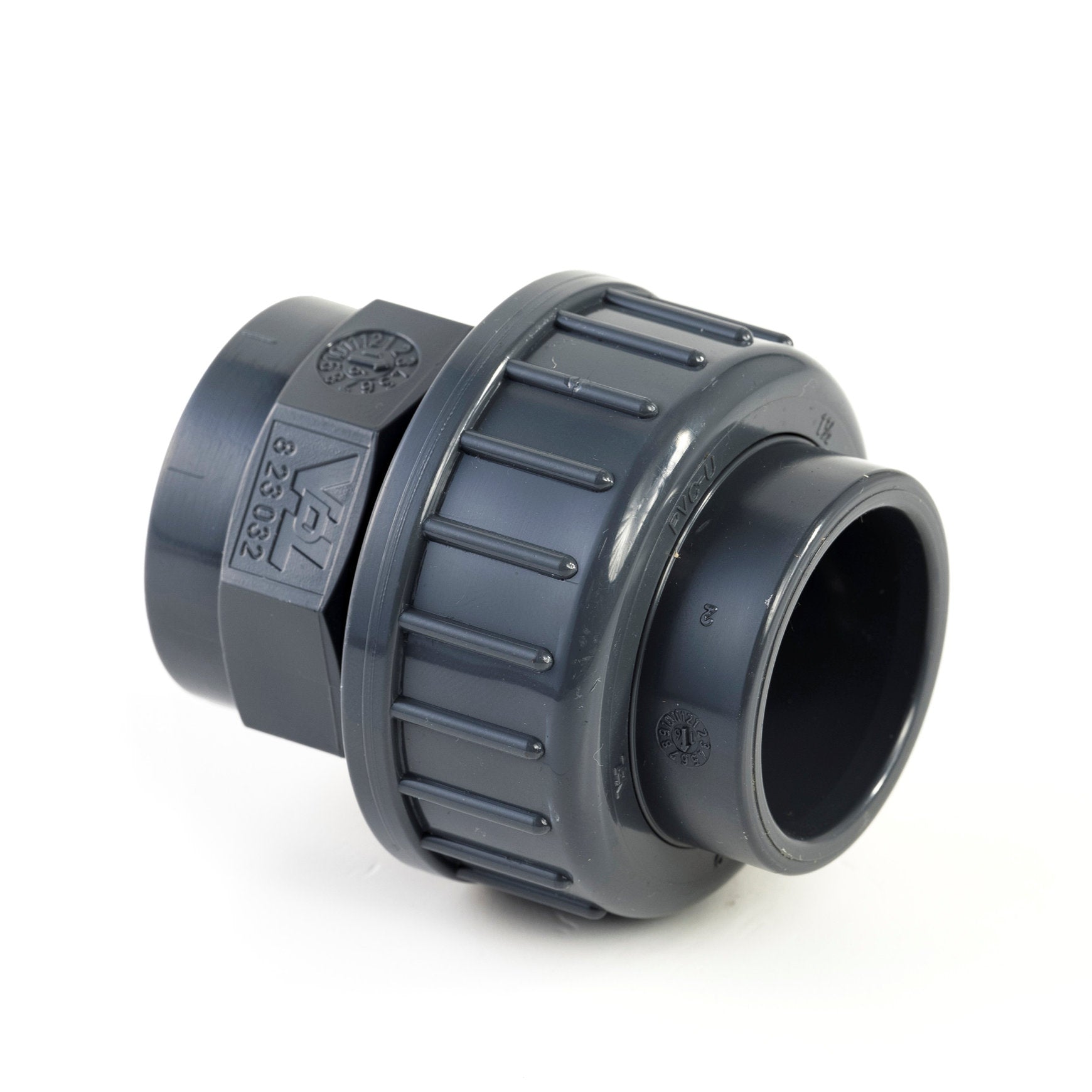

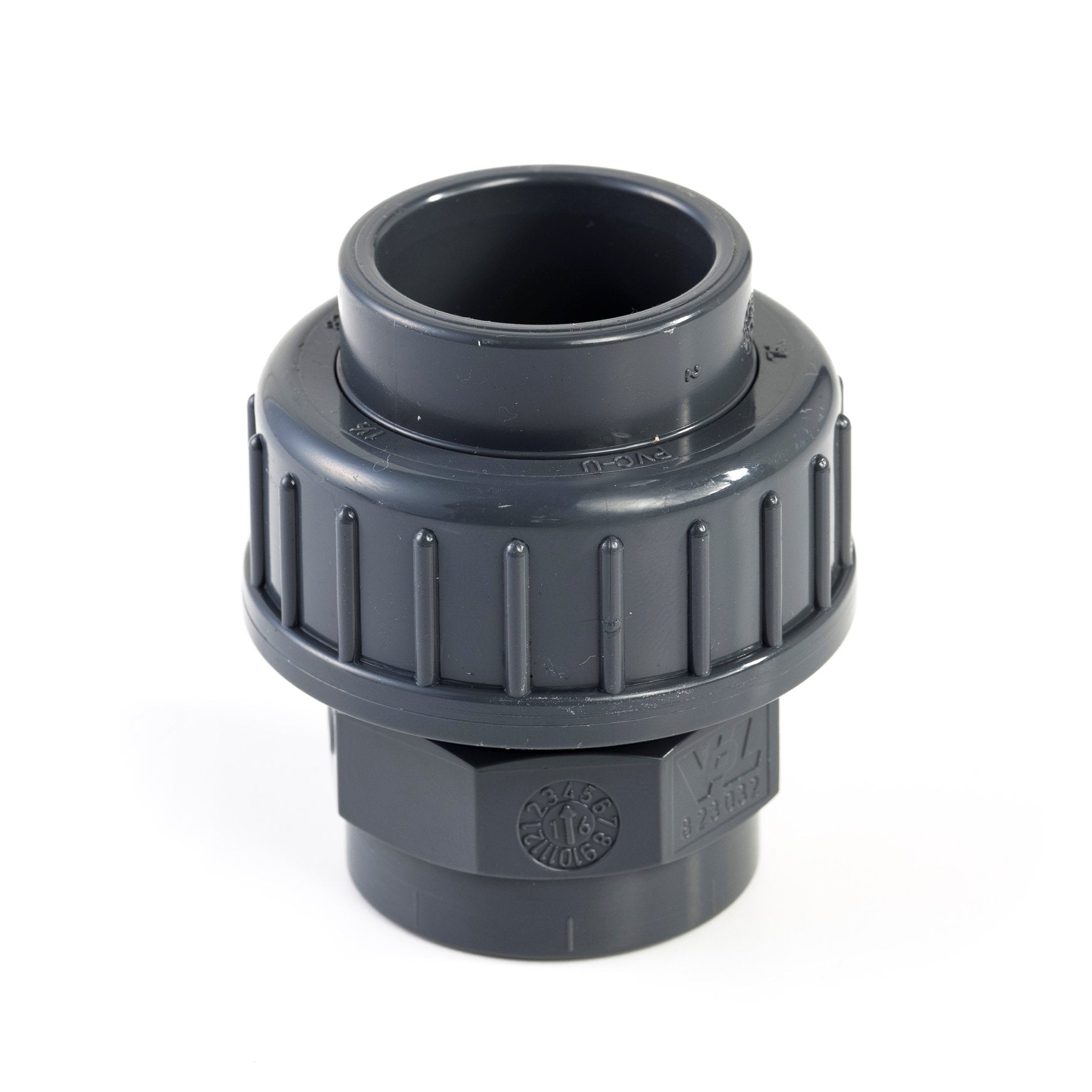

This PVC 3-piece connector can be used to connect pressure pipes, pressure fittings and accessories. An advantage of using a 3-piece connector is that you can easily and quickly disconnect and reconnect it. To disconnect, simply unscrew the union nut. The maximum working pressure of this coupling is 10 bar. This 3-piece connector has a diameter of 40 mm glue socket and a 1¼" female thread.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
