VDL 3-piece connector, PVC-U, glue socket x male thread, EPDM, 16 bar, 32 mm x 1"
VDL 3-piece connector, PVC-U, glue socket x male thread, EPDM, 16 bar, 32 mm x 1"
SKU:716096
Regular price
$9.13
Regular price
Sale price
$9.13
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
1", 32 mm
Connection type
male thread x internal glue
Diameter
1", 32 mm
Eancode
8717284022759
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Description

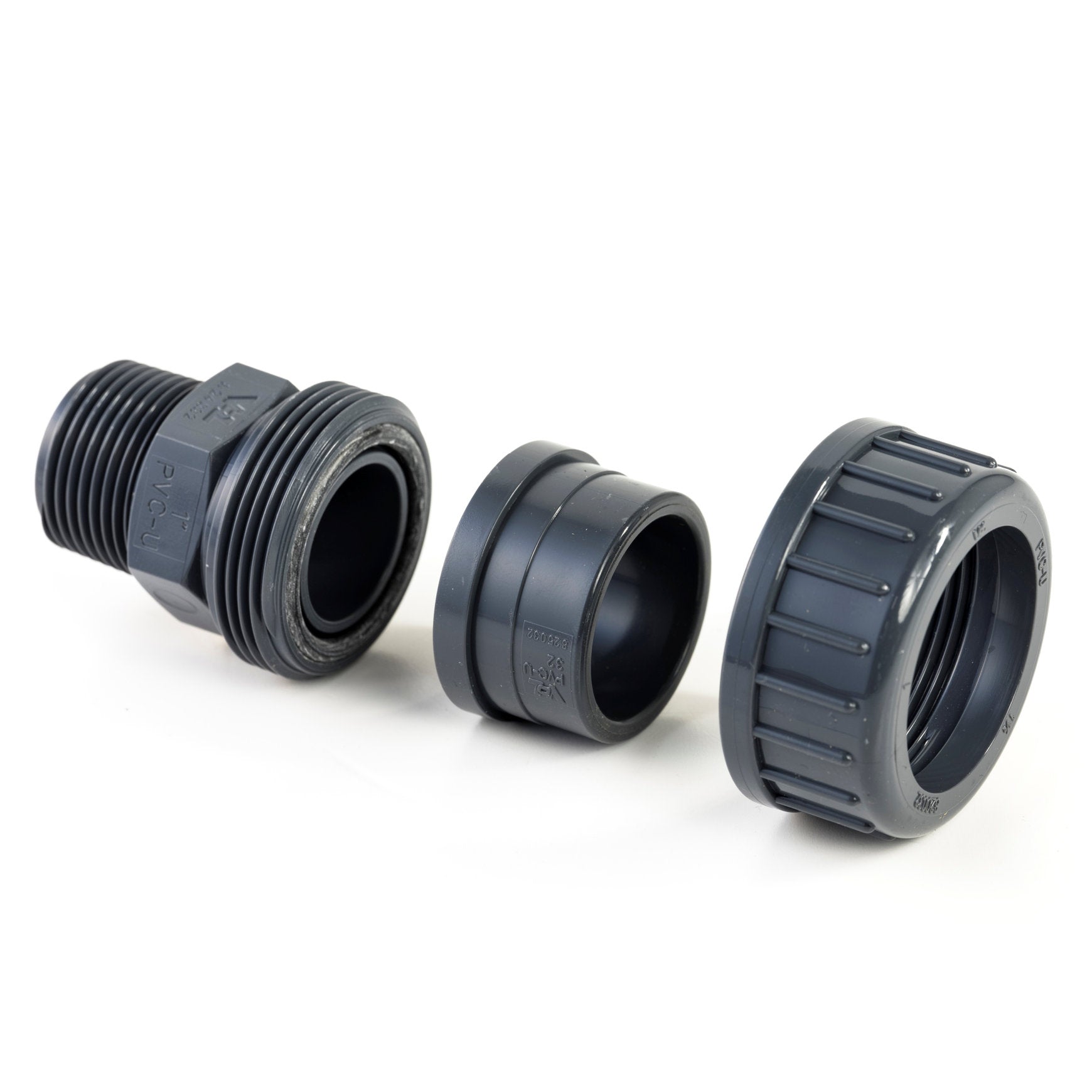

This 3-piece connector can be used to connect pressure pipes, pressure fittings and accessories. An advantage of using a 3-piece connector is that you can easily and quickly disconnect and reconnect it. To disconnect, simply unscrew the union nut.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
