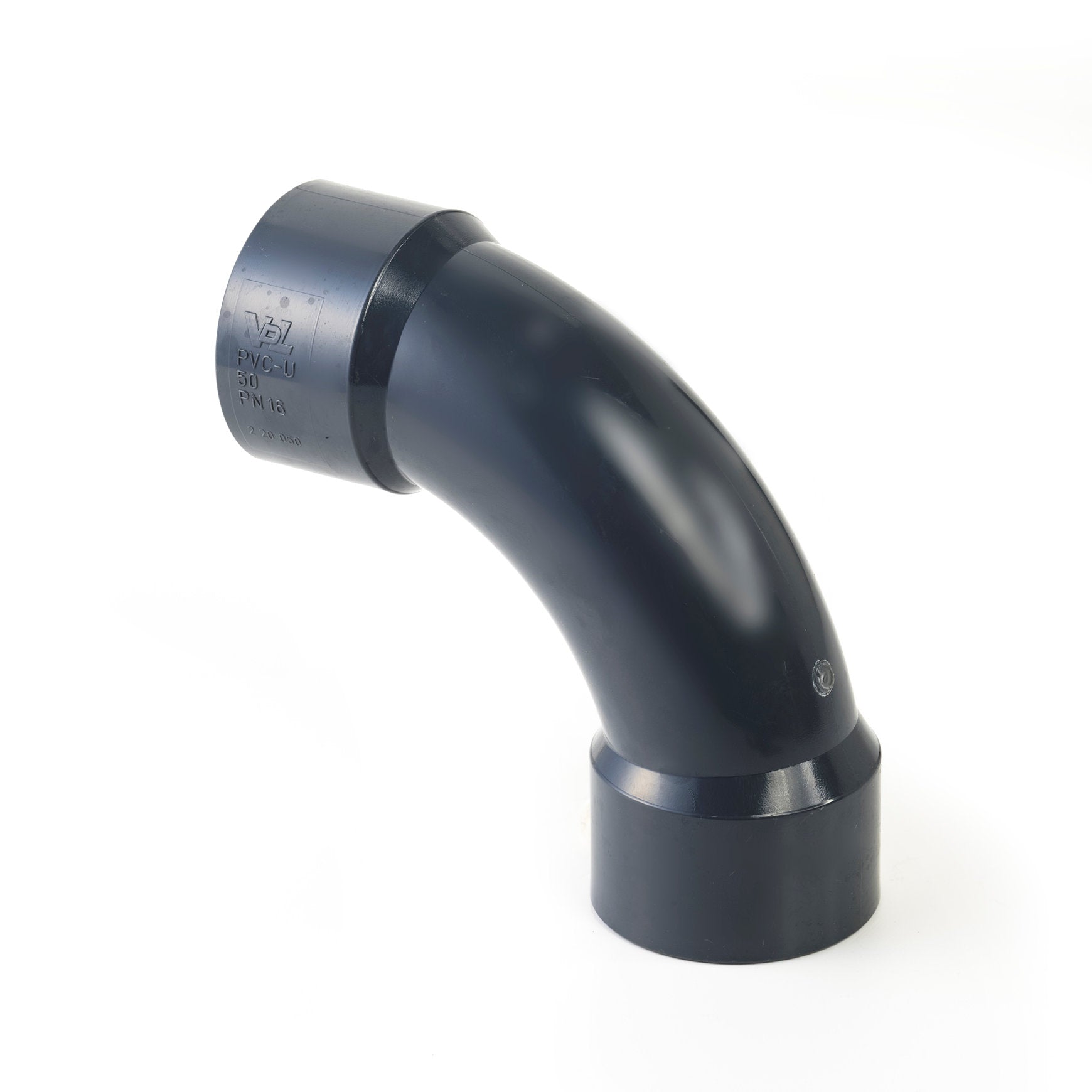

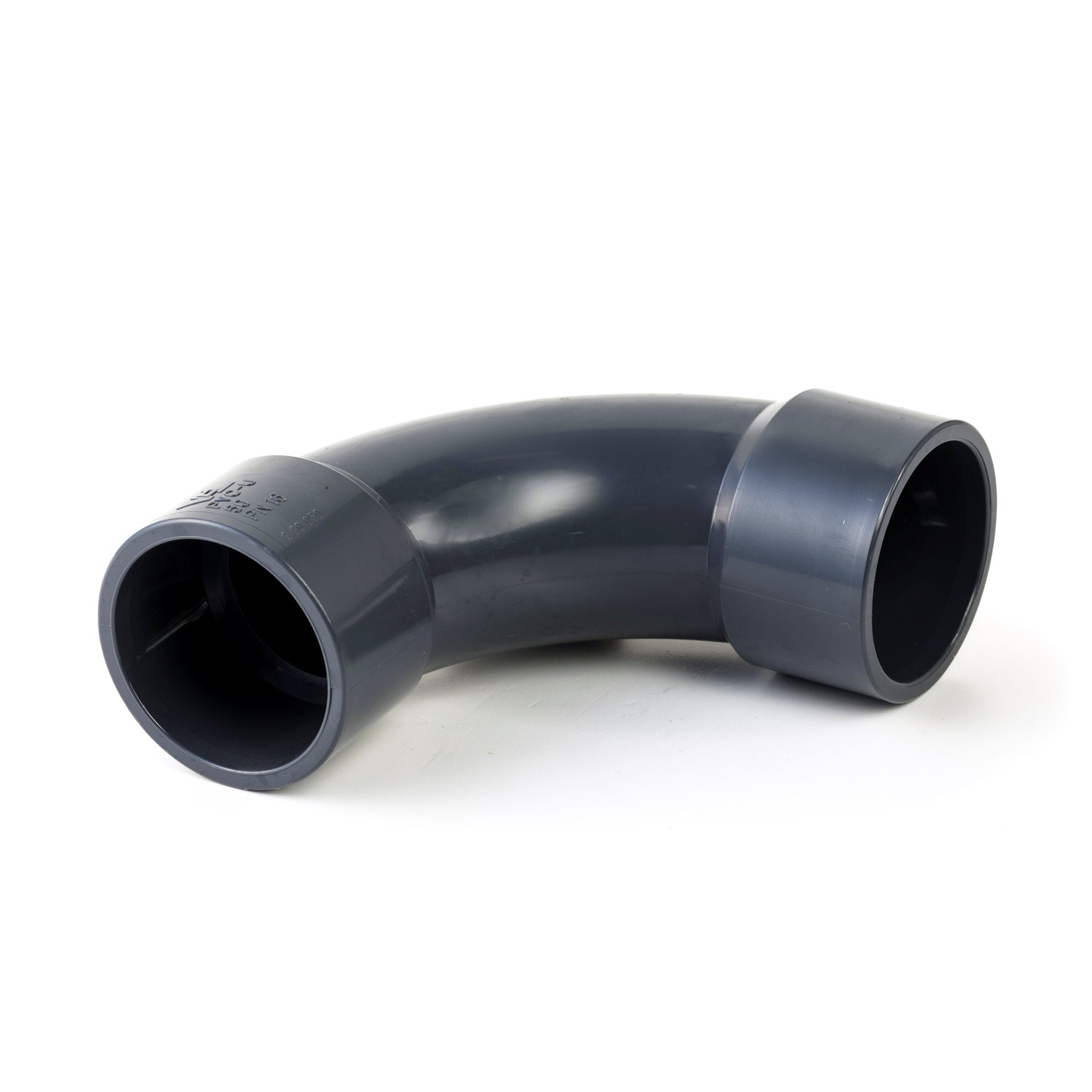

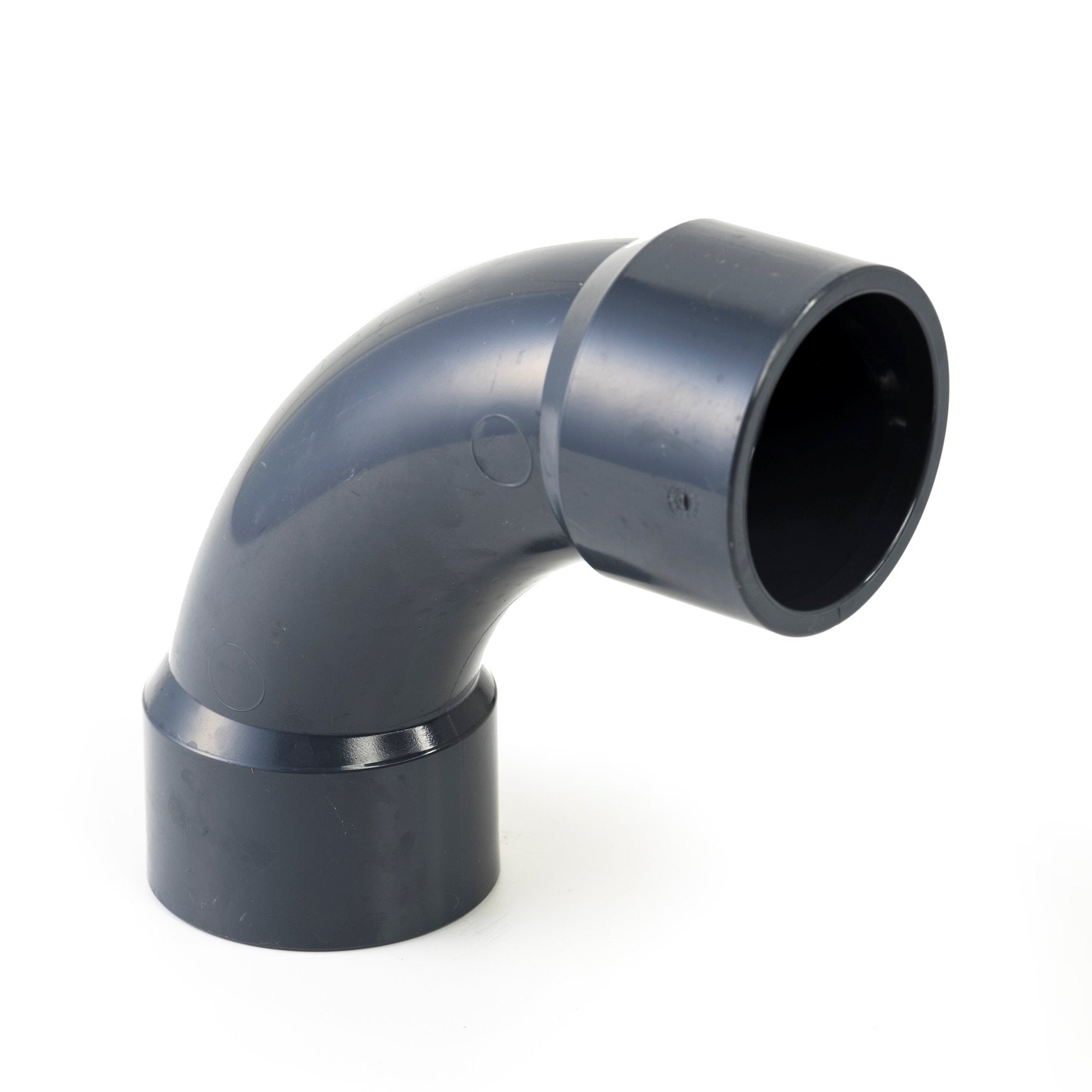

VDL bend 90°, PVC-U, 2x glue socket, 16 bar, 50 mm

VDL bend 90°, PVC-U, 2x glue socket, 16 bar, 50 mm

SKU:715904

$13.26
$13.26
Sale Sold out
In stock
View full details

Specifications

Angle
90 °
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
50 mm
Connection type
internal adhesive
Diameter
50 mm
Eancode
8717284030112
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015

Description

This 90° bend is used in pipes and is suitable for various applications, such as water pipes and manure processing.

In addition to this bend 90°, the range TECElogo includes various other couplings, such as:
  • Threaded end.
  • Double nipple.
  • End cap.
  • Elbow 90°.
  • Reducer.

Properties

This 90° bend is manufactured using injection moulding and offers such properties as good strength, dimensional stability and chemical resistance. The 90° bend is suitable for use at operating temperatures of 0°C to 60°C and the specified working pressure applies at a temperature of 20 °C. NB: the maximum working pressure depends on the operating temperature.

Installation

When installing this 90° bend, you will need a saw or pipe cutter, PVC cleaner and PVC adhesive to create a watertight connection.
  • Cut or saw the pipe at a right angle to size and deburr the ends to prevent any damage to the pipe.
  • Mark the insertion depth on the pipe.
  • Use a PVC cleaner to clean the section to be glued.
  • Apply an even layer of glue to both the outside of the pipe and the inside of the coupling.
  • Slide the pipe and coupling together up to the marked insertion depth.
  • Hold the connection firmly for a few seconds to prevent any movement.
  • After 15 minutes, remove any excess adhesive.
Please note: wait at least 24 hours before pressurising and using the piping system. This will allow the adhesive to cure completely for a strong connection.
