VDL collar bushing, type 3, PVC-U, 1x glue socket, 16 bar, 40 mm
VDL collar bushing, type 3, PVC-U, 1x glue socket, 16 bar, 40 mm
SKU:716216
Regular price
$3.02
Regular price
Sale price
$3.02
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
40 mm
Connection type
internal adhesive
Diameter
40 mm
Eancode
8717284016123
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Description

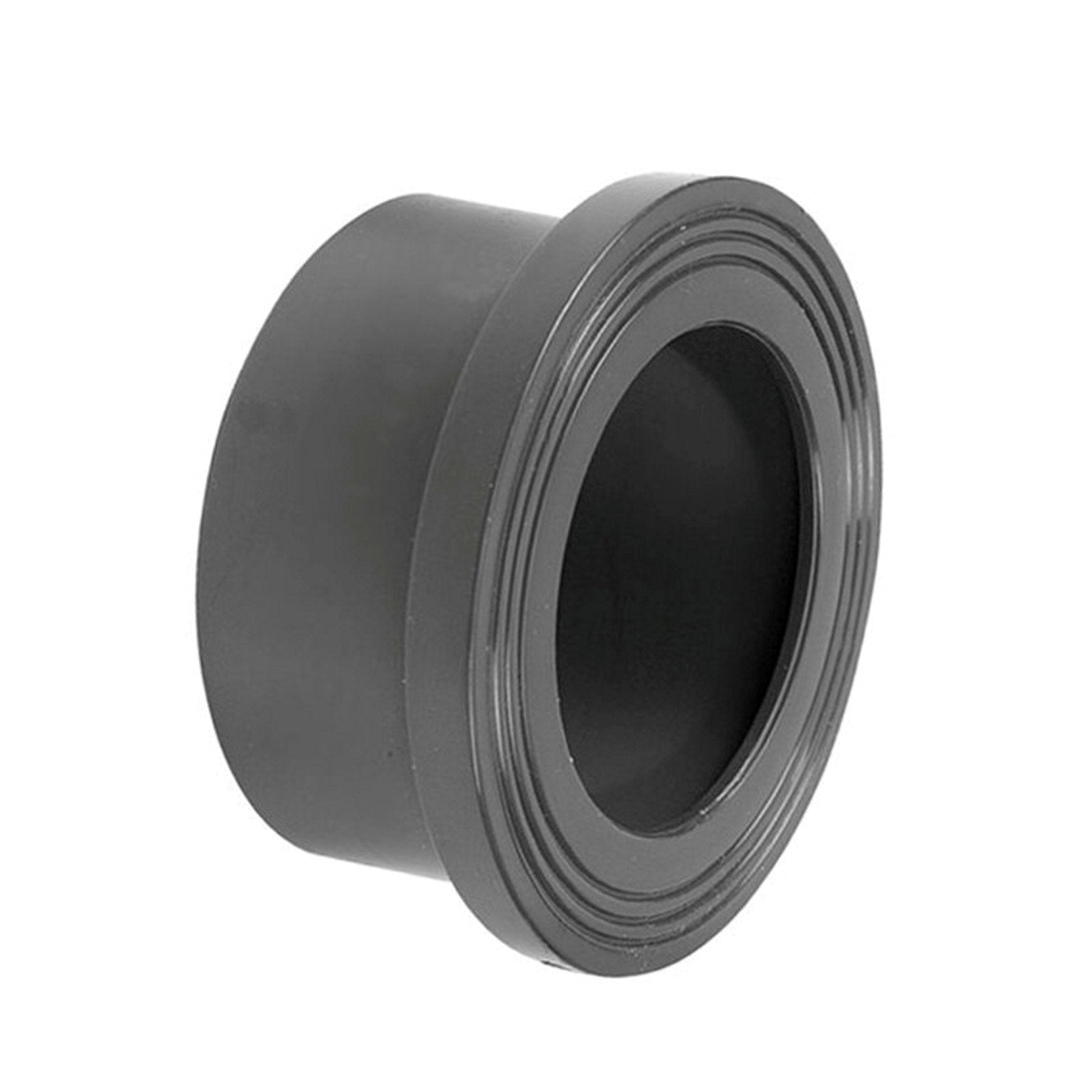

A PVC collar bushing, in combination with a flange and a sealing ring, creates a strong and removable connection to fittings, accessories or other pipes that can be glued into the collar bushing. The collar bushing has an internal diameter of 40 mm. Maximum working pressure 16 bar.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
