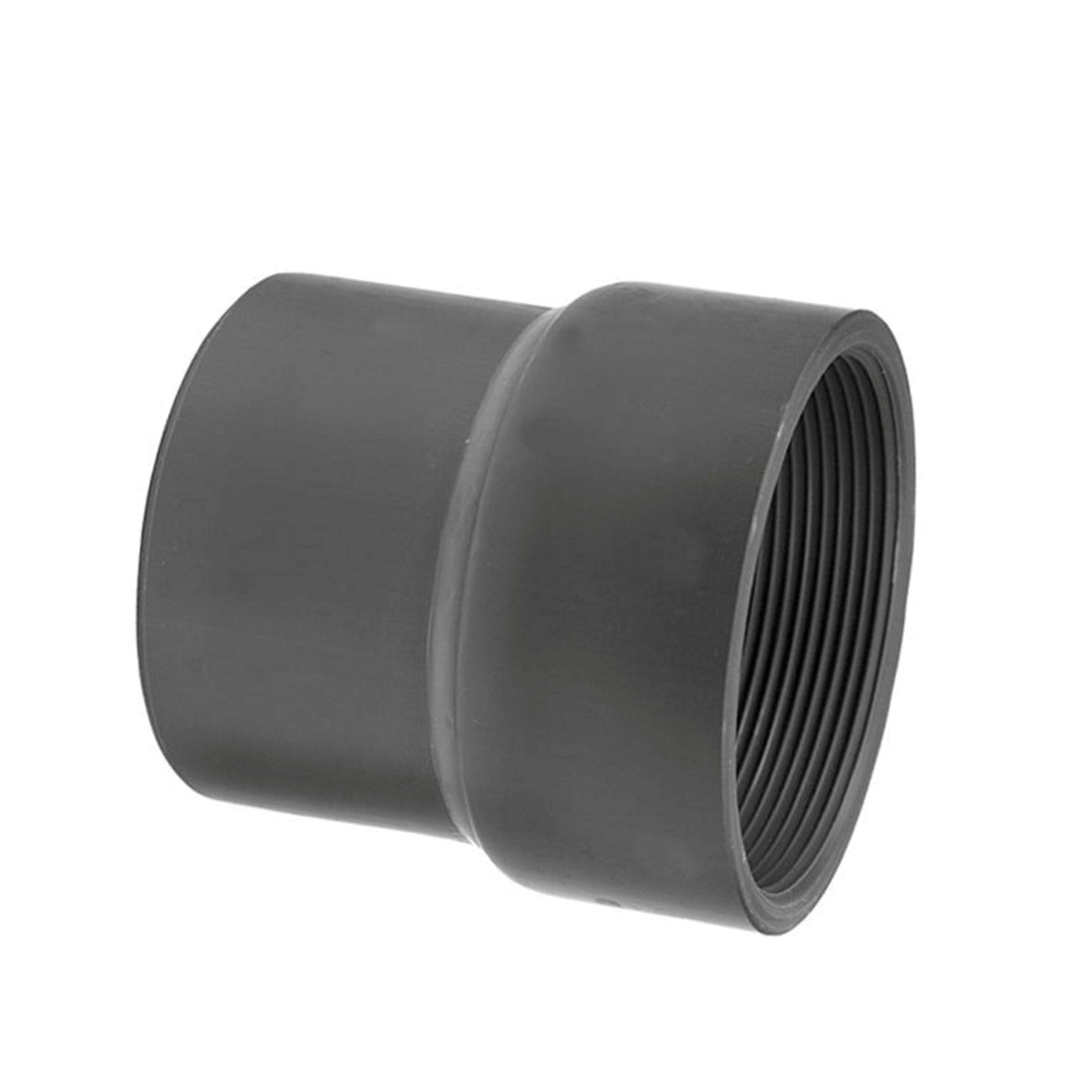

VDL threaded adaptor bush, type C, PVC-U, glue spigot x female thread, 10 bar, 90 mm x 3"
VDL threaded adaptor bush, type C, PVC-U, glue spigot x female thread, 10 bar, 90 mm x 3"
SKU:715659
Regular price
$29.36
Regular price
Sale price
$29.36
Unit price
per
Delivery on request
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
3", 90 mm
Connection type
female thread x external glue
Diameter
3", 90 mm
Eancode
8717284046502
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL inzet-schroefring, pvc-u, uitw lijm x bidr., 90 mm x 3"
Two badescription en
VDL thr. insert ring, ext.glue x f.thr., C, 90 mm x 3"
Description
This threaded adaptor bush is glued into an accessory when a transition connection is needed.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
