VDL male threaded adaptor, PVC-U, glue spigot x male thread, 16 bar, 20 mm x ½"
VDL male threaded adaptor, PVC-U, glue spigot x male thread, 16 bar, 20 mm x ½"
SKU:716120
Regular price
$1.91
Regular price
Sale price
$1.91
Unit price
per
Delivery on request
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
20 mm, ½"
Connection type
male thread x external glue
Diameter
20 mm, ½"
Eancode
8717284011388
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL inzet-draadeind, pvc-u, uitw. lijm x bu.dr., 20 mm x ½"
Two badescription en
VDL insert thr. socket, ext. bond x m.thr., 20 mm x ½"
Description

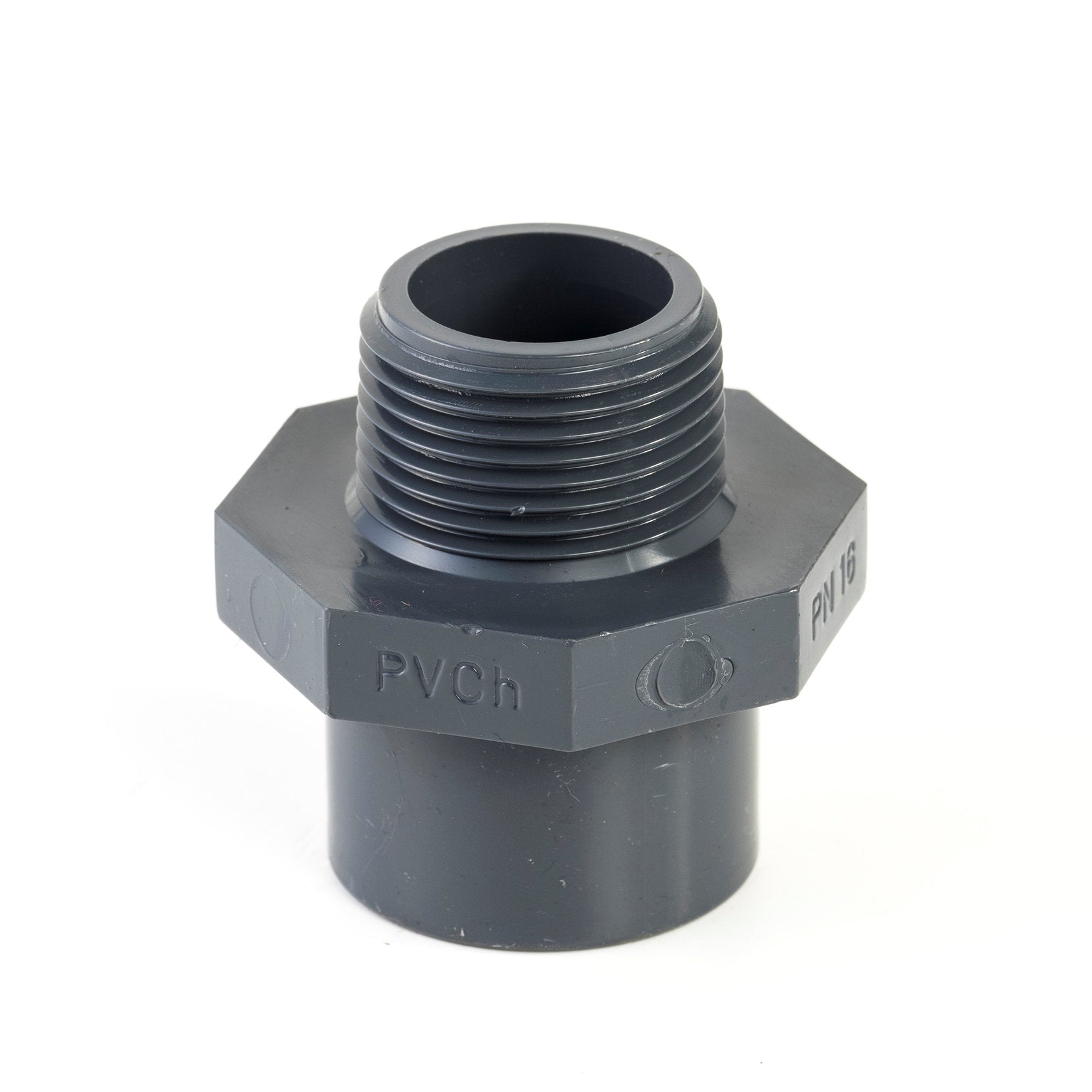

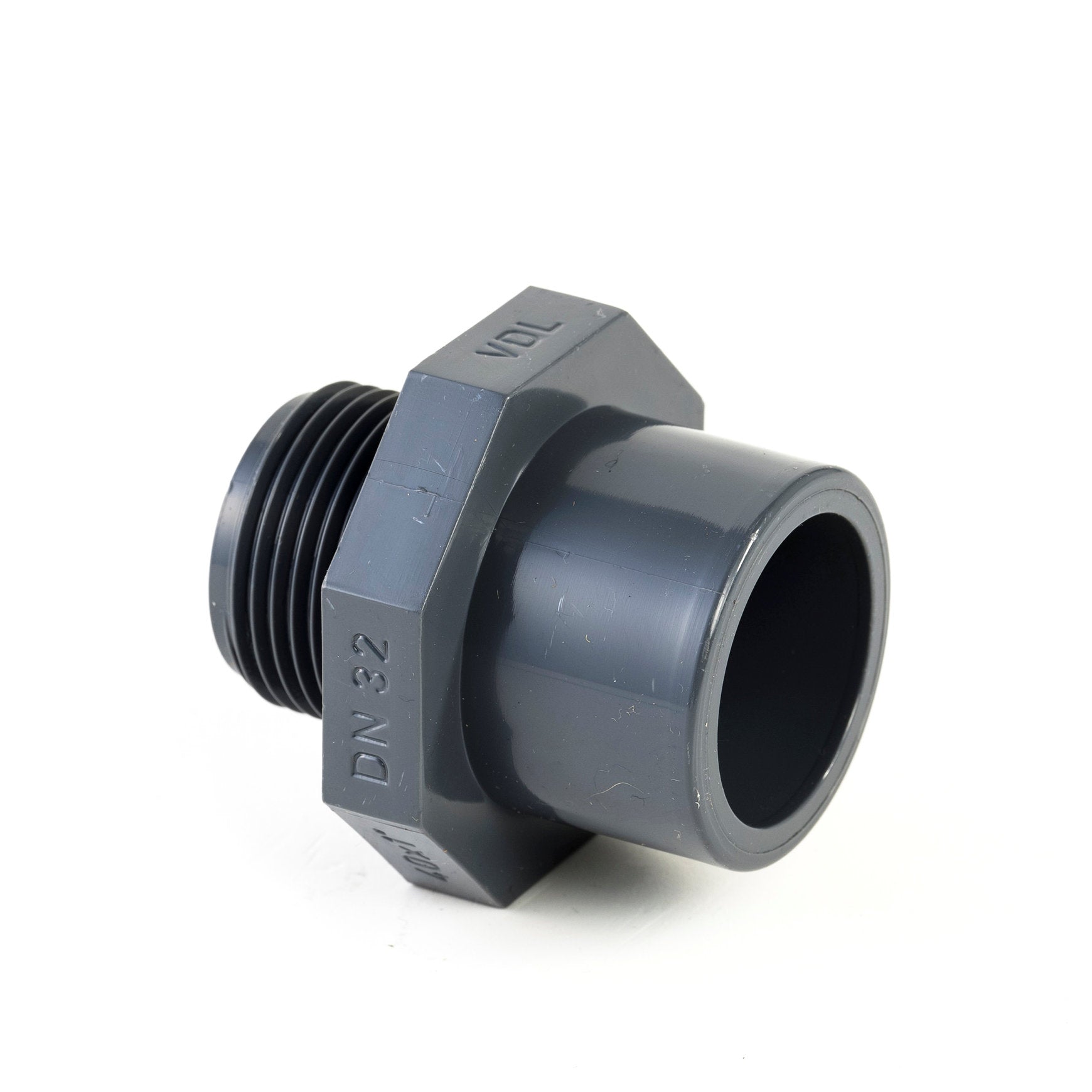

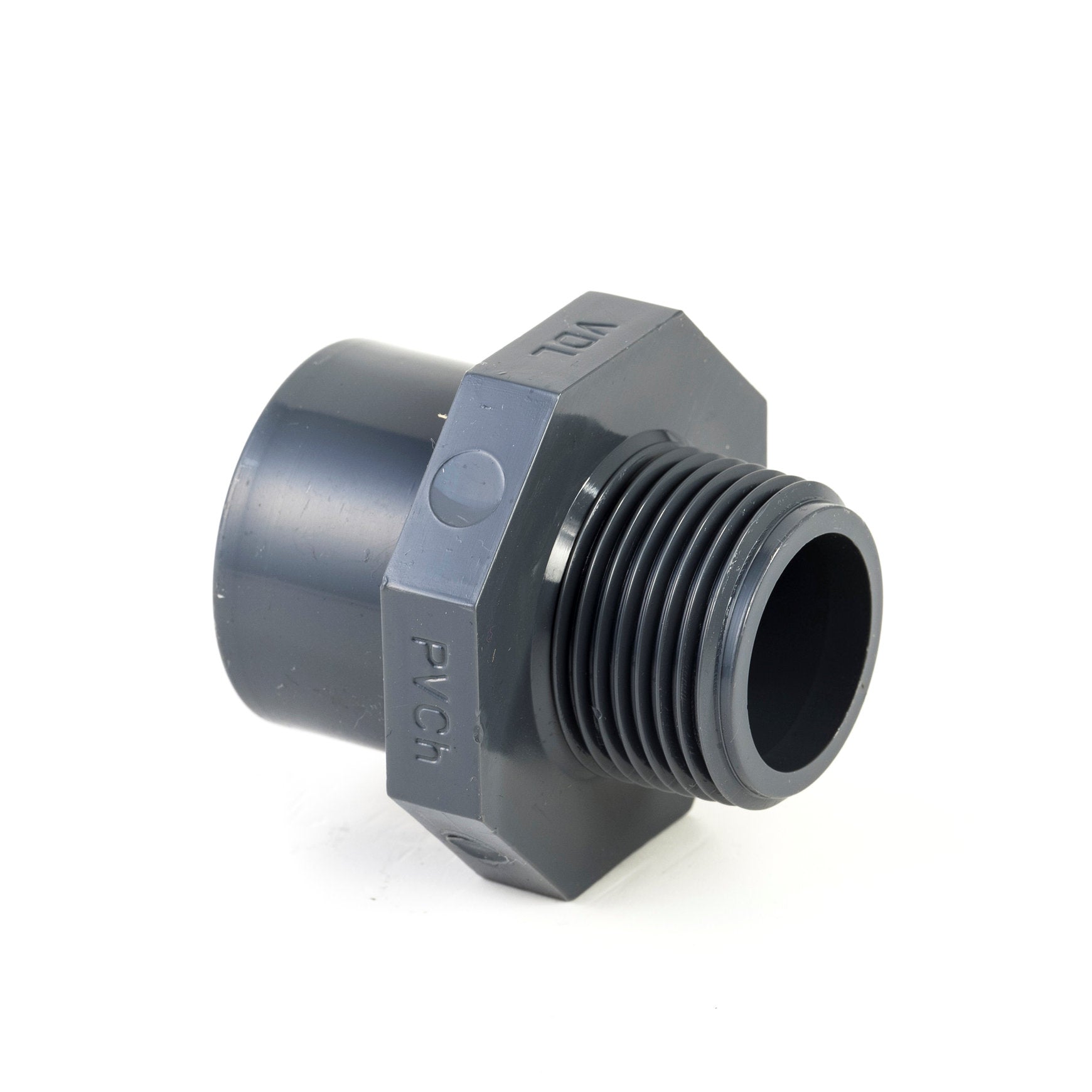

This PVC male threaded adaptor fits into an accessory and includes a tightening nut. The maximum working pressure of this male threaded adaptor is 16 bar. This male threaded adaptor has a diameter of 20 mm, glue spigot and ½” male thread.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
