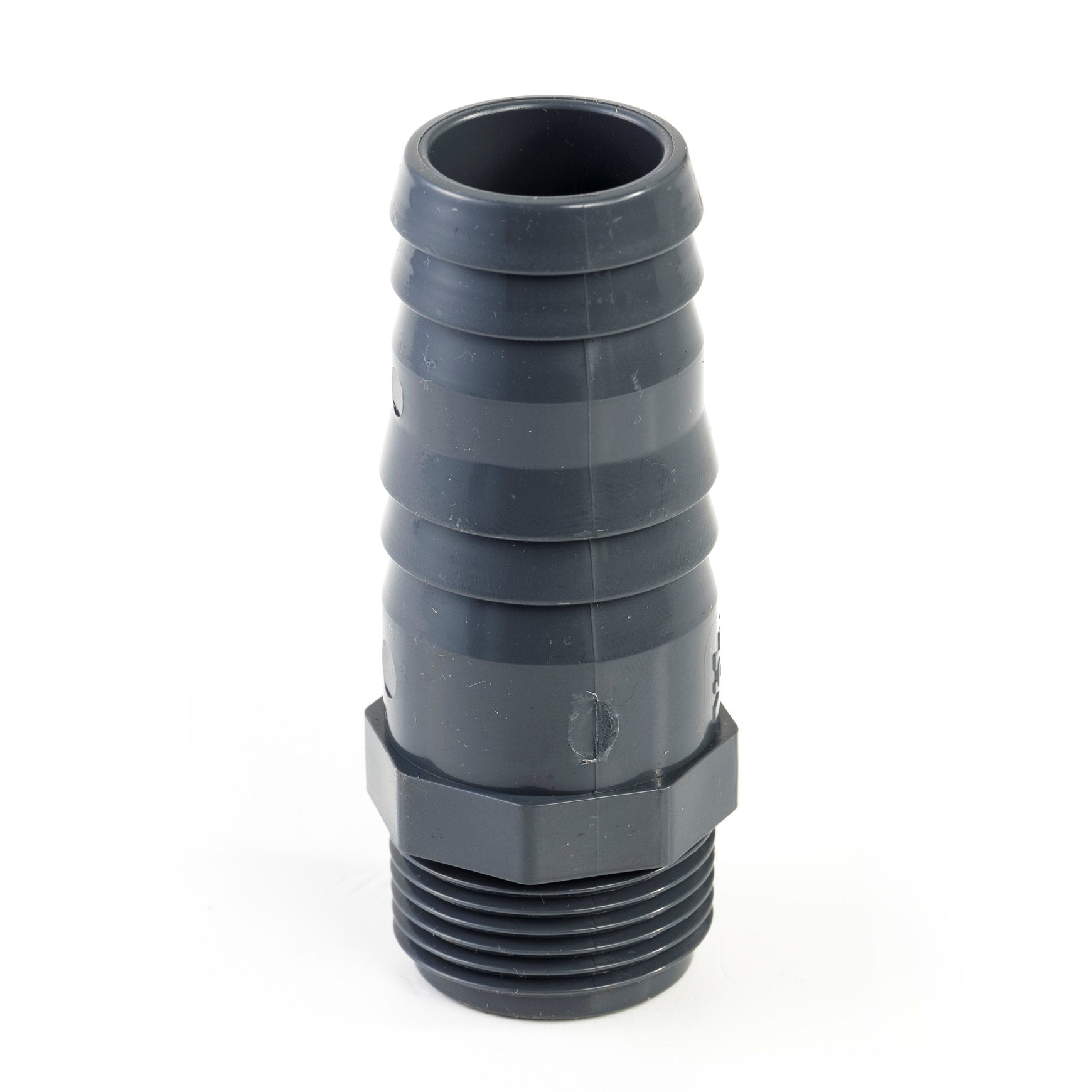

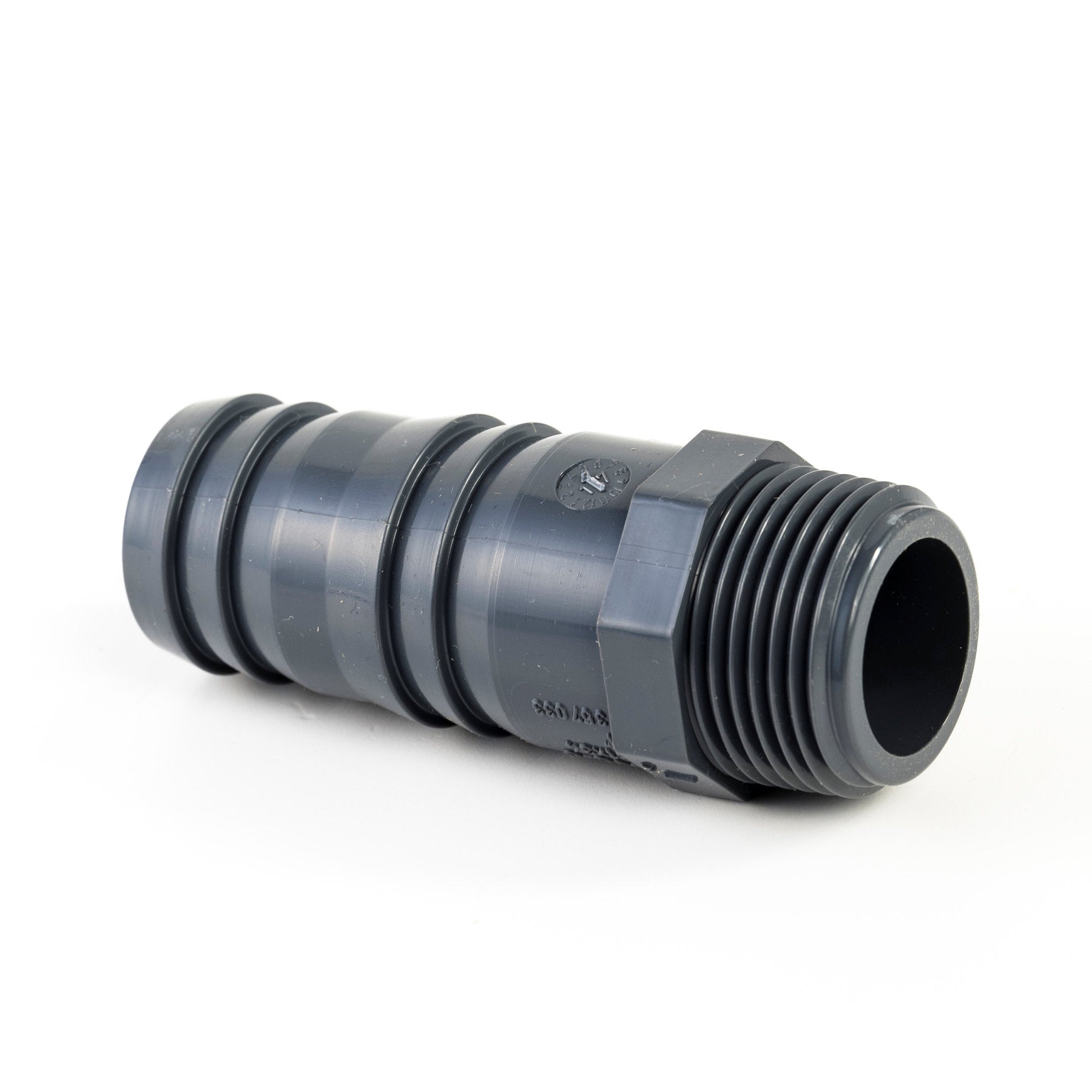

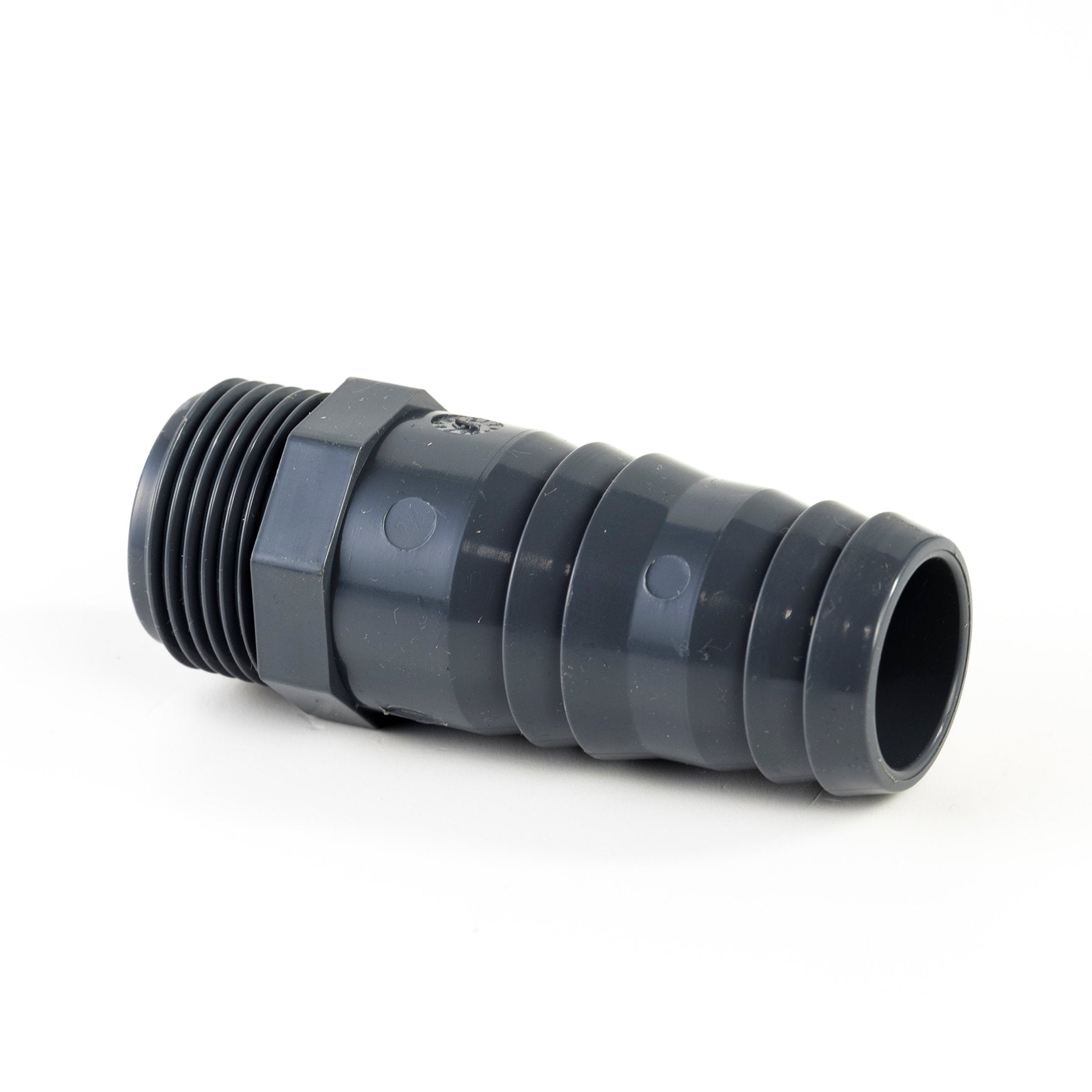

VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, 2” x 66 x 60 mm
VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, 2” x 66 x 60 mm
SKU:713292
Regular price
$12.35
Regular price
Sale price
$12.35
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
2", 60 mm, 66 mm
Connection type
male thread x hose nipple
Diameter
2", 60 mm, 66 mm
Eancode
8717284031881
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL slangtule, 2, pvc-u, bu.dr., 10 bar, 2" x 66 x 60 mm
Two badescription en
VDL thr. hose barb, 1x m.thr., 2" x 66 x 60 mm
Description
This threaded hose barb can be screwed into a female thread fitting. The use of Teflon tape or sealing cord is recommended to ensure a watertight connection.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
