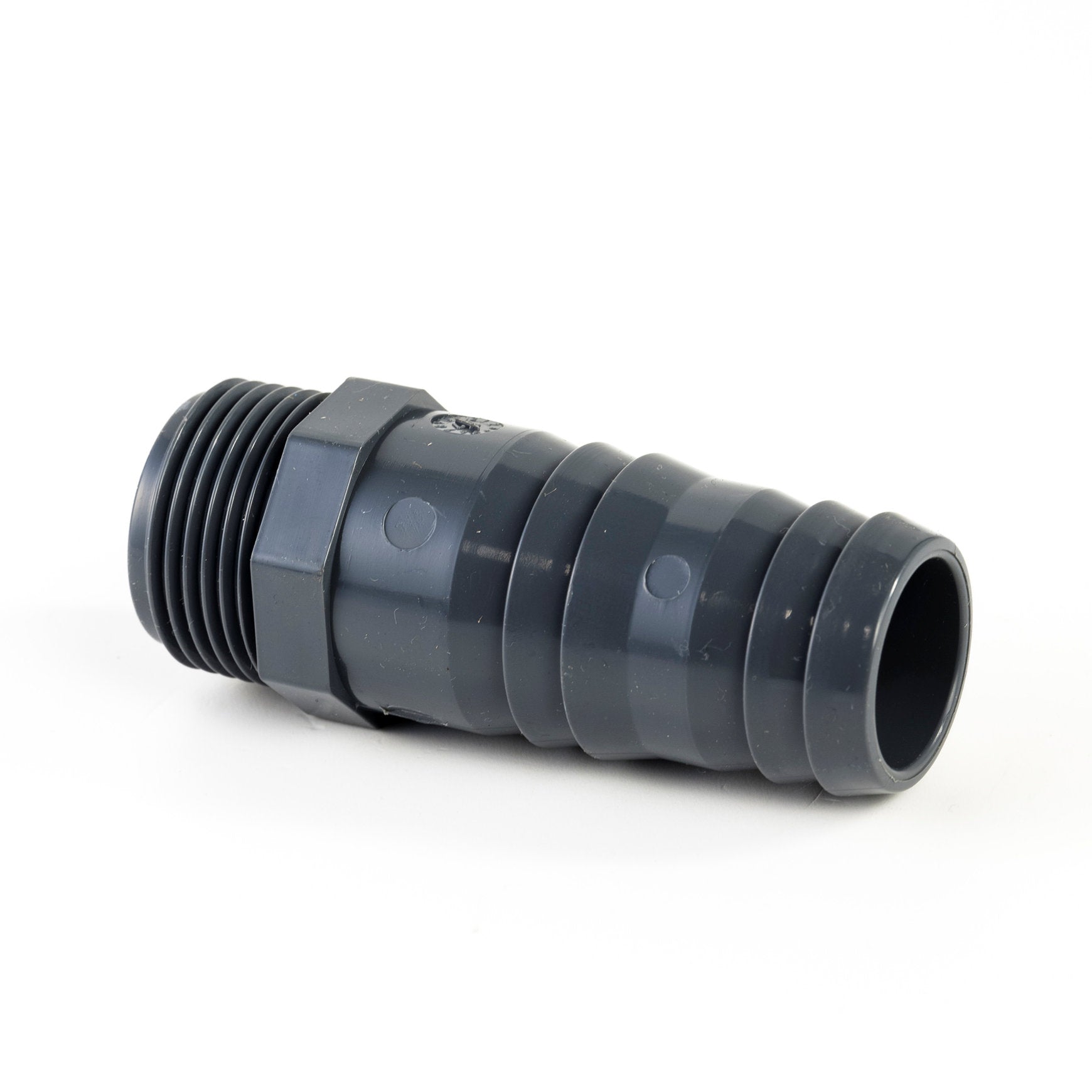

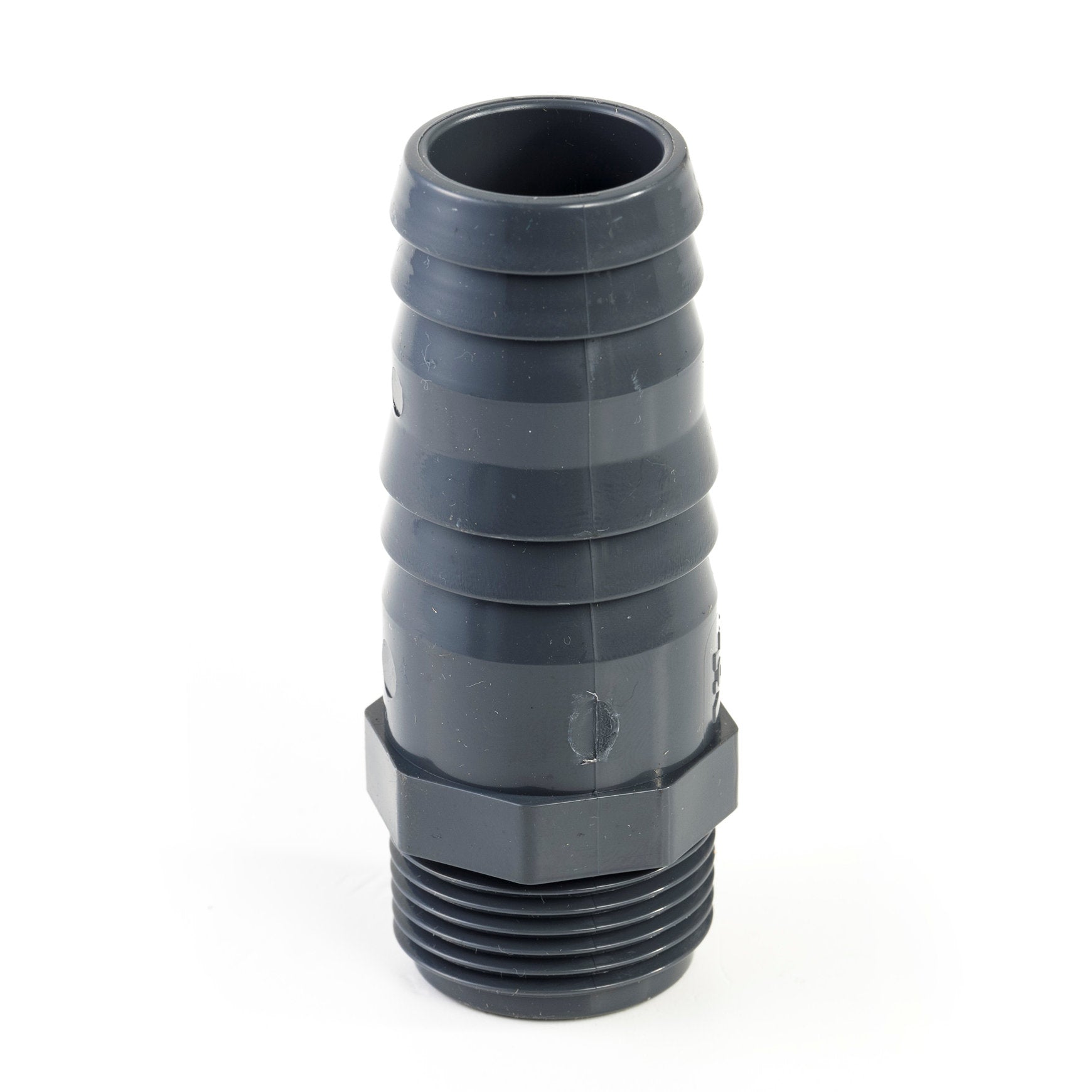

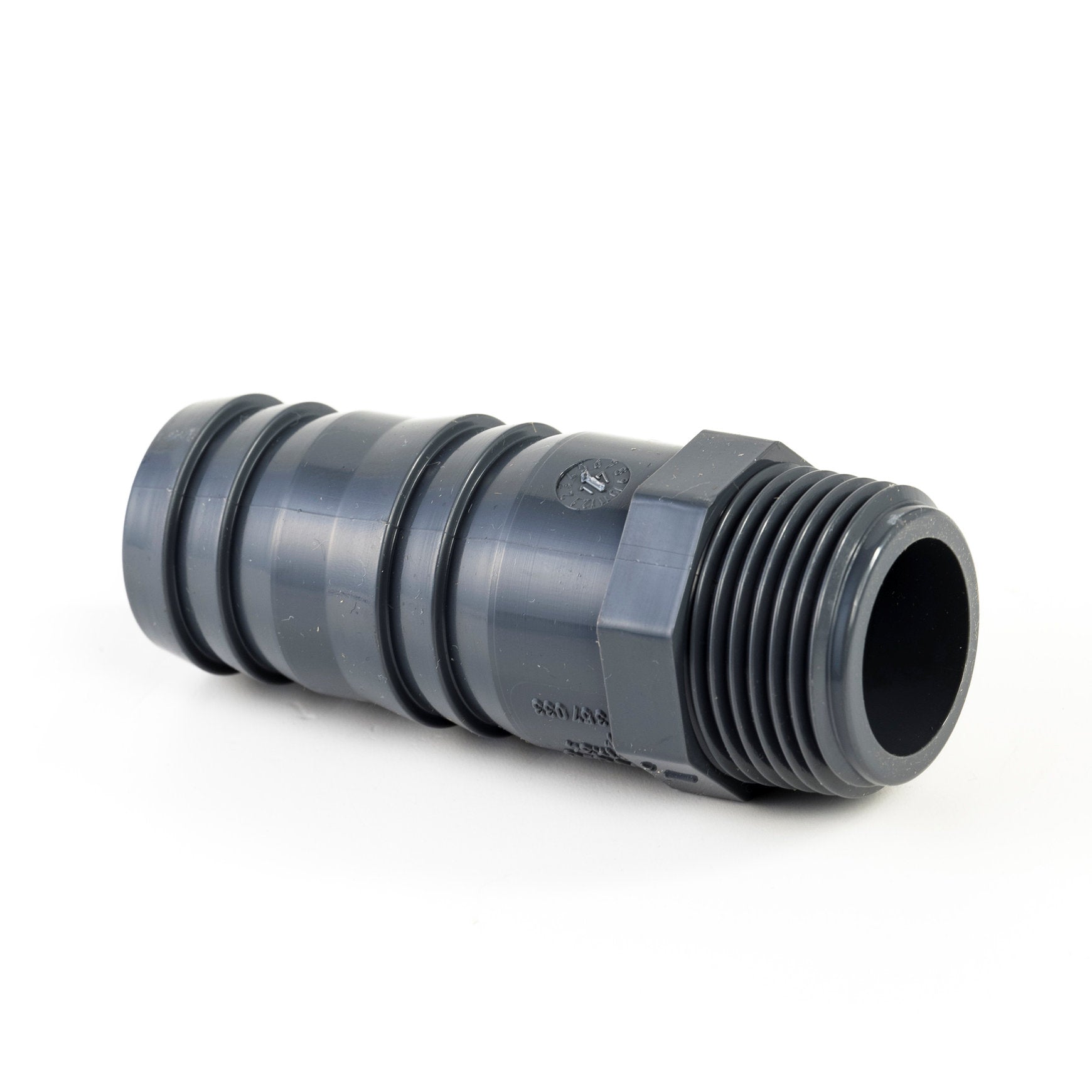

VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, ½” x 22 x 20 mm
VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, ½” x 22 x 20 mm
SKU:713276
Regular price
$2.92
Regular price
Sale price
$2.92
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
20 mm, 22 mm, ½"
Connection type
male thread x hose nipple
Diameter
20 mm, 22 mm, ½"
Eancode
8717284011968
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL slangtule, 2, pvc-u, bu.dr., 10 bar, ½" x 22 x 20 mm
Two badescription en
VDL thr. hose barb, 1x m.thr., ½" x 22 x 20 mm
Description
This threaded hose barb can be screwed into a female thread fitting. The use of Teflon tape or sealing cord is recommended to ensure a watertight connection.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
