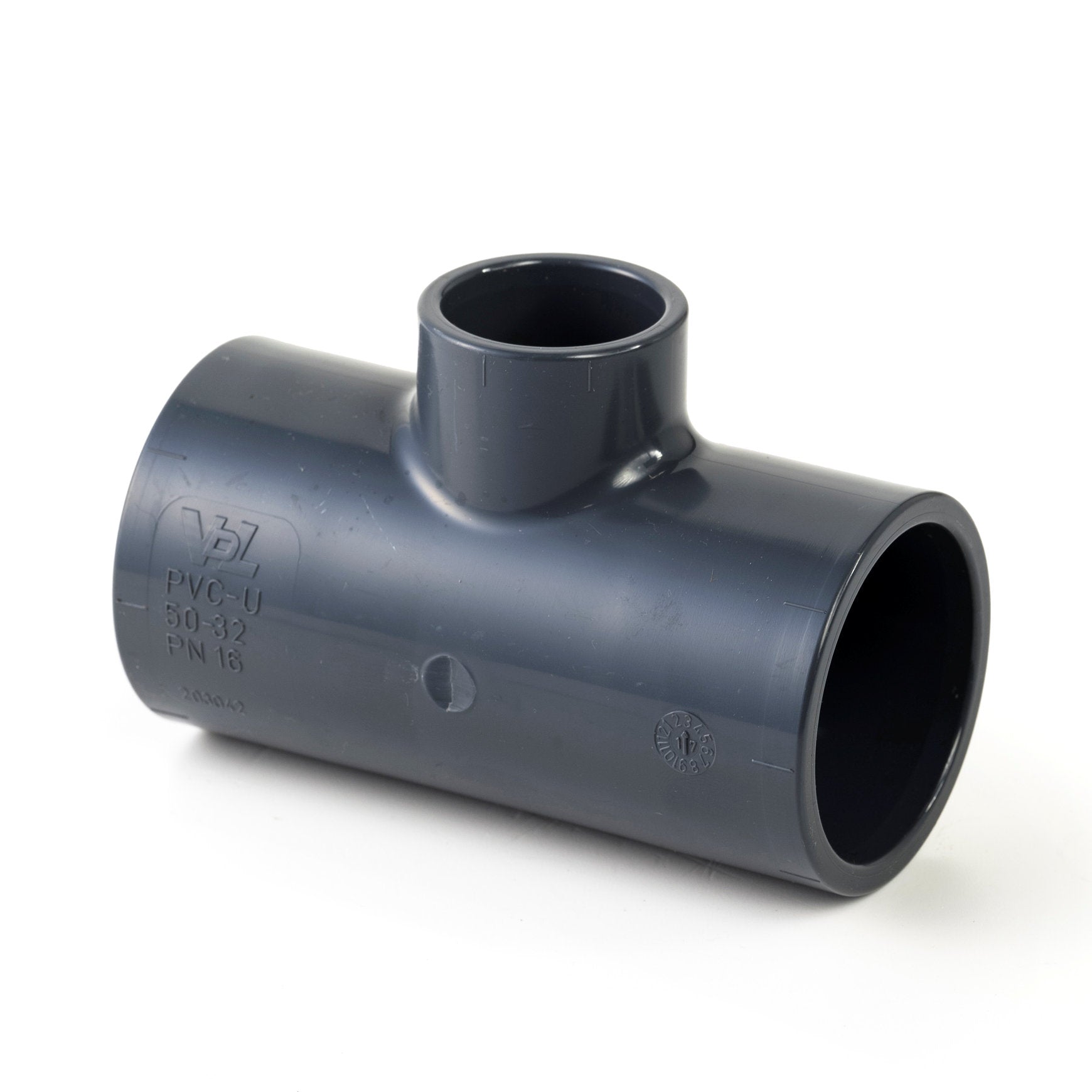

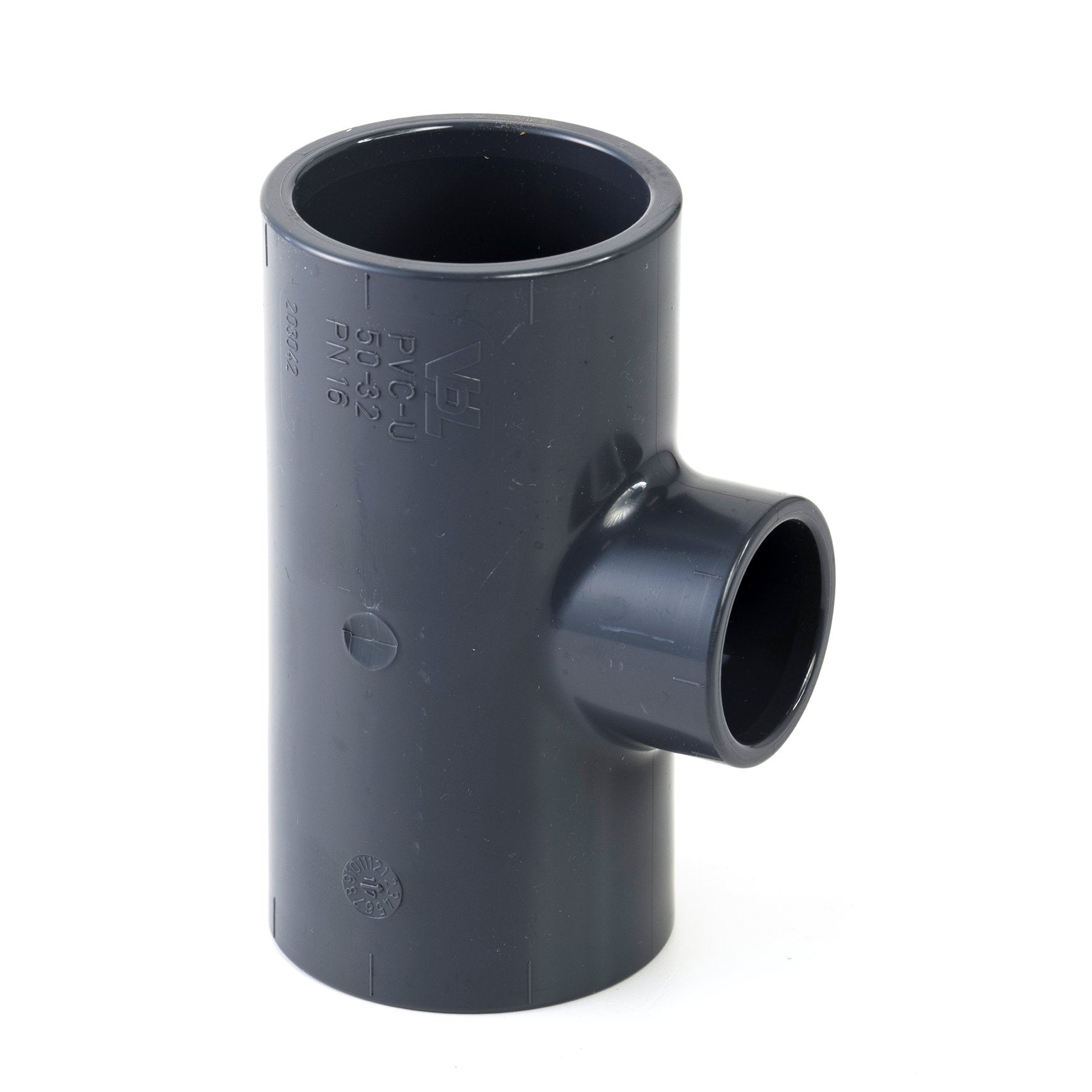

VDL reducing Tee 90°, type A, PVC-U, 3x glue socket, 16 bar, 63 x 50 x 63 mm
VDL reducing Tee 90°, type A, PVC-U, 3x glue socket, 16 bar, 63 x 50 x 63 mm
SKU:715935
Regular price
$12.32
Regular price
Sale price
$12.32
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Angle
90 °
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
50 mm, 63 mm
Connection type
internal adhesive
Diameter
50 mm, 63 mm
Eancode
8717284039573
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Description
This PVC reducing Tee can be used, for example, to create a branch in a water pipe system at a 90 degree angle. The maximum working pressure of this Tee is 16 bar. The diameter is 63 mm, glue socket, reduction 50 mm.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
