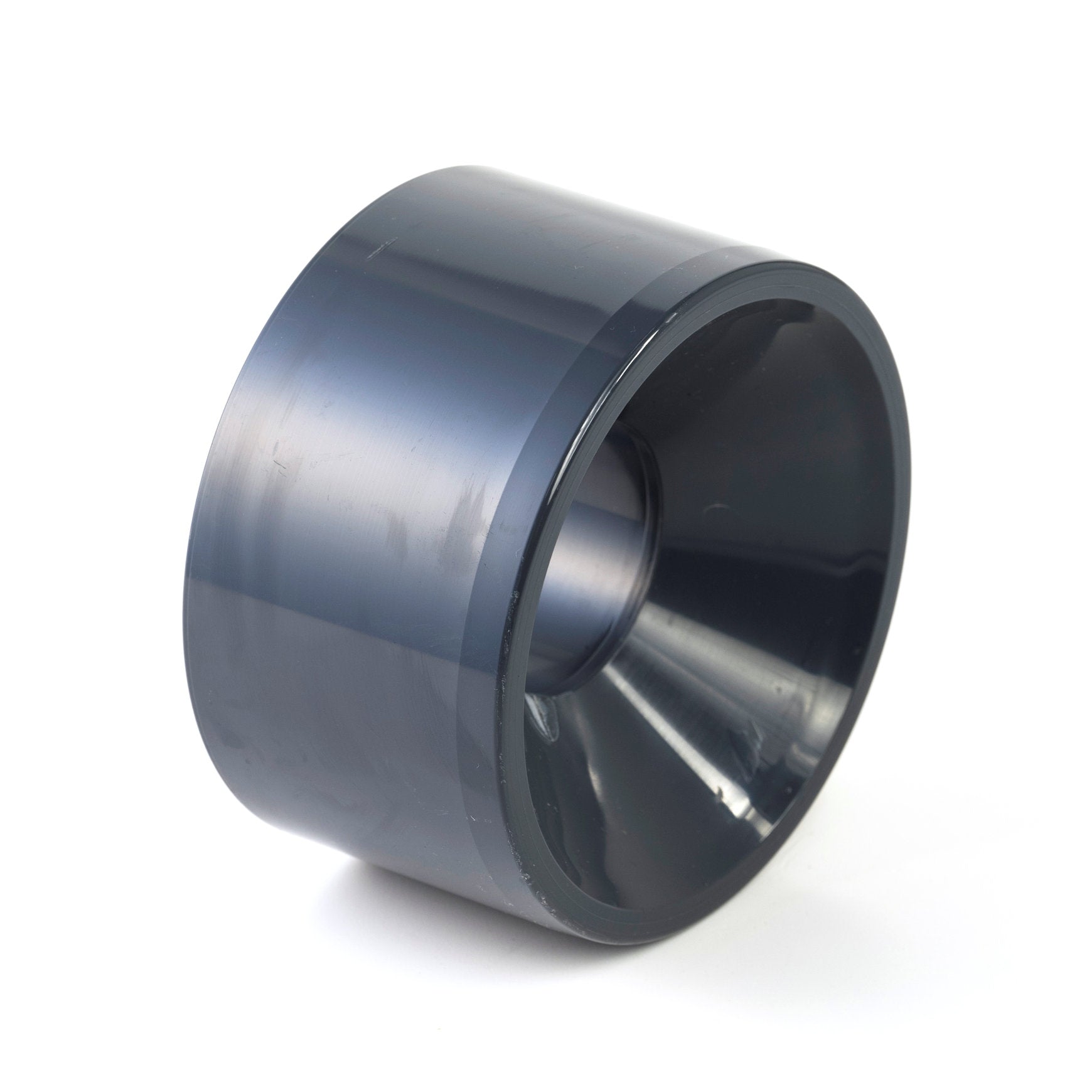

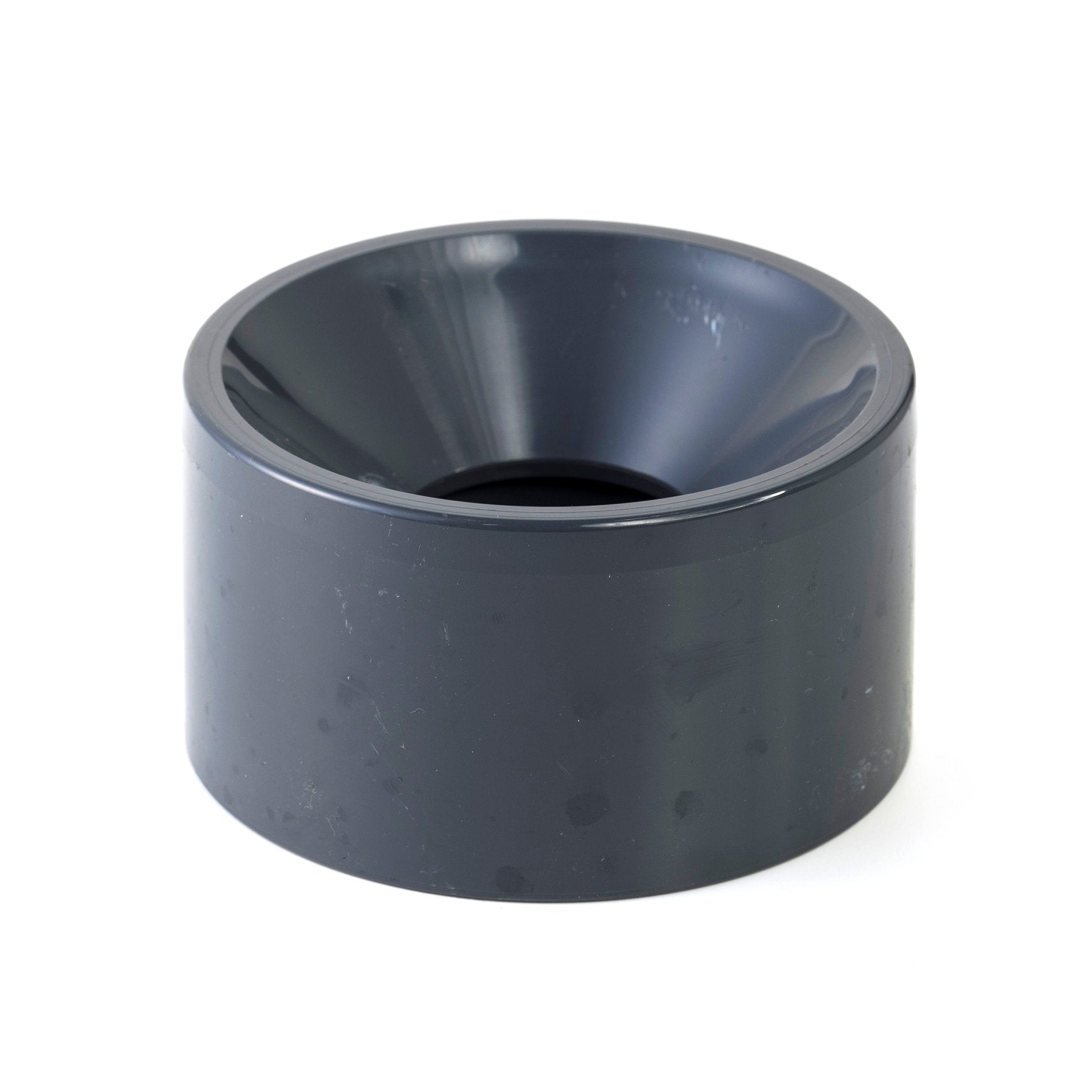

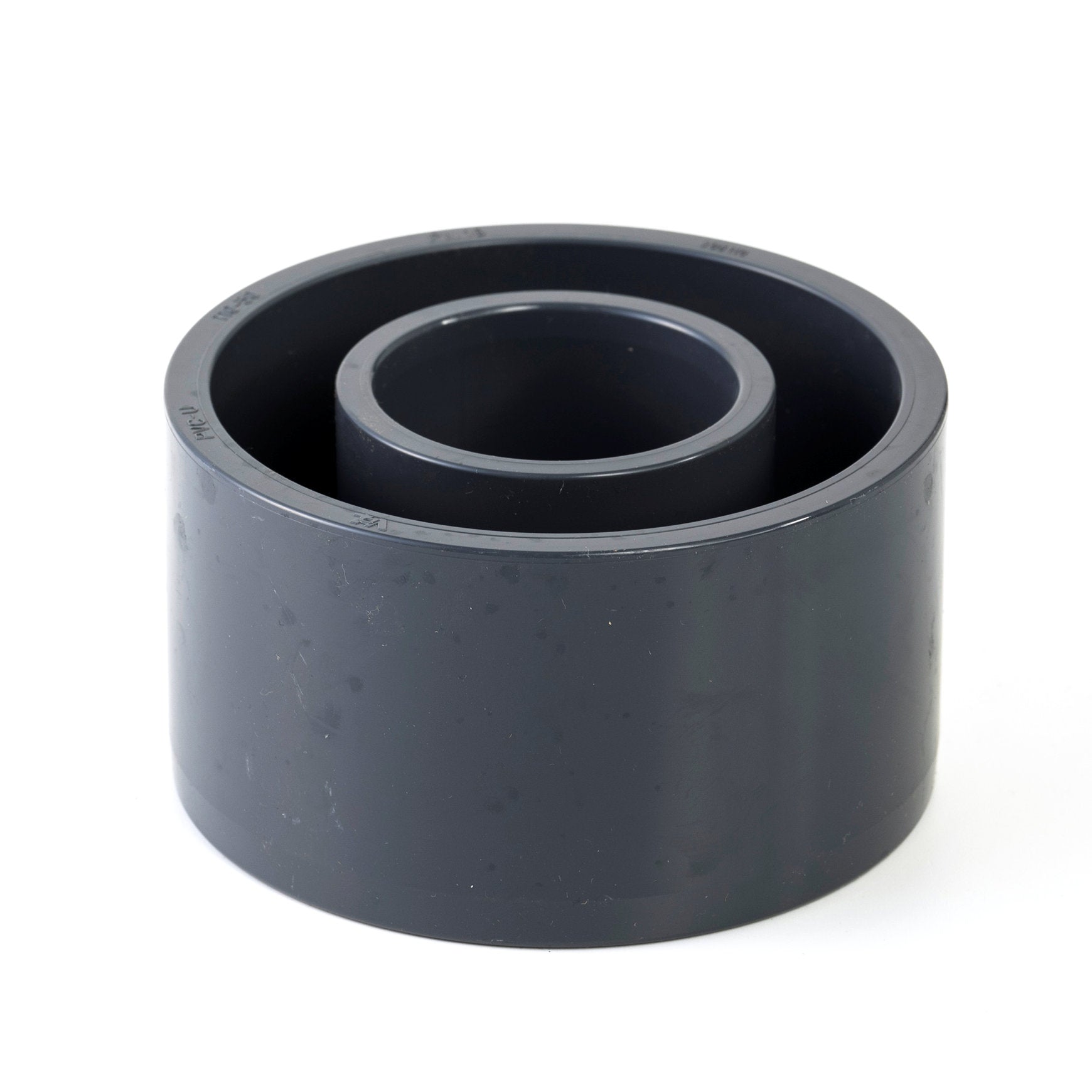

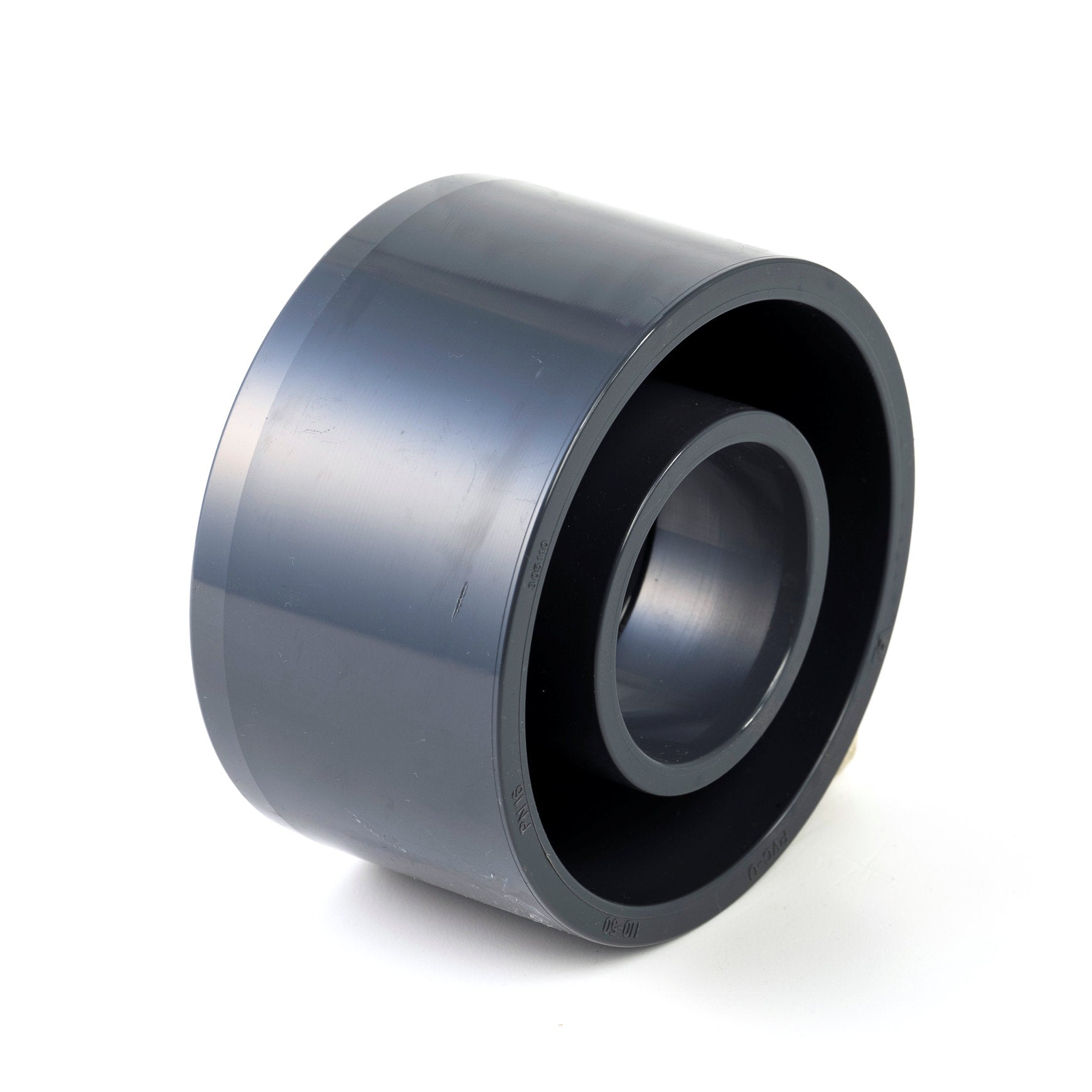

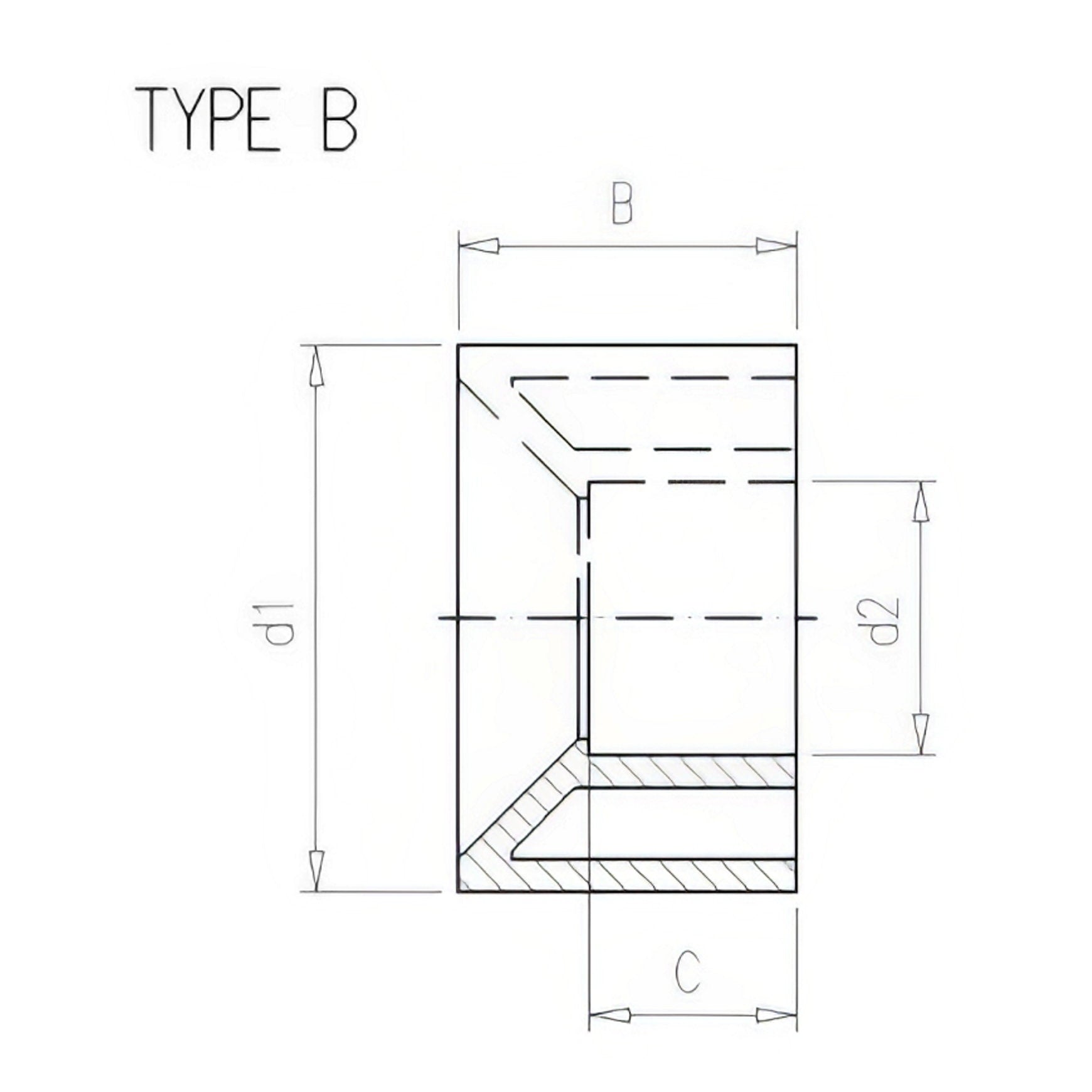

VDL reducing ring, type B, PVC-U, glue spigot x glue socket, 16 bar, 110 x 63 mm
VDL reducing ring, type B, PVC-U, glue spigot x glue socket, 16 bar, 110 x 63 mm
SKU:715985
Regular price
$14.40
Regular price
Sale price
$14.40
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
110 mm, 63 mm
Connection type
internal x external glue
Diameter
110 mm, 63 mm
Eancode
8717284019919
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Description
For a smaller connection, a PVC reducing ring can be glued to a PVC pipe. The maximum working pressure of this reducing ring is 16 bar. The diameter is 110 mm, glue spigot, and 63 mm glue socket.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
