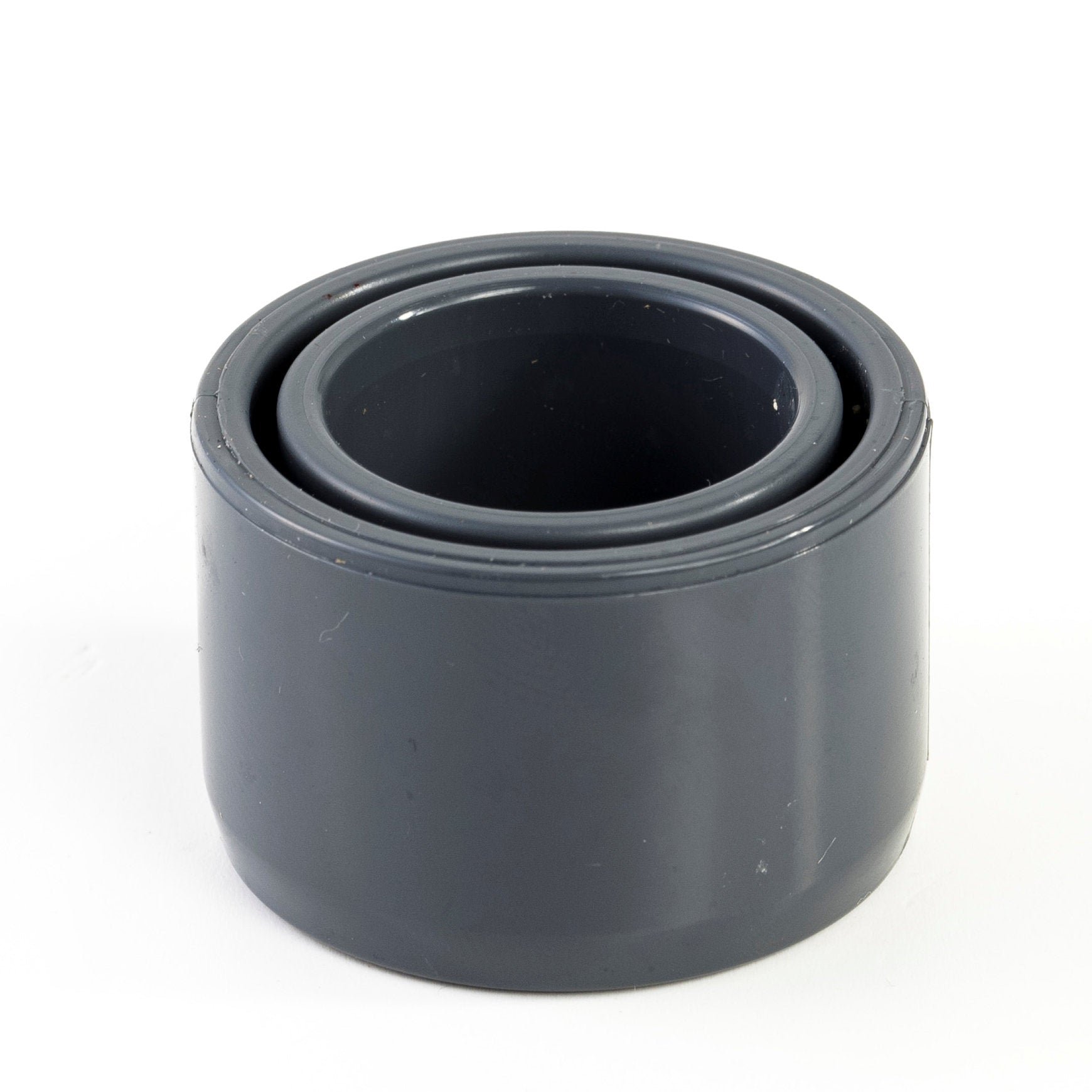

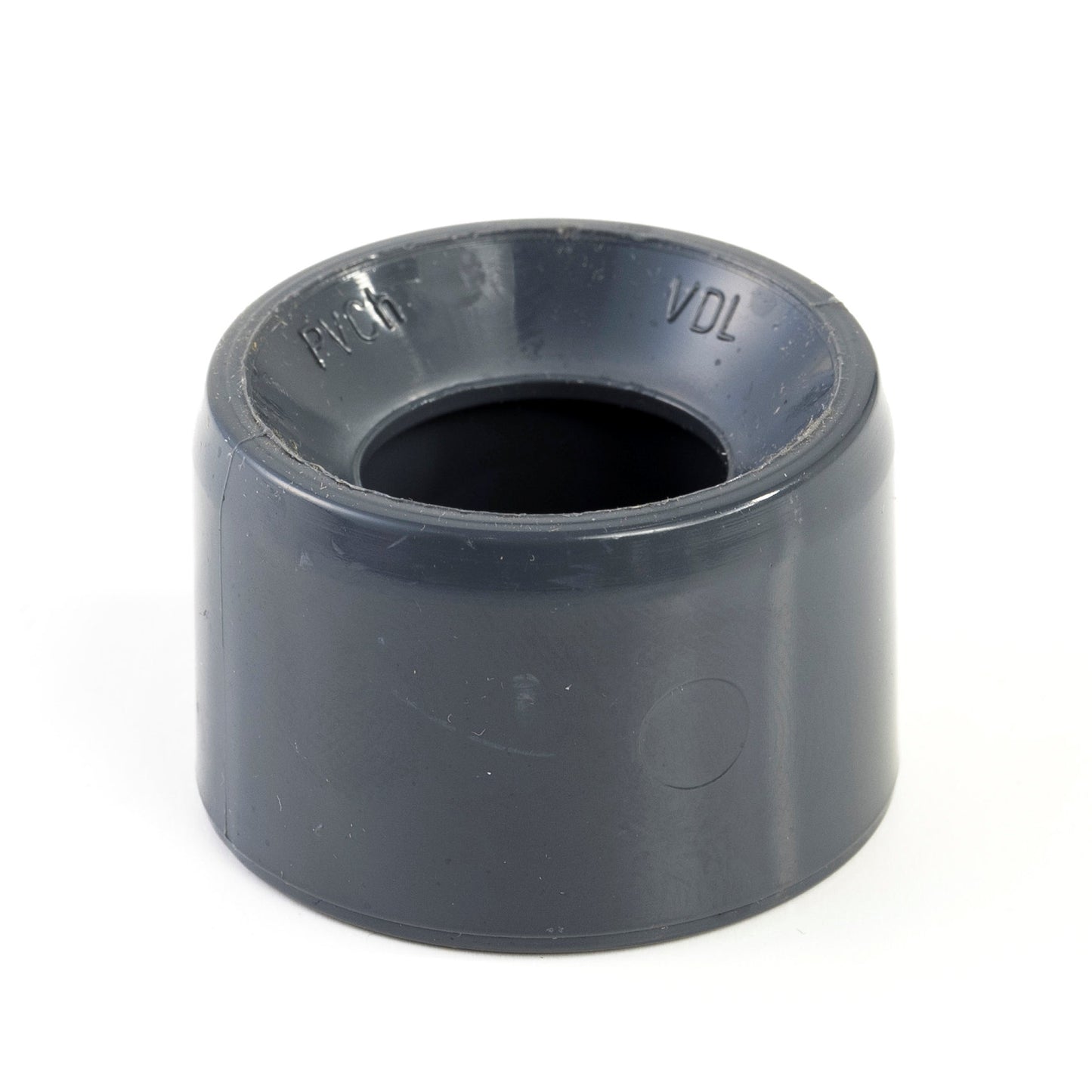

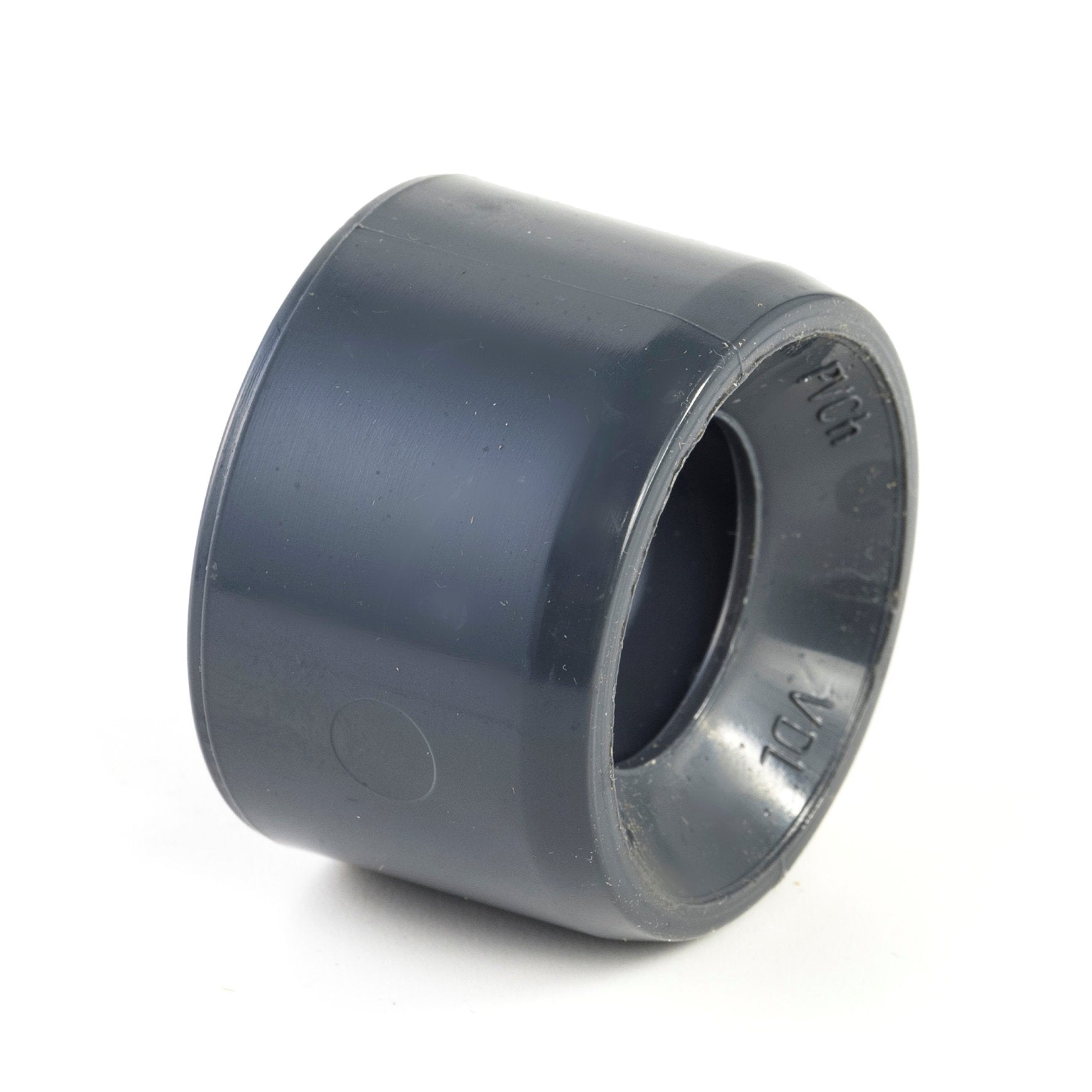

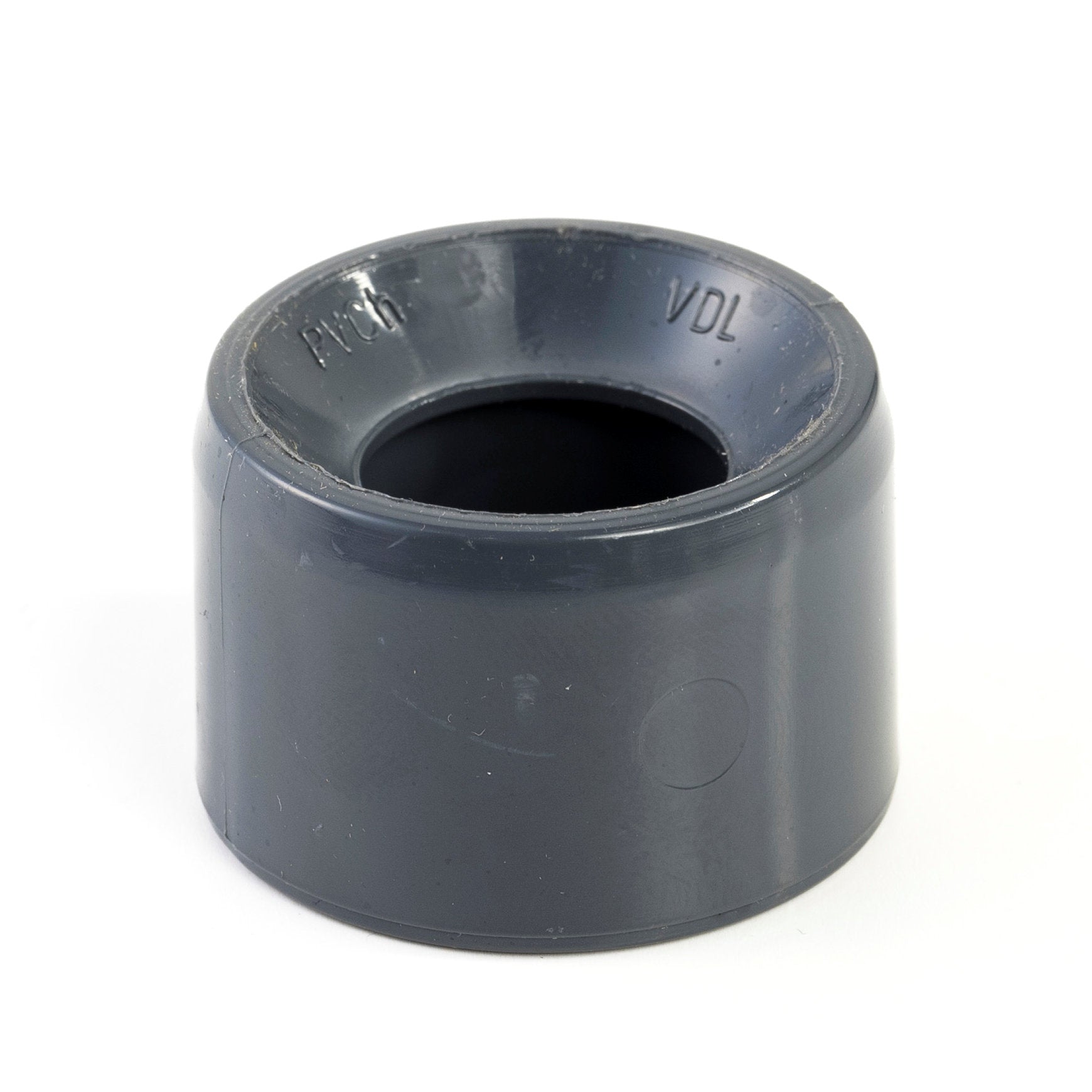

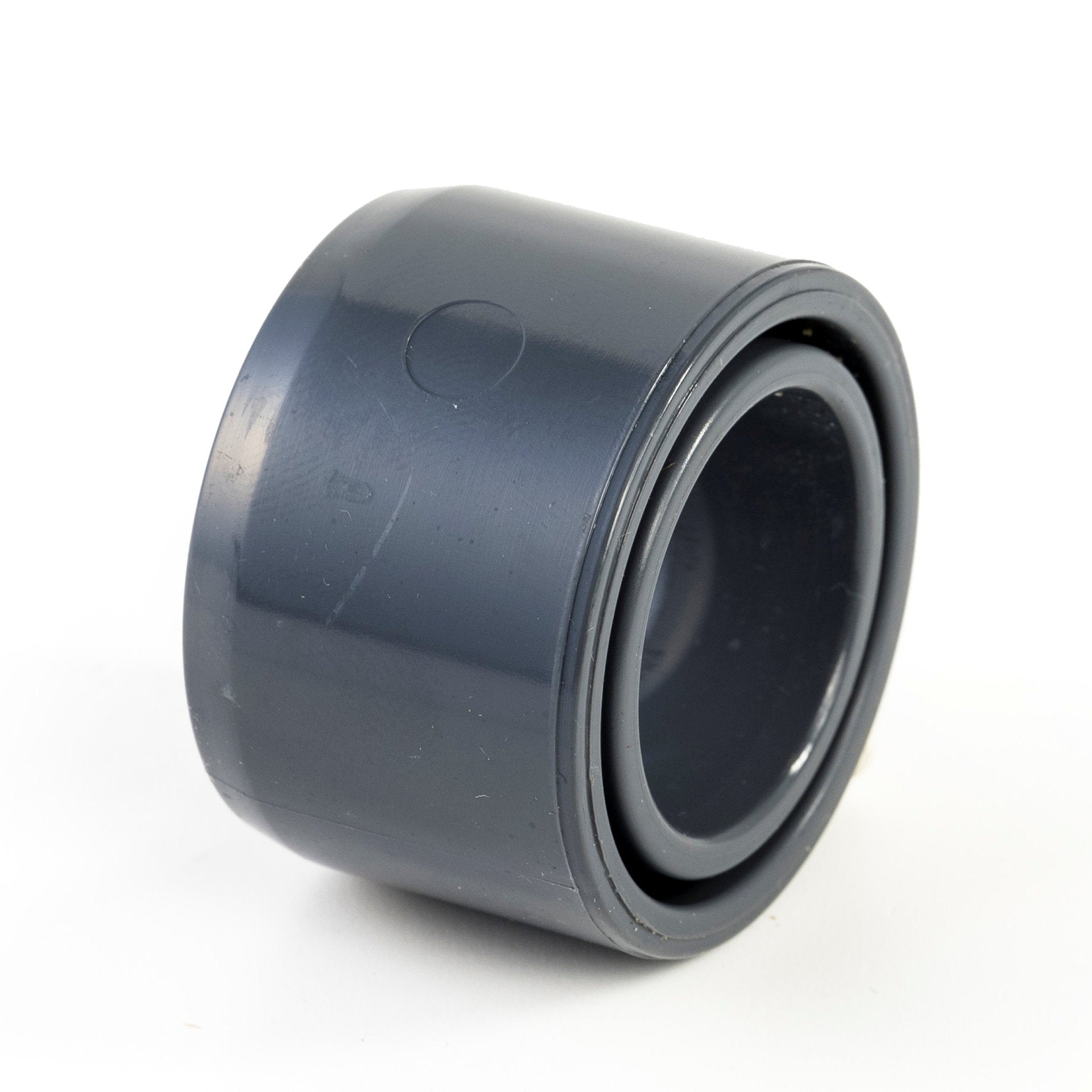

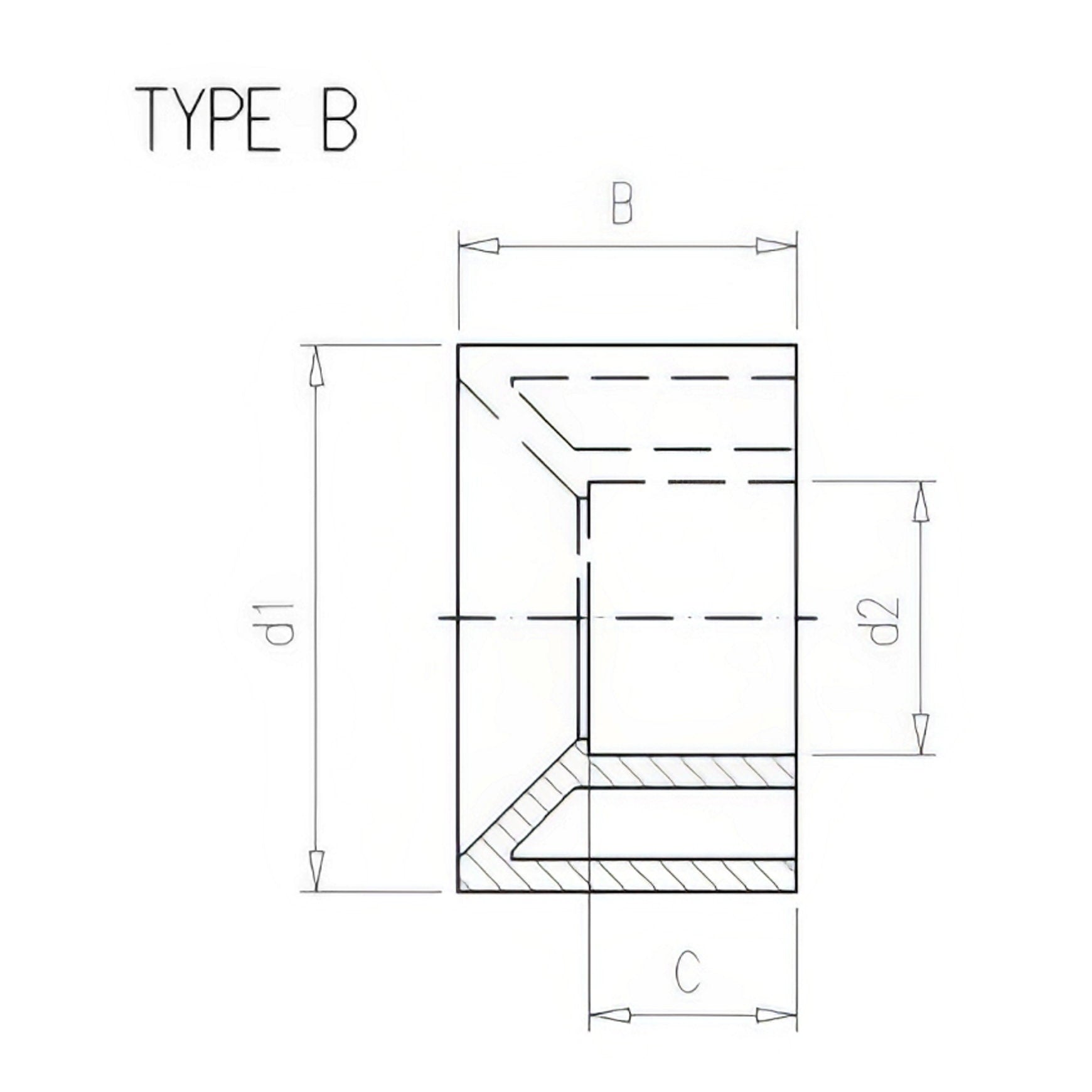

VDL reducing ring, type B, PVC-U, glue spigot x glue socket, 16 bar, 63 x 32 mm
VDL reducing ring, type B, PVC-U, glue spigot x glue socket, 16 bar, 63 x 32 mm
SKU:715975
Regular price
$3.02
Regular price
Sale price
$3.02
Unit price
per
Delivery on request
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
32 mm, 63 mm
Connection type
internal x external glue
Diameter
32 mm, 63 mm
Eancode
8717284030471
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Description
For a smaller connection, a PVC reducing ring can be glued to a PVC pipe. The maximum working pressure of this reducing ring is 16 bar. The diameter is 63 mm, glue spigot, and 32 mm glue socket.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
