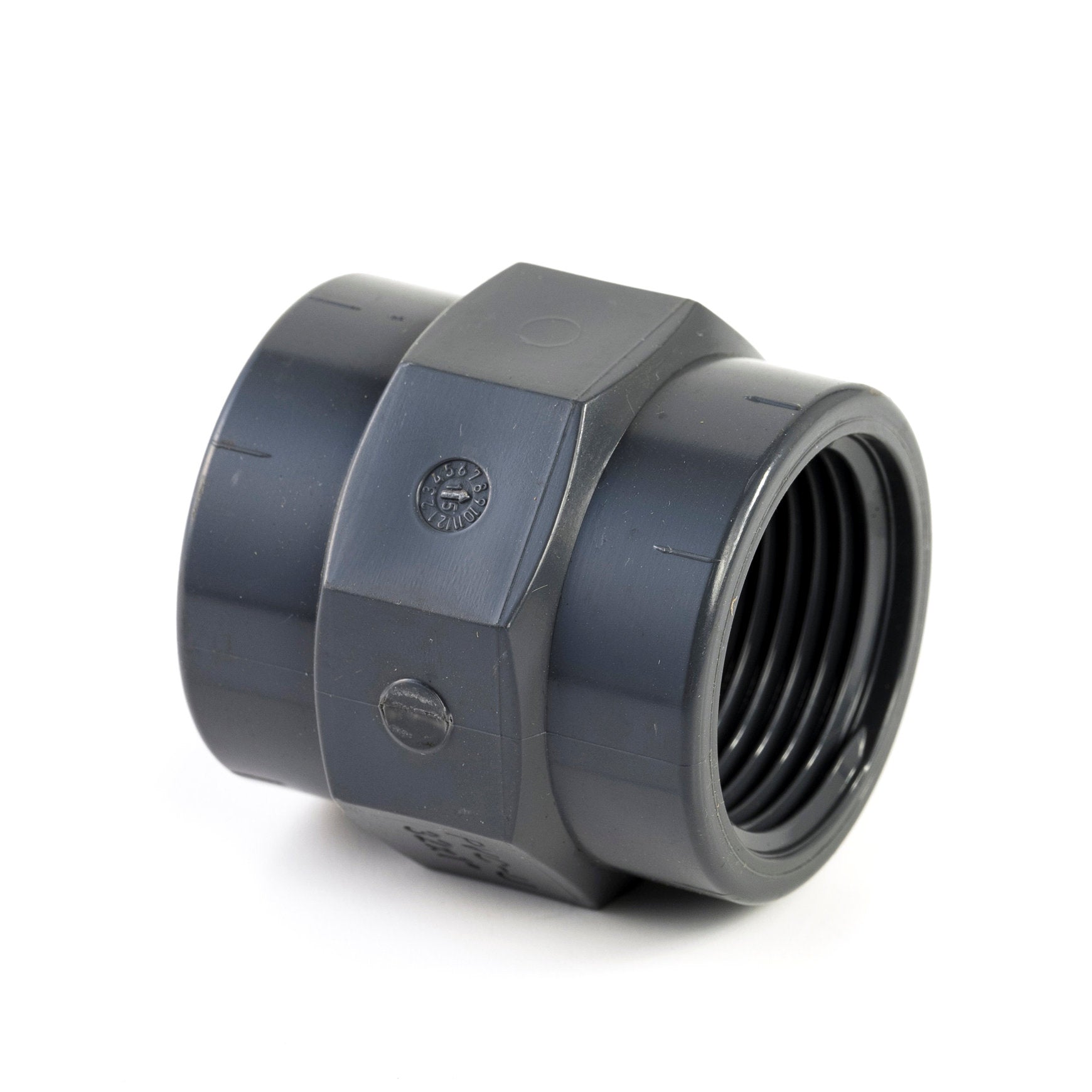

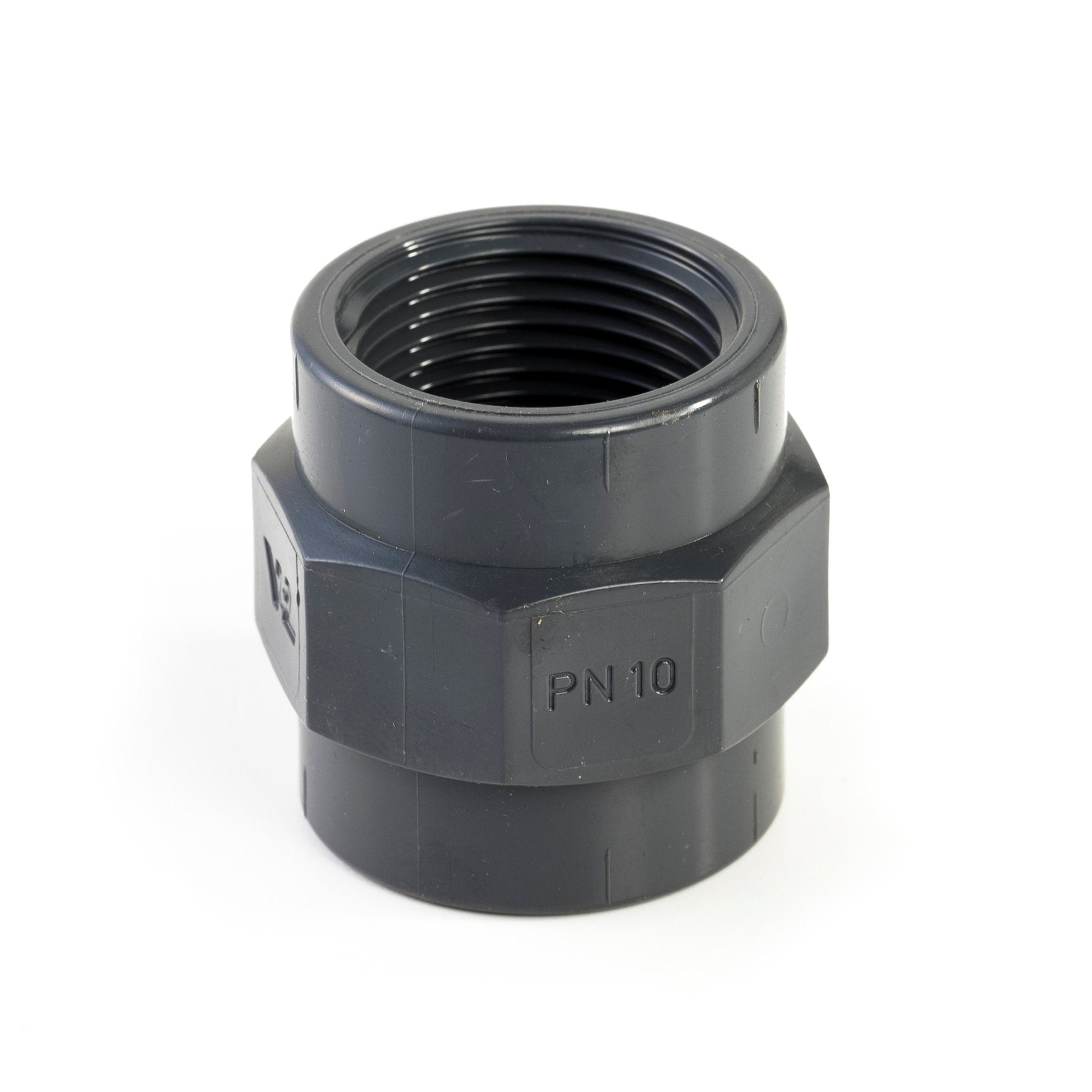

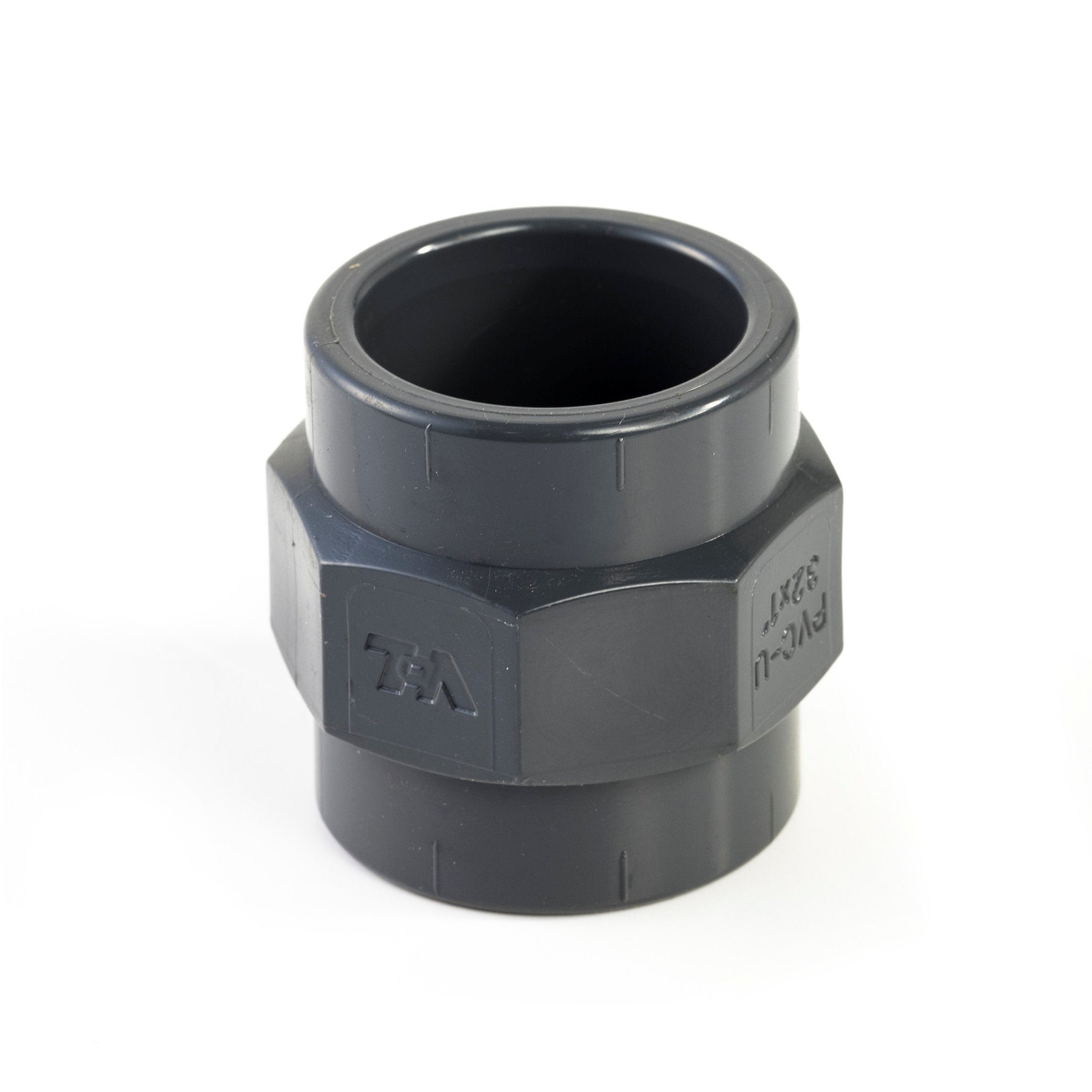

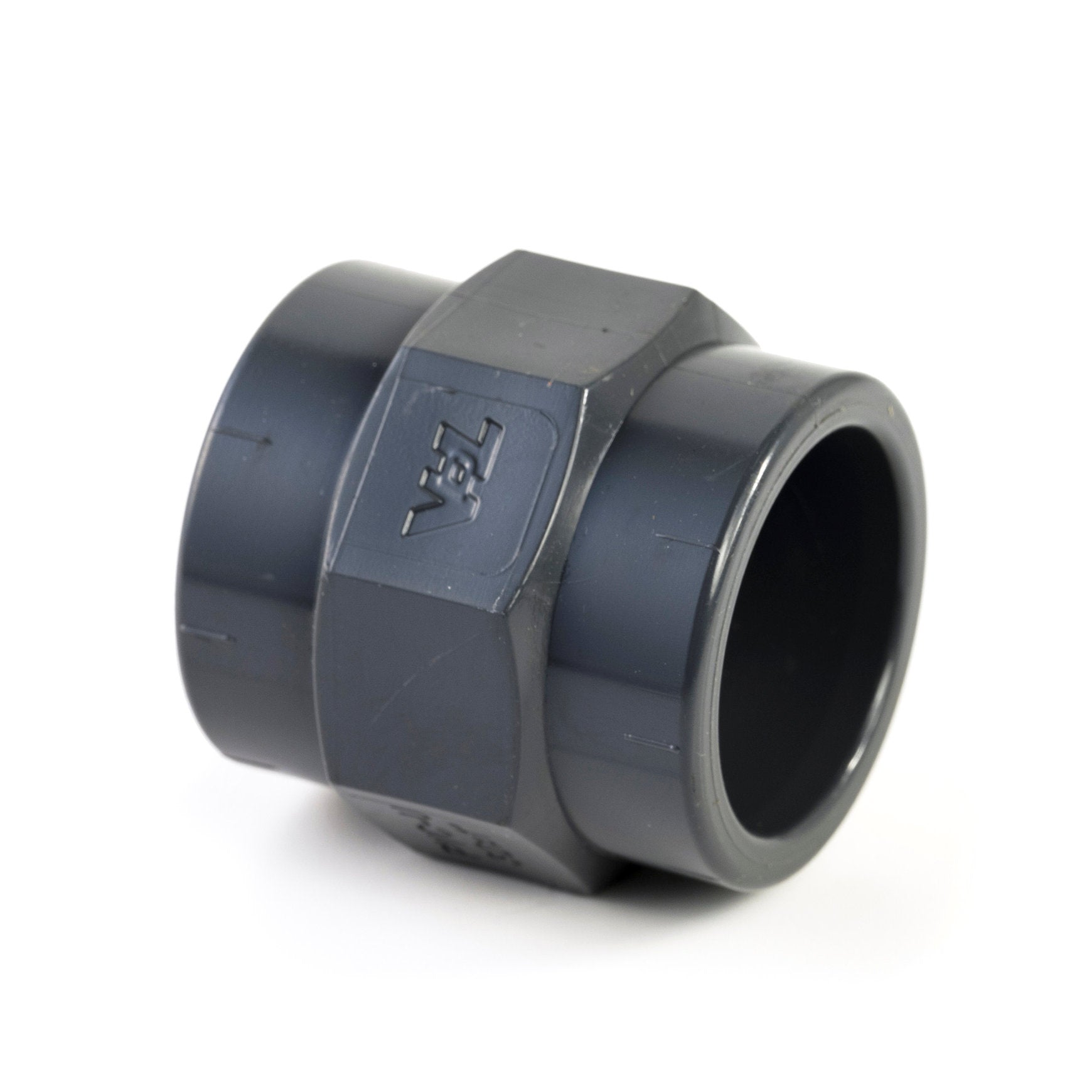

VDL threaded adaptor, type A, PVC-U, glue socket x female thread, 16 bar, 50 mm x 1¼"
VDL threaded adaptor, type A, PVC-U, glue socket x female thread, 16 bar, 50 mm x 1¼"
SKU:716203
Regular price
$6.63
Regular price
Sale price
$6.63
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
1¼", 50 mm
Connection type
female thread x internal glue
Diameter
1¼", 50 mm
Eancode
8717284031096
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Description
This threaded adaptor allows you to connect a pipe to an accessory. The nut allows easy tightening of this connection. The use of Teflon tape or sealing cord is recommended to ensure a watertight female thread connection.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
